BAB134000-290Bluetooth Transmitter

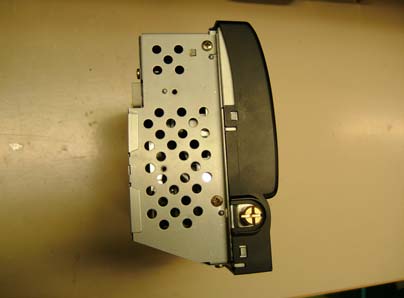

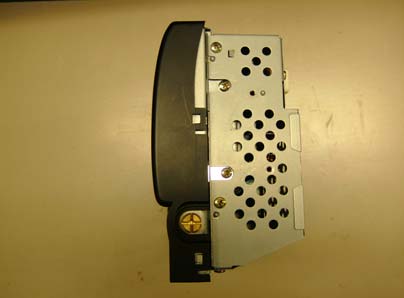

Photo Model: 134000-290 FUJITSU TEN LIMITED FCC ID: BAB134000-290 BACK VIEW RIGHT VIEW LEFT VIEW FRONT VIEW BOTTOM VIEW TOP VIEW Bluetooth PCB BLUETOOTH POINT - 1 -

Photo Model: 134000-290 FUJITSU TEN LIMITED FCC ID: BAB134000-290 Bluetooth PCB Bluetooth PCB - 2 -

Applicant: Fujitsu Ten Limited Type of Equipmen t: Display Model No. : 134000-290 FCC ID: BAB134000-290 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “134000-290“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0W/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.56 mW (Maximum peak output power) G = 0.45 Numerical Antenna gain; equal to-3.5dBi r =20.0 cm For: 134000-290 S = 0.00005mW/cm 2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: int +81 596 24 8116 Facsimile: int +81 596 24 8124Page 1 RF Exposure Statement No. : 24FE0196-HO-2

Test report No. : 24FE0196-HO-2 Page : 2 of 34 Issued date : March 22, 2004 Revised : April 1, 2004 FCC ID : BAB134000-290 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information ..................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................. 3 SECTION 3: Test specification, procedures & results.................................................................................. 4 SECTION 4: Operation of E.U.T. during testing .......................................................................................... 6 SECTION 5: Carrier Frequency Separation, Section 15.247(a)(1) ............................................................. 7 SECTION 6: 20dB Bandwidth, Section 15.247(a)(1) .................................................................................... 7 SECTION 7: Number of Hopping Frequency, Section 15.247(a)(1)(iii)...................................................... 7 SECTION 8: Dwell time, Section 15.247(a)(1)(iii)......................................................................................... 7 SECTION 9: Maximum Peak Output Power, Section 15.247(b)(1) ............................................................ 7 SECTION 10: Band Edge Compliance, Section 15.247(c) ............................................................................8 SECTION 11: Spurious Emission, Section 15.247(c) .................................................................................... 8 APPENDIX 1: Photographs of test setup ....................................................................................................... 9 Spurious Emission (Radiated) ......................................................................................................................... 9 Tested EUT position ....................................................................................................................................... 10 APPENDIX 2: Test instruments ................................................................................................................... 11 APPENDIX 3: Data of EMI test.................................................................................................................... 12 Carrier Frequency Separation ...................................................................................................................... 12 20dB Bandwidth ............................................................................................................................................. 14 Number of Hopping Frequency .................................................................................................................... 16 Dwell time........................................................................................................................................................ 18 Maximum Peak Output Power...................................................................................................................... 21 Band Edge compliance ................................................................................................................................... 23 Spurious Emission(Radiated) ........................................................................................................................ 24 Spurious Emission (Conducted) .................................................................................................................... 30 Test report No. : 24FE0196-HO-2 Page : 3 of 34 Issued date : March 22, 2004 Revised : April 1, 2004 FCC ID : BAB134000-290 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Fujitsu Ten Limited Address : 2-28 Gosho-Dori 1-chome, Hyogo-ku, Kobe 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Naoto Nishimura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Display Model No. : 134000-290 Serial No. : 4(for Radiated Spurious Emissions) 7(except for Radiated Spurious Emissions) Rating : DC13.2V/3A and below Country of Manufacture : JAPAN Receipt Date of Sample : March 10, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Fujitsu Ten Limited, Model No: 134000-290 (referred to as the EUT in this report) is the Display. EUT is installed in the vehicles on the production line. EUT is the display with Bluetooth module and can be communicated with other Bluetooth devices such as a cellular phone. Other Clock Frequencies : 8.3076MHz, 12.55MHz (Microprocessor)/19.17MHz (Echo canceller) 50kHz, 196.1kHz, 6.29MHz (other communication clocks) 86.5kHz (D-D converter)/55kHz (Inverter) 150Hz (Back light duty)/15.734kHz (Synchronous separation) 500kHz, 8kHz, 115.2kHz (Bluetooth) 27MHz, 18.432kHz (Drawing dot clock) Equipment Type : Transceiver Emission designation : F1D Frequency of operation : 2402-2480MHz Type of modulation : FSK, FHSS Bandwidth & Channel spacing : 79MHz & 1MHz Transmit power or power range : 2.5mW and below Antenna Type : Chip Multilayer Antenna Antenna Gain : -3.5dBi Antenna Connector Type : 2DA923G0520D-215 Operating voltage (inner) : DC+3- +3.5V Operating Temperature : -30 deg. C. - +85 deg. C. FCC 15.31 (e) This EUT provides stable voltage(DC3-3.5V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mou…

Text truncated - open the document above for the full version.

Test report No. : 24FE0196-HO-2 Page : 9 of 33 Issued date : March 22, 2004 FCC ID : BAB134000-290 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear Test report No. : 24FE0196-HO-2 Page : 10 of 34 Issued date : March 22, 2004 Revised : April 1, 2004 FCC ID : BAB134000-290 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Tested EUT position Worst Case: Angle A (Normal installation) Angle B Angle C
