BABTN0040BCar Audio

Index 1-Specification of the EUT 2-Button Function Spec 3-Radio operation procedure 4-Operating manual (Bluetooth/Handsfree) 5-FCC Operating manual Requirement 6P Model name Model No Car Audio TN0040B Page 2P 3P 4P 5P TN0040B Operation Manual (1/6) LOAD IMPEDANCE4Ω 1-Specification of the EUT RATED VOLTAGE BABTN0040B - Vehicle instllation 12.0V (10.5～16.0V) - ground FCC ID IC Number Purpose of the equipment Equipment name Car Audio Model name TN0040B Brand ISUZU Function Broadcast radio receiver : AM/FM/RDS/DAB Bluetooth : Hands Free and Audio WiFi : For Wireless Carplay/AndroidAuto GNSS : GPS, Galileo, GLONASS, QZSS BACK UP CURRENT1mA or less RATED CURRENT 1.98Ａ or less (Vcc=13.2V, 0.5W output) AM TUNING RANGE 522 - 1710 kHz (9kHz step) FM TUNING RANGE 87.5 - 108 MHz (100kHz step) DAB TUNING RANGE 174.928 - 239.200 MHz Rating of usage environment - 30 to +65 °C (Perfomance assured temperature range) Hardware version - Size of Equipmet D 178.15mm×W 253.89mm×H 174.09mm Weghit of Equipmet 2012g Software version - (2/6) ■AUDIO controls ③HOME Transition to home screen ⑤VOLUME/POWER Push knob: Audio ON/OFF Rotate knob to the right: Adjust volume by +1 Rotate knob to the left: Adjust volume by -1 ④BACK Transition to previous screen 2-Button Function Spec Button No.Button Name Operation ② TALK Short Push: Transition to Dial screen Long Push: Transition to Bluetooth pairing screen ① TUNE/MODE Push knob: Transition to Mode selection screen Rotate knob: Jump between preset channels 5 4 3 2 1 (3/6) 【操作手順】[Operation procedure] ①起動 (ACC-ON) ACC-ON後、ISUZU画面が表示された事を確認。 After the ACC-ON, confirm that Isuzu screen is displayed. ②数秒後に"CAUTION"画面に遷移します。 The screen is changed to "CAUTION" screen after a few seconds. *初回のACC-ON時はやや時間を要します。 Note: It takes a little longer for the first time of ACC-ON. ③数秒後に”Continue”ボタンを押して、MENU画面に遷移させます。 Press the "Continue" button on the face panel after a few seconds to move MENU screen. Menu Screen Display ④POWERボタンを押す。 画面内のラジオモードウィンドウを押すと、"FM1 "画面に遷移します。 Press the POWER button. When the Radio Mode Window on the screen is pressed,"FM1" screen is displayed. ⑤下記画面に遷移したら、”<”釦 若しくは、”>”釦を押下してください。 これで、SEEKが始まります。 Confirm that the screen is changed as below, Please push down the ”<”button or ”>”button. This will start to SEEK. ※AM/DABモードも同様の手順です。 ※Same as AM/DAB mode. 3-Radio operation procedure Press anywhere in this area Push this button Push this button (4/6) 【操作手順】[Operation procedure] ①起動 (ACC-ON) ⑥画面の”Add Device”釦を押下してください。 ACC-ON後、ISUZU画が表示された事を確認。 Please press the ”Add Device” button of the screen After the ACC-ON, confirm that Isuzu screen is displayed. ②数秒後に"CAUTION"画面に遷移します。 The screen is changed to "CAUTION" screen after a few seconds. ⑦画面の”Search Device”釦を押下してください。 *初回のACC-ON時はやや時間を要します。Please press the ”Search Device” button of the screen Note: It takes a little longer for the first time of ACC-ON. ③数秒後に”Continue”ボタンを押して、MENU画面に遷移させます。⑧下記画面に遷移したらBluetooth端末（iPhone、 iPodなど)をペアリング Press the "Continue" button on the face panel after a few seconds モードに設定してください｡ to move MENU screen. Confirm if screen is changed as below, Please set iPhone or iPod in pairing mode. Menu Screen Display ④”Setting”ボタンを押して、SETTINGS画面に遷移させます。 Please press the "Setting" button on the face panel to move to Settings screen ※Displays when you have more than one pairing equipment ※複数のペアリング機器がある場合の表示 ⑨接続したiPhone又はiPodを選択します。 Select the iPhone or iPod to connect. ⑤”Settings”画面に遷移することを確認し、画面上の"Bluetooth"釦を選択。 Confirm if ”Settings” screen is displayed, select the ”Bluetooth” button on the display. ※ 電話機の表示にしたがって操作してください ※ Operate the phone after the message on the screen ⑩完了すれば"Connection Completed"の画面になります｡ ”Connection Completed” is displayed if completed. 4-Operating manual (Bluetooth/Handsfree) Push this button Push this button Push this button Push this button Push this button (5/6) CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body. Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 5-FCC Operating manual Requirement (6/6)

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Date: May 22, 2023 Certification Attestation Statements Attn: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA To Whom It May Concern: 47 CFR section 2.911(d)(5)(i) Attestation Statement DENSO TEN Limited certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. 47 CFR section 2.911(d)(5)(ii) Attestation Statement DENSO TEN Limited (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☒ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited Tel # 81 78-682-2159 FCC ID: BABTN0040B 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Letter of Authorization Date: May 22, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: DENSO TEN Limited FCC ID: BABTN0040B To whom it may concern: We, the undersigned, hereby authorize Yukari Ito of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

DENSO TEN Limited 2- 28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Request for Confidentiality Date: May 22, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : DENSO TEN Limited FCC ID : BABTN0040B To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theo ry of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Request for Short-Term Confidentiality Date: May 22, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : BABTN0040B Applicant : DENSO TEN Limited To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization based on the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

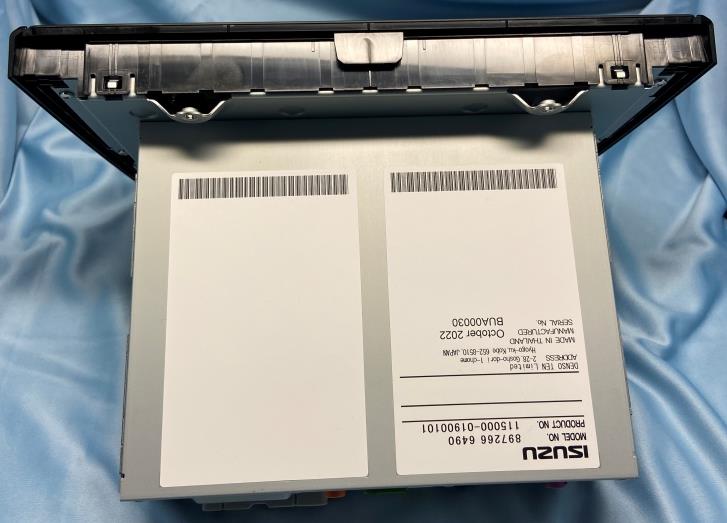

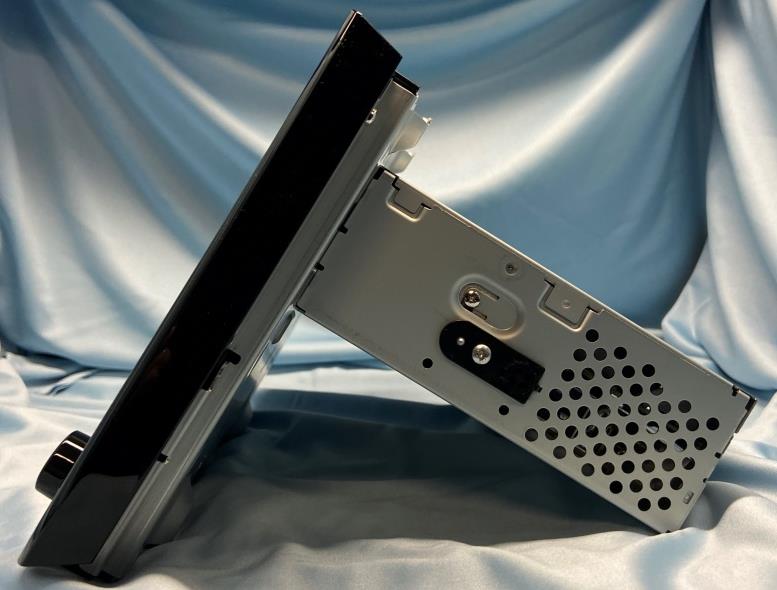

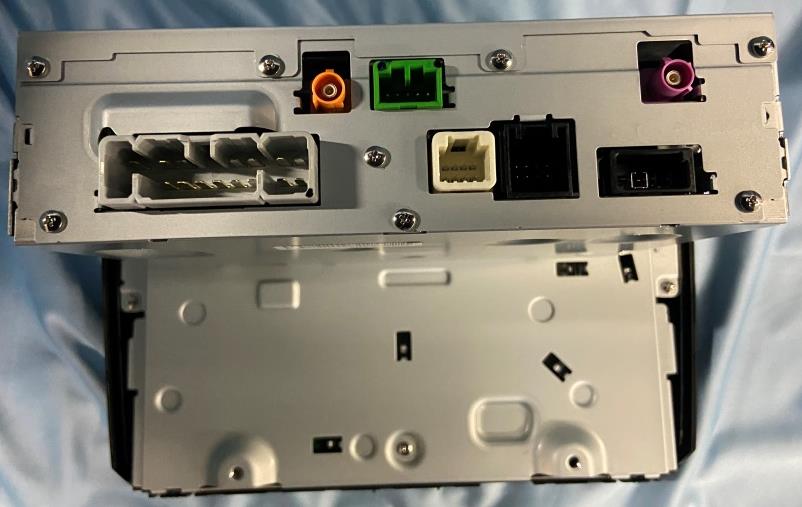

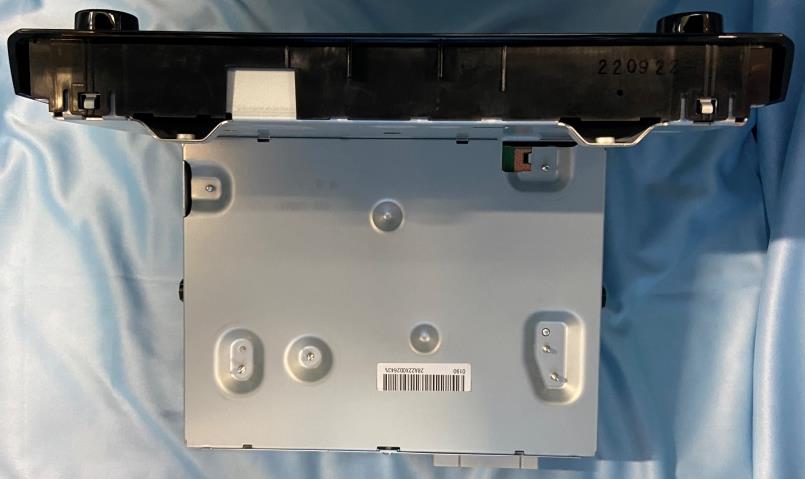

【TN0040B】 External Photos ■Front■Rear ■Left■Right ■Top■Bottom DENSO TEN CONFIDENTIAL

【TN0040B】 Internal Photos (BT/WiFi module) ■BT/WiFi Module TopTop (Without shield)Bottom ■CPU Board Parts sideSolder Side Antenna connectersBT/WiFi Module ■Arrangement within the product Front view without display panel unit CPU Board BT AntennaWiFi Antenna DENSO TEN CONFIDENTIAL

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com July 19, 2023 FCC ID: BABTN0040B To whom it may concern, We, UL Japan, Inc, hereby declare that Car Audio, model: TN0040B(FCC ID: BABTN0040B) of DENSO TEN Limited is exempt from RF exposure SAR evaluation because the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(i)(B). This method is used at separation distances d (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive) for single RF sources. P th is given by: 푃 ௧௛ ሺ mW ሻ ൌ൜ 퐸푅푃 ଶ଴ ୡ୫ ሺ푑 / 20 cmሻ ௫ 퐸푅푃 ଶ଴ ୡ୫ 푑൑20 cm 20 cm ൏ 푑 ൑ 40 cm Where 푥ൌെlog ଵ଴ ቆ 60 퐸푅푃 ଶ଴ ୡ୫ ඥ 푓 ቇand 푓 is in GHz 퐸푅푃 ଶ଴ ୡ୫ ሺ mW ሻ ൌቊ 2040푓 3060 0.3 GHz൑푓൏1.5 GHz 1.5 GHz൑푓൑6 GHz When the minimum separation distance is shorter than 0.5 cm, 0.5 cm is applied. The SAR evaluation exemption threshold is calculated as below. [WLAN 2.4 GHz band part] Pth (mW) 3060(dBm)16.00 f (GHz) 2.462(mW)39.81 ERP 20 cm (mW) 30600.19 d (cm) 20.016.19 (dBm)14.05 (mW)25.41 The Maximum burst-averaged power or ERP whichever greater is 39.9 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com [Bluetooth (BR / EDR) part] Pth (mW) 3060(dBm)10.50 f (GHz) 2.48(mW)11.22 ERP 20 cm (mW) 3060-1.78 d (cm) 20.08.72 (dBm)6.58 (mW)4.55 The Maximum time-averaged power or ERP whichever greater is 11.3 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP [WLAN 5 GHz band part] Pth (mW) 3060(dBm)9.50 f (GHz) 5.805(mW)8.91 ERP 20 cm (mW) 30603.34 d (cm) 20.012.84 (dBm)10.70 (mW)11.75 The Maximum burst-averaged power or ERP whichever greater is 11.8 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP Transmitters used in mobile exposure conditions for simultaneous transmission operations according to KDB447498 D04. Value is calculated using the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(ii)(B). ෎ 푃 ௜ 푃 ௧௛,௜ ௔ ௜ୀଵ ൅ ෎ 퐸푅푃 ௝ 퐸푅푃 ௧௛,௝ ௕ ௝ୀଵ ൅ ෎ 퐸푣푎푙푢푎푡푒푑 ௞ 퐸푥푝표푠푢푟푒 퐿푖푚푖푡 ௞ ௔ ௞ୀଵ ൑1 [WLAN 2.4GHz band part and Bluetooth (BR / EDR) part] 0.0399 / 3060+0.0113 / 3060=0.00001304 +0.00000369 = 0.00001673 <1 [WLAN 5GHz band part and Bluetooth (BR / EDR) part] 0.0118 / 3060+0.0113 / 3060=0.00000386 +0.00000369 = 0.00000755 <1 Thank you for your attention to this matter. Ryota Yamanaka Engineer

1. Specification Antenna Type：Sheet Metal Antenna Part No. Bluetooth：ANT2507-A3.0-W/U-115-A Wi-Fi ：ANT2313-A3.0-W/U-230-W Antenna Gain(Peak) ： Bluetooth -1.78dBi Wi-Fi 2.4GHz 0.19dBi Wi-Fi 5GHz 3.06dBi (W52) 3.34dBi (W58) Frequency Band：Bluetooth 2400 - 2483.5 MHz Wi-Fi 2.4GHz 2400 - 2483.5 MHz Wi-Fi 5GHz 5170 - 5250 MHz (W52) 5735 - 5835 MHz (W58) 2. Measurement content Measurement condition ・Measurement ANT：ETS-LINDGREN 3115 (1-18GHz) ・Reference ANT：ETS-LINDGREN 3160-03 (1.7-2.6GHz) / 3160-05 (3.95-5.85GHz) ・Measuring instrument：P9372A (Keysight network analyzer) ・Measured distance：3ｍ (1.5m high) ・Range of measurement：360 degree / 5 degree step ・Measurement layout：The measurement environment is measured with the following layout. Measurement direction XY planeZX plane ・Test dates：2022/7/12 ・Names of test personnel：Shinpei Matagawa (NISSEI ELECTRIC CO,.LTD.) ・Names of commercial test software being used ：Antenna gain measurement system(NISSEI ELECTRONICS CO,.LTD.) 【TN0040B】 Bluetooth/Wi-Fi Antenna See fig4 on another Document. (【TN0040B】Antenna_Photo) See fig3 on another Document. (【TN0040B】Antenna_Photo) See fig1,2 on another Document. (【TN0040B】Antenna_Photo) DENSO TEN CONFIDENTIAL 3.Antenna gain 3-1. Antenna-Bluetooth (2.4GHz-Band) Ave Max Peak 3-2. Antenna-WiFi (2.4GHz-Band) Ave Max Peak -5.07 dBi 0.19 dBi -3.36-12.827.75 VER.-3.18-7.32 -4.14-17.4912.42 VER.0.19-6.59 2480 XY HOR.-1.16-7.80 0.39 ZX HOR.-1.59-5.60 0.46 -4.51-12.167.10 VER.-4.10-8.88 -6.44-17.3512.28 VER.-2.92-9.04 2441 XY HOR.-3.97-9.90 0.23 ZX HOR.-2.56-6.48 0.35 ZX HOR.-3.89-7.42 DIP-AVE [dB] 2402 XY HOR.-5.22-11.63 0.16-8.09-20.0314.96 0.29-5.44-13.728.65 VER.-4.72-9.81 VER.-4.69-10.62 -1.78 dBi frequency [MHz] Plane plane of polarizatio n 360° Peak [dBi] 360° Average [dBi] Composite true value Composite [dBi] DIP [dBi] -12.689.25 VER.-2.56-6.64 -3.43 dBi ZX HOR.-2.12-6.55 0.44-3.58 0.40-4.01-9.425.98 VER.-2.94-5.96 -9.916.47 VER.-1.99-5.58 0.53-2.77 2480 XY HOR.-3.90-8.43 ZX HOR.-2.11-5.99 2441 XY0.42-3.79-8.154.72 VER.-2.82-6.02 -9.355.91 VER.-2.36-5.31 HOR.-2.79-7.74 DIP-AVE [dB] 2402 XY HOR.-3.28-7.64 0.40-3.93-8.294.86 VER.-3.55-6.34 ZX HOR.-1.78-6.22 0.53-2.73 frequency [MHz] Plane plane of polarizatio n 360° Peak [dBi] 360° Average [dBi] Composite true value Composite [dBi] DIP [dBi] DENSO TEN CONFIDENTIAL 3-3. Antenna-WiFi (5GHz-W52) Ave Max Peak 3-4. Antenna-WiFi (5GHz-W58) Ave Max Peak -2.66 dBi 3.34 dBi 0.51-2.96-18.2215.55 VER.2.09-4.79 -3.33-19.0716.41 VER.-5.91 -10.91 5835 XY HOR.2.27-4.16 0.46 XZ HOR.-2.46-7.58 -2.39-20.7018.03 VER.3.05-4.08 -2.58-17.7115.04 VER.-5.52-10.58 5785 XY HOR.3.34-3.32 0.55 XZ HOR.-1.80-7.31 0.58 -8.35 DIP-AVE [dB] 5735 XY HOR.3.02-2.98 0.58-2.33-18.2415.58 0.57-2.47-17.9215.26 VER.3.11-3.77 VER.-5.82-10.94 frequency [MHz] Plane plane of polarizatio n 360° Peak [dBi] 360° Average [dBi] Composite true value Composite [dBi] DIP [dBi] XZ HOR.-2.39 -16.5813.43 DIP-AVE [dB] -3.16 dBi ZX HOR.-7.25-10.86 0.50-3.05 3.06 dBi 0.49-3.12-16.5313.38 VER.-5.27-10.97 -16.4113.25 VER.1.75-3.60 0.52-2.83 5250 XY HOR.3.06-3.90 ZX HOR.-6.39-10.75 5210 XY VER.1.77-3.84 0.48-3.21-15.3412.18 VER.-6.45-11.46 -16.8713.72 VER.1.26-3.85 HOR.2.73-3.92 5170 XY HOR.2.57-4.30 0.44-3.61-18.1815.02 VER.-6.38-11.94 ZX HOR.-7.30-11.35 0.49-3.14 frequency [MHz] Plane plane of polarizatio n 360° Peak [dBi] 360° Average [dBi] Composite true value Composite [dBi] DIP [dBi] DENSO TEN CONFIDENTIAL

Test Report No. : 14483770H-A-R2 Page : 1 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No.: 14483770H-A-R2 Customer DENSO TEN Limited Description of EUT Car Audio Model Number of EUT TN0040B FCC ID BABTN0040B Test Regulation FCC Part 15 Subpart C Test Result Complied (Refer to SECTION 3) Issue Date July 18, 2023 Remarks Wireless LAN (2.4 GHz band) part Representative Test Engineer Approved By Takumi Nishida Engineer Ryota Yamanaka Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test Report No. : 14483770H-A-R2 Page : 2 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14483770H-A This report is a revised version of 14483770H-A-R1. 14483770H-A-R1 is replaced with this repor t. Revision Test Report No. Date Page Revised Contents - (Original) 14483770H-A June 14, 2023 - 1 14483770H-A-R1 July 4, 2023 SECTION 2.2: Radio Specification from 4.40 dBi to 3.06 dBi (U-NII-1) 3.34 dBi (U-NII-3) 1 14483770H-A-R1 July 4, 2023 SECTION 2.2 Deletion of sentence about simultaneous transmission. 1 14483770H-A-R1 July 4, 2023 SECTION 4.2 Correction of Shield of Cable number 9 from Unshielded to Shielde d 1 14483770H-A-R1 July 4, 2023 Data of Radiated Spurious Emission (Tx 11n-20 2412 MHz) Exchanging of Horizontal and Vertical values 1 14483770H-A-R1 July 4, 2023 Data of Conducted Spurious Emission Addition of data table 1 14483770H-A-R1 July 4, 2023 Data of Maximum Peak Output Power Correction of value of Rate chec k 2 14483770H-A-R2 July 18, 2023 Cover page and SECTION 1: Correction of Company Name from “Denso TEN Limited” to “DENSO TEN Limited”  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the custome r for this report is identified in Section 1.  For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test Report No. : 14483770H-A-R2 Page : 3 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. : 14483770H-A-R2 Page : 4 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-sh…

Text truncated - open the document above for the full version.

Test Report No. : 14483770H-A-R2 Page : 44 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of Test Setup Radiated Spurious Emission Photo 1 Photo 2 Test Report No. : 14483770H-A-R2 Page : 45 of 45 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report

Antenna Dimension 【Fig.1】 1.Bluetooth Antenna 【fig.1】 2.Wi-Fi Antenna 【fig.2】 Connector Cable Antenna 230±2 Connector Cable Antenna DENSO TEN CONFIDENTIAL Measurement content 1.Measurement condition 【fig.3】 Measurement layout：The measurement environment is measured with the following layout. 2.Measurement direction 【fig.4】 ( RX-ANT_View ) 測定環境の全体の写真を 貼付け願います RX-ANT DUT absorber Turntable Antenna-BluetoothAntenna-WiFi DENSO TEN CONFIDENTIAL
