BAB134000-296Bluetooth Transmitter

DENSO TEN Limited
Bluetooth Transmitter - FCC ID BAB134000-296 - DENSO TEN Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Apr 13, 2004
Application Purpose
Original Equipment
Date of Application
Apr 13, 2004
Equipment Note
Bluetooth Transmitter
Frequency Range
2402.00000000 - 2480.00000000
Company
DENSO TEN Limited
Country
Japan

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Cover Letter(s)

β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Part 15 Subpart C/IC RSS-210 Manual Statement: FCC ID: BAB134000-296 IC Number: 2024B-134296 This device complies with Part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

External Photos

Photo Model: 134000-296 / 134000-288 FUJITSU TEN LIMITED FCC ID: BAB134000-296 RIGHT VIEW BACK VIEW LEFT VIEWFRONT VIEW BOTTOM VIEW TOP VIEW Photo Model: 134000-296 / 134000-288 FUJITSU TEN LIMITED FCC ID: BAB134000-296 BLUETOOTH POINT Bluetooth ANT PCB Bluetooth Module PCB

Internal Photos

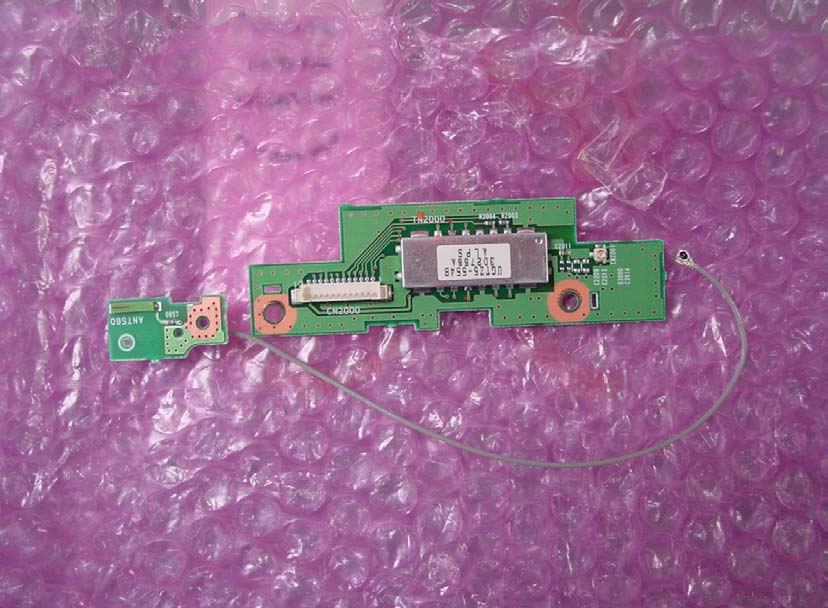

Photo Model: 134000-296 / 134000-288 FUJITSU TEN LIMITED FCC ID: BAB134000-296 BLUETOOTH PCB BLUETOOTH PCB

RF Exposure Info

Applicant: Fujitsu Ten Limited Type of Equipmen t: Display Model No. : 134000-296, 134000-288 FCC ID: BAB134000-296 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the β€œ134000-296, 134000-288β€œ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0W/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* Ο€ * r 2 ) Where P = 0.55 mW (Maximum peak output power) G = 0.50 Numerical Antenna gain; equal to-3.00dBi r =20.0 cm For: 134000-296, 134000-288 S = 0.00005mW/cm 2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: int +81 596 24 8116 Facsimile: int +81 596 24 8124Page 1 RF Exposure Statement No. : 24FE0196-HO-1

Test Report

Test report No. : 24FE0196-HO-1 Page : 2 of 33 Issued date : March 15, 2004 FCC ID : BAB134000-296 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information ..................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................. 3 SECTION 3: Test specification, procedures & results.................................................................................. 4 SECTION 4: Operation of E.U.T. during testing .......................................................................................... 6 SECTION 5: Carrier Frequency Separation, Section 15.247(a)(1) ............................................................. 7 SECTION 6: 20dB Bandwidth, Section 15.247(a)(1) .................................................................................... 7 SECTION 7: Number of Hopping Frequency, Section 15.247(a)(1)(iii)...................................................... 7 SECTION 8: Dwell time, Section 15.247(a)(1)(iii)......................................................................................... 7 SECTION 9: Maximum Peak Output Power, Section 15.247(b)(1) ............................................................ 7 SECTION 10: Band Edge Compliance, Section 15.247(c) ............................................................................8 SECTION 11: Spurious Emission, Section 15.247(c) .................................................................................... 8 APPENDIX 1: Photographs of test setup ....................................................................................................... 9 Spurious Emission (Radiated) ......................................................................................................................... 9 Worst Case Position (X-axis:Horizontal / X-axis:Vertical) ........................................................................ 10 APPENDIX 2: Test instruments ................................................................................................................... 11 APPENDIX 3: Data of EMI test.................................................................................................................... 12 Carrier Frequency Separation ...................................................................................................................... 12 20dB Bandwidth ............................................................................................................................................. 14 Number of Hopping Frequency .................................................................................................................... 16 Dwell time........................................................................................................................................................ 18 Maximum Peak Output Power...................................................................................................................... 21 Band Edge compliance ................................................................................................................................... 23 Spurious Emission(Radiated) ........................................................................................................................ 24 Spurious Emission (Conducted) .................................................................................................................... 30 Test report No. : 24FE0196-HO-1 Page : 3 of 33 Issued date : March 15, 2004 Revised date : April 1, 2004 FCC ID : BAB134000-296 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Fujitsu Ten Limited Address : 2-28 Gosho-Dori 1-chome, Hyogo-ku, Kobe 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Naoto Nishimura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Display Model No. : 134000-296 Serial No. : 0047-A(for Radiated Spurious Emissions) 0046-A(except for Radiated Spurious Emissions) Rating : DC13.2V/3A and below Country of Manufacture : JAPAN Receipt Date of Sample : March 4, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Fujitsu Ten Limited, Model No: 134000-296 and 134000-288 (referred to as the EUT in this report)are the Display. EUT is installed in the vehicles on the production line. EUT is the display with Bluetooth module and can be communicated with other Bluetooth devices such as a cellular phone. Difference between M/N:134000-296 and M/N:134000-288 M/N Figure(Inner/Outer) Bluetooth Module Software 134000-296 No difference No difference Difference (See Note) 134000-288 No difference No difference Difference (See Note) Note: The difference in the kinds of vehicles. The difference in software doesn’t affect EMC tests. Other Clock Frequencies : 8.3076MHz, 12.55MHz (Microprocessor)/19.17MHz (Echo canceller) 50kHz, 196.1kHz, 6.29MHz (other communication clocks) 86.5kHz (D-D converter)/55kHz (Inverter) 150Hz (Back light duty)/15.734kHz (Synchronous separation) 500kHz, 8kHz, 115.2kHz (Bluetooth) 27MHz, 18.432kHz (Drawing dot clock) Equipment Type : Transceiver Emission designation : F1D Frequency of operation : 2402-2480MHz Type of modulation : FSK, FHSS Bandwidth & Channel spacing : 79MHz & 1MHz Transmit power or power range : 2.5mW and below Antenna Type : Chip Multilayer Antenna Antenna Gain : -3.0dBi Antenna Connector Type : 2DA923G0520D-210 Operating voltage (inner) : DC+3- +3.5V Operating Temperature :…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 24FE0196-HO-1 Page : 9 of 33 Issued date : March 15, 2004 FCC ID : BAB134000-296 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear Test report No. : 24FE0196-HO-1 Page : 10 of 33 Issued date : March 15, 2004 Revised date : April 1, 2004 FCC ID : BAB134000-296 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Tested EUT Position Worst Case: Angle A (Normal installation) Angle B Angle C

Contact Information

Applicant

Kaoru Abe(Department General Manager)
[email protected]+81 78-682-2159Fax: +81-78-682-2169

Technical Contact

UL Apex Co. Ltd.Hiroka Umeyama
[email protected]81-596-24-8116

4383-326 Asama-Cho Β· Mie-ken Β· Japan

Non-Technical Contact

UL Apex Co. Ltd.Keijiro Kumagai
[email protected]81-596-24-8116

Test Firm

UL Apex Co., Ltd.Tetsuya Hashimoto
[email protected]81-596-24-8116Fax: 81-596-24-8124

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz550.00 Β΅W
Confidentiality
Long Term
Grant Notes
Power measurement is conducted.
