1 RS3200 Function Summary <Glossary> RS3200Keyless Entry/Security System ArmingEnables the system to detect theft DisarmEnables the system to deactivate the arming/alarm modes Panic modeSystem mode which allows one to activate the alarm using the remote Trunk releaseOpens the trunk using the transmitter <Description> 1. Remote Arming/Door Lock Function Pressing the “LOCK” button of transmitter locks the doors and arms the RS3200 system. 2. Remote Disarming/Door Unlock Function Pressing the “UNLOCK” button of transmitter unlocks the doors and disarms the RS3200 system. 3. Panic Function Pressing the red “PANIC” button of transmitter, activates the RS3200 panic function. During panic mode, the doors lock, the exterior/interior lights(head lights/dome lamp) flash, and the horn sounds for 60 seconds. Pressing any button (LOCK/UNLOCK/PANIC/AUX*) or inserting the key into the ignition switch and turning it to the “ON” position, deactivates the panic mode. (*The AUX button can be used on transmitters with four buttons.) 4. Trunk Release Function Pressing “AUX” button of transmitter activates the trunk release function. This function can be used on transmitters with four buttons. Fujitsu Ten Corp. of America 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Fujitsu Ten Corp. of America Changes or modifications to this device that are not approved by the manufacturer may void the user’s authority to operate this device.

Chalk Creek Site UTAH Chalk Creek Site UTAH Rick Linford Facility Manager Rick Linford Facility Manager 1100 East Chalk Creek Road 1100 East Chalk Creek Road Coalville, Utah 84017 Coalville, Utah 84017 (435) 336-4433 FAX (435) 336-4436 (435) 336-4433 FAX (435) 336-4436 UTAH ONLY 1-800-887-4433 UTAH ONLY 1-800-887-4433 April 23, 1999 FEDERAL COMMUNICATIONS COMMISSION Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 ATTENTION: New Applications RE: Fujitsu Ten Limited Application for Equipment Authorization-Certification Model: Security Transmitter Module FCC ID: BAB237131-056 Gentlemen: Transmitted herewith on behalf of Fujitsu Ten Limited, is an Application for Certification of the above referenced Security Transmitter Module. The Transmitter will be housed in a plastic enclosure that will allow for different configurations of one to four buttons. The PCB assembly will have all four buttons but the enclosures will not allow contact when installed. The four-button model was used in the tests. Should any questions arise regarding this matter, kindly contact the undersigned. Sincerely, DNB ENGINEERING, INC. Rick Linford RL/cy

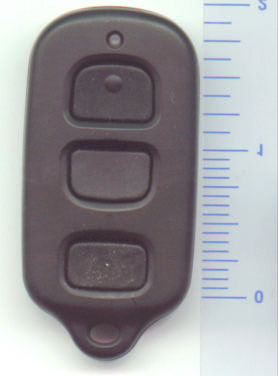

DNB Engineering, Inc Job # 96064-1 FCC ID: BAB237131-056 External Pictures Back Front

DNB Engineering, Inc Job # 96064-1 FCC ID: BAB237131-056 FCC ID Label Placement and Contents

DNB Engineering, Inc Job # 96064-1 FCC ID: BAB237131-056 Internal Pictures BatteryBottom Top

96064-1 FujitsuDNB Engineering, Inc.Page 1 RADIATED EMISSIONS Location #1 FCC Part 15 Class B Client:Fujitsu Ten corp of AmericaFile #96064-1 Rep. : Mark Kubota Date :25-Feb-99Engr.:Yancey StaplesSystem:Vehicle Security 3 Meas AmpCableAntennaTotalFCC Type FreqMeas'dFactorsFactorsFactorsFactorsTotalLimitDeltaAzimuthHeightHor/HP/ Ave (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)(dBuV/m)(dBuV/m)(dB)(degree)(m)VertR&SPeakComments #######46.027.53.828.95.251.254.9-3.7561.00VertHP/AveHarmonics #######40.927.74.129.66.046.954.9-8.0661.00VertHP/AveHarmonics #######39.226.53.427.44.343.554.9-11.4261.00VertHP/AveHarmonics #######38.623.83.024.13.341.954.9-13.0861.00VertHP/AveHarmonics #######33.826.93.628.75.439.254.9-15.73371.00VertHP/AveHarmonics 911.65427.826.49.823.06.434.254.9-20.71291.50Hor/R&SAveHarmonics 607.77629.126.77.620.71.630.754.9-24.21761.50Hor/R&SAveHarmonics #######27.326.43.325.32.229.554.9-25.43231.00VertHP/AveHarmonics 303.88069.825.25.416.7-3.166.774.9-8.2801.85VertR&SAveFundamental 303.88065.825.25.416.7-3.162.774.9-12.21551.75Hor/R&SAveFundamental 1100 E. Chalk Creek Road. Coalville Utah, 84017 Data not valid for report unless signed by DNB personnel _____________________________ Phone (801) 336-4433 Fax (801) 336-4436

FCC ID: BAB237131-056 DATE: FEB. 23-24, 1999 REPORT #96064-1 1 DNB ENGINEERING, INC. CERTIFICATION FOR INTENTIONAL RADIATOR per Part 15 Subpart C (CFR 47, 15.203, 15.231 & 15.209) EUT: Security Transmitter Module Model No. M/N 237131-056 PREPARED FOR APPLICANT: Fujitsu Ten Corp. of America 19600 S. Vermont Torrance, CA 90502 REPORT #96064-1 Test Date: Feb. 23-24, 1999 Prepared By: DNB ENGINEERING, INC. 1100 East Chalk Creek Rd. Coalville, Utah 84017 Tel: 1(435) 336-4433 FCC ID: BAB237131-056 DATE: FEB. 23-24, 1999 REPORT #96064-1 2 Revision Letter Number of Pages Page No. of Rev. DescriptionDate A30Document Release4-22-99 FCC ID: BAB237131-056 DATE: FEB. 23-24, 1999 REPORT #96064-1 3 TRANSMITTAL SUMMARY Unit tested:Security Transmitter Module Model #: M/N 237131-056 FCC ID:BAB237131-056 Specifications: ANSI C63.4 (1992) and CFR 47 FCC part 15 Subpart C Purpose of Report: This report was prepared to document the status of the Security Transmitter Module M/N 237131-056 with requirements of the standards listed above. Requirements not applicable to EUT Part 15.37 - Not applicable Emergency Broadcast System - Not applicable Spread Spectrum Exhibit - Not applicable Scanning Receiver - Not applicable Test SummaryThe EUT’s compliance status according to the tests performed is as follows. REQUIREMENTSSTATUS FCC part 15 Subpart C per 15.203, 15.231 & 15.209COMPLIANT The report shall not be reproduced, except in full, without the written approval of DNB ENGINEERING, INC. Results contained in this report relate only to the item tested. FCC ID: BAB237131-056 DATE: FEB. 23-24, 1999 REPORT #96064-1 4 CERTIFICATION OF TEST DATA - per 2.911(d) This report, containing emissions test data and evaluations, has been prepared by an independent electromagnetic compatibility laboratory, DNB ENGINEERING, in accordance with the applicable specifications and instructions required per the Introduction. DNB Engineering has been evaluated to do these tests by the American Association for Laboratory Accreditation, A2LA. The data evaluation and equipment configuration presented herein are a true and accurate representation of the measurements of the test emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Equipment Tested:Security Transmitter Module Model #:M/N 237131-056 FCC ID#:BAB237131-056 Dates of Test:Feb. 23-24, 1999 Test Performed: ____________________________________________ Yancey StaplesDate Test Technician Test Report Reviewed: ____________________________________________ Rick LinfordDate Facility Manager Regulatory Engineer FCC ID: BAB237131-056 DATE: FEB. 23-24, 1999 REPORT #96064-1 5 TABLE OF CONTENTS 1.INTRODUCTION.......................................................................................................................................6 1.1ADMINISTRATIVE DATA PER 2.1033(A) AND 2.911(C)......................................................................................6 1.1.1REQUEST FOR CERTIFICATION Per 2.1033(b)1:.........................................................................6 1.2RELATED SUBMITTALS/GRANTS.....................................................................................................................6 1.3PURPOSE OF TESTS......................................................................................................................................6 2.TEST DESCRIPTION..................................................................................................................................7 2.1TEST CONFIGURATION.................................................................................................................................7 2.2EQUIPMENT DESCRIPTION............................................................................................................................7 2.2.1Mode of Operation............................................................................................................................7 2.3ANTENNA REQUIREMENT - PER 15.203..........................................................................................................7 2.4CIRCUIT DESCRIPTION - PER 2.1033(B)4.......................................................................................................7 2.5SCHEMATICS AND INTERNAL BLOCK DIAGRAM................................................................................................9 2.6PHOTOGRAPHS OF EUT - PER 2.1033(B)(7).................................................................................................10 3.EMISSIONS FCC PART 15......................................................................................................................11 3.1RADIATED EMISSIONS TEST SETUP AND PROCEDURE - PER 2.1033(B)(6) PER 2.947(A)....................................11 3.1.1Spurious Radiation Test Site Per 2.1033(b)6.................................................................................11 3.1.2Example Of Typical Calculation Per 2.1033(b)6............................................................................13 3.1.3Diagram of Test Setup - per 2.1033(b)5...........................................................................................14 3.1.4Field Strength of Intentional Radiator Inside of Band.....................................................................15 3.1.5Emissions Radiated - Spurious........................................................................................................16 4.OCCUPIED BANDWIDTH......................................................................................................................17 4.1.1Photograph of Radiated Test Setup - per 2.1033(b)(7)....................................................................18 5.LABELING REQUIREMENTS - PER 2.1033(B)(7)...............................................................................19 5.1ADDITIONAL LABEL REQUIRED..................................................................................…
