BAB271000-186Automotive Security Field Disturbance Sensor

For vehicles sold in USA FCC ID : BAB271000-186 This device complies with part 15 of FCC rules. “Operation is subject to the following two conditions: （1）this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.” FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada This device complies with RSS-210 of Industry and science Canada. Operation is subject to the following two condition. （1）this device may not cause interference, and (2) this device must accept any interference , including interference that may cause undesired operation of the device.”

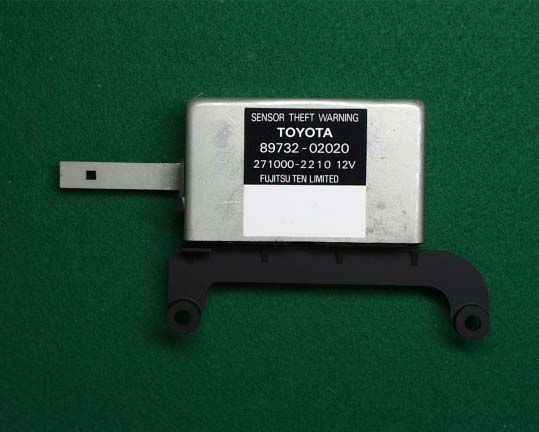

ＴＹＰＥ ： ＦＴＬ １８６ Version ： ２７１０００－２０５０ FCC ID：BAB271000-186 CANADA **** *** *** ISC ： RSS / CNR210 271000-2050 12V FUJITSU TEN LIMITED Appearance ascribable to installation is subject to change without notice. ＴＹＰＥ ： ＦＴＬ １８６ Version ： ８９７３２－０２０１０ FCC ID:BAB271000-18 6 CANADA **** *** *** ISC ： RSS/CNR210 Serial number Appearance ascribable to installation is subject to change without notice. ＴＹＰＥ ： ＦＴＬ １８６ Version ： ２７１０００－２０６０ FUJITSU TEN LIMITED 271000-2220 12V FCC ID：BAB271000-186 CANADA **** *** *** ISC ： RSS / CNR210 Appearance ascribable to installation is subject to change without notice. ＴＹＰＥ ： ＦＴＬ １８６ Version ： ２７１０００－２０６０ FUJITSU TEN LIMITED 271000-2220 12V FCC ID：BAB271000-186 CANADA **** *** *** ISC ： RSS / CNR210 Appearance ascribable to installation is subject to change without notice. ＴＹＰＥ ： ＦＴＬ １８６ Version ： ２７１０００－２０６０ FUJITSU TEN LIMITED 271000-2220 12V FCC ID：BAB271000-186 CANADA **** *** *** ISC ： RSS / CNR210 Appearance ascribable to installation is subject to change without notice. ＴＹＰＥ ： ＦＴＬ１８６ Version ： ２７１０００－２２２０ FUJITSU TEN LIMITED 271000-2220 12V FCC ID：271000-186 CANADA **** *** *** ISC ： RSS / CNR210 Appearance ascribable to installation is subject to change without notice.

Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 2 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.)3 SECTION 3: Test specification, methods & procedures4 SECTION 4: Operation of E.U.T. during testing5 SECTION 5: Summary of test results 6 SECTION 6: Test instruments6 SECTION 7: Radiated emission7 APPENDIX 1: Photographs of test setup8 APPENDIX 2: Data of EMI test9 Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 3 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 1: Client information Company name: Fujitsu Ten Limited Address: 2-28 Gosho-dori 1-chome, Hyogo-ku, Kobe 652-8510 Japan Telephone Number: +81-78-628-2031 Facsimile Number: +81-78-671-7160 Contact Person: Isamu Kadowaki, General Manager Technical Administration Dept. SECTION 2: Equipment under test (E.U.T.) 2.1Identification of E.U.T. Type of Equipment: Motion Sensor Model No.: FTL186 Serial No.: 11149 Condition of EUT: Production prototype Rating: DC 12V Country of Manufacture: Italy / Japan Receipt Date of Sample: June 2, 2001 2.2Product Description Model: FTL186, which is referred to as the EUT in this report, is a motion sensor. Specifications is as follows; Frequency: One fixed frequency 2450MHz ± 5MHz Modulation : Non ITU Code: 10M0N0N Output power: 1mW eirp Antenna type: Integral FTL186 Series Version No 89732-02010, 89732-02020, 271000-2280, 271000-2220, 271000-2050 The EUT has series models whose difference is only the shape of plastic case as the structure of setting place varies depending on the car manufacturer and type of car. One of the series models is tested for compliance as a representative since there is no difference between them concerning about radio wave specifications. 2.3 Manufacturer 1) Fujitsu Ten Limited 2 ) DELTA ELETTRONIC SPA Address : Via Astico, 41 1-21100 Varese Italy TEL : +39-332-825111 FAX : +39-332-222005 Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 4 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 3: Test specification, methods & procedures 3. 1Test Specification Test Specification : FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators 15.245 Operation within the Band 2435 – 2465MHz 3.2Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1 Electric Field Strength of Fundamental Emission ANSI C63.4:1992 15.245(a) - 2 Electric Field Strength of Spurious Emission ANSI C63.4:1992 15.245(b) / 15.209 - 3.3 Additions or deviations to standards No addition, deviation nor exclusion have been made from standards. Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 5 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 4: Operation of E.U.T. during testing 4.1Operating Modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The operating mode/system were as follows: Operation : Transmitting mode Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals Front View Top View B 12V A : EUT A : EUT C B C 12V *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and Support equipment No.ItemModel numberSerial numberManufacturerFCC IDRemark Fujitsu Ten LimitedAMotion SensorFTL18611149 *DELTA ELETTRONICA SPA BAB271000-186EUT BChecker--Fujitsu Ten LimitedN/A- CBattery--YUASAN/A- List of cables used No.Name Length (m) ShieldBackshell Material Sensor Cable1.0NPolyvinyl chloride DC Cable1.2NPolyvinyl chloride Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 6 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 5: Summary of test results 5.1Test results No.ItemTest ProcedureSpecificationWorst marginResult 1 Electric Field Strength of Fundamental Emission ANSI C63.4:1992 15.245(a) 2449.50MHz (24.9dB, Vertical) Complied 30MHz-1GHz 31.99MHz (19.6dB, Vertical) 1GHz-25GHz (PK) 4.8999GHz (15.4dB, Vertical) 2 Electric Field Strength of Spurious Emission ANSI C63.4:1992 15.245(b) / 15.209 1GHz-25GHz (AV) 4.8999GHz (1.3dB, Vertical) Complied A-PEX INTERNATIONAL hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part15 Subpart C.245 5.2Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was 3.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 3.3dB). The data listed in this test report has enough margin, more than 3.3dB. 5.3Test equipment used See SECTION 6: Test instruments 5.4 Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412). *NVLAP Lab. Code : 200109-0 5.5 Test Configuration Photographs See Appendix 1. 5.6 Data of EMI Test See Appendix 2. SECTION 6: Test instruments InstrumentMfr.Model No.Control No.Test ItemCalibration Date / Interval Pre AmplifierHewlett Packard8447DAF-01REMarc…

Text truncated - open the document above for the full version.

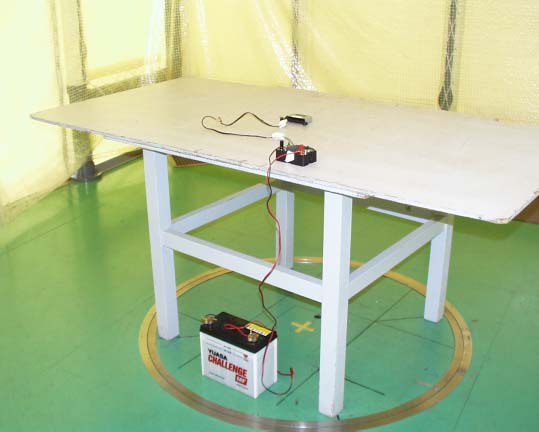

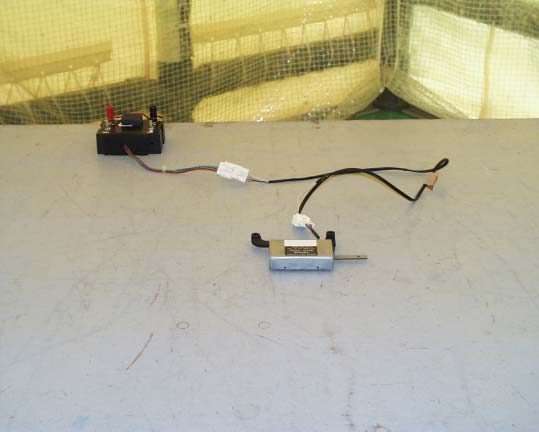

Test report No.: 21JE0059-YW-1 FCC ID: BAB271000-186 Page: 8 of 14 Issued date: July 8, 2001 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 APPENDIX 1: Photographs of test setup(Radiated Emission)
