BAB271000395Forward looking Vehicle Radar System

FUJITSU TEN LIMITEDENGINEERING TEAM1 AE ENGINEERING DEPT.3 AUTOMOTIVE ELECTRONICS GROUP 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Jap an Tel.: +81.78-682-2094 Fax.: +81.78-682-2262 76GHzMillimeter-wave Radar To The InstallerThis device complies with Part 15 of the FCC rules. Operation is subject to the following two condition s: 1) This device may not cause harmful interference. 2) This device must accept any interference receive d including interference that may cause undesired operation.CAUTION : Changes or modifications not expressly a pproved by the party responsible for compliance could void the user ’ s authority to operate the equipment. The radar is assembled to bracket, and it is mounted in the body. When installer instruction has been applied, the beam is radiated straight forward without fail and the 20 cm to human body would be kept automatically. ***************************** No.29106-80B0049

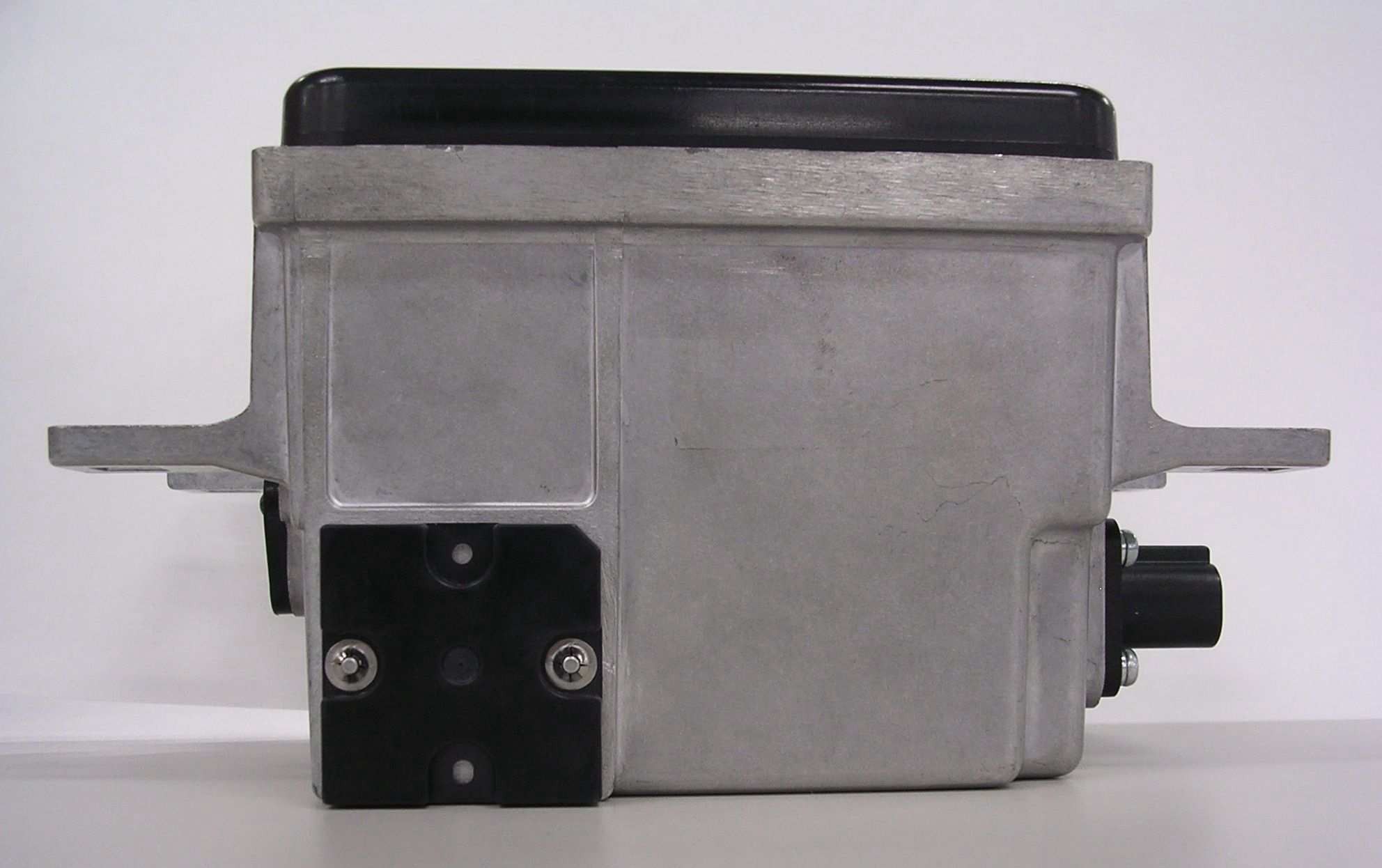

5 Confidential No.29106-80B0039 4, External Photo Right side Front side Left side Under side Back side Upper side

38 Confidential No.29106-80B0039 8, ID Label 39 Confidential No.29106-80B0039 9, Label Location PET(Polyethylene Terephthalate)

CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 14 of 49 In the frequency range 40 GHz to 231 GHz, spurious frequencies are measured as power densities. For further remarks see section 1.). The RBW and VBW are set to such a value that spurious power levels are clearly readable above the fundamental noise level of spectrum analyzer. 4. Measurements of maximum safe level for radiated power density According to FCC § 1.1307, 1.1310, 2.1091, and 2.1093 and also according to ETSI/EN 301 091 measurements are carried out in order to evaluate the impact of human exposure to RF radiation. For this test the EUT is in normal operation mode. The measurements are applicable only for far field conditions. The near field area extends to a distance of R (meters) and can be calculated from the following equation: R < 2 ∗ L 2 / λ with R = distance in meters, L = largest dimension of either receiving or transmitting horn antenna (L = 0.02 m), and λ = wavelength in meters. In case of 76 GHz (λ = 0.0039 m), the far field starts at R > 0.205 m. The peak power density is measured in 3 m distance as 6.9 μW/cm 2 (-21.6 dBmW/cm 2 ). Peak Power (EIRP) EIRP = PD ∗ 4π ∗ R 2 EIRP = 7.76 W (38.9 dBm) As the sample works with switched CWFM-modulation there is a difference between peak and average value of the output power. CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 15 of 49 As the output is switched on/off with 50% duty cycle, we have a correction factor of -3 dB. So the average result is 35.9 dBm = 3.89 Watt Limit of maximum ERP for frequencies above 1.5 GHz is 3 W. See FCC § 2.1091 (EIRP = 4.91 Watt) RF Exposure for mobile conditions at R = 20 cm distance from EUT PD = EIRP / (4π ∗ R 2 ) PD = 0.977 mW/cm² Limit of maximum permissible exposure (MPE) for uncontrolled environment:1.0 mW/cm². See FCC § 1.1310.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9075 Test report No.: 2-4310-01-02/06 This test report consists of 49 pages Page 1 of 49 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: 3463 (IC) TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT–P-176/94-D1 Independent ETSI compliance test house ETSI Test report No.: 2-4310-01-02/06 Applicant : FUJITSU TEN LIMITED Type : MILIMETER-WAVE RADAR Test standards : FCC Part 15 (06/2005) / RSS210 Issue 6 FCC ID : BAB271000395 IC ID : 2024B-271395 CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 2 of 49 Table of contents 1 General information _____________________________________________________________3 1.1 Notes ____________________________________________________________________________3 1.2 Testing laboratory __________________________________________________________________4 1.3 Details of applicant _________________________________________________________________4 1.4 Application details __________________________________________________________________4 1.5 Test item (EUT) ____________________________________________________________________5 1.6 Technical data _____________________________________________________________________5 1.6.1 Operation conditions____________________________________________________________________ 5 1.6.2 Test Report Cover Sheet / Performance Test Data _____________________________________________ 6 1.7 Test standards______________________________________________________________________7 2 Technical test___________________________________________________________________8 2.1 Summary of test results ______________________________________________________________8 2.2 Test environment ___________________________________________________________________8 2.3 Measurement and test set-up __________________________________________________________8 2.4 Test equipment utilized and test set-up __________________________________________________9 2.4.1 Test set-up for the measurement in the frequency range 12 GHz to 27 GHz _________________________ 9 2.4.2 Test set-up for the measurement in the frequency range 27 GHz to 140 GHz _______________________ 10 2.4.3 Test set-up for the measurement in the frequency range up to 12 GHz ____________________________ 11 2.5 Test results _______________________________________________________________________12 2.5.1 Test results overview __________________________________________________________________ 12 2.5.2 Remarks on methods of measurements_____________________________________________________ 12 2.5.3 Test results in details___________________________________________________________________ 16 2.5.4 Not-In-motion Mode___________________________________________________________________ 23 3 Plots, graphs and data sheets _____________________________________________________25 4 Photographs __________________________________________________________________39 4.1 Photographs of the test set-up ___________________________________________________39 4.2 Photographs of the EUT _______________________________________________________42 CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 3 of 49 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item . The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : Date Name Signature 2006-06-02 Manfred Paschwitz ................................... Technical responsibility for area of testing: Date Name Signature 2006-06-02 Harro Ames ................................... CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 4 of 49 1.2 Testing laboratory CETECOM ICT Services GmbH CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 65 01 55 D-66117 Saarbrücken D-66140 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom-ict.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC 3463 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : FUJITSU TEN LIMITED Street : 2-28 Gosho-Dori 1-chome, Hyogo-ku Town : Kobe 652-8510 Country : Japan Telephone : + 81 (0) 78 682 2159 Fax : + 81 (0) 78 671 7160 Contact Name : Mr. Naoto NISHIMURA Telephone : + 81 (0) 78 682 2159 Fax : + 81 (0) 78 671 7160 mailto : [email protected] 1.4 Application details Date of test : 2006-05-31 to 2006-06-01 CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 5 of 49 1.5 Test item (EUT) Description of test item : 76 GHz millimeter-wave radar sensor Type identification : MILIMETER-WAVE RADAR S/N : 6292 Manufacturer : FUJITSU TEN LIMITED 2-28 Gosho-Dori 1-chome, Hyogo-ku Kobe 652-8510 Japan 1.6 Technical data TX frequency range : 76.000 – 77.000 GHz Centre frequency : 76.593 300 GHz Channel : 1 Modulation : FMCW EIRP (eirp) (measured) : 5.157 W (37.12 dBm) Antenna : Tri-plate antenna +/-9deg (H), +/-2deg(V) Extreme power supply U DC : 10.8 – 15.6 V Nominal power supply U DC : 12.0 V 1.6.1 Operation conditions The sample was set in ope…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 39 of 49 4 Photographs 4.1 Photographs of the test set-up Radiated Emission CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 40 of 49 Radiated Emission CETECOM ICT Services GmbH Test report No.: 2-4310-01-02/06 Date : 2006-06-02Page 41 of 49 Test set-up
