BABBT003AVehicle console with bluetooth transmitter

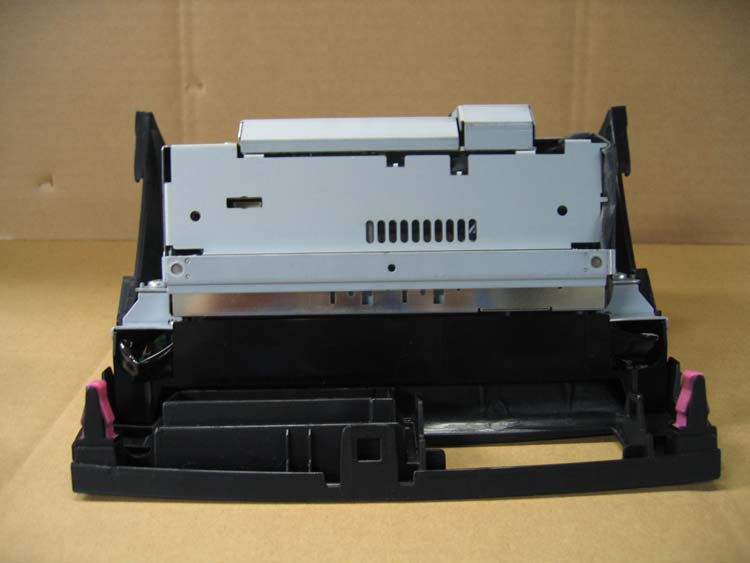

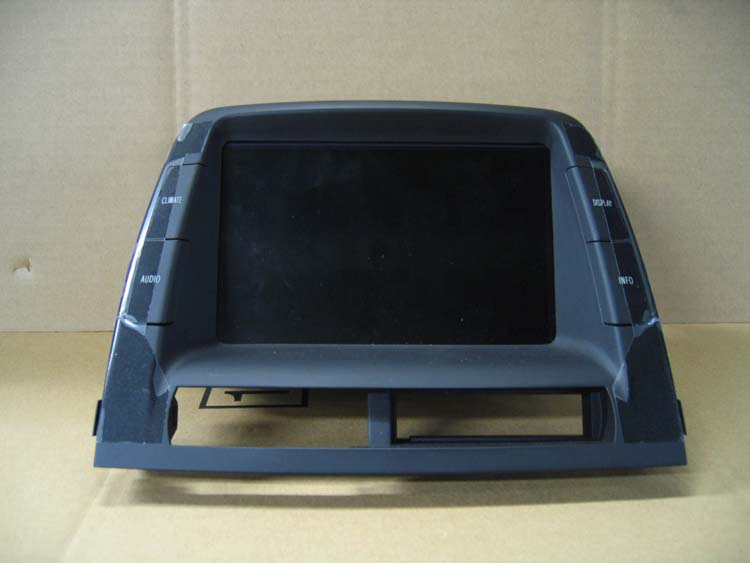

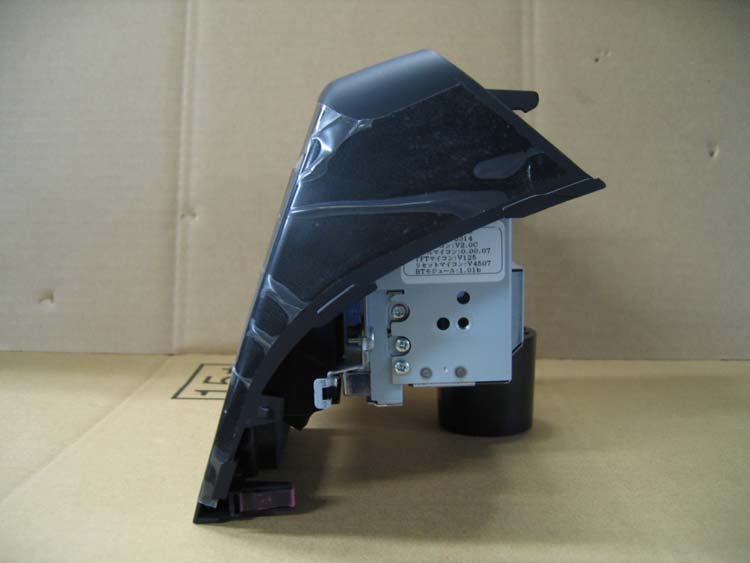

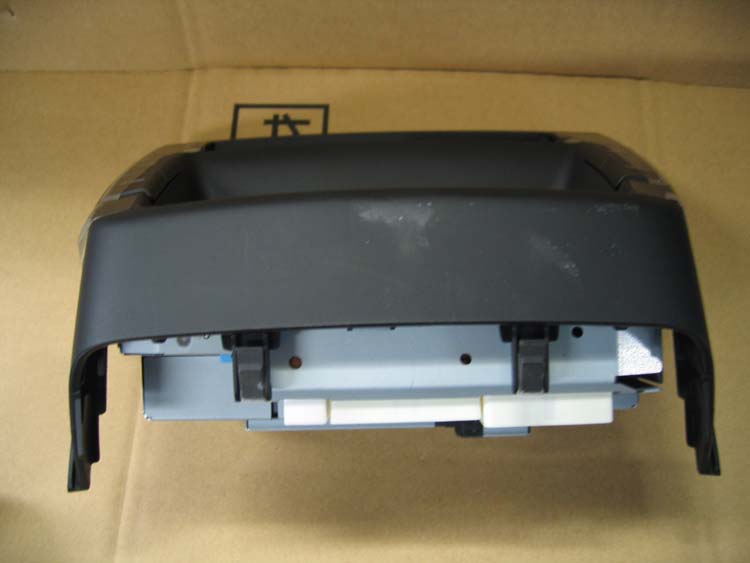

External Photo FUJITSU TEN Limited Display (Model: BT003A) FCC ID: BABBT003A Front View Back View External Photo FUJITSU TEN Limited Display (Model: BT003A) FCC ID: BABBT003A Top View Bottom View External Photo FUJITSU TEN Limited Display (Model: BT003A) FCC ID: BABBT003A Right View Left View

Internal Photo FUJITSU TEN Limited Display (Model: BT003A) FCC ID: BABBT003A BT module and Antenna Top BT module and Antenna Bottom Internal Photo FUJITSU TEN Limited Display (Model: BT003A) FCC ID: BABBT003A Location of BT module

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN Limited T ype of Equipment : DISPLAY Model No. : BT003A FCC ID: BABBT003A FUJITSU TEN Limited declares that Model : BT003A complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “BT003A“ has 0.96 mW of conducted Peak Output power and 0.43 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW (TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Ex posure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “BT003A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.96 mW (Maximum peak output power) G = 0.45 Numerical Antenna gain; equal -3.50 dBi r =20.0 cm For: BT003AS = 0.00009mW/cm 2 No. : 25LE0267-HO-1 R F Exposure / SAR Statement

Test report No. : 25LE0267-HO-1a Page : 2 of 41 Issued date : September 5, 2005 Revised date : September 12, 2005 FCC ID : BABBT003A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 5 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 8 SECTION 5: Spurious Emission.................................................................................................................... 9 SECTION 6: Bandwidth.......................................................................................................................................10 SECTION 7: Maximum Peak Output Power ............................................................................................. 10 SECTION 8: Carrier Frequency Separation .............................................................................................. 10 SECTION 9: Number of Hopping Frequency ............................................................................................ 10 SECTION 10: Dwell time ............................................................................................................................. 10 APPENDIX 1: Photographs of test setup .................................................................................................... 11 Spurious Emission (Radiated) ............................................................................................................................... 11 Worst Case Position : below 1GHz(Angle 2)........................................................................................................12 APPENDIX 2:Test instruments .................................................................................................................... 13 APPENDIX 3: Data of EMI test.................................................................................................................... 14 Carrier Frequency Separation ..............................................................................................................................14 20dB Bandwidth .....................................................................................................................................................16 Number of Hopping Frequency ............................................................................................................................18 Dwell time ...............................................................................................................................................................20 Maximum Peak Output Power .............................................................................................................................23 Radiated Spurious Emission..................................................................................................................................25 Conducted Spurious Emission ..............................................................................................................................37 99% Occupied Bandwidth.....................................................................................................................................41 Test report No. : 25LE0267-HO-1a Page : 3 of 41 Issued date : September 5, 2005 Revised date : September 12, 2005 FCC ID : BABBT003A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : FUJITSU TEN Limited Brand Name : FUJITSU TEN Address : 2-28 Gosho-Dori 1-chome,Hyogo-ku,Kobe, 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Naoto Nishimura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : DISPLAY Model No. : BT003A Serial No. : 2G000001 Country of Manufacture : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Rating : DC13.2V Receipt Date of Sample : August 24, 2005 Test report No. : 25LE0267-HO-1a Page : 4 of 41 Issued date : September 5, 2005 Revised date : September 12, 2005 FCC ID : BABBT003A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) 2.2 Product Description Model No: BT003A (referred to as the EUT in this report) is the DISPLAYwith bult-in Bluetooth. It is installed in vehicle, and displays the information on navigation, audio & visual, and others on a screen. It has the interface which can be operated by touching a screen top. Moreover, Bluetooth is used and the service linked to a cellular phone is offered. Clock frequency(ies) in the system : 12.55MHz,5MHz,4MHz for Microprocessor, 12.079MHz,14.549MHz(CPU), 16.616MHz,33.231MHz,27MHz,32.768KHz(Drawing dot clock) Equipment Type : Transceiver Frequency of Operation : 2402-2480MHz Bandwidth & Channel spacing : 79MHz & 1MHz Modulation : FHSS Mode of Operation : Duplex ITU code : F1D Power Supply : DC13.2V (EUT) DC3.3V (RF Module part) Antenna Type : LDA923G5020D-215 Chip Antena Antenna Connector Type : U.FL ( SMT Type ) Antenna Gain : -3.5dBi FCC 15.31 (e) The stable voltage (DC3.3V) is constantly supplied to RF Module by DC-DC converter. Therefore, this EUT complies with the requirement FCC Part 15.203 Antenna require…

Text truncated - open the document above for the full version.

Test report No. : 25LE0267-HO-1a Page : 11 of 41 Issued date : September 5, 2005 Revised date : September 12, 2005 FCC ID : BABBT003A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear Test report No. : 25LE0267-HO-1a Page : 12 of 41 Issued date : September 5, 2005 Revised date : September 12, 2005 FCC ID : BABBT003A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position : below 1GHz(Angle 2) Angle 1 Angle 2 Angle 3
