BABBT010AVehicle Audio System with Bluetooth Transceiver

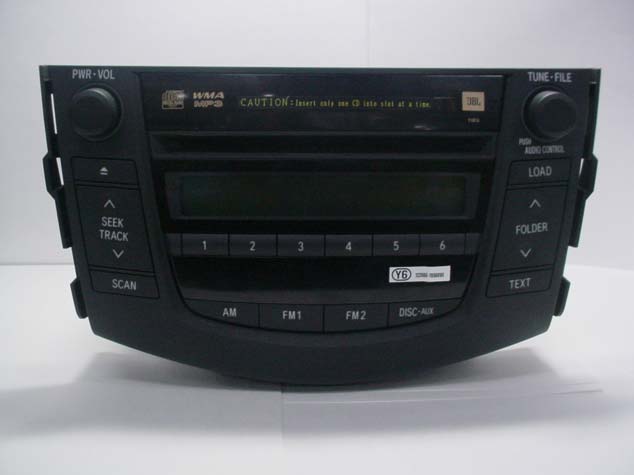

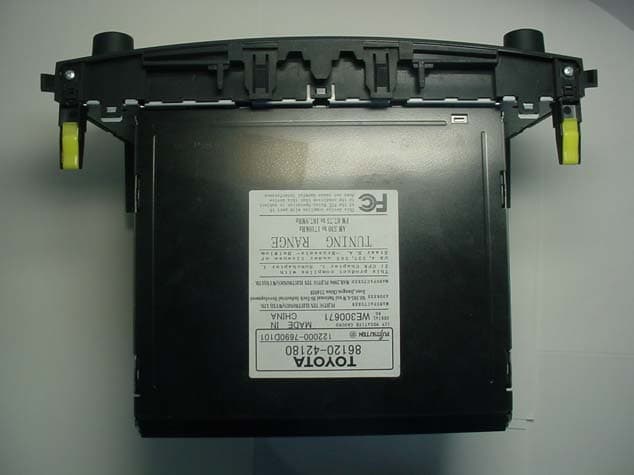

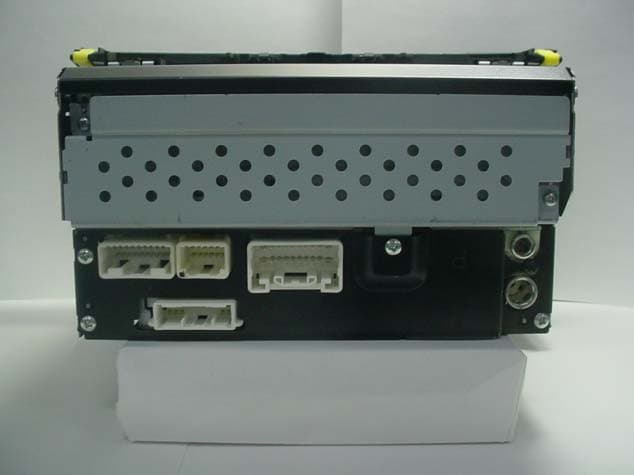

Photograph Model No.BT010A External Photograph TOP VIEW FRONT VIEW SIDE VIEW BOTTOM VIEW BACK VIEW

Photograph Model No.BT010A Internal Photograph TOP VIEW BOTTOM VIEW BACK VIEW BT Unit BT Unit BT Unit Photograph (Shield attachment) TOP VIEW BOTTOM VIEW BT Unit Photograph (Shield detachment) TOP VIEW BOTTOM VIEW Antenna BT Module

Test report No. : 26IE0204-HO-A-1 Page : 1 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) RADIO TEST REPORT Test Report No. : 26IE0204-HO-A-1 Applicant : FUJITSU TEN LIMITED Type of Equipment : COMB PLAYER Model No. : BT010A FCC ID : BABBT010A Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247: 2006 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ _____________________________ Yutaka Yoshida EMC Services Norihisa Hashimoto EMC Services Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Services May 12 to 16, 2006 Test report No. : 26IE0204-HO-A-1 Page : 2 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) CONTENTS PAGE SECTION 1: Client information............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................................3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing.................................................................................8 SECTION 5: Spurious Emission............................................................................................................ 9 SECTION 6: Bandwidth....................................................................................................................... 10 SECTION 7: Maximum Peak Output Power ..................................................................................... 10 SECTION 8: Carrier Frequency Separation...................................................................................... 10 SECTION 9: Number of Hopping Frequency .................................................................................... 10 SECTION 10: Dwell time ..................................................................................................................... 10 APPENDIX 1: Photographs of test setup............................................................................................ 11 Spurious Emission (Radiated) ............................................................................................................ 11 APPENDIX 2:Test instruments ............................................................................................................ 12 APPENDIX 3: Data of EMI test ........................................................................................................... 13 Carrier Frequency Separation ........................................................................................................... 13 20dB Bandwidth .................................................................................................................................. 15 Number of Hopping Frequency ......................................................................................................... 17 Dwell time............................................................................................................................................. 19 Maximum Peak Output Power........................................................................................................... 22 Radiated Spurious Emission............................................................................................................... 24 Conducted Spurious Emission ........................................................................................................... 32 99% Occupied Bandwidth .................................................................................................................. 36 Test report No. : 26IE0204-HO-A-1 Page : 3 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) SECTION 1: Client information Company Name : FUJITSU TEN LIMITED Address : 2-28 Gosho-Dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Telephone Number : +81-78-682-2031 Facsimile Number : +81-78-671-7160 Contact Person : Naoto Nishimura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : COMB PLAYER Model No. : BT010A Serial No. : WE300674, WE300676 Country of Manufacture : China Receipt Date of Sample : May 12, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by this test lab 2.2 Product Description Model No: BT010A (referred to as the EUT in this report) is the COMB PLAYER, the audio system to listen AM / FM / CD in a car with Bluetooth function. It also has a hands-free function for a cellular phone. Clock frequency(ies) in the system : 3.1375MHz(μCON), 28.8MHz(DIF-IF), 16.0MHz(CD), 33.868MHz(CD) Equipment Type : Transceiver Frequency band : Lower limit: 2402MHz Upper limit: 2483.5MHz Frequency of Operation : 2402-2480MHz Bandwidth & Channel spacing : 79MHz & 1MHz Modulation : FHSS ITU code : F1D Power Supply : DC 13.2V (Car Battery) DC 3.1V to 3.5V(RF Module Spec.) Antenna Type…

Text truncated - open the document above for the full version.

Test report No. : 26IE0204-HO-A-1 Page : 11 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear

Test report No. : 26IE0204-HO-A-1 Page : 12 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 2:Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MRENT-30 Spectrum Analyzer Agilent E7405A AT 2006/04/19 * 12 MCC-26 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 AT 2005/08/30 * 12 MOS-04 Digital Humidity Indicator N.T NT-1800 AT 2004/11/25 * 24 MSA-03 Spectrum Analyzer Agilent E4448A AT 2005/09/16 * 12 MRENT-23 Spectrum Analyzer Advantest R3273 RE 2006/01/10 * 12 MHA-06 Horn Antenna Schwarzbeck BBHA9120D RE 2006/01/09 * 12 MHA-02 Horn Antenna EMCO 3160-09 RE 2006/01/09 * 12 MCC-47 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 RE 2005/08/30 * 12 MCC-16 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX 104 RE 2006/02/02 * 12 MCC-25 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 RE 2005/08/30 * 12 MCC-27 Microwave Cable 1G-40GHz Suhner SUCOFLEX101 RE 2005/08/30 * 12 MHF-05 High Pass Filter Tokimec TF323DCA RE 2006/01/24 * 12 MPA-10 Pre Amplifier Agilent 8449B RE 2005/09/07 * 12 MOS-02 Digital Humidity Indicator N.T NT-1800 RE 2004/11/25 * 24 MSTW-14 EMI measurement program TSJ TEPTO-DV RE MCC-01 Coaxial Cable 0.1-3000MHz Suhner/storm/Agilent/T SJ - RE 2006/02/20 * 12 MPA-04 Pre Amplifier Agilent 8447D RE 2005/05/24 * 12 MAT-06 Attenuator(6dB) Weinschel Corp 2 RE 2005/12/16 * 12 MBA-01 Biconical Antenna Schwarzbeck BBA9106 RE 2005/10/10 * 12 MLA-01 Logperiodic Antenna Schwarzbeck USLP9143 RE 2005/10/14 * 12 MOS-01 Digital Humidity Indicator N.T NT-1800 2004/11/25 * 24 MTR-01 Test Receiver Rohde & Schwarz ESI40 RE 2005/11/10 * 12 MAEC-01 Anechoic Chamber TDK Semi Anechoic Chamber 10m RE 2005/11/14 * 12 MAEC-02 Anechoic Chamber TDK Semi Anechoic Chamber 3m RE 2006/04/10 * 12 All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item: AT: Antenna Terminal Conducted Spurious Emission Maximum Peak Output Power Carrier Frequency Separation 20dB Bandwidth Number of Hopping Frequency Dwell time RE: Radiated Spurious Emission Test report No. : 26IE0204-HO-A-1 Page : 13 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 3: Data of EMI test Carrier Frequency Separation UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Roo m COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC Part15 Subpart C 15.247(a)(1) EQUIPMENT : COMB PLAYERTEST DISTANCE : - MODEL : BT010ADATE : 05/12/2006 S/ N : WE300676TEMPERATURE : 23deg.C POWER : DC13.2VHUMIDITY : 44% MODE : Tx(Hopping on)/Inquir yENGINEER : Norihisa Hashimoto ChFreq. [MHz] Low2402.0 Mid2441.0 High2480.0 Inquir y2441.0 1.000 2.000 >20dB Bandwidth or 25[kHz](whichever is greater) >two-thirds of the 20dB Bandwidth or 25[kHz](whichever is greater) 1.000 1.000 >20dB Bandwidth or 25[kHz](whichever is greater) >20dB Bandwidth or 25[kHz](whichever is greater) Limi t [MHz] Channel separation Test report No. : 26IE0204-HO-A-1 Page : 14 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Carrier Frequency Separation Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 26IE0204-HO-A-1 Page : 15 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) 20dB Bandwidth UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC Part15 Subpart C 15.247(a)(1) EQUIPMENT : COMB PLAYERTEST DISTANCE : - MODEL : BT010ADATE : 05/12/2006 S/ N : WE300676TEMPERATURE : 23deg.C POWER : DC13.2VHUMIDITY : 44% MODE : Tx (Hopping off) /InquiryENGINEER : Norihisa Hashimoto ChFreq.Limit [MHz][MHz] Low2402.0- Mid2441.0- High2480.0- Inquiry2441.0-0.830 0.905 [MHz] 0.900 0.905 20dB Bandwidth Test report No. : 26IE0204-HO-A-1 Page : 16 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) 20dB Bandwidth Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 26IE0204-HO-A-1 Page : 17 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Number of Hopping Frequency UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Roo m COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC Part15 Subpart C 15.247(a)(1)(iii) EQUIPMENT : COMB PLAYERTEST DISTANCE : - MODEL : BT010 ADATE : 05/12/2006 S/ N : WE300676TEMPERATURE : 23deg.C POWER : DC13.2VHUMIDITY : 44% MODE : Tx (Hopping on) /Inquir yENGINEER : Norihisa Hashimoto ModeLimi t [time] Tx(Hoppng on)≧15 ModeLimi t [time] Inquir y≧15 [time] 32 [time] 79 Number of channel Number of channel Test report No. : 26IE0204-HO-A-1 Page : 18 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Number of Hopping Frequency Hopping on (1/3) Hopping on (2/3) Hopping on (3/3) Inquiry (1/3) Inquiry (2/3) Inquiry (3/3) Test report No. : 26IE0204-HO-A-1 Page : 19 of 36 Issued date : Jun…

Text truncated - open the document above for the full version.

Test report No. : 26IE0204-HO-A-1 Page : 11 of 36 Issued date : June 5, 2006 Revised date : June 7, 2006 FCC ID : BABBT010A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear
