BABBT015ABluetooth Display

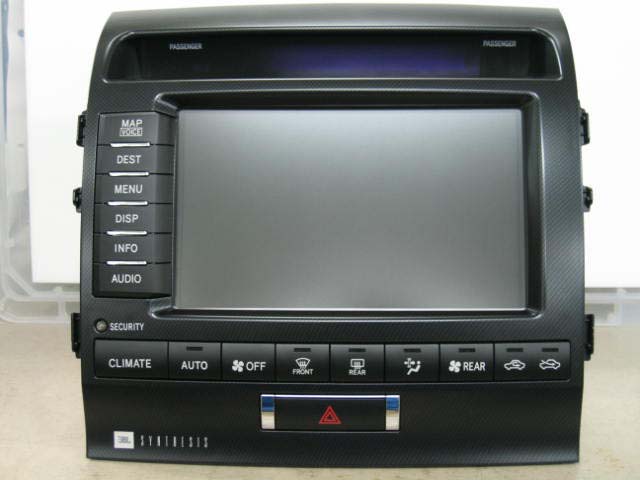

《 Externals 》 For U.S.A, Europe(LHD) Middle East,China Model No： BT015A TOP VIEW FRONT VIEW BOTTOM VIEW LEFT VIEW RIGHT VIEW BACK VIEW EMV ‐ N

《 Externals 》 For U.S.A, Europe(LHD) Middle East,China Model No： BT015A TOP VIEW FRONT VIEW BOTTOM VIEW LEFT VIEW RIGHT VIEW BACK VIEW EMV ‐ N

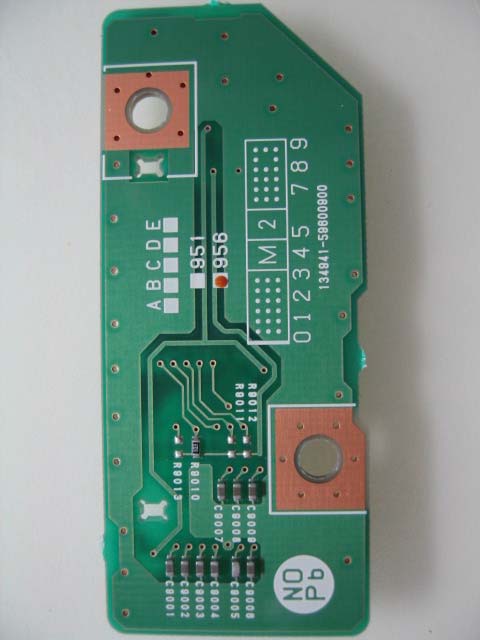

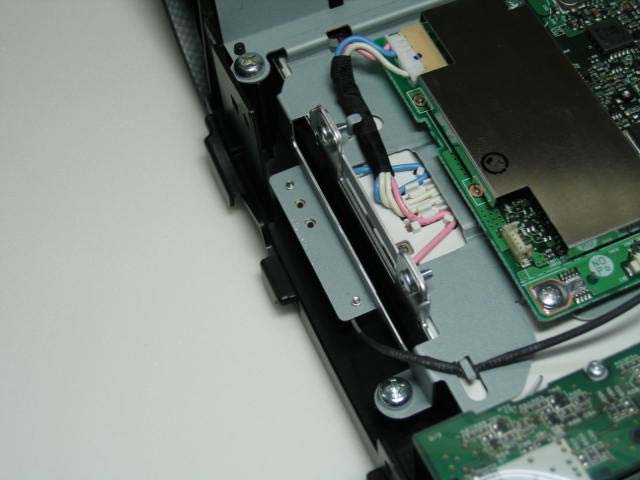

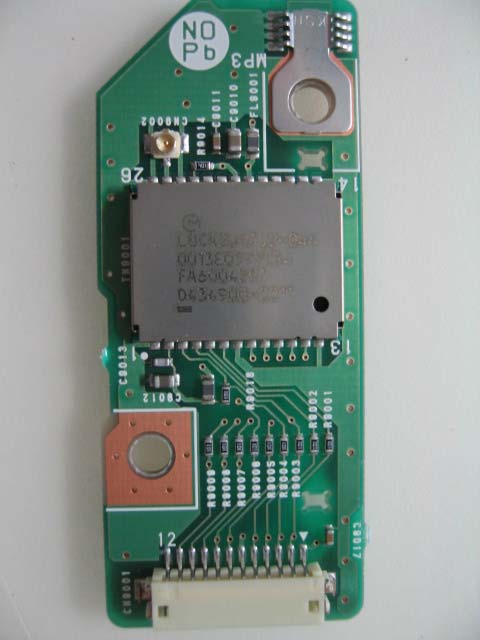

《 Antenna mounting position 》 Model No： BT015A Bluetooth antenna LHD 《 Bluetooth module board position 》 Model No： BT015A EMV-N Bluetooth module Bluetooth module position BACK VIEW 《 Bluetooth module 》 Model No： BT015A Solder side A part side

《 Antenna mounting position 》 Model No： BT015A Bluetooth antenna LHD 《 Bluetooth module board position 》 Model No： BT015A EMV-N Bluetooth module Bluetooth module position BACK VIEW 《 Bluetooth module 》 Model No： BT015A Solder side A part side

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN Limited Type of Equipment : DISPLAY Model No. : BT015A FCC ID: BABBT015A FUJITSU TEN Limited declares that Model : BT015A complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “BT015A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.77 mW (Maximum peak output power) G = 0.76 Numerical Antenna gain; equal -1.20 dBi r =20.0 cm For: BT015AS = 0.00012mW/cm 2 No. : 27FE0007-HO-A-1 RF Exposure / SAR Statement

Test report No. : 27FE0007-HO-A-1 Page : 9 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear

Test report No. : 27FE0007-HO-A-1 Page : 10 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Carrier Frequency Separation UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx(Hopping on)/InquiryENGINEER : Norihisa Hashimoto ChFreq. [MHz] Low2402.0 Mi d2441.0 High2480.0 Inquir y2441.0 1.000 2.000 >0.845[MHz] (20dB Bandwidth) or 25[kHz](whichever is greater) >0.825[MHz] ( 20dB Bandwidth) or 25[kHz](whichever is greater) 1.000 1.005 >0.840[MHｚ] (20dB Bandwidth) or 25[kHz](whichever is greater) >0.860[MHz] (20dB Bandwidth) or 25[kHz](whichever is greater) Limit [MHz] Channel separation Test report No. : 27FE0007-HO-A-1 Page : 11 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Carrier Frequency Separation Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0007-HO-A-1 Page : 12 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) 20dB Bandwidth UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping off) /InquiryENGINEER : Norihisa Hashimoto ChFreq.Limit [MHz][MHz] Low2402.0- Mid2441.0- High2480.0- Inquiry2441.0-0.825 0.845 [MHz] 0.840 0.860 20dB Bandwidth Test report No. : 27FE0007-HO-A-1 Page : 13 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) 20dB Bandwidth Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0007-HO-A-1 Page : 14 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Number of Hopping Frequency UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1)(iii) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping on) /InquiryENGINEER : Norihisa Hashimoto ModeLimit [time] Tx(Hopping on) ≧ 15 ModeLimit [time] Inquiry ≧ 15 [time] 33 [time] 79 Number of channel Number of channel Test report No. : 27FE0007-HO-A-1 Page : 15 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Number of Hopping Frequency Hopping on (1/3) Hopping on (2/3) Hopping on (3/3) Inquiry (1/3) Inquiry (2/3) Inquiry (2/3) Test report No. : 27FE0007-HO-A-1 Page : 16 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Roo m COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1)(iii) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg. C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping on) /Inquir yENGINEER : Norihisa Hashimoto ModeLength ofResultLimit transmission time [msec][msec] [msec] DH150 times /5 sec. x31.6 sec. = 316 times 0.502159400 *1 DH326 times /5 sec. x31.6 sec. = 165 times 1.750289400 *2 DH518 times /5 sec. x31.6 sec. = 114 times 2.992341400 Inquir y100 times /1 sec. x12.8 sec. = 1280 times 0.226290400 *1 5 回の平均 を取得 1:24 / 2:28 / 3:24 / 4:27 / 5:27 平均26times *2 5回の平均 を取得 1:17 / 2:17 / 3:19 / 4:19 / 5:18平均18times *1 The average of 5 times 1:24 / 2:28 / 3:24 / 4:27 / 5:27Average 26time s *2 The average of 5 times 1:17 / 2:17 / 3:19 / 4:19 / 5:18Average 18times Number of transmission in a 31.6(79 Hopping x 0.4) / 12.8(32 Hopping x 0.4)second perio d Test report No. : 27FE0007-HO-A-1 Page : 17 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time DH1 (1/2) DH1 (2/2) DH3 (1/2) DH3 (2/2) Test report No. : 27FE0007-HO-A-1 Page : 18 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time DH5 (1/2) DH5 (2/2) Inquiry (1/2) Inquiry (2/2) Test report No. : 27FE0007-HO-A-1 Page : 19 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Maximum Peak Output Power UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGU…

Text truncated - open the document above for the full version.

Test report No. : 27FE0007-HO-A-1 Page : 2 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................6 SECTION 5: Spurious Emission............................................................................................................ 7 SECTION 6: Bandwidth ......................................................................................................................... 8 SECTION 7: Maximum Peak Output Power ....................................................................................... 8 SECTION 8: Carrier Frequency Separation ........................................................................................8 SECTION 9: Number of Hopping Frequency ...................................................................................... 8 SECTION 10: Dwell time ....................................................................................................................... 8 APPENDIX 1: Photographs of test setup .............................................................................................. 9 Spurious Emission (Radiated) .......................................................................................... 9 APPENDIX 2: Data of EMI test............................................................................................................ 10 Carrier Frequency Separation ....................................................................................... 10 20dB Bandwidth .............................................................................................................. 12 Number of Hopping Frequency ..................................................................................... 14 Dwell time......................................................................................................................... 16 Maximum Peak Output Power....................................................................................... 19 Radiated Spurious Emission (below 1GHz) .................................................................. 20 Radiated Spurious Emission (above 1GHz) .................................................................. 23 Conducted Spurious Emission........................................................................................ 26 APPENDIX 3:Test instruments ............................................................................................................ 30 Test report No. : 27FE0007-HO-A-1 Page : 3 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : FUJITSU TEN Limited Address : 2-28 Gosho-Dori 1-chome,Hyogo-ku,Kobe, 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Hiroshi Uda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : DISPLAY Model No. : BT015A Serial No. : 1G100001 Country of Manufacture : Japan Receipt Date of Sample : February 14, 2007 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: BT015A is the DISPLAY. Display is installed in vehicles, and displays the information on navigation, audio & visual, and others on a screen, and it has the interface which operates it by touching a screen top. Moreover, Bluetooth is used and service linked to a cellular phone is offered. Clock Frequency : 12.55MHz, 5MHz, 4MHz (Microprocessor), 12.079MHz, 14.549MHz (CPU), 16.616MHz, 33.231MHz, 27MHz, 32.768kHz (Drawing dot clock) 13MHz, 32.768kHz (Base band) Equipment Type Transceiver Frequency of Operation 2402-2480MHz Type of Modulation FHSS Antenna Type Reverse F Type Antenna Antenna Connector Type U.FL-LP-066 Antenna Gain -1.20dBi Method of Frequency Generation Crystal Operating Voltage (Inner) DC3.1V to 3.5V Test report No. : 27FE0007-HO-A-1 Page : 4 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2006 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz : 2006 FCC 15.31 (e) This EUT provides stable voltage(DC3.3V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst Margin*0) Results 1 Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: …

Text truncated - open the document above for the full version.

Test report No. : 27FE0007-HO-A-1 Page : 9 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear

Test report No. : 27FE0007-HO-A-1 Page : 10 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Carrier Frequency Separation UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx(Hopping on)/InquiryENGINEER : Norihisa Hashimoto ChFreq. [MHz] Low2402.0 Mi d2441.0 High2480.0 Inquir y2441.0 1.000 2.000 >0.845[MHz] (20dB Bandwidth) or 25[kHz](whichever is greater) >0.825[MHz] ( 20dB Bandwidth) or 25[kHz](whichever is greater) 1.000 1.005 >0.840[MHｚ] (20dB Bandwidth) or 25[kHz](whichever is greater) >0.860[MHz] (20dB Bandwidth) or 25[kHz](whichever is greater) Limit [MHz] Channel separation Test report No. : 27FE0007-HO-A-1 Page : 11 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Carrier Frequency Separation Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0007-HO-A-1 Page : 12 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) 20dB Bandwidth UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping off) /InquiryENGINEER : Norihisa Hashimoto ChFreq.Limit [MHz][MHz] Low2402.0- Mid2441.0- High2480.0- Inquiry2441.0-0.825 0.845 [MHz] 0.840 0.860 20dB Bandwidth Test report No. : 27FE0007-HO-A-1 Page : 13 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) 20dB Bandwidth Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0007-HO-A-1 Page : 14 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Number of Hopping Frequency UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1)(iii) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg.C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping on) /InquiryENGINEER : Norihisa Hashimoto ModeLimit [time] Tx(Hopping on) ≧ 15 ModeLimit [time] Inquiry ≧ 15 [time] 33 [time] 79 Number of channel Number of channel Test report No. : 27FE0007-HO-A-1 Page : 15 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Number of Hopping Frequency Hopping on (1/3) Hopping on (2/3) Hopping on (3/3) Inquiry (1/3) Inquiry (2/3) Inquiry (2/3) Test report No. : 27FE0007-HO-A-1 Page : 16 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Roo m COMPANY : FUJITSU TEN LIMITEDREGULATION : FCC15.247(a)(1)(iii) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT015ADATE : 3/13/2007 S/ N : 1G100001TEMPERATURE : 23deg. C POWER : DC 13.2VHUMIDITY : 32% MODE : Tx (Hopping on) /Inquir yENGINEER : Norihisa Hashimoto ModeLength ofResultLimit transmission time [msec][msec] [msec] DH150 times /5 sec. x31.6 sec. = 316 times 0.502159400 *1 DH326 times /5 sec. x31.6 sec. = 165 times 1.750289400 *2 DH518 times /5 sec. x31.6 sec. = 114 times 2.992341400 Inquir y100 times /1 sec. x12.8 sec. = 1280 times 0.226290400 *1 5 回の平均 を取得 1:24 / 2:28 / 3:24 / 4:27 / 5:27 平均26times *2 5回の平均 を取得 1:17 / 2:17 / 3:19 / 4:19 / 5:18平均18times *1 The average of 5 times 1:24 / 2:28 / 3:24 / 4:27 / 5:27Average 26time s *2 The average of 5 times 1:17 / 2:17 / 3:19 / 4:19 / 5:18Average 18times Number of transmission in a 31.6(79 Hopping x 0.4) / 12.8(32 Hopping x 0.4)second perio d Test report No. : 27FE0007-HO-A-1 Page : 17 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time DH1 (1/2) DH1 (2/2) DH3 (1/2) DH3 (2/2) Test report No. : 27FE0007-HO-A-1 Page : 18 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Dwell time DH5 (1/2) DH5 (2/2) Inquiry (1/2) Inquiry (2/2) Test report No. : 27FE0007-HO-A-1 Page : 19 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Maximum Peak Output Power UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LIMITEDREGU…

Text truncated - open the document above for the full version.

Test report No. : 27FE0007-HO-A-1 Page : 9 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear

Test report No. : 27FE0007-HO-A-1 Page : 9 of 30 Issued date : March 20, 2007 Revised date : April 12, 2007 FCC ID : BABBT015A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear
