BABBT016AVehicle Audio System with Bluetooth Transceiver

Model BT016A Externals For U.S.A EMVN TOP VIEW FRONT VIE W BOT T OM VIE W LEF T V I EW RIGHT VIE W BACK VIE W

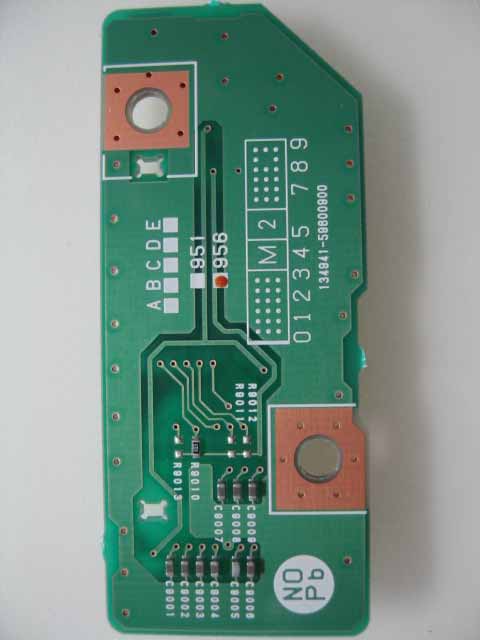

Antenna mounting position Model BT016A EMVN , EMV-N RHD LHD EMV( T h ere is no n avigation setting. ) RHD LHD Bluetooth ant e nna Bluetooth ant e nna BACK VIE W Bluetooth module board position Model BT016A EMVN EMV-N Bluetooth module position Bluetooth module position BACK VIE W BACK VIE W Bluetooth module A common position Bluetooth module Model BT016A A part side Solder side

Test report No. : 27FE0008-HO-A-1 Page : 2 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information.................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ............................................................................ 3 SECTION 3: Test specification, procedures & results ............................................................. 4 SECTION 4: Operation of E.U.T. during testing...................................................................... 8 SECTION 5: Spurious Emission................................................................................................. 9 SECTION 6: Bandwidth............................................................................................................ 10 SECTION 7: Maximum Peak Output Power .......................................................................... 10 SECTION 8: Carrier Frequency Separation........................................................................... 10 SECTION 9: Number of Hopping Frequency ......................................................................... 10 SECTION 10: Dwell time .......................................................................................................... 10 APPENDIX 1: Photographs of test setup................................................................................. 11 Spurious Emission (Radiated) ........................................................................................ 11 APPENDIX 2: Data of EMI test ................................................................................................ 12 Carrier Frequency Separation ....................................................................................... 12 20dB Bandwidth .............................................................................................................. 14 Number of Hopping Frequency ..................................................................................... 16 Dwell time......................................................................................................................... 18 Maximum Peak Output Power....................................................................................... 21 Radiated Spurious Emission (below 1GHz) .................................................................. 22 Radiated Spurious Emission (above 1GHz) .................................................................. 26 Conducted Spurious Emission........................................................................................ 30 99% Occupied Bandwidth .............................................................................................. 34 APPENDIX 3:Test instruments ................................................................................................. 35 Test report No. : 27FE0008-HO-A-1 Page : 3 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company Name : FUJITSU TEN Limited Address : 2-28 Gosho-Dori 1-chome,Hyogo-ku,Kobe, 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Hiroshi Uda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : DISPLAY Model No. : BT016A Serial No. : 1G000002 for Radiated Emission test 1G000018 for Antenna Terminal Conducted test Rating : DC12.0V Country of Manufacture : Japan Receipt Date of Sample : April 19, 2007 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: BT016A, referred as the EUT in this report, is the DISPLAY. Display is installed in the vehicles, displays the information on navigation, audio & visual, and others on a screen, and has the interface which operates it by toughing a screen top. Moreover, Bluetooth is used and service linked to a cellular phone is offered. Clock Frequencies: 12.55MHz, 5MHz, 4MHz, 16MHz (Microprocessor) 12.079MHz, 14.549MHz (CPU) 16.616MHz, 33.231MHz, 27MHz, 32.768kHz (Drawing dot clock) 13MHz, 32.768kHz (Base band) Equipment Type Transceiver Frequency of Operation 2402-2480MHz Type of Modulation FHSS Antenna Type Reverse F Type Antenna (model: ANT0623-16W/U-BT) Antenna Connector Type SMT Type (model:U.FL-LP-066) Antenna Gain -0.29dBi Method of Frequency Generation Crystal Operating Voltage (Inner) DC3.3V Test report No. : 27FE0008-HO-A-1 Page : 4 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2007 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz : 2007 FCC 15.31 (e) The stable voltage (DC3.3V and 1.8V) is constantly supplied with RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 27FE0008-HO-A-1 Page : 5 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, In…

Text truncated - open the document above for the full version.

Test report No. : 27FE0008-HO-A-1 Page : 11 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear

Test report No. : 27FE0008-HO-A-1 Page : 12 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Carrier Frequency Separation UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LimitedREGULATION : FCC15.247(a)(1)/RSS-210A8.1(2) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT016ADATE : 04/20/2007 , 04/23/2007 S/ N : 1G000018TEMPERATURE : 26deg.C, 24deg.C POWER : 12.0VHUMIDITY : 35%, 42% MODE : Tx(Hopping on)/InquiryENGINEER : Makoto Kosaka ChFreq. [MHz] Low2402.0 Mid2441.0 High2480.0 Inquiry2441.0 Limit [MHz] Channel separation 1.000 1.000 >0.881[MHz](20dB Bandwidth) or 25[kHz](whichever is greater) >0.886[MHz](20dB Bandwidth) or 25[kHz](whichever is greater) 1.000 2.000 >0.880[MHz](20dB Bandwidth） or 25[kHz](whichever is greater) >0.814[MH ｚ ] （ 20dB Bandwidth ） or 25[kHz](whichever is greater) Test report No. : 27FE0008-HO-A-1 Page : 13 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Separation Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0008-HO-A-1 Page : 14 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 20dB Bandwidth UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LimitedREGULATION : FCC15.247(a)(1)/RSS-210A8.1(1) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT016ADATE : 04/20/2007, 04/23/2007 S/ N : 1G000018TEMPERATURE : 26deg.C, 24deg.C POWER : DC 12.0VHUMIDITY : 35%, 42% MODE : Tx (Hopping off) /InquiryENGINEER : Makoto Kosaka ChFreq.Limit [MHz][MHz] Low2402.0- Mid2441.0- High2480.0- Inquiry2441.0-0.814 0.880 [MHz] 0.881 0.886 20dB Bandwidth Test report No. : 27FE0008-HO-A-1 Page : 15 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 20dB Bandwidth Ch:Low Ch:Mid Ch:High Inquiry Test report No. : 27FE0008-HO-A-1 Page : 16 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Number of Hopping Frequency UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LimitedREGULATION : FCC15.247(a)(1)(iii)/RSS-210A8.1(4) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT016ADATE : 04/23/2007 S/ N : 1G000018TEMPERATURE : 24deg.C POWER : DC 12.0VHUMIDITY : 42% MODE : Tx (Hopping o ｎ ) /InquiryENGINEER : Makoto Kosaka ModeLimit [time] Tx(Hoppng on) ≧ 15 ModeLimit [time] Inquiry ≧ 15 [time] 32 [time] 79 Number of channel Number of channel Test report No. : 27FE0008-HO-A-1 Page : 17 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Number of Hopping Frequency Hopping on (1/3) Hopping on (2/3) Hopping on (3/3) Inquiry (1/3) Inquiry (2/3) Inquiry (2/3) Test report No. : 27FE0008-HO-A-1 Page : 18 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Dwell time UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LimitedREGULATION : FCC15.247(a)(1)(iii)/RSS-210A8.1(4) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT016ADATE : 04/23/2007 S/ N : 1G000018TEMPERATURE : 24deg.C POWER : DC 12.0VHUMIDITY : 42% MODE : Tx (Hopping on) /InquiryENGINEER : Makoto Kosaka ModeLength ofResultLimit transmission time [msec][msec] [msec] DH150 times / 5 sec. x 31.6 sec. = 316 times 0.502159400 *1 DH327 times / 5 sec. x 31.6 sec. = 171 times 1.750299400 *2 DH519 times / 5 sec. x 31.6 sec. = 121 times 3.000363400 Inquiry100 times / 1 sec. x 12.8 sec. = 1280 times 0.222284400 *1 The average of 5 times 1:27 / 2:29 / 3:31 / 4:26 / 5:23 Average 27times *2 The average of 5 times 1:17 / 2:20 / 3:18 / 4:17 / 5:24 Average 19times Number of transmission in a 31.6(79 Hopping x 0.4) / 12.8(32 Hopping x 0.4)second period Test report No. : 27FE0008-HO-A-1 Page : 19 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Dwell time DH1 (1/2) DH1 (2/2) DH3 (1/2) DH3 (2/2) Test report No. : 27FE0008-HO-A-1 Page : 20 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Dwell time DH5 (1/2) DH5 (2/2) Inquiry (1/2) Inquiry (2/2) Test report No. : 27FE0008-HO-A-1 Page : 21 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : FUJITSU TEN LimitedREGULATION : FCC15.247(b)(1)/RSS-210A8.4(2) EQUIPMENT : DISPLAYTEST DISTANCE : - MODEL : BT016ADATE : 04/23/2007 S/ N : 1G000018TEMPERATURE : 24deg.C POWER : DC 12.0VHUMIDITY : 42% MODE : Tx(Hopping Off)/InquiryENGINEER : Makoto Kosaka ChFreq.P/MCableAtten.Ma…

Text truncated - open the document above for the full version.

Test report No. : 27FE0008-HO-A-1 Page : 11 of 36 Issued date : May 21, 2007 Revised date : May 30, 2007 FCC ID : BABBT016A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear
