BABFT0019ARadio Detection and Ranging Device for Vehicle

Manual Request FCC ID: BABFT0019A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Co-location: This transmitter must not be co- located or operated in conjunction with any other antenna or transmitter.

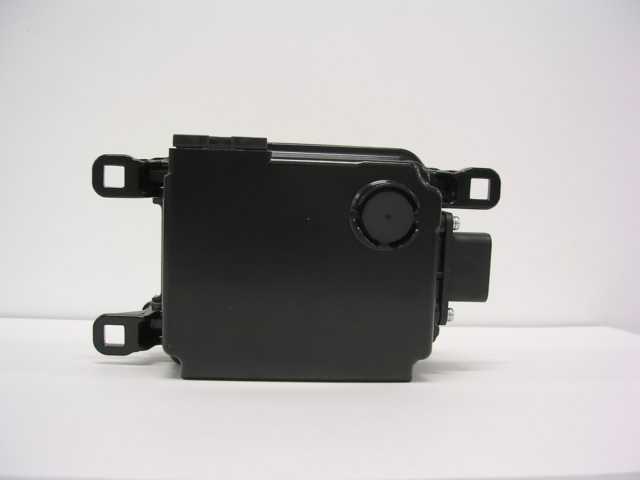

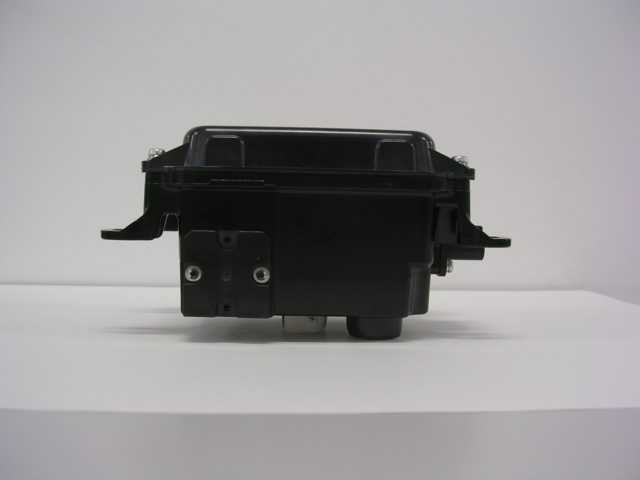

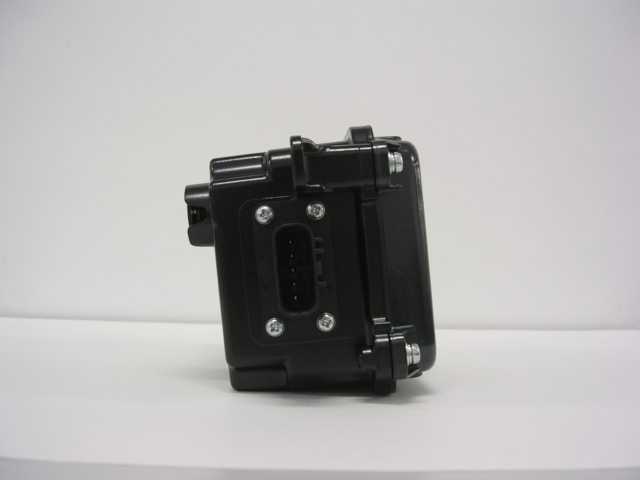

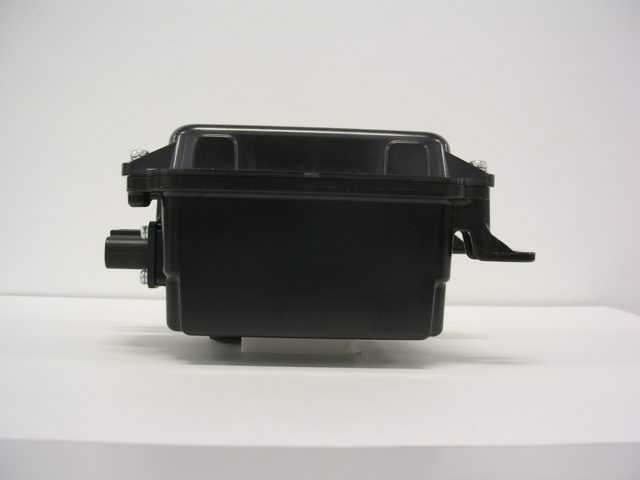

External Photoand Size Right side Front side Left side Under side Back side Upper side 123.2mm 7 0 . 3 m m 157mm 9 0 . 5 m m

ID Label FT0019A 271007-5320 36800-T2GA-*** ********** FCC ID：BABFT0019A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interferencethat may cause undesired operation. このラベルを剥がさないでください MADE IN JAPAN

L I C E N S I N G L A B E L 外観図

Antenna Scanner Internal Photo Internal Photo RF Unit Antenna Photo

Test report No. : 32GE0069-HO-01 Page : 1 of 2 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Statement for RF Exposure JOB No. : 32GE0069-HO-01 Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0019A Test standard : FCC Part 15 Subpart C: 2012 Section 15.253(f) Test result : Complied [FCC rule] §1.1310 Radiofrequency radiation exposure limits. The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Test report No. : 32GE0069-HO-01 Page : 2 of 2 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 [Results] ModeDuty Factor [dBm][mW][dB][dBm][mW] Operating mode38.687376.6-3.0135.673688.3 Separation DistanceResultLimit [cm][mW/cm2][mW/cm2] 200.7341 Calculating formula: Average EIRP = Peak EIRP + Duty Factor Power Density = Average EIRP / (4 * Pi * Separation Sistance ^ 2) Power Densit y Peak EIRPAverage EIRP (Peak with Duty Factor)

Test report No. : 32GE0069-HO-01-A-R1 Page : 1 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32GE0069-HO-01-A-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0019A FCC ID : BABFT0019A Test regulation: FCC Part 15 Subpart C: 2012 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32GE0069-HO-01-A. 32GE0069-HO-01-A is replaced with this report. Date of test: February 23 to March 1, 2012 Representative test engineer: Hironobu Ohnishi Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32GE0069-HO-01-A-R1 Page : 2 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Radiated Emission (Spurious Emission, Power Density) ................................................. 9 SECTION 6: Frequency Stability ........................................................................................................... 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 26dB and 99% Bandwidth ................................................................................................................ 12 Power Density .................................................................................................................................. 13 Spurious Emission ............................................................................................................................ 14 Frequency Stability ........................................................................................................................... 16 APPENDIX 2: Test instruments ............................................................................................................. 17 APPENDIX 3: Photographs of test setup ............................................................................................... 19 Spurious Emission ............................................................................................................................ 19 Carrier Frequency Measurement ...................................................................................................... 20 Frequency Stability ........................................................................................................................... 21 Test report No. : 32GE0069-HO-01-A-R1 Page : 3 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe 652-8510, Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Shotatsu Yo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0019A Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : February 21, 2012 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: FT0019A (referred to as the EUT in this report) is the Radio Detection and Ranging Device for Vehicle. Test report No. : 32GE0069-HO-01-A-R1 Page : 4 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.253 Operation within the bands 46.7-46.9GHz and 76.0-77.0GHz. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Condu…

Text truncated - open the document above for the full version.

Test report No. : 32GE0069-HO-01-A-R1 Page : 19 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Spurious Emission Photo 1 Photo 2 Test report No. : 32GE0069-HO-01-A-R1 Page : 20 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Measurement Photo 1 Photo 2 Test report No. : 32GE0069-HO-01-A-R1 Page : 21 of 21 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0019A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Frequency Stability Photo 1 Photo 2
