BABFT0021ACar Navigation System with Bluetooth

FUJITSU TEN CONFIDENTIAL 1 Users Manual: FT0021A [1] Connection Diagram No. Name ① Power Connector ② Steering SW, Connectors such as Mini jack adaptor ③ Rear camera input connector ④ Radio antenna connector ⑤ USB connector ⑥ GPS antenna connector ⑦ XM antenna connector ⑧ No use ⑨ No use 1. Please connect cables, as shown in the above drawing. 2. Turn on BATT and ACC. 3. Opening screen is displayed. REAR ① ② ④ ③ ⑤ ⑥ ⑦ ⑧ ⑨ FUJITSU TEN CONFIDENTIAL 2 [2] Connecting Bluetooth 1. Please push the “AUDIO” button. 2. Please push the “∨” button on the screen. 3. Please push the “BTA” button on the screen. 4. Please push the “Setting” button on the screen. 5. Please push the “Connection” button on the screen. 6. Please push the “Search Mobile” button on the screen. “∨” button “AUDIO” button “Setting” button “BTA” button “Connection” button “Search Mobile” button FUJITSU TEN CONFIDENTIAL 3 7. After the message please push the “Yes” button on the screen. And please wait for a moment. 8. If the name of your mobile phone is shown in the list, please touch the name. If the name of your mobile phone is not shown, please touch “Search from Device” button on the screen. And connect from your mobile phone. (Pass code is 0000.) “Yes” button List of the mobile phones “Search from Device” button Device Name Device Address Passcode FUJITSU TEN CONFIDENTIAL 4 [3]Connecting audio player 1. Please push the “AUDIO” button. 2. Please push the “CD” or “USB” button on the screen. Go to the previous or next track. “CD” button “USB” button “AUDIO” button Volume up Volume down FUJITSU TEN CONFIDENTIAL 5 [4]Connecting radio 1. Please push the “AUDIO” button. 2. Please push the “AM” or “FM” button on the screen. Radio channel Go to the previous or next channel. Go to the previous or next preset channel. “AM” button “FM” button “AUDIO” button Volume up Volume down 14. REFERENCE ■ About the Bluetooth ● Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. ●This device com plies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: BABFT0021A IC: 2024B-FT0021A ●CAUTION: Radio Fre quency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body (excluding extremities: hands, writsts, feet and ankles). Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ●This Cate gory II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada. ■About the iPod _iPod is a trademark of Apple Inc., registered in the U.S. and other countries. _"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. _Apple is not responsible for the operation of this device or its compliance. ■Co pyright note The product and the information contained herein is subject to change without prior notification. This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Nav N Go Kft. © 2010 Nav N Go Kft All rights reserved.

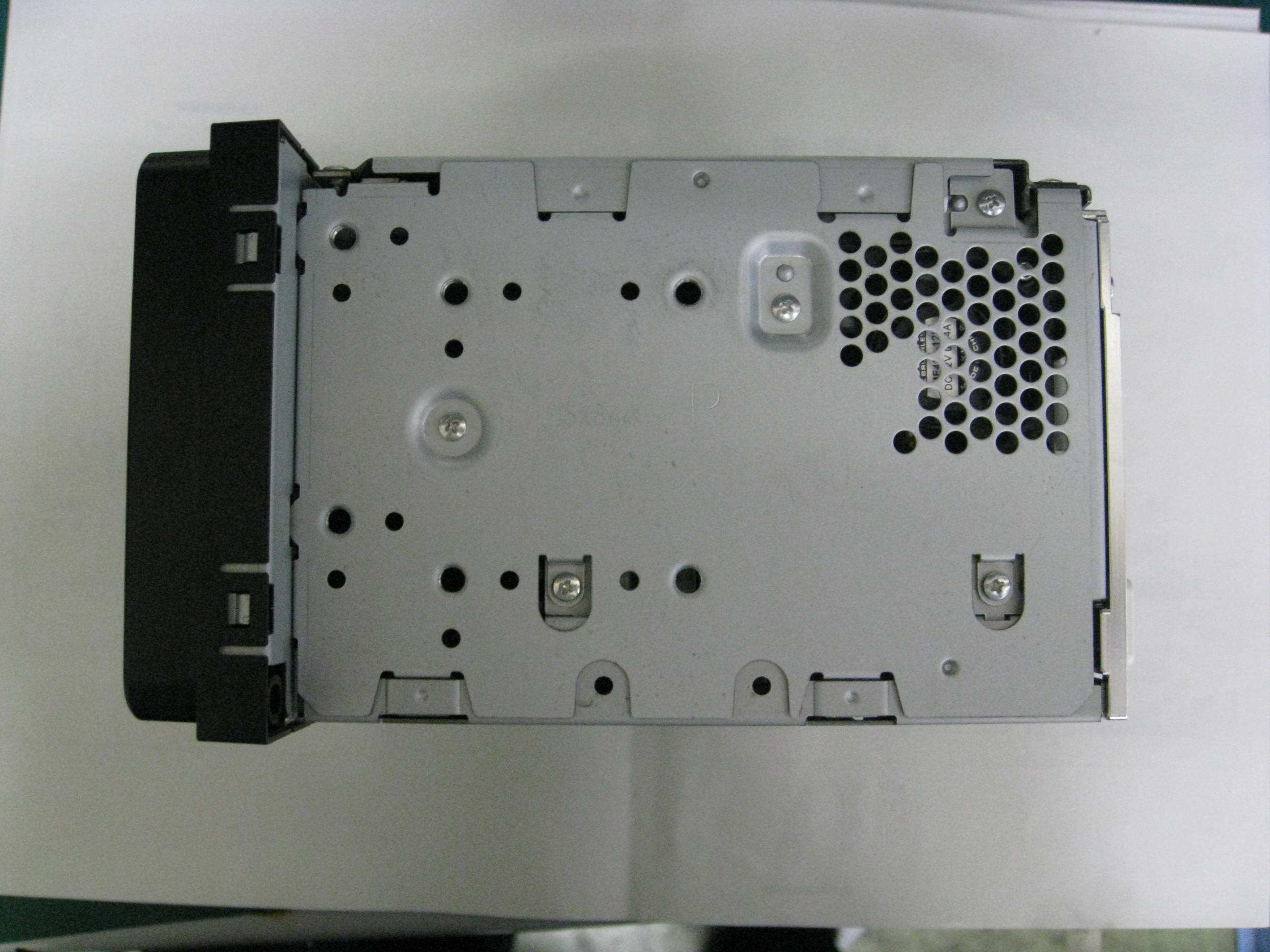

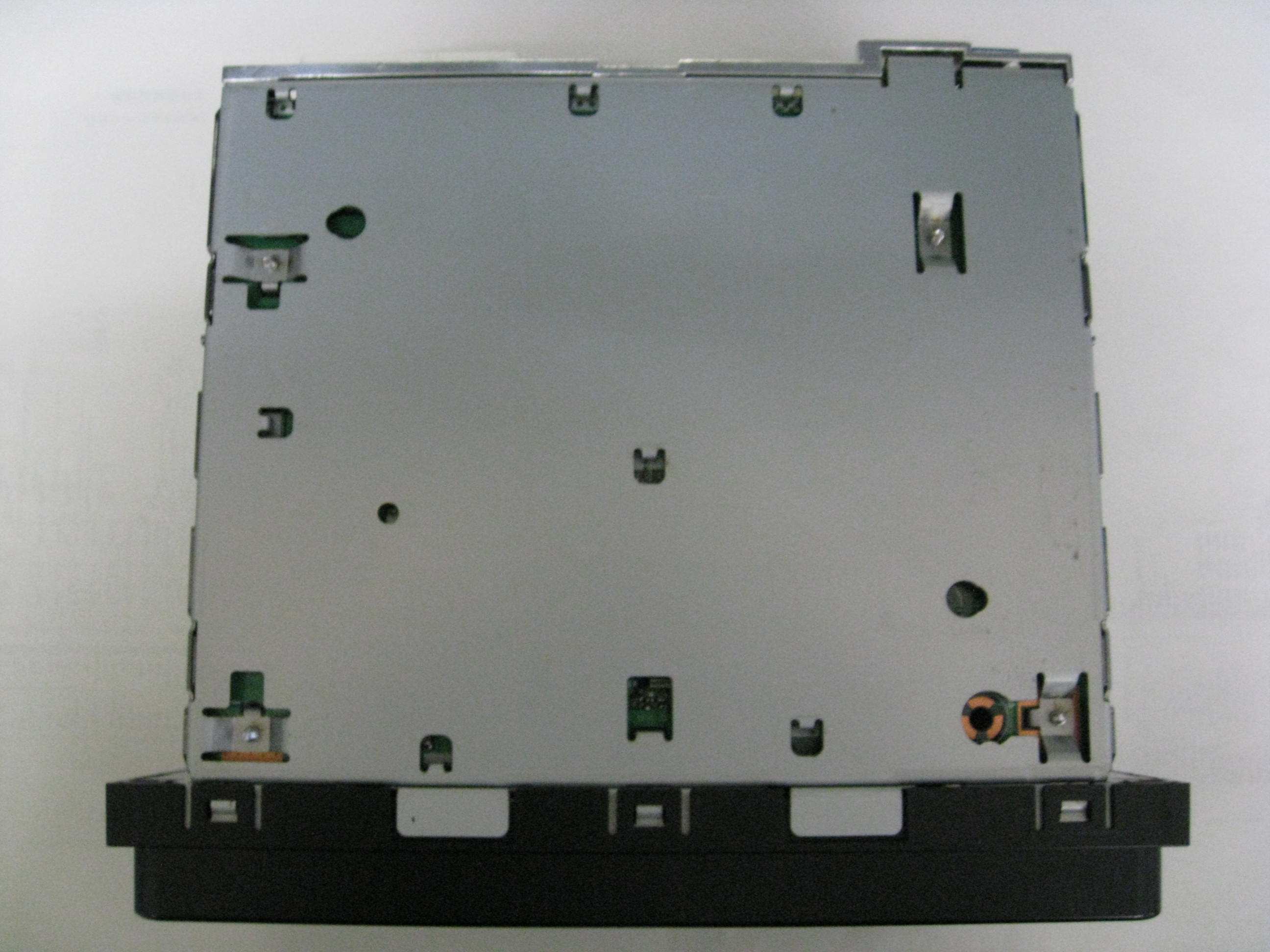

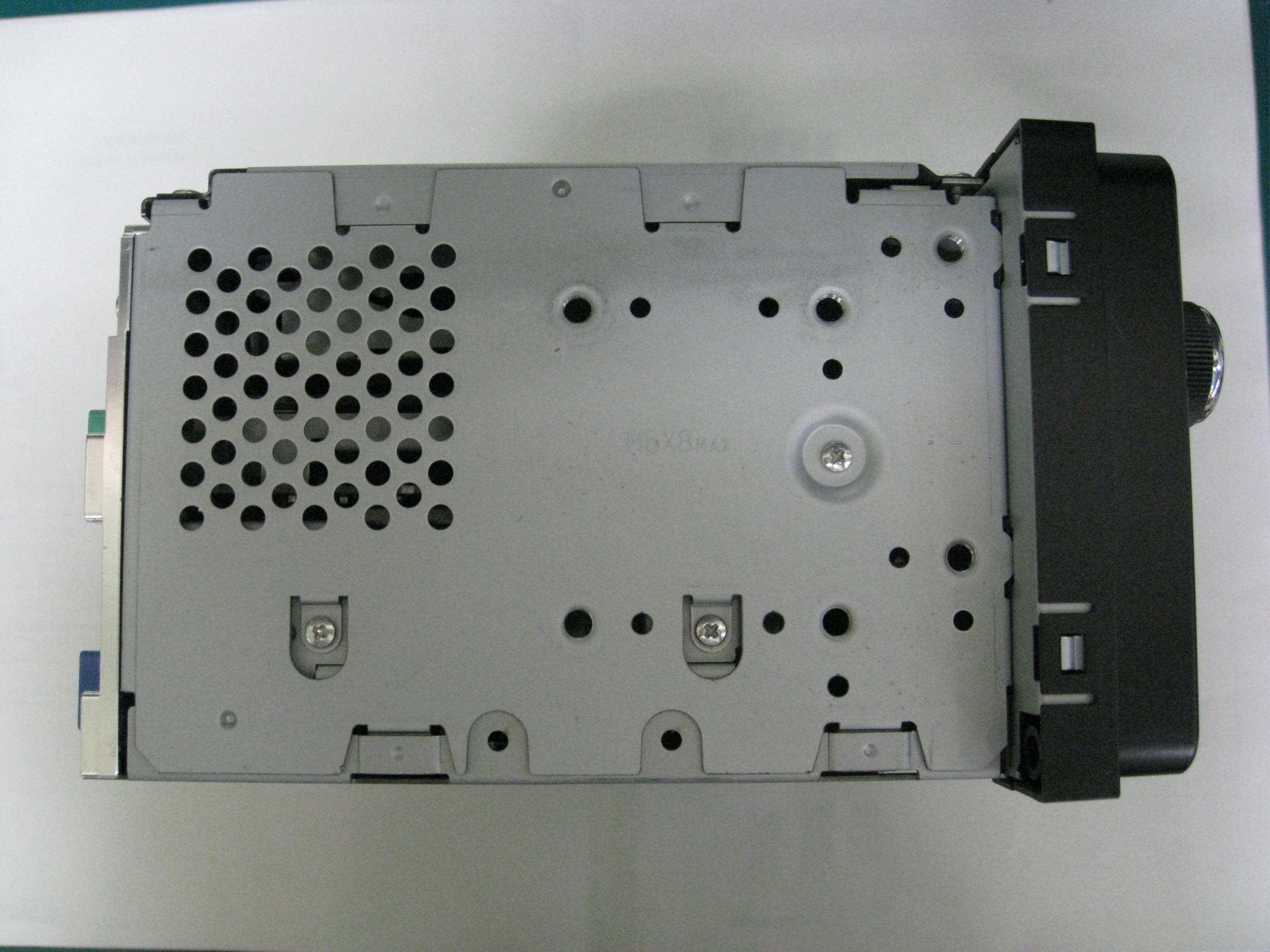

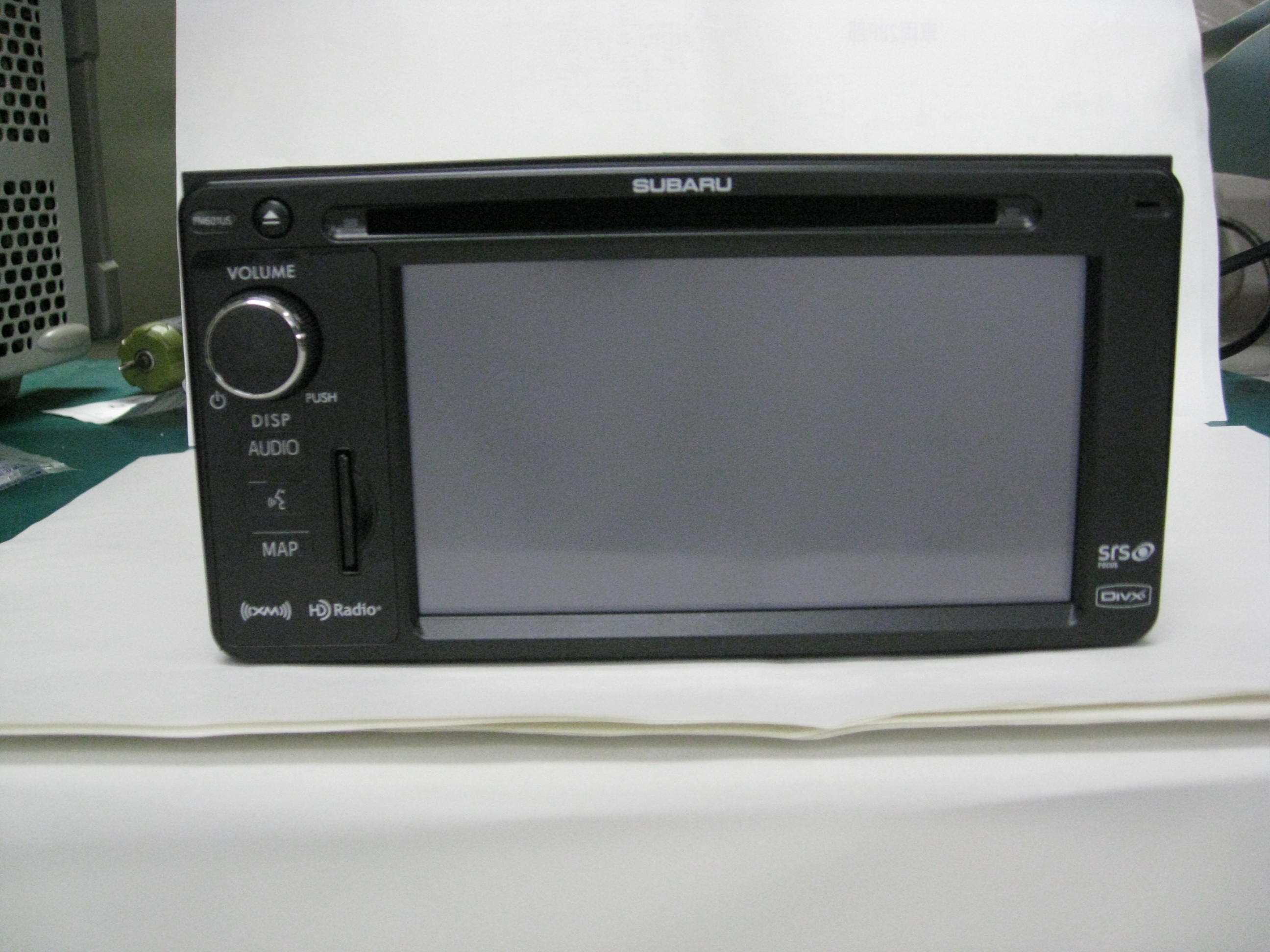

EXTARNAL PHOTO Front view Rear view 207mm 104mm 178mm 100mm EXTARNAL PHOTO Top view Bottom view 179mm 207mm 179mm 207mm EXTARNAL PHOTO Right view Left view 179mm 179mm 1 04mm 104mm

㩷 㩷 㩷 Top view Customer’s Part Number Part Number Address of Manufacturer Month and Year of Production Name of Country 㪇㪊㩷㪁㪁㪁㪁 Label FUJITSU TEN CONFIDENTIAL

Internal Photo Rear View (8 screws) Left View (3 screws) Right View (3 screws) BT Module Top View (4 screws) Front View (7 screws) Deck (2 screws) Deck PCB (3 screws) CPU PCB (4 screws) Audio PCB (4 screws) Main CPU DSP FT0021A BT Module Photo EXTERNAL PHOTO INTERNAL PHOTO FCC ID: BABFT0021A Sheet 1 of 1 Sheets ETC Report No. : 10-11-MAS-258-01 INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT

Antenna location Front view Rear view Chip antenna

ETC Report No. : 10-11-MAS-258-13 Sheet 1 of 2 Sheets FCC ID. : BABFT0021A Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (nW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 1 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 20 cm is meet the limit of MPE. ETC Report No. : 10-11-MAS-258-13 Sheet 2 of 2 Sheets FCC ID. : BABFT0021A Rev. No 1.0 Result Operation Frequency (GHz) Distance (cm) Maximum Peak Output Power (dBm) Maximum Peak Output Power (mW) Antenna Gain (dBi) FCC Power Density (mW/cm 2 ) 2.402 20 -1.78 0.664 -1.01 0.00010 The P d at 20 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 1 mW/cm 2 or 10W/m 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 20 cm from persons to comply with the FCC's requirements. This separation of 20 cm more than meets the FCC's and Industry Canada RF exposure requirements.

FCC ID: BABFT0021A Sheet 1 of 82 Sheets ETC Report No. : 10-11-MAS-258-01 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 10-11-MAS-258-01 Client: FUJITSU TEN LIMITED Product: Car navigation System with Bluetooth Model: FT0021A FCC ID: BABFT0021A Manufacturer/supplier: FUJITSU TEN LIMITED Date test item received: 2010/11/25 Date test campaign completed: 2011/02/16 Date of issue: 2011/02/17 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 82 pages Total number of pages of photos: External photos 3 pages Internal photos 5 pages Setup photos 1 pages Test Engineer Checked By Approved By David You James Cheng Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: BABFT0021A Sheet 2 of 82 Sheets ETC Report No. : 10-11-MAS-258-01 Rev. No 1.0 Client : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, kobe 652-8510 Japan Manufacturer : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, kobe 652-8510 Japan EUT : Car navigation System with Bluetooth Trade name : ---- Model No. : FT0021A Power Source : 13.2Vdc battery Regulations applied : FCC 47 CFR, Part 15 Subpart C (2009) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, NCC, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF 5 FCC Registration Number: 90588, 91094, 91095 h Industry Canada Site Regisitation number: IC 2949A-1 NVLAP Lab Code 200133-0 FCC ID: BABFT0021A Sheet 3 of 82 Sheets ETC Report No. : 10-11-MAS-258-01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Product Description............................................................................................................... 5 1.2 Characteristics of Device ...................................................................................................... 5 1.3 Test Methodology ................................................................................................................. 5 1.4 Modifiction List of EUT ....................................................................................................... 5 1.5 Test Facility........................................................................................................................... 5 1.6 Test Summary ....................................................................................................................... 5 2 PROVISIONS APPLICABLE............................................................................................... 6 2.1 Definition .............................................................................................................................. 6 2.2 Requirement for Compliance ................................................................................................7 2.3 Restricted Bands of Operation ..............................................................................................9 2.4 Labeling Requirement ........................................................................................................... 9 2.5 User Information ................................................................................................................. 10 3. SYSTEM TEST CONFIGURATION ................................................................................. 11 3.1 Justification ......................................................................................................................... 11 3.2 Devices for Tested System.................................................................................................. 11 3.2.1 ............................................................................................................................................ 11 4 RADIATED EMISSION MEASUREMENT ..................................................................... 13 4.1 Applicable Standard ............................................................................................................ 13 4.2 Measurement Procedure ...................................................................................................... 13 4.3 Measuring Instrument ......................................................................................................... 15 4.4 Radiated Emission Data ...................................................................................................... 16 4.5 Field Strength Calculation................................................................................................... 20 5 CONDUCTED EMISSION MEASUREMENT .................................................…
