BABFT0036ACar Navigation System with Bluetooth

[2]-1 Connecting Bluetooth 1. Please push the "AUDIO"button. 2. Please push the "v"button on the screen. "v"button "AUDIO"button 3. Please push the "BTA" button on the screen. "BTA" button 4. Please push the "Yes" button on the screen. "Yes" button FUJITSU TEN CONFIDENTIAL 5. Please wait for a moment. Device Name Device Address Passcode [2]-2 If once your mobile phone are connected 1. Please push the "AUDIO"button. 2. Please push the "v"button on the screen. 3. Please push the "BTA" button on the screen. 4. Please push the "Setting" button on the screen. "Setting" button 5. Please push the "Connection" button. "Connection" button FUJITSU TEN CONFIDENTIAL 6. If the name of your mobile phone is shown in the list,please touch the name. If the name of your mobile phone is not shown, please touch "Add New" button on the screen. And connect from your mobile phone. List of the mobile phones "Add New" button [3] Connecting audio player 1. Please push the "AUDIO" button. 2. Please push the "CD" or "USB" button on the screen. "CD" button "USB" button "AUDIO"button FUJITSU TEN CONFIDENTIAL [4] Connecting radio 1. Please push the "AUDIO" button. 2. Please push the "CD" or "USB" button on the screen. "AM" button "FM" button "AUDIO"button Go to the previous or next channel Go to the previous or next preset channel Volume down Volume up track down track up Volume down Volume up channel down channel up FUJITSU TEN CONFIDENTIAL 14. REFERENCE ■ About the Bluetooth ● Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. ●This device com plies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L'utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: BABFT0036A IC: 2024B-FT0036A ●CAUTION: Radio Fre quency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body (excluding extremities: hands, writsts, feet and ankles). Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ●This Cate gory II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada. ■About the iPod _iPod is a trademark of Apple Inc., registered in the U.S. and other countries. _"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. _Apple is not responsible for the operation of this device or its compliance. ■Co pyright note The product and the information contained herein is subject to change without prior notification. This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Nav N Go Kft. © 2010 Nav N Go Kft All rights reserved.

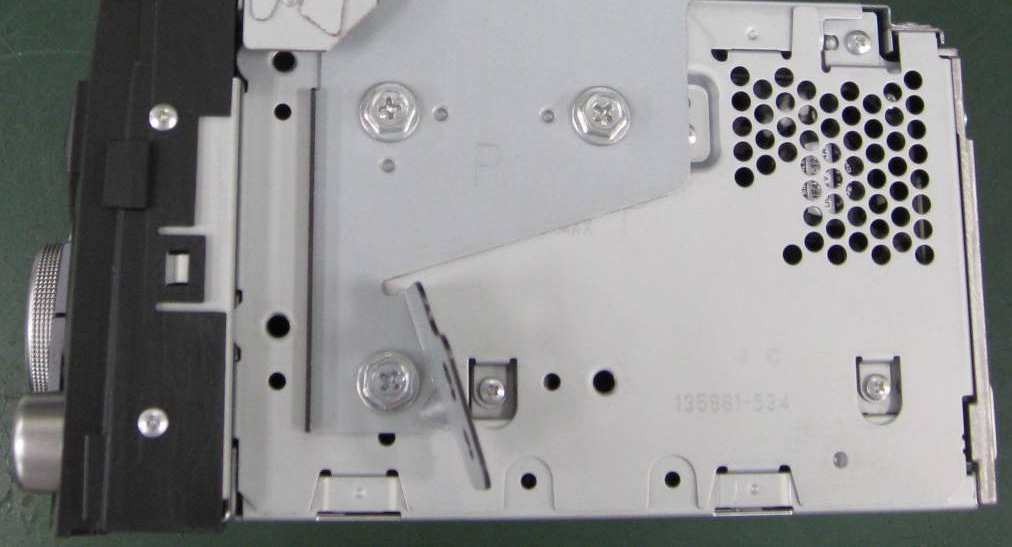

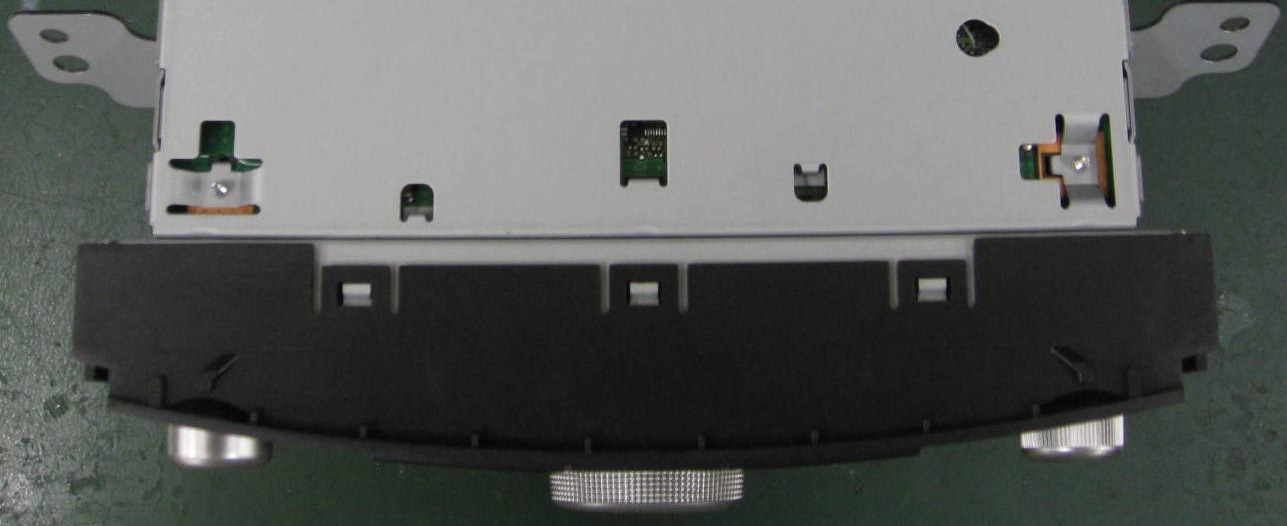

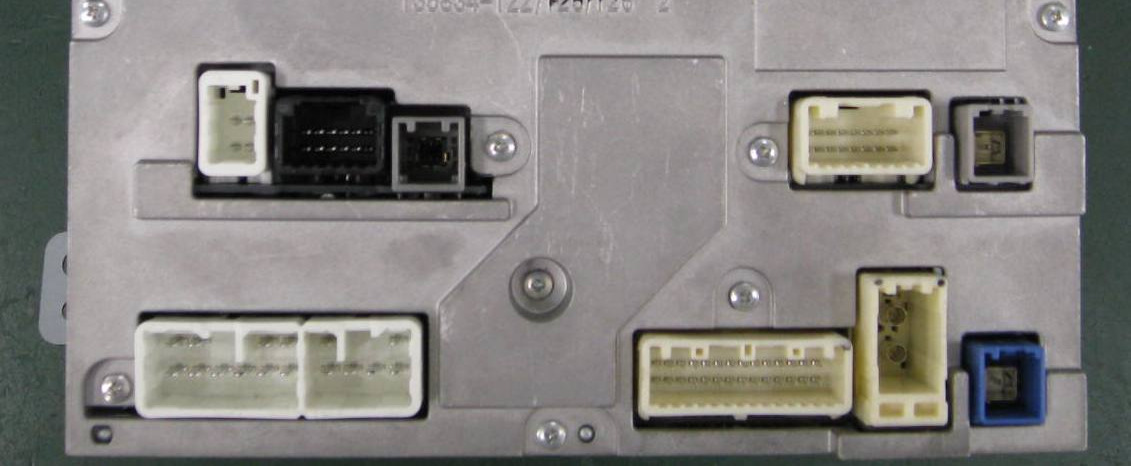

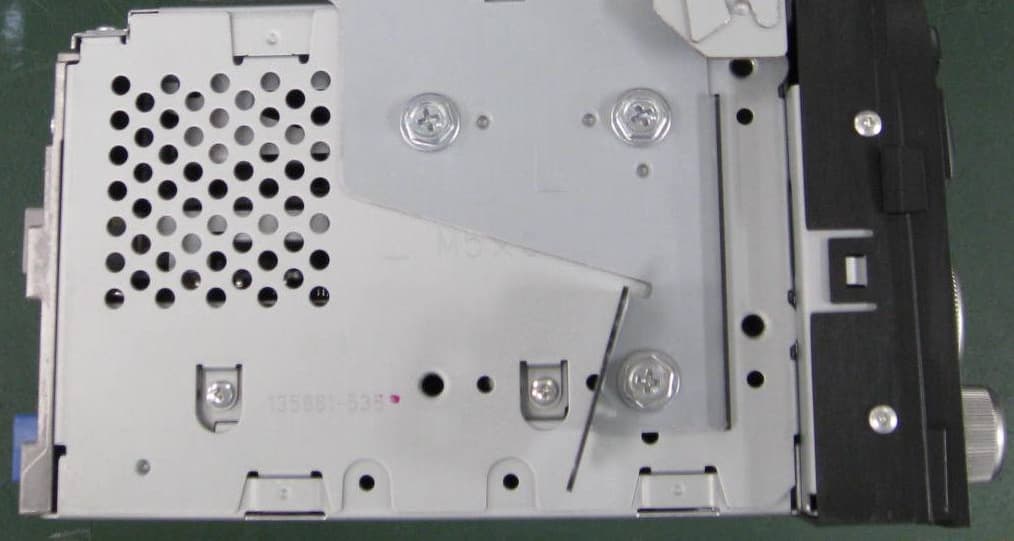

FUJITSU TEN LIMITED Head Office 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Date: 23 June 2011 No. 85C-101311-0004-00 (17 of 20) Appendix 7: Photos of ESA (1 of 3) Front view Rear view 195.4mm 216.5mm 178mm 216.5mm 200mm FUJITSU TEN LIMITED Head Office 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Date: 23 June 2011 No. 85C-101311-0004-00 (18 of 20) Top view Bottom view 200.8mm 178mm 200.8mm 200mm 200mm 178mm FUJITSU TEN LIMITED Head Office 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Date: 23 June 2011 No. 85C-101311-0004-00 (19 of 20) Appendix 7: Photos of ESA (3 of 3) Right view Left view 200.8mm 200.8mm 216.5 mm 216.5mm

FT0036A Label Drawing for the USLabel Drawing for Canada

Photo Document Applicant: Fujitsu Ten Limited Equipment: Car Navigation System with Bluetooth Model: FT0036A FCC ID: BABFT0036A IC No.: 2024B-FT0036A Applicant: Fujitsu Ten Limited Equipment: Car Navigation System with Bluetooth Model: FT0036A Location of Bluetooth module Bluetooth module (with shielded cover) Photo. of Bluetooth Module Applicant: Fujitsu Ten Limited Equipment: Car Navigation System with Bluetooth Model: FT0036A Bluetooth module (Bottom view) Bluetooth module (without shielded cover) Applicant: Fujitsu Ten Limited Equipment: Car Navigation System with Bluetooth Model: FT0036A Bluetooth module (Bottom view)

Antenna & Location Antenna

ETC Report No. : 11-10-MAS-064-13 Sheet 1 of 2 Sheets FCC ID. : BABFT0036A Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (nW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 1 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 20 cm is meet the limit of MPE. ETC Report No. : 11-10-MAS-064-13 Sheet 2 of 2 Sheets FCC ID. : BABFT0036A Rev. No 1.0 Result (Worse case mode) Operation Frequency (GHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2.480 20 -3.44 -1.01 0.0000714 1 The P d at 20 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 1 mW/cm 2 or 10W/m 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 20 cm from persons to comply with the FCC's requirements. This separation of 20 cm more than meets the FCC's and Industry Canada RF exposure requirements.

FCC ID: BABFT0036A Sheet 1 of 1 Sheets IC ID: 2024B-FT0036A ETC Report No. : 11-10-MAS-064-01 Photos of Radiation Measuring Setup
