BABFT0041ARadio Detection and Ranging Device for Vehicle

No. 85G-019312-0002 Purpose Millimeter wave radar detects distance, relative velocity, and an angle with leading vehicle, acoming vehicle, etc by transmission and reception of an electric wave. Furthermore, it has an automatic operation support function (ACC) and the function to reduce the damage at the time of a collision because predict a collision work with an alarm, braking system, etc. User Manual No. 85G-019312-0002 FCC ID：BABFT0041A CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Co-location:Thistransmitter must notbeco-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may not cause harmful interference, and (2) thisdevice must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC：2024B-FT0041A This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subjectto the following two conditions: (1) this device may not cause interference, and (2) this devicemust accept any interference, including interference that may cause undesired operation of thedevice. User Manual No. 85G-019312-0002 The latest "DECLARATION of CONFORMITY"(DoC) is available at the following: DoCaddress: FUJITSU TEN LIMITED 2-28, Gosho-dori1-chome, Hyogo-ku, Kobe, 652-8510, Japan Hereby, FUJITSU TEN LIMITED, declares that this FT0041A is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. User Manual 1731

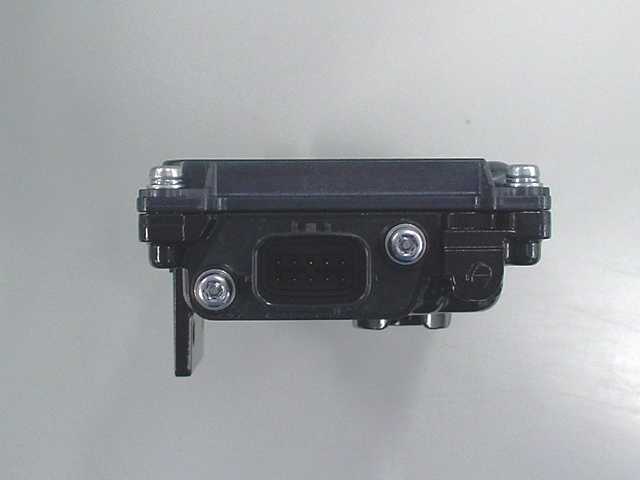

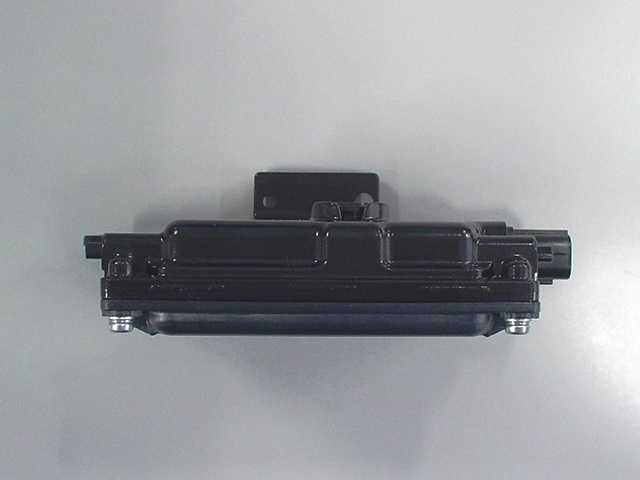

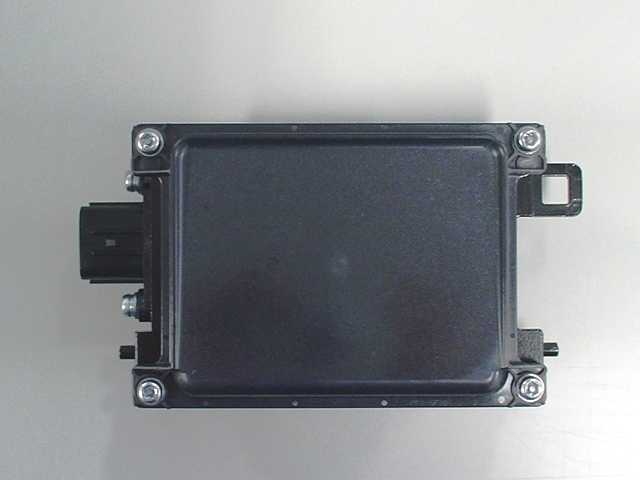

No. 85G-019312-0002 Right side Front side Left side Under side Back side Upper side External Photo

Label The label is stuck here. Back side *1. Name of product is changed for every vendor.*2. Customer number is changed for every vendor.*6. Part number is changed for every vendor.*7. Serial number is ch anged for every products. *10. In the blanks, listed are the manufact ure information, vendor information, etc. *1~*11 lists it in any position in the label. Customer number . Serial number Name of product Part number . . *1 *2 . *4 *3 *5 *6 *7 . *9 *8 *10 . *11

No. 85G-019312-0002 Internal Photo Side A Side B No. 85G-019312-0002 Internal Photo No. 85G-019312-0002 Internal Photo PCB Antenna No. 85G-019312-0002 Antenna Photo Surface Back side Outline drawing

Test report No. : 32GE0048-HO-01 Page : 1 of 3 FCC ID : BABFT0041A IC Number : 2024B-FT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Statement for RF Exposure JOB No. : 32GE0048-HO-01 Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0041A Test standard : FCC Part 15 Subpart C: 2012 Section 15.253(f) RSS-Gen Issue 3: 2010 +A1: January 2012 RSS-210 Issue 8: December 2010 Test result : Complied [FCC rule] §1.1310 Radiofrequency radiation exposure limits. The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Test report No. : 32GE0048-HO-01 Page : 2 of 3 FCC ID : BABFT0041A IC Number : 2024B-FT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 [IC rule] RSS-102 §4 Exposure Limits For the purpose of this standard, Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6. §4.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 6 300-1500 1.585f 0.5 0.0042f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000/f 1.2 Note: f is frequency in MHz. * Power density limit is applicable at frequencies greater than 100 MHz. Test report No. : 32GE0048-HO-01 Page : 3 of 3 FCC ID : BABFT0041A IC Number : 2024B-FT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 [Results] ModeDuty Factor [dBm][mW][dB][dBm][mW] In motion31.621451.7-6.4425.18329.5 Not in motion25.23333.3-6.4418.7975.7 Separation DistancePower DensityLimitPower DensityLimit [cm][mW/cm2][mW/cm2][W/m2][W/m2] 200.06610.65610 200.01510.15110 Calculating formula: Average EIRP = Peak EIRP + Duty Factor Power Density = Average EIRP / (4 * Pi * Separation Sistance ^ 2) FCCIC Peak EIRPAverage EIRP (Peak with Duty Factor)

Test report No. : 32GE0048-HO-01-A-R1 Page : 1 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32GE0048-HO-01-A-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0041A FCC ID : BABFT0041A Test regulation: FCC Part 15 Subpart C: 2012 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32GE0048-HO-01-A. 32GE0048-HO-01-A is replaced with this report. Date of test: March 2 to 6, 2012 Representative test engineer: Hironobu Ohnishi Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32GE0048-HO-01-A-R1 Page : 2 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Radiated Emission (Spurious Emission, Power Density) ................................................. 9 SECTION 6: Frequency Stability ........................................................................................................... 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 26dB and 99% Bandwidth ................................................................................................................ 12 Power Density .................................................................................................................................. 13 Spurious Emission ............................................................................................................................ 15 Receiver Spurious Emission ............................................................................................................. 17 Frequency Stability ........................................................................................................................... 18 APPENDIX 2: Test instruments ............................................................................................................. 19 APPENDIX 3: Photographs of test setup ............................................................................................... 21 Spurious Emission ............................................................................................................................ 21 Carrier Frequency Measurement ...................................................................................................... 22 Frequency Stability ........................................................................................................................... 23 Test report No. : 32GE0048-HO-01-A-R1 Page : 3 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe 652-8510, Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Shotatsu Yo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0041A Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : February 22, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: FT0041A (referred to as the EUT in this report) is the Radio Detection and Ranging Device for Vehicle. Test report No. : 32GE0048-HO-01-A-R1 Page : 4 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.253 Operation within the ban…

Text truncated - open the document above for the full version.

Test report No. : 32GE0048-HO-01-A-R1 Page : 21 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Spurious Emission Photo 1 Photo 2 Test report No. : 32GE0048-HO-01-A-R1 Page : 22 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Measurement Photo 1 Photo 2 Test report No. : 32GE0048-HO-01-A-R1 Page : 23 of 23 Issued date : March 13, 2012 Revised date : March 15, 2012 FCC ID : BABFT0041A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Frequency Stability Photo 1 Photo 2
