BABFT0042ACar Audio

■FT0042A User Manual ① DISC Eject ② Radio Mode ③ Audioi Mode (CD/BT/USB) ④ SEEK/TRACK DOWN ⑤ SEEK/TRACK UP ⑥ Play/Pause Press and hold ： Audio ON/OFF Turn right ： VOL UP Turn left ： VOL DOWN Turn right ： TUNE/TRACK UP Turn left ： TUNE/TRACK DOWN ⑦ ⑧ ■Connecting Bluetooth After power is turned up, the screen says "Audio Off". Press "MENU" of the remote controller. Turn the knob and select "Setup", then press the knob. Select "Bluetooth" and press the knob. ■Certification NOTE: FCC WARNING: CAUTION: Co-location: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. After a cursor appears, press telephone button on the left, the screen moves to device registration page. Select and press the knob on the remote controller. It starts connecting to a mobile phone.

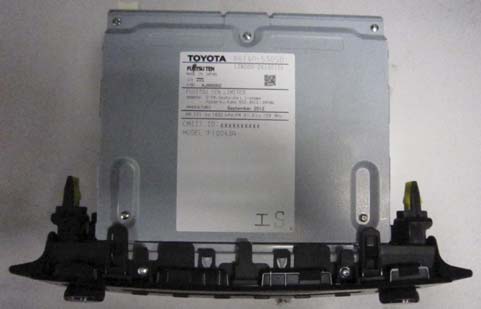

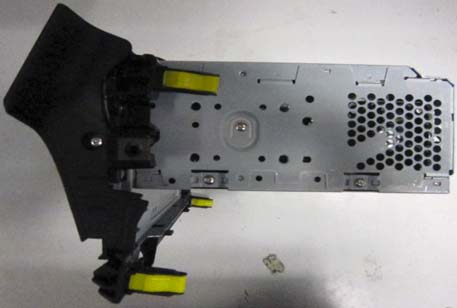

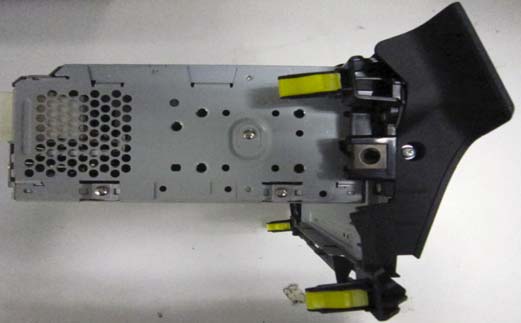

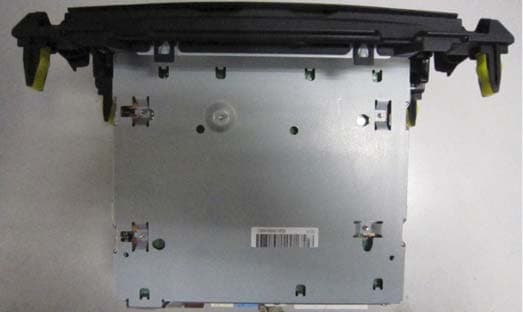

FT0042A External Photos □Front□Rear □Right□Left □Top□Bottom 128ｍｍ 200ｍｍ 267ｍｍ Label Position

Label Drawing and LocationFT0042A Label Position *****-***** ******-******** ********

FT0042A Internal Photos ■Audio □Component side□Solder side ■CPU □Component side□Solder side Enlarged View

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0042A FCC ID: BABFT0042A FUJITSU TEN LIMITED declares that Model : FT0042A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0042A“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.01 mW (Maximum peak output power) G = 2.00 Numerical Antenna gain; equal to3.00dBi r =20.0 cm For: FT0042AS =0.00040 mW/cm 2 No. : 32KE0192-HO RF Exposure / MPE Calculation

Test report No. : 32KE0192-HO-A-R1 Page : 1 of 48 Issued date : October 9, 2012 Revised date : December 12, 2012 FCC ID : BABFT0042A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32KE0192-HO-A-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0042A FCC ID : BABFT0042A Test regulation: FCC Part 15 Subpart C: 2012 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32KE0192-HO-A. 32KE0192-HO-A is replaced with this report. Date of test: September 3 and 6, 2012 Representative test engineer: Yutaka Yoshida Engineer of WiSE Japan, UL Verification Service Approved by: Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32KE0192-HO-A-R1 Page : 2 of 48 Issued date : October 9, 2012 Revised date : December 12, 2012 FCC ID : BABFT0042A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Radiated Spurious Emission ............................................................................................ 11 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 13 Number of Hopping Frequency ........................................................................................................ 16 Dwell time ......................................................................................................................................... 18 Maximum Peak Output Power .......................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 22 Conducted Spurious Emission .......................................................................................................... 31 Conducted Emission Band Edge compliance ................................................................................... 43 99%Occupied Bandwidth ................................................................................................................. 45 APPENDIX 2: Test instruments ............................................................................................................. 47 APPENDIX 3: Photographs of test setup ............................................................................................... 48 Radiated Spurious Emission ............................................................................................................. 48 Test report No. : 32KE0192-HO-A-R1 Page : 3 of 48 Issued date : October 9, 2012 Revised date : December 12, 2012 FCC ID : BABFT0042A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : FT0042A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Receipt Date of Sample : August 24, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 792MHz Radio Specification [Bluetooth (Ver. 2.1 with EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS Power Supply (radio part input) : DC 3.3V Antenna type : Inverted F type Antenna Antenna Gain : 3.0dBi Test report No. : 32KE0192-HO-A-R1 Page : 4 of 48 Issued date : October 9, 2012 Revised date : December 12, 2012 FCC ID : BABFT0042A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3…

Text truncated - open the document above for the full version.

Test report No. : 32KE0192-HO-A-R1 Page : 48 of 48 Issued date : October 9, 2012 Revised date : December 12, 2012 FCC ID : BABFT0042A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
