BABFT0043ACar Audio

FT0043A User manual FT0043A User manualFT0043A User manualFT0043A User manual ① DISC Eject② SEEK/TRACK DOWN③ SEEK/TRACK UP Push ： Audio ON/OFFTurn right ： VOL UPTurn left ： VOL DOWNTurn right ： TUNE/TRACK UPTurn left ： TUNE/TRACK DOWN ④⑤ ① ② ③ ④ ⑤ FUJITSU TEN CONFIDENTIAL FT0043A Bluetooth Operation FT0043A Bluetooth Operation FT0043A Bluetooth Operation FT0043A Bluetooth Operation 1 2 3 After Power tuened up , H/U starts loading. Please touch the 「Continue」. Pless the 「SETUP」 by Display Hard Switch. ※SETUP can not serect by the touch SW. FUJITSU TEN CONFIDENTIAL 4 5 6 Please touch the 「Bluetooth」. Please touch the 「Add」. The search of the device is started. FUJITSU TEN CONFIDENTIAL FT0043A Wi-Fi Operation FT0043A Wi-Fi Operation FT0043A Wi-Fi Operation FT0043A Wi-Fi Operation Please touch the 「Wi-Fi Power」. After Power tuened up , H/U starts loading. Please touch the 「Continue」. Pless the 「SETUP」 by Display Hard Switch. ※SETUP can not serect by the touch SW. 3 4 1 2 FUJITSU TEN CONFIDENTIAL 7Please touch the 「Push Button」. 8The search of the device is started. Please touch the 「ON」. Please touch the 「Easy Setup」. 5 6 FUJITSU TEN CONFIDENTIAL ■Certification CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). ATTENTION: l'exposition aux rayonnements radiofréquence - Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ＞For vehicles sold in Canada ・IC: 2024B-FT0043A This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). FCC ID: BABFT0043A ＞For vehicles sold in the U.S.A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FUJITSU TEN CONFIDENTIAL

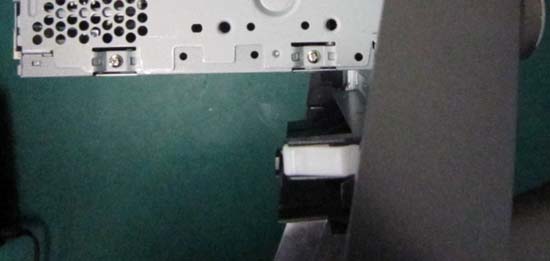

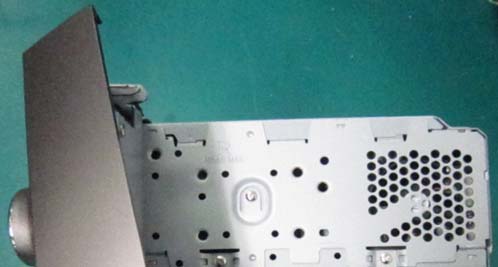

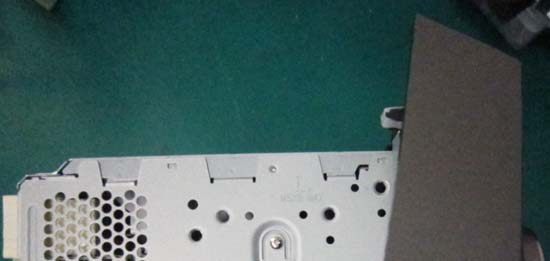

FT0043A external Photos (Model:US) □Front□Rear □Rright□Left □Top□Bottom FUJITSU TEN CONFIDENTIAL

北米 ＜ラベル図一覧＞ カナダ *****-***** ****** - ******** *****-***** ****** - ******** FUJITSU TEN CONFIDENTIAL

FT0042A , FT0043A Label p osition Label FUJITSU TEN CONFIDENTIAL

FT0043A Internal Photos FT0043A Internal PhotosFT0043A Internal Photos FT0043A Internal Photos ■Audio □Component side□Solder side ■CPU □Component side□Solder side ■XM □Component side□Solder side BT Antenna WIFI Antenna BT/WIFI module Enlarged View FUJITSU TEN CONFIDENTIAL ■Antenna locatioin ■BT/WIFI module Photo View Enlarged View FUJITSU TEN CONFIDENTIAL

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN LIMITED T ype of Equipment : Car Audio (WLAN part) Model No. : FT0043A FCC ID: BABT0043A FUJITSU TEN LIMITED declares that Model : FT0043A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0043A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 153.11 mW (Maximum peak output power) G = 1.39 Numerical Antenna gain; equal to1.43dBi r =20.0 cm For: FT0043AS =0.04234 mW/cm 2 No. : 4786002697H RF Exposure / MPE Calculation

Test report No. : 4786002697H-B-R1 Page : 1 of 37 Issued date : March 8, 2013 Revised date : March 21, 2013 FCC ID : BABFT0043A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 4786002697H-B-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0043A FCC ID : BABFT0043A Test regulation : FCC Part 15 Subpart C: 2012 *WLAN part Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 4786002697H-B. 4786002697H-B is replaced with this report. Date of test: February 5 to 12, 2013 Representative test engineer: Kazuya Yoshioka Engineer of WiSE Japan, UL Verification Service Approved by: Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 4786002697H-B-R1 Page : 2 of 37 Issued date : March 8, 2013 Revised date : March 21, 2013 FCC ID : BABFT0043A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 4786002697H-B Revision Test report No. Date Page revised Contents - (Original) 4786002697H-B March 8, 2013 - - 1 4786002697H-B-R1 March 21, 2013 P. 5 Corrected Bluetooth version in clause 2.2 1 4786002697H-B-R1 March 21, 2013 P. 5 Added “*WLAN and Bluetooth do not transmit simultaneously.” in clause 2.2 1 4786002697H-B-R1 March 21, 2013 P. 12 Deleted Maximum Average Output Power information from the table 1 4786002697H-B-R1 March 21, 2013 P. 30 Corrected Power Density data Test report No. : 4786002697H-B-R1 Page : 3 of 37 Issued date : March 8, 2013 Revised date : March 21, 2013 FCC ID : BABFT0043A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Radiated Spurious Emission ............................................................................................ 11 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 6dB Bandwidth ................................................................................................................................. 13 Maximum Peak Output Power .......................................................................................................... 16 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 29 Power Density ................................................................................................................................... 30 99%Occupied Bandwidth ................................................................................................................. 34 APPENDIX 2: Test instruments ............................................................................................................. 36 APPENDIX 3: Photographs of test setup ............................................................................................... 37 Radiated Spurious Emission ............................................................................................................. 37 Test report No. : 4786002697H-B-R1 Page : 4 of 37 Issued date : March 8, 2013 Revised date : March 21, 2013 FCC ID : BABFT0043A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : FT0043A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 13.2V Rated range : DC 10.5 to 16.0V Receipt Date of Sample : September 3, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab Test report No. : 4786002697H-B-R1 Page : 5 of 37 Issued date : March 8, 2013 Revised …

Text truncated - open the document above for the full version.

Test report No. : 4786002697H-B-R1 Page : 37 of 37 Issued date : March 8, 2013 Revised date : March 21, 2013 FCC ID : BABFT0043A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
