BABFT0045BCar Audio

Explanation of the icon FUJITSU TEN CONFIDENTIAL ※The screen design may be changed. FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL ・FCC ID: BABFT0045B ・CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body in normal use position. ・Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ・This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ・FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ・IC: 2024B-FT0045B ・This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ・CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ATTENTION: l'exposition aux rayonnements radiofréquence - Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). FUJITSU TEN CONFIDENTIAL

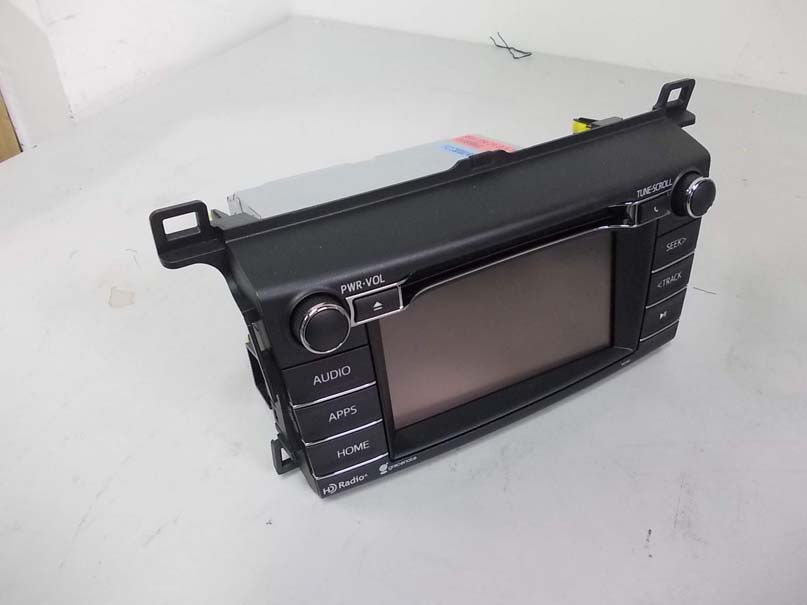

FT0045B External photo FT0045B External photoFT0045B External photo FT0045B External photo ■Left view■Right view ■Front view■Rear view ■Top view■Bottom view

FCC ID: BABFT0045B ETC Report No.: 14-12-MAS-218 IC ID: 2024B-FT0045B Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ラベル貼付位置 ラベル貼付位置ラベル貼付位置 ラベル貼付位置

■Bluetooth Antenna＆Wifi Antenna(Internal photos ) Bluetooth RF line (Blue) Wifi RF line(White) RF Module WiFi Antenna mounting position Bluetooth Antenna mounting position FUJITSU TEN CONFIDENTIAL

Upper side The closeup picture of Audio Board Audio Board Upper side Lower side FUJITSU TEN CONFIDENTIAL CPU Board Lower side Upper side Lower side FUJITSU TEN CONFIDENTIAL Lower side Upper side The closeup picture of CPU Board FUJITSU TEN CONFIDENTIAL SW(R) Board The closeup picture of Relay Board SW(L) Board Relay Board Upper side Lower Upper side Lower side Upper side Lower side FUJITSU TEN CONFIDENTIAL

FCC ID: BABFT0045B ETC Report No.: 14-12-MAS-218 Page B1 of B2 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT FCC ID: BABFT0045B ETC Report No.: 14-12-MAS-218 Page B2 of B2

ETC Report No. : 14-12-MAS-218-07 Sheet 1 of 2 Sheets FCC ID. : BABFT0045B Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (nW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 1 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 20 cm is meet the limit of MPE. ETC Report No. : 14-12-MAS-218-07 Sheet 2 of 2 Sheets FCC ID. : BABFT0045B Rev. No 1.0 Result (Worse case mode) Radio Technology Operation Frequency (MHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WiFi 2462 20 20.54 1.18 0.0266 1 Bluetooth 2480 20 1.46 4.67 0.0013 1 The P d at 20 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 1 mW/cm 2 or 10W/m 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 20 cm from persons to comply with the FCC's requirements. This separation of 20 cm more than meets the FCC's and Industry Canada RF exposure requirements. Simultaneous Evaluation: Both of WLAN 2.4GHz and Bluetooth radio can transmit simultaneously. The formula of calculated MPE is: CPD1/LPD1+CPD2/LPD2+...etc. ＜ 1 CPD=Calculated Power Density LPD=Limit of Power Density The MPE evaluation is 0.0266/1+0.0013/1=0.0279＜1, which confirm the device comply the MPE limit.

FCC ID: BABFT0045B Sheet 1 of 98 Sheets ETC Report No. : 14-12-MAS-218-02 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 14-12-MAS-218-02 Client: FUJITSU TEN LIMITED Product: Car Audio Model: FT0045B FCC ID: BABFT0045B Manufacturer/supplier: FUJITSU TEN LIMITED Date test item received: 2014/12/25 Date test campaign completed: 2015/01/21 Date of issue: 2015/01/21 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 98 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 1 pages Test Engineer Checked By Approved By Hsin-Pei Falcon Shi James Cheng ELECTRONICS TESTING CENTER, TAIWAN No.8, Lane 29, Wenming Rd. Guishan Dist. Taoyuan City 33383, Taiwan, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: BABFT0045B Sheet 2 of 98 Sheets ETC Report No. : 14-12-MAS-218-02 Rev. No 1.0 Client : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, Kobe 652-8510 Japan Manufacturer : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, Kobe 652-8510 Japan EUT : Car Audio Trade name : ---- Model No. : FT0045B Power Source : 12Vdc battery Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Registration Number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID: BABFT0045B Sheet 3 of 98 Sheets ETC Report No. : 14-12-MAS-218-02 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 5 1.1 Product Description ..................................................................................................................... 5 1.2 Characteristics of Device ............................................................................................................. 5 1.3 Test Methodology ........................................................................................................................ 5 1.4 Modifiction List of EUT .............................................................................................................. 5 1.5 Test Facility ................................................................................................................................. 5 1.6 Test Summary .............................................................................................................................. 5 2 PROVISIONS APPLICABLE...................................................................................................... 6 2.1 Definition ..................................................................................................................................... 6 2.2 Requirement for Compliance ....................................................................................................... 7 2.3 Restricted Bands of Operation ................................................................................................... 10 2.4 Labeling Requirement................................................................................................................ 10 2.5 User Information ........................................................................................................................ 11 3. SYSTEM TEST CONFIGURATION........................................................................................ 12 3.1 Justification ................................................................................................................................ 12 3.2 Devices for Tested System......................................................................................................... 12 4 RADIATED EMISSION MEASUREMENT ............................................................................ 14 4.1 Applicable Standard................................................................................................................... 14 4.2 Measurement Procedure............................................................................................................. 14 4.3 Measuring Instrument ................................................................................................................ 16 4.4 Radiated Emission Data ............................................................................................................. 19 4.5 Field Strength Calculation ......................................................................................................... 26 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 27 6 ANTENNA REQUIREMENT................................................…

Text truncated - open the document above for the full version.

FCC ID: BABFT0045B ETC Report No. : 14-12-MAS-218 Sheet 1 of 1 Sheets Photos of Radiation Measuring Setup
