BABFT0047ARadio Detection and Ranging Device for Vehicle

Confidential No. 85G-019314-0001 Purpose Millimeter wave radar detects distance, relativ e velocity, and an angle with leading vehicle, a coming vehicle, etc by transmission and reception o f an electromagnetic wave. Furthermore, it is used for one of adaptive cruise control and collision mitigation system in order to activate warning, brake system.Since this device is always used with vehicle, it is not so ld to general end users separately. Therefore there is no user manual of this device by alone. for FCC FCC CAUTIONChanges or modifications not expressly approved by the pa rty responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energythat it deemed to comply without maximum permissive exposure evaluation (MPE). This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interferen ce, and (2) this device must accept any interference received, including interference t hat may cause undesired operation. User Manual Since this device is always used with vehicle, it is not sold to general end users separately. Therefore there is no user manual of this device by alone.The following statements must be described on the user manual of the vehicle; Confidential No. 85G-019314-0001 for IC User Manual This device complies with Industry Canada licence-e xempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not caus e interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industri e Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditi ons suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l 'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequenc y (RF) Exposure rules. This equipm ent has very low levels of RF energy that it deemed to comply without ma ximum permissive exposure evaluation (MPE). Cet équipement est conforme aux limites d’expositio n aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fré quences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’expositionmaximale autorisée. Confidential No. 85G-019314-0001 Purpose Millimeter wave radar detects distance, relativ e velocity, and an angle with leading vehicle, a coming vehicle, etc by transmission and reception o f an electromagnetic wave. Furthermore, it is used for one of adaptive cruise control and collision mitigation system in order to activate warning, brake system.Since this device is always used with vehicle, it is not so ld to general end users separately. Therefore there is no user manual of this device by alone. for FCC FCC CAUTIONChanges or modifications not expressly approved by the pa rty responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energythat it deemed to comply without maximum permissive exposure evaluation (MPE). This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interferen ce, and (2) this device must accept any interference received, including interference t hat may cause undesired operation. User Manual

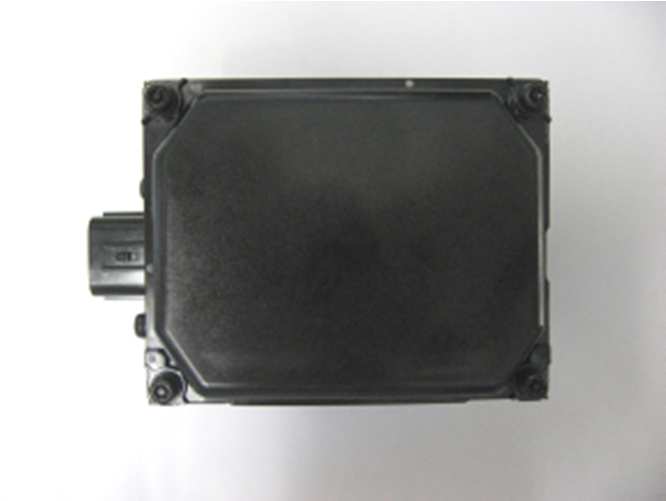

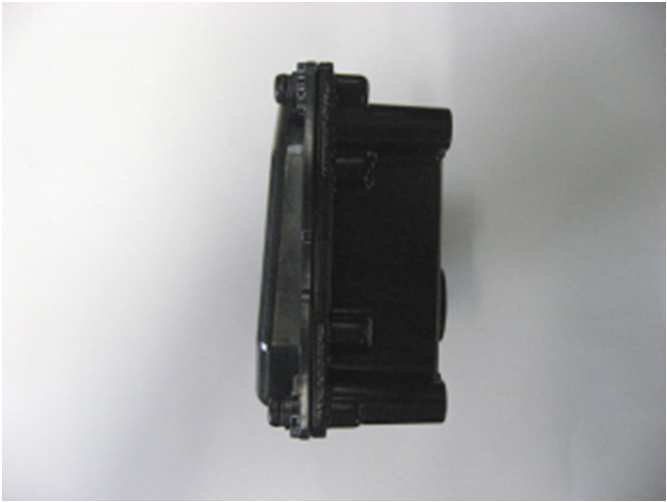

Confidential No. 85G-019313-0009 Right side Front side Left side Under side Back side Upper side External Photo 14/20

Confidential No. 85G-019314-0001 Label The label is stuck here. *1. Name of product*2. Part number*3. Manufacturer*4. Serial number is changed for every product.*5. FCC/IC number*6. Model number*7. Manufacture information and vendor informa tion, etc will be described in the blank. *1~*7. These can be located on any position in the label. Approval label  *4 *7 *4 *3 *1 *2 *6 Part number *5 100mm 80mm 43.3mm 17.2mm * Since this device is installed in a vehicle, user cannot see the label.FCC compliance statement will be included in User Manual as it is not practical top lace on the device according to FCC Rules §15.19.

Confidential No. 85G-019313-0009 Internal Photo Side A Side B Side A Side B PCB: RF circuit PCB: Power circuit 15/20 Confidential No. 85G-019313-0009 Internal Photo PCB: RF circuit PCB: Power circuit 16/20 Confidential No. 85G-019313-0009 Antenna Photo Surface Back side 17/20

Page : 1 of 3 Issued date : January 28, 2014 Revised date : February 17, 2014 FCC ID : BABFT0047A IC Number : 2024B-FT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Statement for RF Exposure Order No. : 10169391H Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0047A Test standard : FCC Part 15 Subpart C: 2012 Section 15.253(g) RSS-Gen Issue 3: 2010 +Notice 2012-DRS0126 RSS-210 Issue 8: December 2010 Test result : Complied [FCC rule] §1.1310 Radiofrequency radiation exposure limits. The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Page : 2 of 3 Issued date : January 28, 2014 Revised date : February 17, 2014 FCC ID : BABFT0047A IC Number : 2024B-FT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 [IC rule] RSS-102 §4 Exposure Limits For the purpose of this standard, Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6. §4.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 6 300-1500 1.585f 0.5 0.0042f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000/f 1.2 Note: f is frequency in MHz. * Power density limit is applicable at frequencies greater than 100 MHz. Page : 3 of 3 Issued date : January 28, 2014 Revised date : February 17, 2014 FCC ID : BABFT0047A IC Number : 2024B-FT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 [Results] ModeDuty Factor [dBm][mW][dB][dBm][mW] Tx 1 + Tx 327.69587.3-5.9321.76149.8 Tx 2 + Tx 427.34542.0-5.9321.41138.3 Separation DistancePower DensityLimitPower DensityLimit ResultResult [cm][mW/cm2][mW/cm2][W/m2][W/m2] 200.03010.29810 200.02810.27510 Calculating formula: Average EIRP = Peak EIRP + Duty Factor Power Density Result = Average EIRP / (4 * Pi * Separation Distance ^ 2) FCCIC Peak EIRPAverage EIRP (Peak with Duty Factor) These EIRP were measured in sufficient far field of 3m distance and calculated at 20cm.

Test report No. : 10169391H-A-R1 Page : 1 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10169391H-A-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0047A FCC ID : BABFT0047A Test regulation: FCC Part 15 Subpart C: 2013 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 10169391H-A. 10169391H-A is replaced with this report. Date of test: October 21, 2013 to February 10, 2014 Representative test engineer: Hironobu Ohnishi Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Manager of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10169391H-A-R1 Page : 2 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10169391H-A Revision Test report No. Date Page revised Contents - (Original) 10169391H-A January 28, 2014 - - 1 10169391H-A-R1 February 13, 2014 9 Addition of test sample information used for Duty Factor test to the table in Section 4.2 1 10169391H-A-R1 February 13, 2014 11 Correction of table of Carrier Measurement description in Section 5 1 10169391H-A-R1 February 13, 2014 14 Correction of Power Density test result table 1 10169391H-A-R1 February 13, 2014 16 Addition of Duty Factor test result 1 10169391H-A-R1 February 13, 2014 21 Addition of test equipment used for Duty Factor test Test report No. : 10169391H-A-R1 Page : 3 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Radiated Emission (Spurious Emission, Power Density) ............................................... 10 SECTION 6: Frequency Stability ........................................................................................................... 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 26dB and 99% Bandwidth ................................................................................................................ 13 Power Density ................................................................................................................................... 14 Spurious Emission ............................................................................................................................. 17 Frequency Stability ........................................................................................................................... 19 APPENDIX 2: Test instruments ............................................................................................................. 20 APPENDIX 3: Photographs of test setup ............................................................................................... 22 Spurious Emission ............................................................................................................................. 22 Carrier Frequency Measurement ....................................................................................................... 23 Frequency Stability ........................................................................................................................... 24 Test report No. : 10169391H-A-R1 Page : 4 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28 GOSHO-DORI, 1-CHOME, HYOGO-KU, KOBE 652-8510 Japan Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : Shotatsu Yo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Radio Detection and Ranging Device for Vehicle Model No. : FT0047A Serial No. : Refer to Clause 4.2 Rating : DC12.0/24.0 V(Nominal), DC8-32V (Operating Voltage) Receipt Date of Sample : October 7, 2013 Country of Mass-production : Japan and Spain Condition of EU…

Text truncated - open the document above for the full version.

Test report No. : 10169391H-A-R1 Page : 22 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Spurious Emission Photo 1 Photo 2 Test report No. : 10169391H-A-R1 Page : 23 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Carrier Frequency Measurement Photo 1 Photo 2 Test report No. : 10169391H-A-R1 Page : 24 of 24 Issued date : January 28, 2014 Revised date : February 13, 2014 FCC ID : BABFT0047A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Photo 1 Photo 2 End of Report
