BABFT0049BCar Audio

FT0049B User Manual FUJITSU TEN CONFIDENTIAL ※The screen design may be changed. ※The screen design may be changed.※The screen design may be changed. ※The screen design may be changed. FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL ＞For vehicles sold in the U.S.A. ・FCC ID: BABFT0049B ＞For vehicles sold in Canada IC: 2024B-FT0049B CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ・CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles). ・Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

■Rear view ■Bottom View ■Right view ■Front view ■Top view ■Left view



FT0049B Label Drawing BABFT0049B FT0049B MODEL:FT0049B 86140-06190 138000-3280*101

□Cpmponent side□Solder side ■Audio PCB □Cpmponent side□Solder side ■CPU PCB ■SW-L PCB □Cpmponent side□Solder side ■SW-R PCB □Cpmponent side□Solder side ■BT PCB □Cpmponent side□Solder side FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIAL Back side of front panel BT PCB Surface mounting Antenna Back side of Bluetooth module FUJITSU TEN CONFIDENTIAL FUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIAL

Proprietary Information - Confidential UGXZE-102A Bluetooth ® Module Top View – External Top View – Internal (Shield casing removed)

ETC Report No. : 13-01-MAS-020-03 Sheet 1 of 2 Sheets FCC ID. : BABFT0049B Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (nW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 1 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 20 cm is meet the limit of MPE. ETC Report No. : 13-01-MAS-020-03 Sheet 2 of 2 Sheets FCC ID. : BABFT0049B Rev. No 1.0 Result (Worse case mode) Radio Technology Operation Frequency (GHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Bluetooth 2.480 20 -1.28 0.8 0.00018 1 The P d at 20 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 1 mW/cm 2 or 10W/m 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 20 cm from persons to comply with the FCC's requirements. This separation of 20 cm more than meets the FCC's and Industry Canada RF exposure requirements.

FCC ID: BABFT0049B Sheet 1 of 75 Sheets ETC Report No. : 13-01-MAS-020-02 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 13-01-MAS-020-02 Client: FUJITSU TEN LIMITED Product: Car Audio Model: FT0049B FCC ID: BABFT0049B Manufacturer/supplier: FUJITSU TEN LIMITED Date test item received: 2013/01/03 Date test campaign completed: 2013/03/06 Date of issue: 2013/03/06 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 75 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 1 pages Test Engineer Checked By Approved By Phillip Luo Perry Lin James Cheng ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: BABFT0049B Sheet 2 of 75 Sheets ETC Report No. : 13-01-MAS-020-02 Rev. No 1.0 Client : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, Kobe 652-8510 Japan Manufacturer : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori, 1-chome, Hyogo-ku, Kobe 652-8510 Japan EUT : Car Audio Trade name : ---- Model No. : FT0049B Power Source : 12Vdc battery Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Regisitation number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID: BABFT0049B Sheet 3 of 75 Sheets ETC Report No. : 13-01-MAS-020-02 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 5 1.1 Product Description...................................................................................................................... 5 1.2 Characteristics of Device ............................................................................................................. 5 1.3 Test Methodology ........................................................................................................................ 5 1.4 Modifiction List of EUT .............................................................................................................. 5 1.5 Test Facility.................................................................................................................................. 5 1.6 Test Summary .............................................................................................................................. 5 2 PROVISIONS APPLICABLE...................................................................................................... 6 2.1 Definition ..................................................................................................................................... 6 2.2 Requirement for Compliance ....................................................................................................... 7 2.3 Restricted Bands of Operation ..................................................................................................... 9 2.4 Labeling Requirement .................................................................................................................. 9 2.5 User Information ........................................................................................................................ 10 3. SYSTEM TEST CONFIGURATION ........................................................................................ 11 3.1 Justification ................................................................................................................................ 11 3.2 Devices for Tested System......................................................................................................... 11 4 RADIATED EMISSION MEASUREMENT ............................................................................ 13 4.1 Applicable Standard ................................................................................................................... 13 4.2 Measurement Procedure............................................................................................................. 13 4.3 Measuring Instrument ................................................................................................................ 15 4.4 Radiated Emission Data ............................................................................................................. 16 4.5 Field Strength Calculation ......................................................................................................... 22 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 23 6 ANTENNA REQUIREMENT .....…

Text truncated - open the document above for the full version.

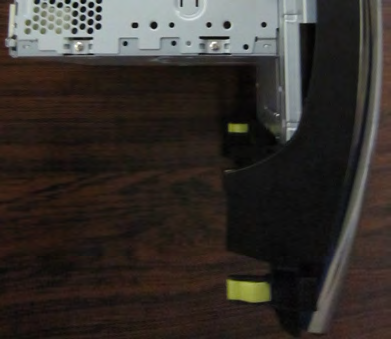

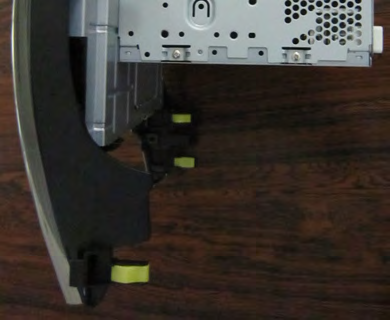

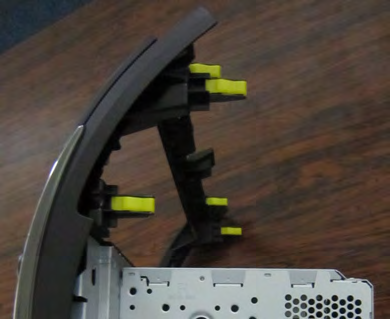

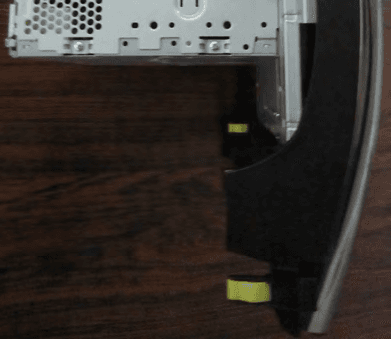

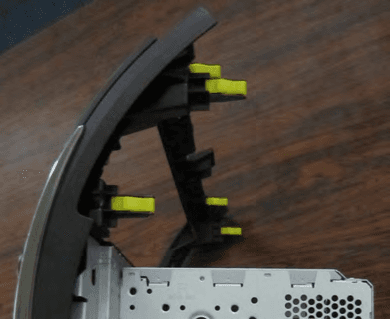

FCC ID: BABFT0049B ETC Report No. : 13-01-MAS-020 IC ID: 2024B-FT0049B Sheet 1 of 1 Sheets Photos of Radiation Measuring Setup
