FT0054A User manualFujitsu TEN Confidential 1. Power ON After turning on Bu+B & ACC, the following screen will be displayed. Bu+B & ACC ON にて電源投入後、 Display に以下の画面が起動される 2. Playing Audio Press "INFO".Press "AM" "FM" "CD" which you want to play. 3. Connect to "Bluetooth Audio" 3-1 Registration / 登録 3-2 How to play Bluetooth Audio Please register the Bluetooth device you want to use. 使用するBluetooth機器より登録する Press "APPS" Press "Setup"Press "Bluetooth" Press "Add" If you see these screens, please don't care. Confirm that Bluetooth Audio is playing. Bluetooth Audioが再生されていることを確認する Press "INFO" → change Audio OFF screen → Press "INFO" again Press "Bluetooth Audio" SUBARU Logo ScreenLoading ScreenAudio Off Screen Press "INFO" 1 / 3 ページ 2. Connect to "Wi-Fi" Pressing the "INFO" button, turn PKB on/off 3 times. Press the screen as follows; Lower Left → →→ → Lower Right → →→ → The display will shift to the Diag screen. Lower Left → →→ → Lower Right → →→ → Lower Left → →→ → Lower Right Press "WiFi Connect".Press "Wi-Fi Power".Confirm that "Wi-Fi Power" is ON, Press "Connect to AP". Confirm that "Connect to AP" is "connecting". Prepare for the following environment. Input "cmd" and carry it out. 4 ways - DISCONNECT - connecting - CONNECT - NG PC Wireless LAN Broadband Router IP adress： 192.168.11.1 LAN Press "INFO" or PKB ON OFF 2 / 3 ページ Input as follows; ping -t 192.168.11.2 space space "192.168.11.2" is the IP address of H/U which you're testing. When you want to stop the communication, please press [Ctrl]+[c] You can get the result. 3 / 3 ページ For vehicles sold in the U.S.A. FCC ID : BABFT0054A For vehicles sold in Canada IC Number : 2024B-FT0054A CAUTION : Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may c ause undesired operation of the device. C AUTION : Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

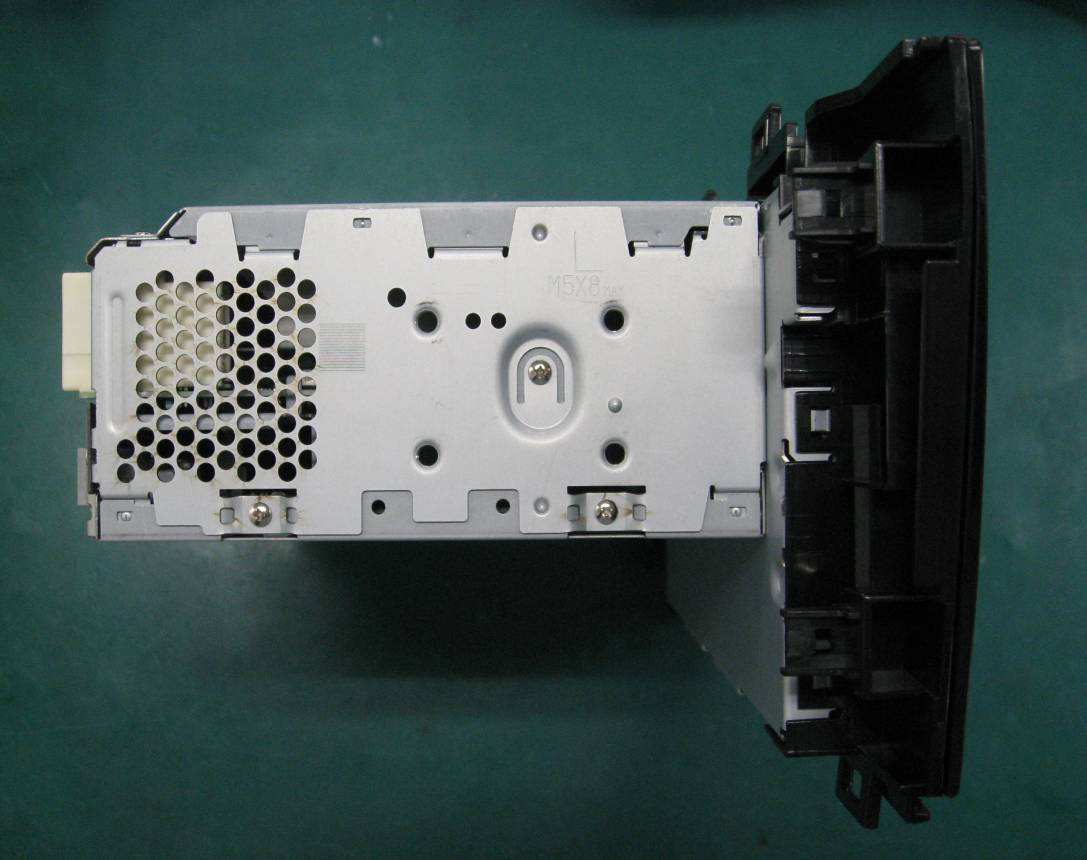

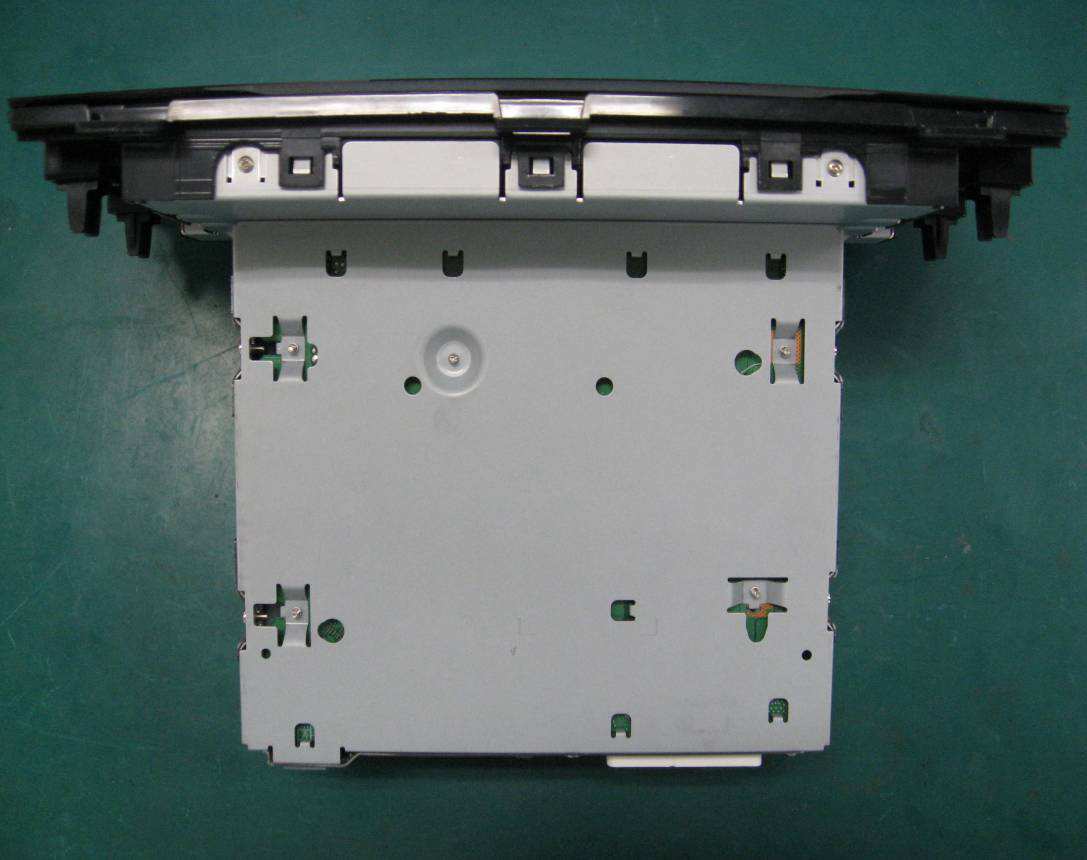

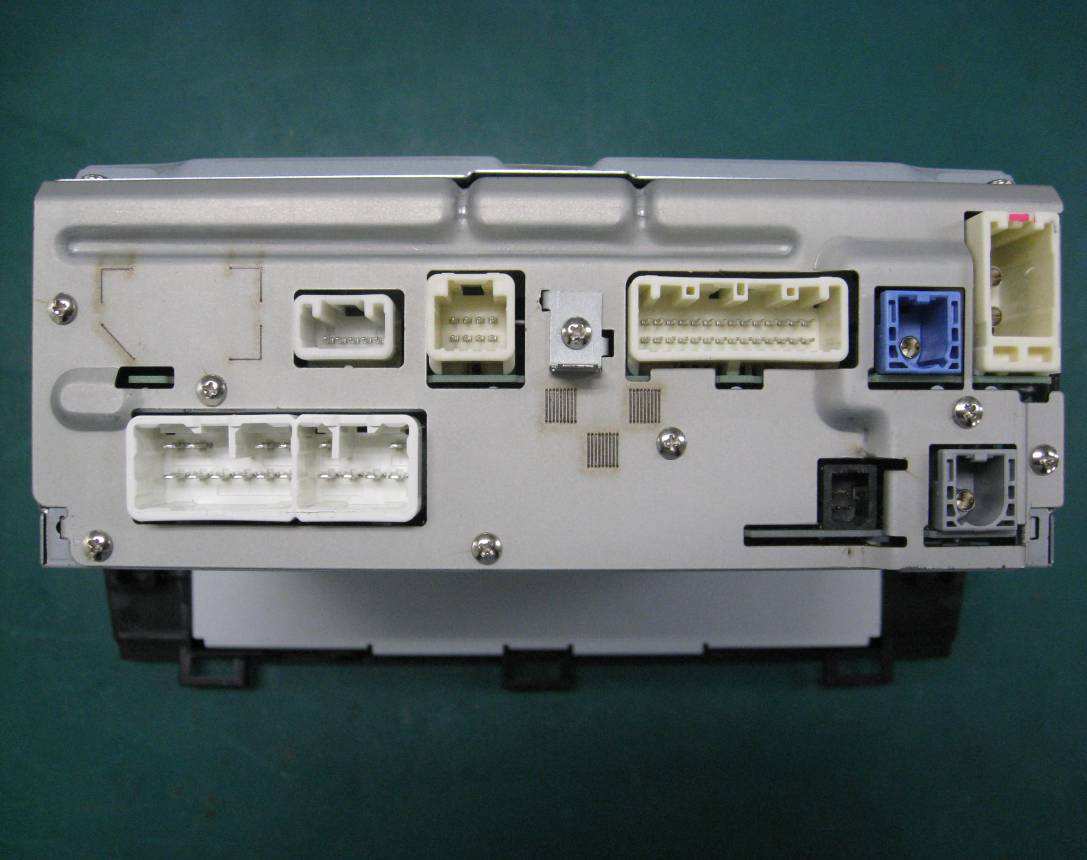

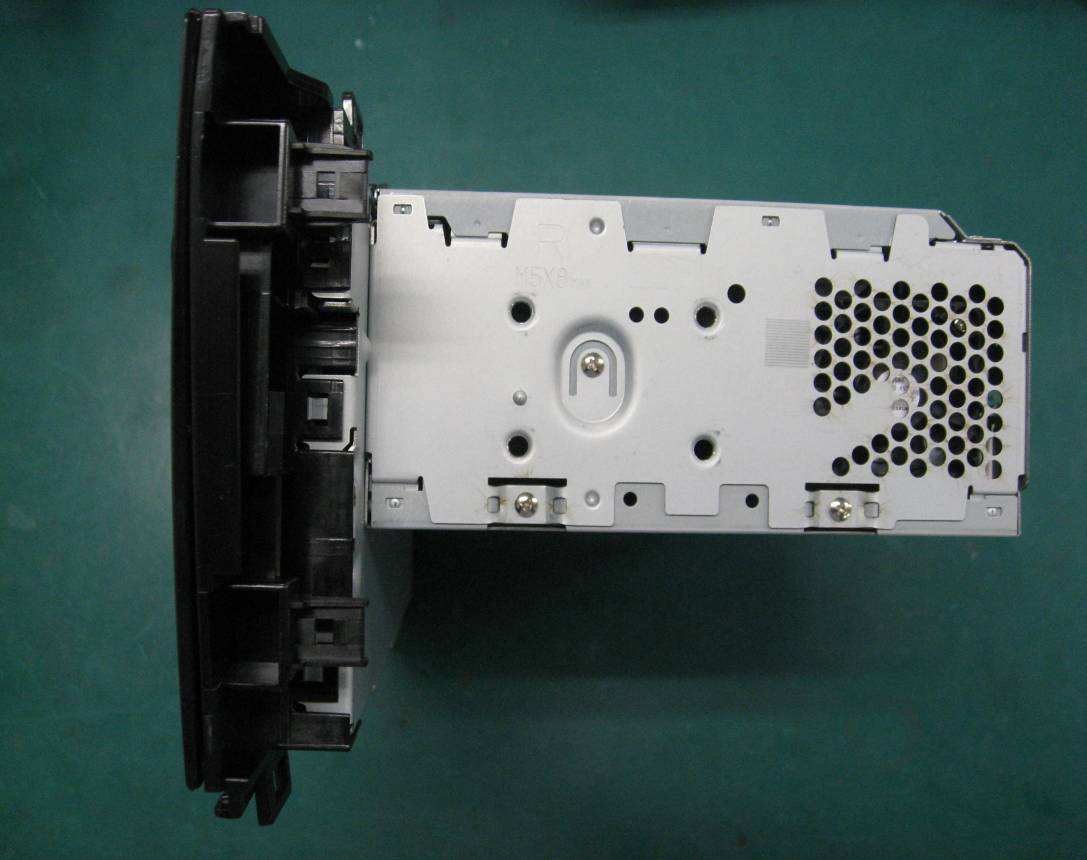

FT0054A Photo View (External) Left side ViewRight side View Front ViewBack View Top ViewBottom View 1 / 1 ページ

Fujitsu TEN Confidential FT0054A Label Image

Fujitsu TEN Confidential FT0054A Label Position Label Position

BT/WiFi module & antenna position

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN LIMITED Type of Equipment : Car Navigation (WLAN / Bluetooth part) Model No. : FT0054A FCC ID: BABFT0054A FUJITSU TEN LIMITED declares that Model : FT0054A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0054A“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 136.58 mW (Maximum peak output power) G = 1.12 Numerical Antenna gain; equal to0.49 dBi r =20.0 cm For: FT0054A (WLAN part)S =0.03042 mW/cm 2 S = (P * G) / (4* π * r2) Where P = 1.23 mW (Maximum peak output power) G = 1.33 Numerical Antenna gain; equal to1.23 dBi r =20.0 cm For: FT0054A (Bluetooth part)S =0.00032 mW/cm 2 This product can transmit Bluetooth and WLAN simultaneously, therefore combined power density value is as follows: S= 0.03042 mW/cm 2 + 0.00032 mW/cm 2 = 0.03074 mW/cm 2 No. : 10007806H RF Exposure / MPE Calculation

Test report No. : 10007806H-G Page : 1 of 49 Issued date : June 21, 2013 FCC ID : BABFT0054A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10007806H-G Applicant :FUJITSU TEN LIMITED Type of Equipment :Car Navigation Model No. : FT0054A FCC ID : BABFT0054A Test regulation : FCC Part 15 Subpart C: 2012 *Bluetooth part Test Result :Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: April 23 to May 16, 2013 Representative test engineer: Satofumi Matsuyama Engineer of WiSE Japan, UL Verification Service Approved by: Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10007806H-G Page : 2 of 49 Issued date : June 21, 2013 FCC ID : BABFT0054A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10007806H-G Revision Test report No. Date Page revised Contents - (Original) 10007806H-G June 21, 2013 - - Test report No. : 10007806H-G Page : 3 of 49 Issued date : June 21, 2013 FCC ID : BABFT0054A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Radiated Spurious Emission ............................................................................................ 12 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 14 Number of Hopping Frequency ........................................................................................................ 17 Dwell time ......................................................................................................................................... 19 Maximum Peak Output Power .......................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 32 Conducted Emission Band Edge compliance ................................................................................... 44 99%Occupied Bandwidth ................................................................................................................. 46 APPENDIX 2: Test instruments ............................................................................................................. 48 APPENDIX 3: Photographs of test setup ............................................................................................... 49 Radiated Spurious Emission ............................................................................................................. 49 Test report No. : 10007806H-G Page : 4 of 49 Issued date : June 21, 2013 FCC ID : BABFT0054A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Navigation Model No. : FT0054A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Rated range : DC 10.5 to 16.0V Receipt Date of Sample : April 20, 2013 Country of Mass-production : Mexico Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 792MHz Radio Specification [WLAN (IEEE802.11b/g/n-20)] Radio Type : Transceive r Frequency of Operation : 2412-2462MHz Modulation : DSSS Power Supply (radio part input) : DC 3.3V Antenna type : Inverted F type Antenna Antenna Gain : 0.49dBi [Bluetooth (Ver. 3.0 with EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : …

Text truncated - open the document above for the full version.

Test report No. : 10007806H-G Page : 49 of 49 Issued date : June 21, 2013 FCC ID : BABFT0054A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
