BABFT0056ACar Audio

1. Touch "Audio". 2. Touch "FM". 3.You can change the audio mode in this screen. FTA0056A_User Manual Audio Play 1. Touch "Android".2. Slide a screen right-to-left. 3. Touch "Settings".4. Slide "Bluetooth OFF" to the right. 5. Touch "Bluetooth". 6. When the connection is completed, this screen is displayed. SET UP Bluetooth 1. Touch "Android".2. Slide a screen right-to-left. 3. Touch "Settings".4. Slide "Wi-Fi OFF" to the right. 5. Touch "Wi-Fi". 6. When the connection is completed, this screen is displayed. SET UP Wi‐Fi ＞For vehicles sold in the U.S.A. FCC ID: BABFT0056A FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration. Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body in normal use position.

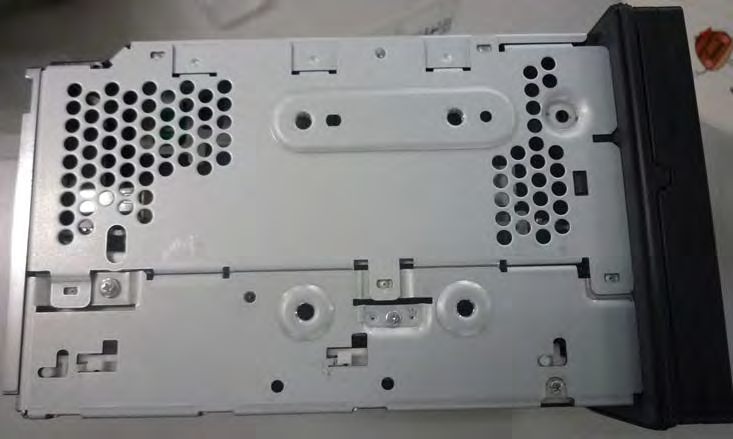

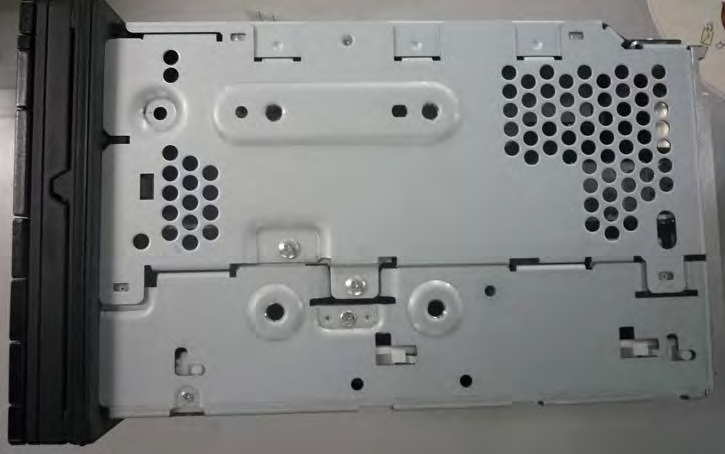

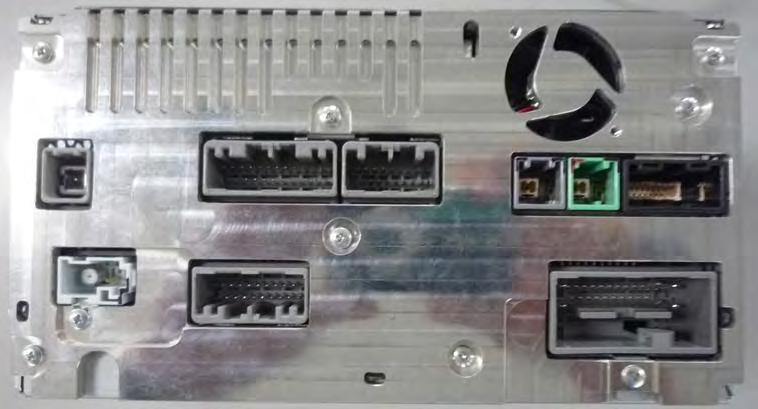

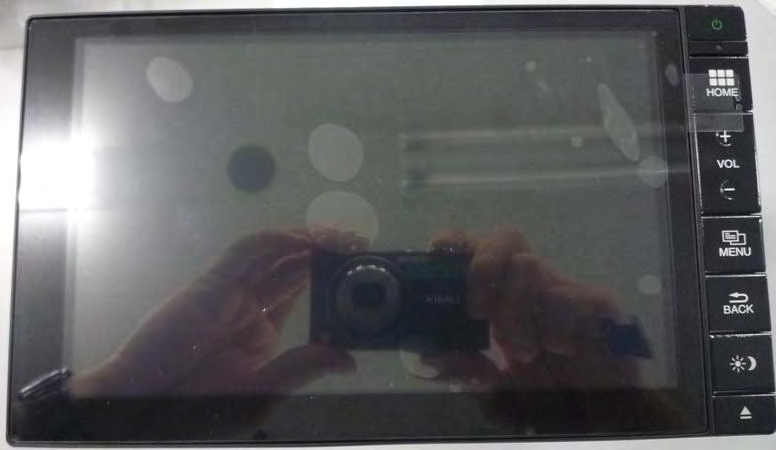

EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Front View Rear View FUJITSU TEN CONFIDENTIAL EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Bottom View Top View FUJITSU TEN CONFIDENTIAL EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Left View Right View FUJITSU TEN CONFIDENTIAL EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Front View （２DIN) Rear View （２DIN) FUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIAL EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Bottom View （２DIN) Top View （２DIN) FUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIAL EXTERNAL PHOTO EXTERNAL PHOTOEXTERNAL PHOTO EXTERNAL PHOTO Left View （２DIN) Right View （２DIN) FUJITSU TEN CONFIDENTIALFUJITSU TEN CONFIDENTIAL

Variation 1 Variation 2 FUJITSU TEN CONFIDENTIAL FT0056A Label Drawing & Position ↑UPPER ↑UPPER *****

Confidential InnovatorInElectronics Sep. 2013 Connectivity Products Division 1 WLAN/Bluetooth/GPS Module Picture Product: LBE*6Z2**C series [TX] < Top View > < Bottom View > Arbitrary Alphanumeric Characters Confidential InnovatorInElectronics Sep. 2013 Connectivity Products Division 1 WLAN/Bluetooth/GPS Module Picture Product: LBE*6Z2**C series [TX] < Top View / Internal >

㻵㼚㼠㼑㼞㼚㼍㼘㻌㻼㼔㼛㼠㼛 㻵㼚㼠㼑㼞㼚㼍㼘㻌㻼㼔㼛㼠㼛㻵㼚㼠㼑㼞㼚㼍㼘㻌㻼㼔㼛㼠㼛 㻵㼚㼠㼑㼞㼚㼍㼘㻌㻼㼔㼛㼠㼛 㻯㻼㼁㼋㻼㻯㻮 㻾㼑㼍㼞㻌㼂㼕㼑㼣 㻲㼁㻶㻵㼀㻿㼁㻌㼀㻱㻺㻌㻯㻻㻺㻲㻵㻰㻱㻺㼀㻵㻭㻸 ŶƚĞŶŶĂ dͬt>E ͅDŽĚƵůĞ

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN LIMITED Type of Equipment: Car Audio (WLAN / Bluetooth part) Model No. : FT0056A FCC ID: BABFT0056A FUJITSU TEN LIMITED declares that Model : FT0056A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0056A“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 17.26 mW (Average Output Power) G = 0.27 Numerical Antenna gain; equal to-5.70 dBi r =20.0 cm For: FT0056A (WLAN part)S =0.00092 mW/cm 2 S = (P * G) / (4* π * r2) Where P = 0.97 mW (Average Output Power) G = 0.27 Numerical Antenna gain; equal to-5.70 dBi r =20.0 cm For: FT0056A (Bluetooth part)S =0.00005 mW/cm 2 No. : 10075507H RF Exposure / MPE Calculation

Test report No. : 10075507H-G-R1 Page : 1 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10075507H-G-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0056A FCC ID : BABFT0056A Test regulation : FCC Part 15 Subpart C: 2013 *Bluetooth part Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 10075507H-G. 10075507H-G is replaced with this report. Date of test: October 9 to 17 and December 16, 2013 Representative test engineer: Tsubasa Takayama Engineer of WiSE Japan, UL Verification Service Approved by: Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10075507H-G-R1 Page : 2 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10075507H-G Revision Test report No. Date Page revised Contents - (Original) 10075507H-G November 8, 2013 - - 1 10075507H-G-R1 December 17, 2013 P.10 Addition of explanatory note for 2DH5 mode in Details of Operating Mode table 1 10075507H-G-R1 December 17, 2013 P.22 Addition of test data (2DH5 mode) 1 10075507H-G-R1 December 17, 2013 P.52 Correction and Addition of explanatory note for test equipment Test report No. : 10075507H-G-R1 Page : 3 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................. 10 SECTION 5: Radiated Spurious Emission ............................................................................................ 12 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 14 Number of Hopping Frequency ........................................................................................................ 17 Dwell time ......................................................................................................................................... 19 Maximum Peak Output Power .......................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 36 Conducted Emission Band Edge compliance ................................................................................... 48 99%Occupied Bandwidth ................................................................................................................. 50 APPENDIX 2: Test instruments ............................................................................................................. 52 APPENDIX 3: Photographs of test setup ............................................................................................... 53 Radiated Spurious Emission ............................................................................................................. 53 Test report No. : 10075507H-G-R1 Page : 4 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : FT0056A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Rated range : DC 10.0 to 16.0V Receipt Date of Sample : October 7, 2013 Country of Mass-production : China, Spain Condition of EUT : Production prototype …

Text truncated - open the document above for the full version.

Test report No. : 10075507H-G-R1 Page : 53 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Variation 1 Photo 1 Photo 2 Test report No. : 10075507H-G-R1 Page : 54 of 54 Issued date : November 8, 2013 Revised date : December 17, 2013 FCC ID : BABFT0056A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Variation 2 Photo 1 Photo 2 End of Report
