BABFT0061ACar Navigation

Explanation of the icon ※The screen design may be changed. FCC ID: BABFT0061A CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body in normal use position. Co‐location: This transmitter must not be co‐located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

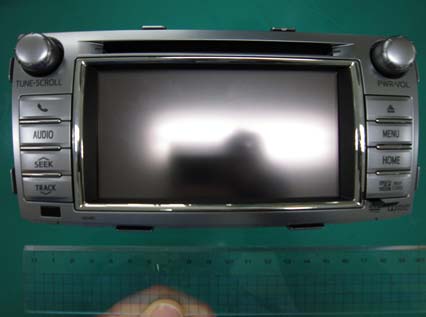

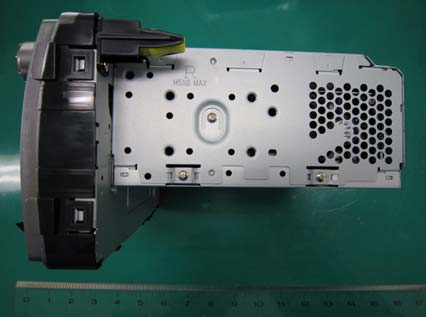

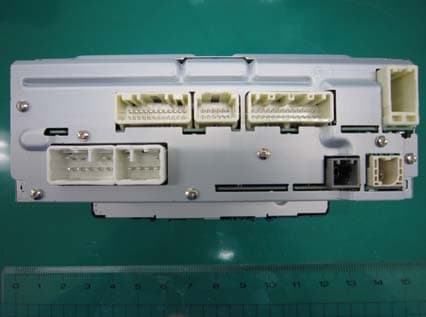

FUJITSU TEN CONFIDENTIAL FT0061A External photos Front Rear Right Left Top Bottom

FT0061A Label

FT0061A_Label_Position TOP View Label Position

㻲㼀㻜㻜㻢㻝㻭㻌㻵㼚㼠㼑㼞㼚㼍㼘㼜㼔㼛㼠㼛㼟

FUJITSU TEN CONFIDENTIAL FT0061A Internal photos Component side ■CPU Board Solder side Component side Solder side ■Audio Board Component side Solder side ■SW Board FUJITSU TEN CONFIDENTIAL FT0061A Internal photos ■Relay Board Component side Solder side ■SD Board Component side Solder side ■Back side of front panel Bluetooth RF Line Bluetooth RF Line Anntena mounting position FT0061A Internal photos

Applicant: FUJITSU TEN LIMITED Type of Equipment : Car Navigation Model No. : FT0061A FCC ID: BABFT0061A FUJITSU TEN LIMITED declares that Model : FT0061A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0061A“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.47 mW (Maximum average output power) G = 2.34 Numerical Antenna gain; equal to3.69dBi r =20.0 cm For: FT0061AS =0.00022 mW/cm 2 No. : 10221964H RF Exposure / MPE Calculation

Test report No. : 10221964H-A Page : 1 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10221964H-A Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Navigation Model No. : FT0061A FCC ID : BABFT0061A Test regulation: FCC Part 15 Subpart C: 2014 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: March 10 to 15, 2014 Representative test engineer: Yutaka Yoshida Engineer Consumer Technology Division Approved by: Takahiro Hatakeda Leader Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10221964H-A Page : 2 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10221964H-A Revision Test report No. Date Page revised Contents - (Original) 10221964H-A April 10, 2014 - - Test report No. : 10221964H-A Page : 3 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Radiated Spurious Emission ............................................................................................ 12 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 14 Number of Hopping Frequency ........................................................................................................ 17 Dwell time ......................................................................................................................................... 19 Maximum Peak Output Power .......................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 24 Conducted Spurious Emission .......................................................................................................... 32 Conducted Emission Band Edge compliance ................................................................................... 44 99%Occupied Bandwidth ................................................................................................................. 46 APPENDIX 2: Test instruments ............................................................................................................. 48 APPENDIX 3: Photographs of test setup ............................................................................................... 49 Radiated Spurious Emission ............................................................................................................. 49 Test report No. : 10221964H-A Page : 4 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Navigation Model No. : FT0061A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Receipt Date of Sample : March 6, 2014 Country of Mass-production : INDIA Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 792MHz Radio Specification [Bluetooth (Ver. 3.0 with EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS Power Supply (radio part input) : DC 3.3V Antenna type : Inverted F Antenna Antenna Gain : 3.69dBi Peak [GPS] Radio Type : Receiver Frequency of Operation : 1575.42MHz Test report No. : 10221964H-A Page : 5 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-3…

Text truncated - open the document above for the full version.

Test report No. : 10221964H-A Page : 49 of 49 Issued date : April 10, 2014 FCC ID : BABFT0061A UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
