BABFT0086ACar Audio

FUJITSU TEN CONFIDENTIAL 【FT0086A】 Operation Manual for Bluetooth Button Function for Panel Switch & Steering Switch Bluetooth Setup: press "TALK" button on steering switch Call: press "OFF HOOK" on steering switch End Call: press "ON HOOK" on steering switch Rewind ： long press "DOWN" button on steering switch or panel Fast Forward ： long press "UP" button on steering switch or panel Track Down ： short press "DOWN" button on steering switch or panel Track Up ： short press "UP"button on steering switch or panel Menu： press "Preset 6 (MENU)" button on the panel Mode: press "MODE" on steering switch or "MEDIA" on panel Mute: press "MUTE" button on steering switch Random : press "RDM" button on panel Repeat : press "RPT" button on panel Select ： press "SOUND" button Volume Up ： press "VOL +" on steering switch or turn clockwise the "PWR" knob on the panel Volume Down ： press "VOL -" button on steering switch or turn counterclockwise the "PWR" knob on the panel. dummy PCH2 DSP CD Mode FM/AM Mode (DAB) TA MEDIA Selection [PUSH] Power ON/OFF [Rotate] Volume Up/Down PCH1 PCH3 PCH4 PCH5 PCH6 MENU AS RAD (PTY) RPT (AF) [PUSH] Song Setting [Rotate] Tune / Folder MUTE DOWN UP CD Eject ① PanelSwich (example) FUJITSU TEN CONFIDENTIAL Bluetooth Operation BT Connection [Steering Switch] Push "TALK" button Push "SOUND" button Push "SOUND" button SETUP SETUP TALK This display will automatically appear after successful BT connection Note: While searching for the device, these screen displays are interchanging. Bluetooth logo will be displayed when BT connection is successful. SETUP SETUP SETUP SETUP FUJITSU TEN CONFIDENTIAL Auto Transfer Setting Press "SOUND" button to select setting confirmation SETUP SETUP SETUP SETUP SETUP SETUP Turn the "SOUND" knob to select Transfer Setting This display will automatically appear after Auto Transfer confirmation. After selecting (Yes/ No), press "SOUND" button FUJITSU TEN CONFIDENTIAL Returning to Normal Screen Display [Panel Switch] Turn "SOUND" knob[Steering Switch] Push "ON HOOK" button Press"SOUND" button Turn "SOUND" knob Press "SOUND" button SETUP SETUP SETUP SETUP SETUP Audio Mode (example) ON HOOK OR Shortcut FUJITSU TEN CONFIDENTIAL Bluetooth Audio Operation Switching to BT Audio Mode [Panel Switch] Select "BT-A" by pressing "MEDIA" button [Steering Switch] Select "BT-A" by pressing "MODE" button SETUP SETUP SETUP MODE FUJITSU TEN CONFIDENTIAL Bluetooth Call Operation Outgoing Call [Steering SW] Push "OFF HOOK" button Press "SOUND" button Turn "SOUND" knob to select the name initials from phonebook. Push "SOUND" button to select the name's initial After selecting the name of person, press SOUND button SETUP SETUP SETUP SETUP OFF HOOK Initial A: Names that starts with letter A FUJITSU TEN CONFIDENTIAL SETUP SETUP SETUP SETUP When Call has been answered. When call is rejected or not answered, screen display will go back to previous mode. Press "ON HOOK" on steering switch to end the call. When phone converation is finished, screen display will go back to the previous mode. FUJITSU TEN CONFIDENTIAL Incoming Call Push "OFF HOOK" button to answer the callPush "ON HOOK" button to reject call Screen display when there is incoming call After a few seconds, the name of the caller will be displayed Answer the call Reject the call SETUP OFF HOOK ON HOOK SETUP SETUP SETUP Screen display will go back to previous mode. Press "ON HOOK" on steering switch to end the call. When phone converation is finished, screen display will go back to the previous mode. FCC ID: BABFT0086A CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body in normal use position. Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

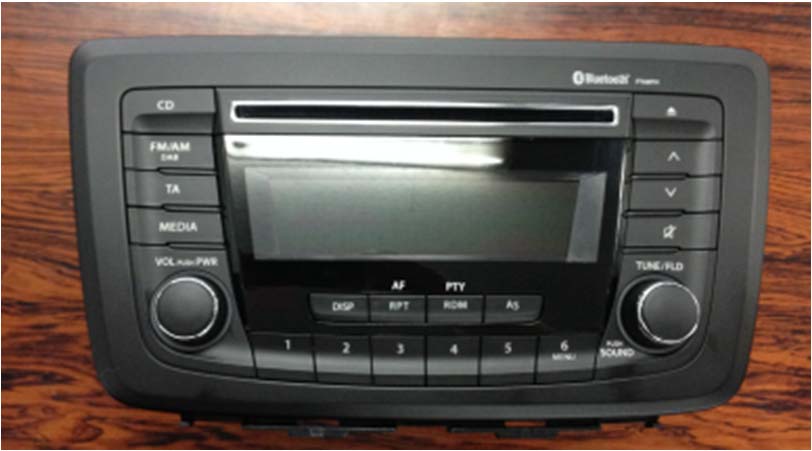

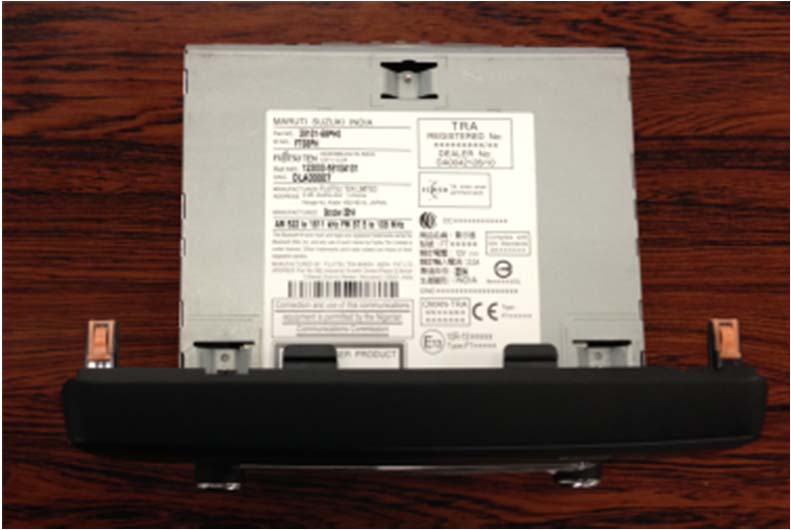

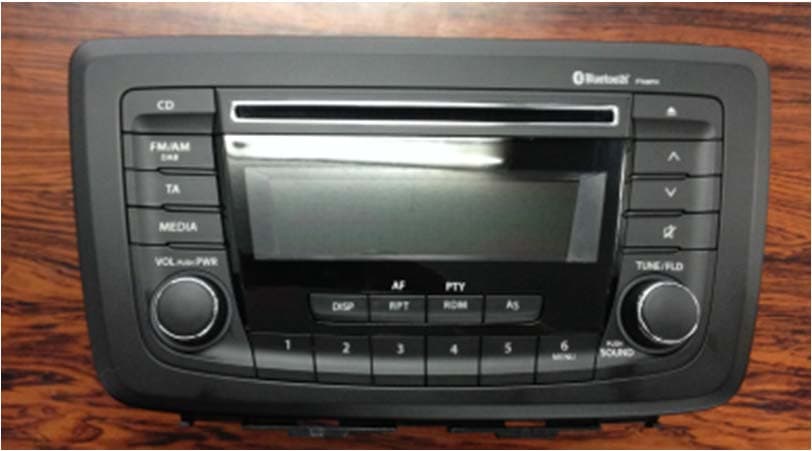

FT0086AExternal Photos FUJITSU TEN CONFIDENTIAL

䕔㻲㼀㻜㻜㻤㻢㻭ᶵჾ㖭∧ᅗ㻸㼍㼎㼑㼘 ༳ᗘ 㻖㻖㻖㻖㻖㻛㻿㻰㻼㻼㻵㻛㻖㻖㻖㻖 㻖㻖㻖㻖 㻲㻯㻯㻌㻵㻰㻦㻌㻮㻭㻮㻲㼀㻜㻜㻤㻢㻭㻌 㼀㼔㼕㼟㻌㼐㼑㼢㼕㼏㼑㻌㼏㼛㼙㼜㼘㼕㼑㼟㻌㼣㼕㼠㼔㻌㼜㼍㼞㼠㻌㻝㻡㻌㼛㼒㻌㼠㼔㼑㻌 㻲㻯㻯㻌㻾㼡㼘㼑㼟㻚㻌㻻㼜㼑㼞㼍㼠㼕㼛㼚㻌㼕㼟㻌㼟㼡㼎㼖㼑㼏㼠㻌㼠㼛㻌㼠㼔㼑㻌 㼒㼛㼘㼘㼛㼣㼕㼚㼓㻌㼠㼣㼛㻌㼏㼛㼚㼐㼕㼠㼕㼛㼚㼟㻦㻌㻌 㻔㻝㻕㻌㼀㼔㼕㼟㻌㼐㼑㼢㼕㼏㼑㻌㼙㼍㼥㻌㼚㼛㼠㻌㼏㼍㼡㼟㼑㻌㼔㼍㼞㼙㼒㼡㼘㻌 㼕㼚㼠㼑㼞㼒㼑㼞㼑㼚㼏㼑㻘㻌㼍㼚㼐㻌㻔㻞㻕㻌㼠㼔㼕㼟㻌㼐㼑㼢㼕㼏㼑㻌㼙㼡㼟㼠㻌 㼍㼏㼏㼑㼜㼠㻌㼍㼚㼥㻌㼕㼚㼠㼑㼞㼒㼑㼞㼑㼚㼏㼑㻌㼞㼑㼏㼑㼕㼢㼑㼐㻘㻌㼕㼚㼏㼘㼡㼐㼕㼚㼓㻌 㼕㼚㼠㼑㼞㼒㼑㼞㼑㼚㼏㼑㻌㼠㼔㼍㼠㻌㼙㼍㼥㻌㼏㼍㼡㼟㼑㻌㼡㼚㼐㼑㼟㼕㼞㼑㼐㻌 㼛㼜㼑㼞㼍㼠㼕㼛㼚㻚㻌 䕔㻲㼀㻜㻜㻤㻢㻭䝷䝧䝹ῧ௜఩⨨ᅗ㻸㼍㼎㼑㼘㻼㼛㼟㼕㼠㼕㼛㼚 㻸㼍㼎㼑䡈

MAIN PCB ASSEMBLY PART SIDE MAIN PCB ASSEMBLY SOLDER SIDE ＜FT0086A Internal Photos＞ FUJITSU TEN CONFIDENTIAL PANEL PCB ASSEMBLY PART SIDE PANEL PCB ASSEMBLY SOLDER SIDE FUJITSU TEN CONFIDENTIAL

Bluetooth Antenna Bluetooth Module FT0086A external/internal Photos <RF> FUJITSU TEN CONFIDENTIAL

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0086A FCC ID: BABFT0086A FUJITSU TEN LIMITED declares that Model : FT0086A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FT0086A“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.39 mW (Maximum average output power) G = 0.12 Numerical Antenna gain; equal to-9.10dBi r =20.0 cm For: FT0086AS =0.00001 mW/cm 2 No. : 10538067H RF Exposure / MPE Calculation

Test report No. : 10538067H-A-R3 Page : 1 of 54 Issued date : November 28, 2014 Revised date : February 27, 2015 FCC ID : BABFT0086A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10538067H-A-R3 Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0086A FCC ID : BABFT0086A Test regulation: FCC Part 15 Subpart C: 2015 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. This report is a revised version of 10538067H-A-R2. 10538067H-A-R2 is replaced with this report. Date of test: October 29 to November 15, 2014 Representative test engineer: Yuta Moriya Engineer Consumer Technology Division Approved by: Takayuki Shimada Engineer Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10538067H-A-R3 Page : 2 of 54 Issued date : November 28, 2014 Revised date : February 27, 2015 FCC ID : BABFT0086A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10538067H-A Revision Test report No. Date Page revised Contents - (Original) 10538067H-A November 28, 2014 - - 1 10538067H-A-R1 February 25, 2015 P.1, 6 Update of FCC15 version 1 10538067H-A-R1 February 25, 2015 P.4 Correction of Rating DC 14.0V→DC 12.0V 1 10538067H-A-R1 February 25, 2015 P.10 Addition of explanatory note for Rating of test 2 10538067H-A-R2 February 27, 2015 P.6 Correction of FCC 15.31 (e) sentence 3 10538067H-A-R3 February 27, 2014 P.4 Addition of clock frequencies -Bluetooth module: Crystal oscillator (26.00MHz) -LCD Driver: Communication (750kHz) Test report No. : 10538067H-A-R3 Page : 3 of 54 Issued date : November 28, 2014 Revised date : February 27, 2015 FCC ID : BABFT0086A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Radiated Spurious Emission ............................................................................................ 11 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 13 Number of Hopping Frequency ........................................................................................................ 16 Dwell time ......................................................................................................................................... 18 Maximum Peak Output Power .......................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 37 Conducted Emission Band Edge compliance ................................................................................... 49 99%Occupied Bandwidth ................................................................................................................. 51 APPENDIX 2: Test instruments ............................................................................................................. 53 APPENDIX 3: Photographs of test setup ............................................................................................... 54 Radiated Spurious Emission ............................................................................................................. 54 Test report No. : 10538067H-A-R3 Page : 4 of 54 Issued date : November 28, 2014 Revised date : February 27, 2015 FCC ID : BABFT0086A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T…

Text truncated - open the document above for the full version.

Test report No. : 10538067H-A-R3 Page : 54 of 54 Issued date : November 28, 2014 Revised date : February 27, 2015 FCC ID : BABFT0086A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
