BABFT0093ACar Audio

FT0093A 123000-627_User manual Model name Model No COMB PLAYER A 123000-627 Index 1-Rating 2-Button function spec 3-System spec 4-Other Page 2P 2P 3P～20P 21P (1/21) 1-Rating RATED VOLTAGE LOAD IMPEDANCE BACK UP CURRENT RATED CURRENT AM TUNING RANGE CD TYPE 12V(10.5～16.0V)-GROUND 4Ω 1.0mA OR LESS 3.0A OR LESS (Vcc=14.4V 0.5W OUTPUT) 530～1710kHz 87.75～107.9MHz 12cm DISC FM TUNING RANGE (2/21) 2-Button function spec ⑨ ① ② ③ ④ ⑤ ⑥ ⑦⑧ ⑩⑪ ⑫ ⑬ No. 釦名称 Button Name 時間 Time BEEP 機能 Function ⑪ － － POWER ON (POWER OFF時） Power On (when Power Off) 0.8sec以上 Over 0.8sec － POWER OFF (POWER ON時） Power Off (when Power On) 0.8sec未満 Below 0.8sec － ソース切替モードへの移行 Move to source change mode －－ ソースの決定 Decide the source － － FUNCTION 設定モードの決定 Set to the Function setting mode. －－ （Rotary）音量調整 Volume control －－ ソースの選択 Select the source －－ FUNCTION 設定モードの選択 Select to the Function setting mode. ①－－ DISC排出 (強制排出） Disc eject (Force eject) ⑫FUNC －－ FUNCTIONモードへの移行 Move to FUNCTION mode －－ FUNCTIONモードの解除 Release to FUNCTION mode ③∨ －－ FUNCTIONモードの解除 Release to FUNCTION mode －－ ソース切替モードの解除 Release to source change mode 共通部Common parts TURN PUSH (3/21) ラジオ部Radio parts No. 釦名称 Button Name 時間 Time BEEP 機能 Function ②∧ 0.8sec未満 Below 0.8sec － TUNE UP 1.5sec未満 Below 1.5sec X SEEK UP 1.5sec以上 Over 1.5sec － Non-Stop SEEK UP ③∨ 0.8sec未満 Below 0.8sec － TUNE DOWN 1.5sec未満 Below 1.5sec X SEEK DOWN 1.5sec以上 Over 1.5sec － Non-Stop SEEK DOWN ⑤～ ⑩ Preset 1～6 1.7sec未満 Below 1.7sec － P.CHの呼び出し Call preset channel. 1.7sec以上 Over 1.7sec X P.CHへの書込み Write preset channel. (4/21) No. 釦名称 Button Name 時間 Time BEEP 機能 Function ②∧ 0.8sec未満 Below 0.8sec －TRACK UP 0.8sec以上 Over 0.8sec XFAST UP ③∨ 0.8sec未満 Below 0.8sec －TRACK DOWN 0.8sec以上 Over 0.8sec XFAST DOWN ⑤ Preset 1－－ REPEAT ⑥Preset 2 － －RANDOM ⑪ －－ 選択TEXTの決定 Activate the selected TEXT －－ TEXT切替 Change TEXT ⑫FUNC 0.8sec以上 Over 0.8sec － TEXTページの切替 Switching the TEXT page ⑬LIST －－ TEXT切替モードの解除 Release TEXT change mode. 0.8sec以上 Over 0.8sec － TEXT切替モードへの移行 Move to TEXT change mode. ③∨ －－ TEXT切替モードの解除 Release TEXT change mode. CD部CD parts TURN PUSH (5/21) No. 釦名称 Button Name 時間 Time BEEP 機能 Function ②∧ 0.8sec未満 Below 0.8sec －FILE UP 0.8sec以上 Over 0.8sec XFAST UP ③∨ 0.8sec未満 Below 0.8sec －FILE DOWN 0.8sec以上 Over 0.8sec XFAST DOWN ⑤Preset 1 － － ・FILE REPEAT ・FOLDER REPEAT ・FOLDER RANDOM-FILE REPEAT 、RANDOM-FILE REPEAT ⑥Preset 2 － － ・RANDOM (1-FOLDER RANDM) ・FOLDER RANDOM (1-DISC RANDOM) ⑨Preset 5 0.8sec未満 Below 0.8sec － FOLDER DOWN 0.8sec以上 Over 0.8sec XHOME JUMP ⑩Preset 6 0.8sec未満 Below 0.8sec －FOLDER UP ⑪ －－ Fileの決定(再生開始) Activate File (Start playback.) －－ リストカテゴリの決定 Activate Category (リスト選択モードへの移行) (Move to list select mode) －－ 選択TEXTの決定 Activate the selected TEXT －－ TEXT切替 Change TEXT －－ リストカテゴリ切替 Change List category －－ リスト切替 Change List ⑫FUNC 0.8sec以上 Over 0.8sec － TEXTページの切替 Switching the TEXT page MP3/WMA部MP3/WMA parts TURN PUSH (6/21) No. 釦名称 Button Name 時間 Time BEEP 機能 Function ⑬LIST －－ TEXT切替モードの解除 Release TEXT change mode. －－ リストカテゴリ選択モードの解除 Release list category select mode 0.8sec未満 Below 0.8sec － リストカテゴリ選択モードへの移行 Move to list category mode. 0.8sec以上 Over 0.8sec － TEXT切替モードへの移行 Move to TEXT change mode. ③∨ －－ TEXT切替モードの解除 Release TEXT change mode. －－ リストカテゴリ選択モードの解除 （カテゴリ選択ﾓｰﾄﾞ中） Release list category select mode (During Category selection mode.) 0.8sec未満 Below 0.8sec － 1階層上がる（ﾘｽﾄ選択ﾓｰﾄﾞ中） Back to the previous hierarchy. (During list selection mode.) 0.8sec以上 Over 0.8sec － 通常再生モードへの移行（ﾘｽﾄ選択ﾓｰﾄﾞ中） Move to normal playback mode. (During list selection mode.) MP3/WMA部MP3/WMA parts (7/21) No. 釦名称 Button Name 時間 Time BEEP 機能 Function ②∧ 0.8sec未満 Below 0.8sec －FILE UP 0.8sec以上 Over 0.8sec XFAST UP ③∨ 0.8sec未満 Below 0.8sec －FILE DOWN 0.8sec以上 Over 0.8sec XFAST DOWN ⑤Preset 1 － － ・FILE REPEAT ・FOLDER REPEAT ・FOLDER RANDOM-FILE REPEAT 、RANDOM-FILE REPEAT ⑥Preset 2 － － ・RANDOM (1-FOLDER RANDM) ・FOLDER RANDOM (1-DISC RANDOM) ⑨Preset 5 0.8sec未満 Below 0.8sec － FOLDER DOWN 0.8sec以上 Over 0.8sec XHOME JUMP ⑩Preset 6 0.8sec未満 Below 0.8sec －FOLDER UP ⑪ －－ Fileの決定(再生開始) Activate File (Start playback.) －－ リストカテゴリの決定 Activate Category (リスト選択モードへの移行) (Move to list select mode) －－ 選択TEXTの決定 Activate the selected TEXT －－ TEXT切替 Change TEXT －－ リスト切替 Change List －－ リストカテゴリ切替 Change List category ⑫FUNC 0.8sec以上 Over 0.8sec － TEXTページの切替 Switching the TEXT page USB部USB parts TURN PUSH (8/21) USB部USB parts No. 釦名称 Button Name 時間 Time BEEP 機能 Function ⑬LIST －－ TEXT切替モードの解除 Release TEXT change mode. －－ リストカテゴリ選択モードの解除 Release list category select mode 0.8sec未満 Below 0.8sec － リストカテゴリ選択モードへの移行 Move to list category mode. 0.8sec以上 Over 0.8sec － TEXT切替モードへの移行 Move to TEXT change mode. ③∨ －－ TEXT切替モードの解除 Release TEXT change mode. －－ リストカテゴリ選択モードの解除 (カテゴリ選択ﾓｰﾄﾞ中） Release list category select mode (During Category selection mode.) 0.8sec未満 Below 0.8sec － 1階層上がる（ﾘｽﾄ選択ﾓｰﾄﾞ中） Back to the previous hierarchy. (During list selection mode.) 0.8sec以上 Over 0.8sec － 通常再生モードへの移行（ﾘｽﾄ選択ﾓｰﾄﾞ中） Move to normal playback mode. (During list selection mode.) (9/21) No. 釦名称 Button Name 時間 Time BEEP 機能 Function ②∧ 0.8sec未満 Below 0.8sec － TRＡCK UP － (Audiobook時）Chapter UP Chapter up in Audiobook － (Podcast時) Episode UP Episode up in Podcast. 0.8sec以上 Over 0.8sec X FAST UP ③∨ 0.8sec未満 Below 0.8sec － TRACK DOWN － (Audiobook時）Chapter DOWN Chapter down in Audiobook － (Podcast時) Episode DOWN Episode down in Podcast. 0.8sec以上 Over 0.8sec X FAST DOWN ⑤Preset 1 － － ・TRACK REPEAT ・SHUFFLE TRACK REPEAT ・ALBUM SHUFFLE TRACK REPEAT ⑥Preset 2 －－ ・SHUFFLE Song ・SHUFFLE Album ⑦ Preset 3－－ PAUSE ⑧ Preset 4－－ PLAY ⑪ －－ 選択TEXTの決定 Activate selected TEXT －－ 再生中リストへの移行 Move playing list －－ BROWSEリストカテゴリの決定 (リスト選択モードへの移行) Decide the BROWSE list category (move to list select mode) －－ Playlist選択 Playlist List select －－ アーティストリスト選択 Artist List select －－ アルバムリスト選択 Album list select －－ Song選択 Song list select －－ Podcastリスト選択 Podcast List select －－ ジャンルリスト選択 Genre list select －－ 作曲者リスト選択 Composer list select －－ オーディオブックリスト選択 Audiobook list select iPod部iPod parts PUSH (10/21) No. …

Text truncated - open the document above for the full version.

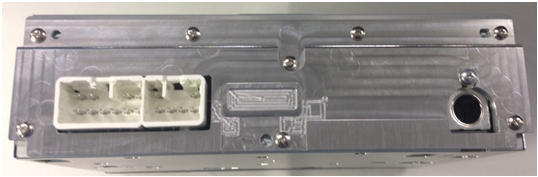

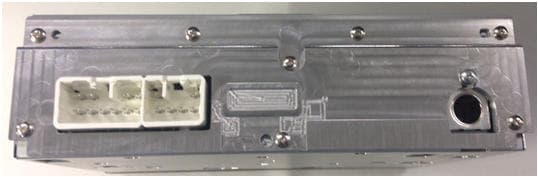

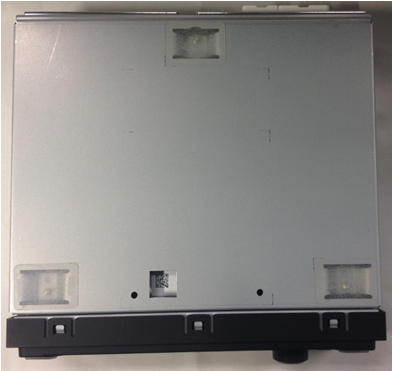

㻲㼀㻜㻜9㻟㻭 㻹㼛㼐㼑㼘 㻺㼛：㻝㻞㻟㻜㻜㻜㻙㻢㻞㻣 㻾a㼐i㼛 a㼚㼠㼑㼚㼚a Ja㼏㼗 㻼㼛w㼑㼞 㼟㼡㼜㼜㼘y㻘 㻳㻺㻰㻘 㻿㼜㼑a㼗㼑㼞 㻯㻻㻺㻺㻱㻯㼀㻻㻾 㻭㼁X㻘 㼁㻿㻮 㻯㻻㻺㻺㻱㻯㼀㻻㻾

■FT0093A Label attachment location ■FT0093A Label drawing 86120-E0170 123000-62700101 TUNING RANGE AM 10k: 530～1710kHz FM 200k: 87.75～107.90MHz FCC ID: BABFT0093A IC: 2024B-FT0093A Model:FT0093A Manufactured Serial No. FTEN Barcode Label attachment location

㻹a㼕㼚 㼁㻺I㼀 㻲㼀0093㻭 R㻲 㼀㼛㼜 㼟㼕㼐㼑 㻮㼛㼠㼠㼛㼙 㼟㼕㼐㼑 㻮㼘㼡㼑㼠㼛㼛㼠㼔 㻹㻻㻰㼁㻸㻱 㻼a㼚㼑㼘 㼁㻺I㼀 㼀㼛㼜 㼟㼕㼐㼑 㻮㼛㼠㼠㼛㼙 㼟㼕㼐㼑

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp July 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: BABFT0093A To whom it may concern, We, UL Japan, Inc, hereby declare that Car Audio, model: FT0093A (FCC ID: BABFT0093A) of FUJITSU TEN LIMITED is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v05r02). KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the maximum average output power was 3 mW So for this device: 3 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.9 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takahiro Hatakeda Leader of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 10709614H-A-R1 Page : 1 of 47 Issued date : April 24, 2015 Revised date : July 15, 2015 FCC ID : BABFT0093A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10709614H-A-R1 Applicant : FUJITSU TEN LIMITED Type of Equipment : Car Audio Model No. : FT0093A FCC ID : BABFT0093A Test regulation: FCC Part 15 Subpart C: 2015 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. This report is a revised version of 10709614H-A. 10709614H-A is replaced with this report. Date of test: March 31 to April 2, 2015 Representative test engineer: Kazuya Yoshioka Engineer Consumer Technology Division Approved by: Takahiro Hatakeda Leader Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 10709614H-A-R1 Page : 2 of 47 Issued date : April 24, 2015 Revised date : July 15, 2015 FCC ID : BABFT0093A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10709614H-A Revision Test report No. Date Page revised Contents - (Original) 10709614H-A April 24, 2015 - - 1 10709614H-A-R1 July 15, 2015 P.5 Update to FCC15C part 1 10709614H-A-R1 July 15, 2015 P.24 Addition of Plot data Test report No. : 10709614H-A-R1 Page : 3 of 47 Issued date : April 24, 2015 Revised date : July 15, 2015 FCC ID : BABFT0093A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Radiated Spurious Emission ............................................................................................ 10 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Test data .......................................................................................................................... 12 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 12 Number of Hopping Frequency ........................................................................................................ 15 Dwell time ......................................................................................................................................... 17 Maximum Peak Output Power .......................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 22 Duty Cycle ........................................................................................................................................ 29 Conducted Spurious Emission .......................................................................................................... 30 Conducted Emission Band Edge compliance ................................................................................... 42 99%Occupied Bandwidth ................................................................................................................. 44 APPENDIX 2: Test instruments ............................................................................................................. 46 APPENDIX 3: Photographs of test setup ............................................................................................... 47 Radiated Spurious Emission ............................................................................................................. 47 Test report No. : 10709614H-A-R1 Page : 4 of 47 Issued date : April 24, 2015 Revised date : July 15, 2015 FCC ID : BABFT0093A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJITSU TEN LIMITED Address : 2-28, Gosho-dori 1-Chome, Hyogo-ku, Kobe, 652-8510 JAPAN Telephone Number : +81-78-682-2159 Facsimile Number : +81-78-671-7160 Contact Person : YO SHOTATSU SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : FT0093A Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0 V Receipt Date of Sample : March 27, 2015 Country of Mass-production : Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample …

Text truncated - open the document above for the full version.

Test report No. : 10709614H-A-R1 Page : 47 of 47 Issued date : April 24, 2015 Revised date : July 15, 2015 FCC ID : BABFT0093A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
