BABTN0035ACar Audio

(Type A) Index 1-Rating 2-Button Function Spec 3-Radio operation procedure 4-Operating manual (Bluetooth/Handsfree) 5-FCC Operating manual Requirement 6P Model name Model No Car Audio TN0035A Page 2P 3P 4P 5P TN0035A Operation Manual (1/6) (Type A) DAB TUNING RANGE 174.928 - 229.072 MHz 1-Rating FM TUNING RANGE 12.0V (10.5～16.0V) - ground 4Ω 2.1mA or less 4.0Ａ or less (Vcc=13.2V, 0.5W output) 531 - 1602 kHz (9kHz step) 87.5 - 108 MHz (100kHz step) AM TUNING RANGE RATED VOLTAGE LOAD IMPEDANCE BACK UP CURRENT RATED CURRENT (2/6) (Type A) ■AUDIO controls ⑤VOL UP Short Push: Increase Volume Up 1 step Long Push: Increase Volume Up continuously ④VOL DOWN Short Push: Decrease Volume Down 1 step Long Push: Decrease Volume Down continuously 2-Button Function Spec Button No.Button Name ①POWER Audio ON/OFF Operation ②BACK Transition to previous screen ③HOME/TALK Short Push: Transition to home screen Long Push: AA/CP voice recognition 543 2 1 (3/6) (Type A) 【操作手順】[Operation procedure] ①起動 (ACC-ON) ACC-ON後、TOYOTA画面が表示された事を確認。 After the ACC-ON, confirm that Toyota screen is displayed. ②数秒後に"CAUTION"画面に遷移します。 The screen is changed to "CAUTION" screen after a few seconds. *初回のACC-ON時はやや時間を要します。 Note: It takes a little longer for the first time of ACC-ON. ③数秒後に”Continue”ボタンを押して、MENU画面に遷移させます。 Press the "Continue" button on the face panel after a few seconds to move MENU screen. Menu Screen Display ④POWERボタンを押す。 画面内のラジオモードウィンドウを押すと、"FM1 "画面に遷移します。 Press the POWER button. When the Radio Mode Window on the screen is pressed,"FM1" screen is displayed. ⑤下記画面に遷移したら、”<”釦 若しくは、”>”釦を押下してください。 これで、SEEKが始まります。 Confirm that the screen is changed as below, Please push down the ”<”button or ”>”button. This will start to SEEK. ※AM/DABモードも同様の手順です。 ※Same as AM/DAB mode. 3-Radio operation procedure Press anywhere in this area Push this button Push this button (4/6) (Type A) 【操作手順】[Operation procedure] ①起動 (ACC-ON) ⑥画面の”Add Device”釦を押下してください。 ACC-ON後、TOYOTA画が表示された事を確認。Please press the ”Add Device” button of the screen After the ACC-ON, confirm that Toyota screen is displayed. ②数秒後に"CAUTION"画面に遷移します。 The screen is changed to "CAUTION" screen after a few seconds.⑦画面の”Search Device”釦を押下してください。 *初回のACC-ON時はやや時間を要します。Please press the ”Search Device” button of the screen Note: It takes a little longer for the first time of ACC-ON. ③数秒後に”Continue”ボタンを押して、MENU画面に遷移させます。⑧下記画面に遷移したらBluetooth端末（iPhone、 iPodなど)をペアリング Press the "Continue" button on the face panel after a few seconds モードに設定してください｡ to move MENU screen.Confirm if screen is changed as below, Please set iPhone or iPod in pairing mode. Menu Screen Display ④”Setting”ボタンを押して、SETTINGS画面に遷移させます。 Please press the "Setting" button on the face panel to move to Settings screen ※Displays when you have more than one pairing equipment ※複数のペアリング機器がある場合の表示 ⑨接続したiPhone又はiPodを選択します。 Select the iPhone or iPod to connect. ⑤”Settings”画面に遷移することを確認し、画面上の"Bluetooth"釦を選択。 Confirm if ”Settings” screen is displayed, select the ”Bluetooth” button on the display. ※ 電話機の表示にしたがって操作してください ※ Operate the phone after the message on the screen ⑩完了すれば"Connection Completed"の画面になります｡ ”Connection Completed” is displayed if completed. 4-Operating manual (Bluetooth/Handsfree) Push this button Push this button Push this button Push this button Push this button (5/6) (Type A) CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body in normal use position. Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 5-FCC Operating manual Requirement (6/6) (Type B) Index 1-Rating 2-Button Function Spec 3-Radio operation procedure 4-Operating manual (Bluetooth/Handsfree) 5-FCC Operating manual Requirement 6P Model name Model No Car Audio TN0035A Page 2P 3P 4P 5P TN0035A Operation Manual (1/6) (Type B) 1-Rating FM TUNING RANGE 12.0V (10.5～16.0V) - ground 4Ω 2.1mA or less 4.0Ａ or less (Vcc=13.2V, 0.5W output) 531 - 1602 kHz (9kHz step) 87.5 - 108 MHz (50kHz step) AM TUNING RANGE RATED VOLTAGE LOAD IMPEDANCE BACK UP CURRENT RATED CURRENT (2/6) (Type B) ■AUDIO controls ⑤VOL UP Short Push: Increase Volume Up 1 step Long Push: Increase Volume Up continuously ④VOL DOWN Short Push: Decrease Volume Down 1 step Long Push: Decrease Volume Down continuously 2-Button Function Spec Button No.Button Name ①POWER Audio ON/OFF Operation ②BACK Transition to previous screen ③HOME/TALK Short Push: Transition to home screen Long Push: AA/CP voice recognition 543 2 1 (3/6) (Type B) 【操作手順】[Operation procedure] ①起動 (ACC-ON) ACC-ON後、TOYOTA画面が表示された事を確認。 After the ACC-ON, confirm that Toyota screen is displayed. ②数秒後に"CAUTION"画面に遷移します。 The screen is changed to "CAUTION" screen after a few seconds. *初回のACC-ON時はやや時間を要します。 Note: It takes a little longer for the first time of ACC-ON. ③数秒後に”Continue”ボタンを押して、MENU画面に遷移させます。 Press the "Continue" button on the face panel after a few seconds to move MENU screen. Menu Screen Display ④POWERボタンを押す。 画面内のラジオモードウィンドウを押すと、"FM1 "画面に遷移します。 Press the POWER button. When the Radio Mode Window on the screen is pressed,"FM1" screen is displayed. ⑤下記画面に遷移したら、”<”釦 若しくは、”>”釦を押下してください。 これで、SEEKが始まります。 Confirm that the screen is changed as below, Ple…

Text truncated - open the document above for the full version.

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Letter of Authorization Date: November 10, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: DENSO TEN Limited FCC ID: BABTN0035A To whom it may concern: We, the undersigned, hereby authorize Akiyo Hayashi of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Request for Confidentiality Date: November 10, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : DENSO TEN Limited FCC ID : BABTN0035A To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

DENSO TEN Limited 2-28, Gosho-dori 1-chome, Hyogo-ku, Kobe, 652-8510 Japan Tel.: +81.78-682-2159 Request for Short-Term Confidentiality Date: November 10, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : BABTN0035A Applicant : DENSO TEN Limited To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Kaoru Abe Department General Manager Quality Assurance Group Quality Control Div Regulatory Management Dept. DENSO TEN Limited

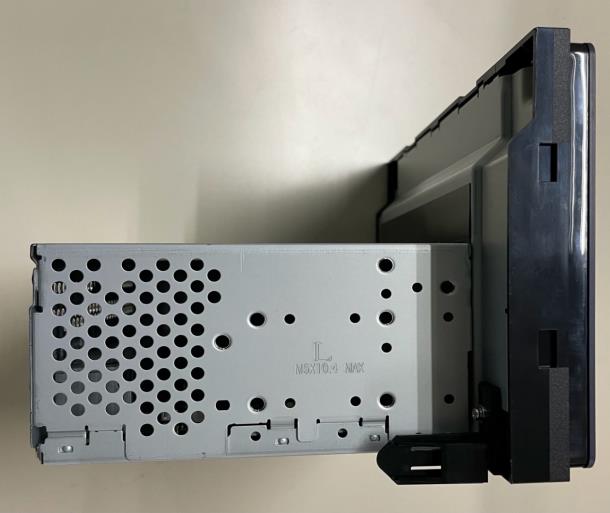

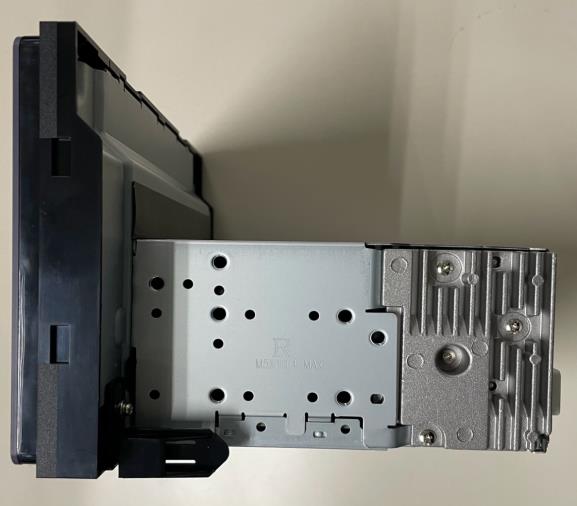

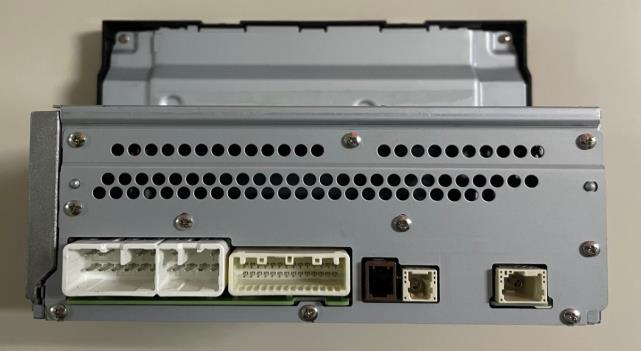

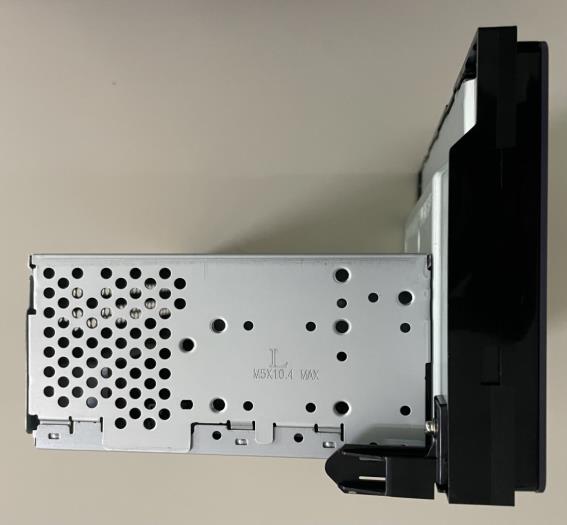

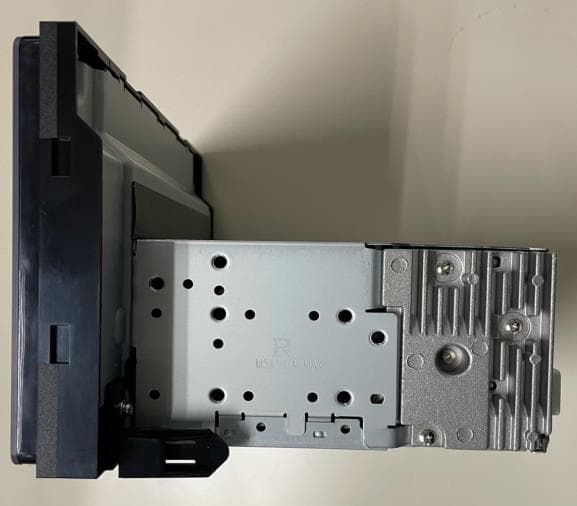

(Type A/G) External Photos TN0035A □Front□Rear □Right□Left □Top□Bottom DENSOTENCONFIDENTIAL (Type B/C/D/E/F) External Photos TN0035A □Front□Rear □Right□Left □Top□Bottom DENSOTENCONFIDENTIAL

TYPE B/C/D TYPE A

(Type A/G) Internal Photos TN0035A 【PANEL Board】 Component sideSolder side 【MAIN Board】 Component sideSolder side 【BT module mounting position】 Panel AssyEnlargement 【BT Antenna position】 Panel AssyEnlargement DENSOTENCONFIDENTIAL ・As for mount parts and parts number , refer to the'Component layout DWG'. ・As for pattern, refer to the'Pattern DWG'. BT module BT Antenna (Type B/C/D/E/F) Internal Photos TN0035A 【PANEL Board】 Component sideSolder side 【MAIN Board】 Component sideSolder side 【BT module mounting position】 Panel AssyEnlargement 【BT Antenna position】 Panel AssyEnlargement DENSOTENCONFIDENTIAL ・As for mount parts and parts number , refer to the'Component layout DWG'. ・As for pattern, refer to the'Pattern DWG'. BT module BT Antenna

(Type A/B/C/D/E/F/G) Internal Photos (BT module) TN0035A External Photo (TOP)Internal Photo (TOP) ・As for mount parts and parts number , refer to the 'Component layout DWG'. CONFIDENTIAL MATERIAL IN TRUST

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com January 13, 2022 FCC ID: BABTN0035A To whom it may concern, We, UL Japan, Inc, hereby declare that Car Audio, model: TN0035A (FCC ID: BABTN0035A) of DENSO TEN Limited is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power (Time average) was 1 mW So for this device: 1 mW [maximum average output power] / 5 mm [minimum separation distance]*√2.48 = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Tsubasa Takayama Leader

Test report No. : 13980589H-A-R1 Page : 1 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 19.0 RADIO TEST REPORT Test Report No. : 13980589H-A-R1 Applicant : DENSO TEN Limited Type of EUT : Car Audio Model Number of EUT : TN0035A FCC ID : BABTN0035A Test regulation : FCC Part 15 Subpart C: 2021 Test Result : Complied (Refer to SECTION 3) Date of test: September 7 to October 4, 2021 Representative test engineer: Kiyoshiro Okazaki Engineer Approved by: Tsubasa Takayama Leade r CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited. 9. The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13980589H-A. 13980589H-A is replaced with this report. Test report No. : 13980589H-A-R1 Page : 2 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13980589H-A Revision Test report No. Date Page revised Contents - (Original) 13980589H-A November 18, 2021 - - 1 13980589H-A-R1 January 13, 2022 P. 6 Correction of Remarks of Spurious Emission & Band Edge Compliance from *1) to *2) Test report No. : 13980589H-A-R1 Page : 3 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13980589H-A-R1 Page : 4 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results.......................................................................... 6 SECTION 4: Operation of EU…

Text truncated - open the document above for the full version.

Test report No. : 13980589H-A-R1 Page : 49 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission (Below 1 GHz) Photo 1 Photo 2 Test report No. : 13980589H-A-R1 Page : 50 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission (Above 1 GHz) Photo 1 Photo 2 Test report No. : 13980589H-A-R1 Page : 51 of 51 Issued date : January 13, 2022 FCC ID : BABTN0035A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
