BBO0121AFRS/GMRS TRANSCEIVER

User’s Guide TWO-WAY RADIO MODEL CXT135 NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warnings: Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra may cause a violation of the technical regulations of part 95 of the FCC rules, or violation of type acceptance requirements of part 2 of the rules. Making Life Easier And Safer Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Customer Assistance In this user’s guide, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this guide, Cobra Electronics offers the following customer assistance services: For Assistance In The U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Up/Down Buttons While in mode function, press and release to change channels. Press and release to adjust the volume. Call Button Press and release to alert others that you are calling. This tone is used only to establish voice communications. Printed in China Part No. 480-737-P Version A Battery Compartment Cover Belt Clip Antenna Talk Button Press and hold to communicate with others. With the microphone about two (2) inches [five (5) cm] from your mouth, speak in a normal voice. Release the Talk button when you are finished talking and listen for a response. You cannot receive incoming calls while pressing the Talk button. NOTE Both radios must be tuned to the same channel to communicate. IMPORTANT NOTICE: FCC LICENSE REQUIRED This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on Channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules. Operation of this radio is subject to additional rules specified in 47 C.F.R. Part 95. Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov. Safety Information For microTALK ® Radios Your wireless handheld portable transceiver contains a low power transmitter. When the Talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately two (2) inches from your face and speak in a normal voice, with the antenna pointed up and away. Product Service Questions If you have any questions about operation or installing your new Cobra product, or if you are missing parts... Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE! See customer assistance above. For Products Purchased In The U.S.A. If your product should require factory service, please call Cobra first before sending your radio, charger or battery pack(s). This will ensure the fastest turn- around time on your repair. You may be asked to send your products to the Cobra factory. It will be necessary to furnish the following to have the product serviced and returned. 1) For warranty repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. If you send the original receipt, it cannot be returned. 2) Send the entire product. 3) Enclose a description of what is happening with the product. Include a typed or clearly printed name and address of where the product is to be returned. 4) Pack product securely to prevent damage in transit. If possible, use the original packing material. 5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra Factory Service Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 U.S.A. 6) If the product is in warranty, upon receipt of your product it will either be repaired or exchanged depending on the model. Please allow app…

Text truncated - open the document above for the full version.

3January 3, 2012 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBO0121A Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for the transceiver bearing FCC identifier BBO0121A. The subject transceiver is a compact handheld model as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the batteries as separate items, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the batteries are installed and whenever the batteries are removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBO0121A" to the insert card within the clamshell packaging. Sincerely, Chris deWaal Project Engineer

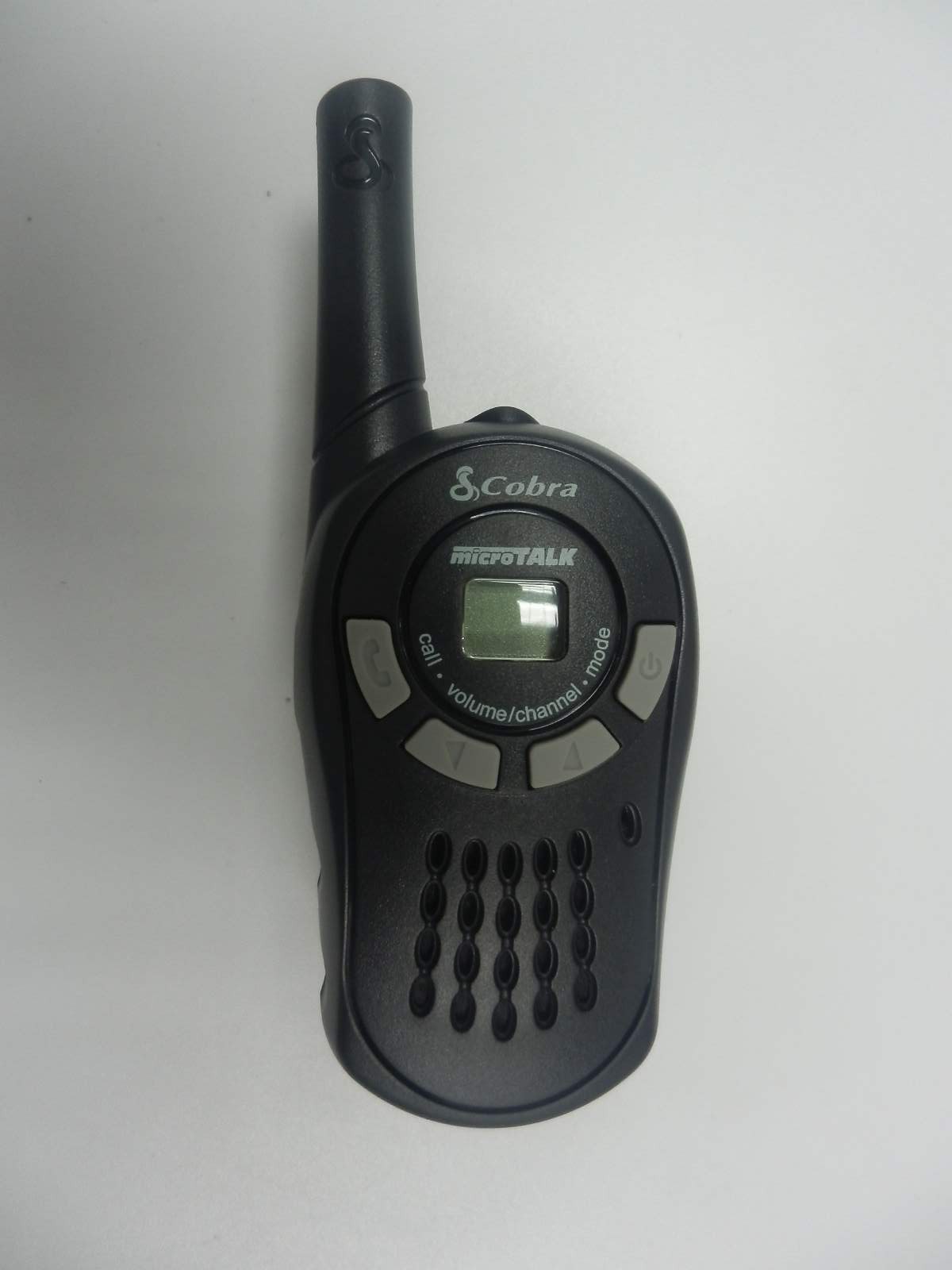

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO0121A EXTERNAL PHOTOS

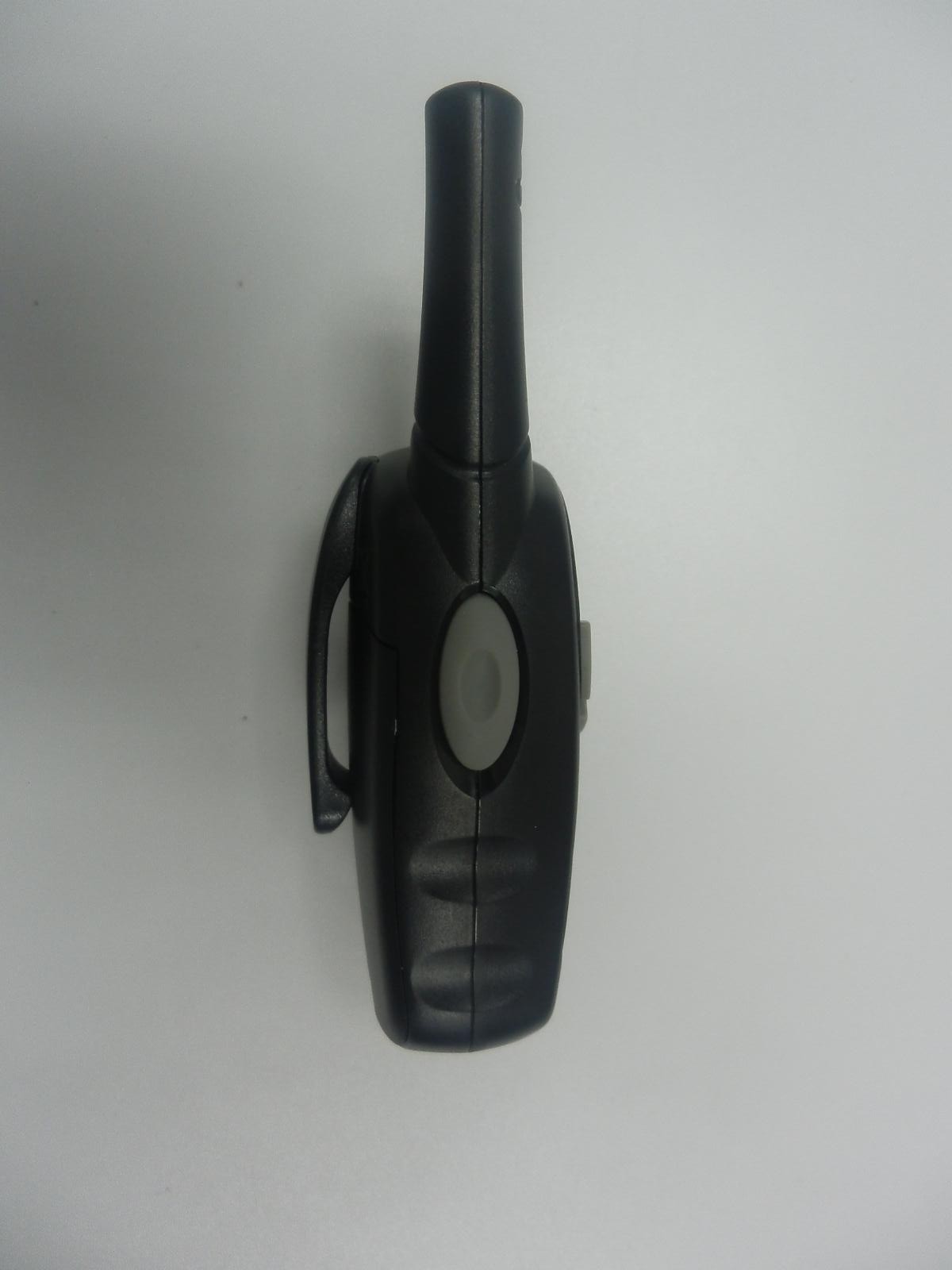

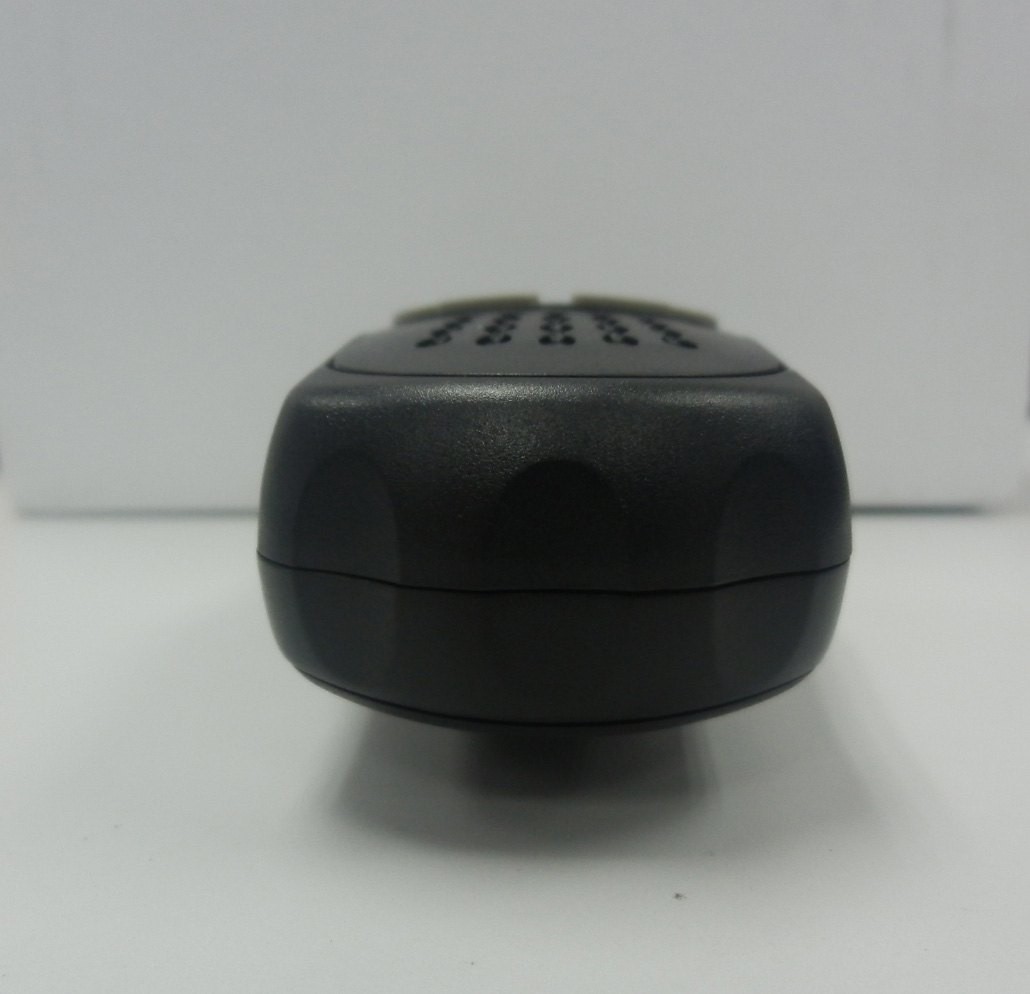

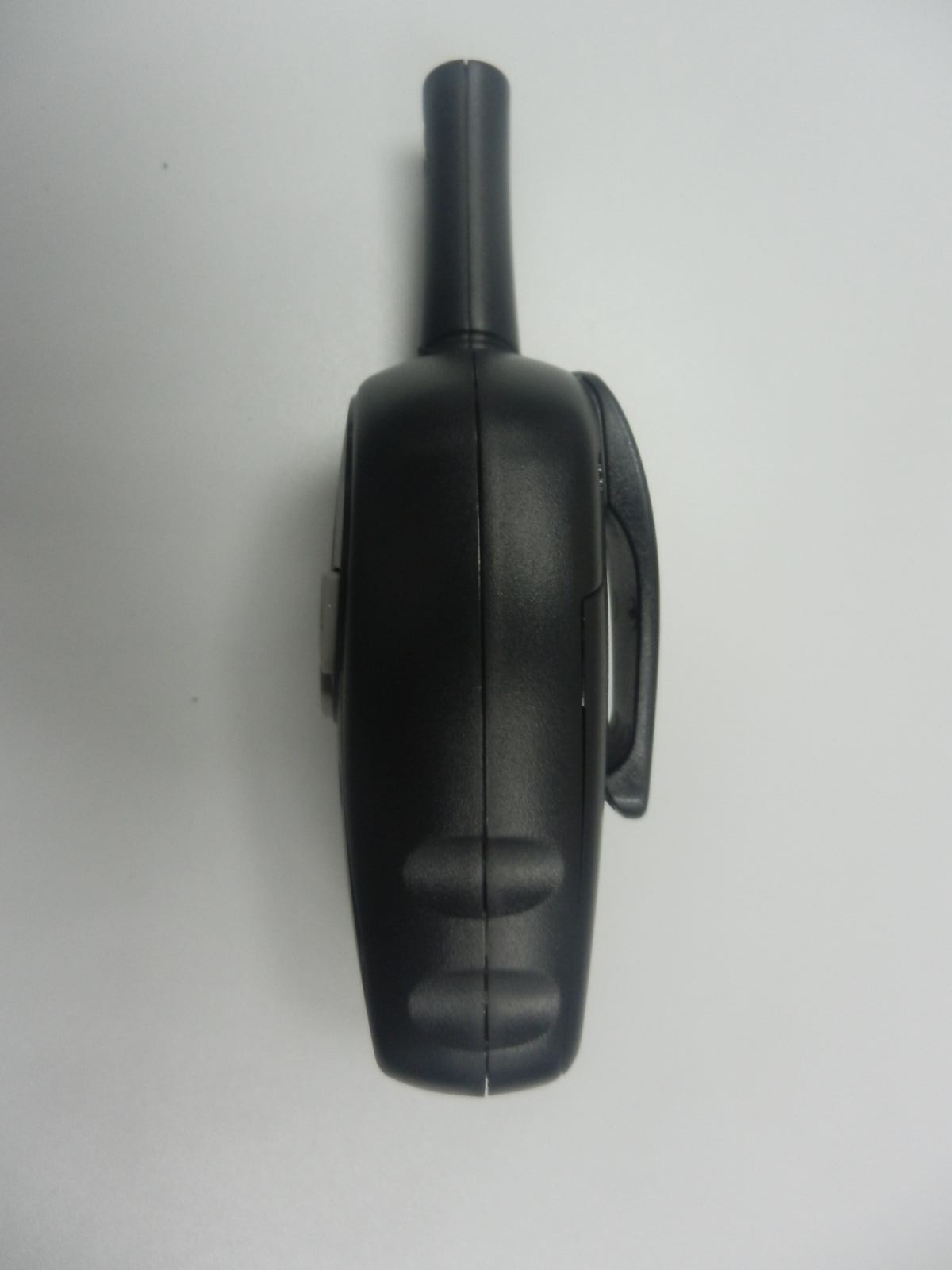

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO0121A INTERNAL PHOTOS

Alignment Procedure CXT135 1. TX Alignment 2) TX Freq. Align: ~ Press PTT at CH1 and read Frequency with Frequency counter ~ Align 462.5625MHz ± 50Hz with C33 3) TX Mod. Align: ~ Set CH1 100mV 1KHz Mic Input ~ Press PTT and align max modulation < 2.5KHz 4) Check TX Power Output: ~ Set CH1 Power High ~ Press PTT and read TX Power output - < 1W ~ Change to CH 8 for Power Low and read the TX Power output - < 0.5W 2. RX Set unit : CH1 3.6 DC supply 8 Ohm Load 1) RX Audio Distortion: ~ Set CH1, SSG 1mV, Audio level 5 (about 650mV) ~ Read Distortion - <20% 2) RX Sensitivity: ~ Reduce SSG level - > -118dBm ON REAL LIMITED Unit 1015, 10/F, Technology Park, Tel: 852-2647 4029 18 On Lai Street, Shatin, N.T. Fax: +852-2647 4079 Hong Kong. Email: [email protected]

Bill of Materials (RoHS) SMT_BM FOR CXT135 Model: CXT135 NO. PARTS NUMBER DESCRIPTION QUANTI T Components 1 ABU.R0R0.132S (RoHS) SMT_BM FOR FX188 1 2 BBM.B081.148R (RoHS) PCB_BM 2-LAYER 53.7X41.1X1.0T FOR FX188 1 3 ECS.1116.471R (RoHS) CAP_C_CHIP 470PF/J(CH)(0402) A:COG150L (SAMSUNG) 1 C14 4 ECS.1216.471R (RoHS) CAP_C_CHIP 470PF/J(CH)(0603) A:COG150L 1 C101 5 ECS.2197.102R (RoHS) CAP_C_C.H.D. B0.001uF/K(0402) X:X7R282L 3 C21,C131,C141 6 ECS.2197.103R (RoHS) CAP_C_C.H.D. B0.01uF/K(0402) X:X7R282L 4 C17,C46,C137,C236 7 ECS.2197.104RA1 (RoHS) CAP_C_C.H.D. B0.1uF/K(0402) X:X7R282L-GRM1555R71A104KA01D(CT) 17 C13,C15,C28,C36,C38,C48,C51,C210,C216,C228,C229,C233,C234,C235,C139,C237,C238 8 ECS.2197.223R (RoHS) CAP_C_C.H.D. B0.022uF/K(0402) X:X7R282L 3 C222,C223,C225 9 ECS.2197.332R (RoHS) CAP_C_C.H.D. B0.0033uF/K(0402) X:X7R282L 1 C42 10 ECS.2197.474R (RoHS) CAP_C_C.H.D. B0.47uF/K(0402) X:X7R282L 1 C40 11 ECS.22A9.105R (RoHS) CAP_C_C.H.D. F1uF/Z(0603) Y:YF153L 5 C41,C50,C209,C215,C7 12 ECS.23A9.106R (RoHS) CAP_C_C.H.D. F10uF/10V/Z(0805) Y:YF153L 4 C16,C19,C34,C47 13 EHS.0122.101RA1 (RoHS) CHIP COIL SQUARE 100nH/J(0603) FY 1 L105 14 EHS.0122.220RA1 (RoHS) CHIP COIL SQUARE 22nH/J(0603) FY 2 L109,L4 15 EHS.0122.2R7R (RoHS) CHIP COIL SQUARE 2.7nH/S(0603) 南玻 1 L108 16 EHS.0122.560RA1 (RoHS) CHIP COIL SQUARE 56nH/J(0603) FY 1 L201 17 EHS.0250.001R (RoHS) CHIP COIL SPRING 0.32-1.2-3T 1 L106 18 EHS.0250.003R (RoHS) CHIP COIL SPRING 0.32-1.2-5T 1 L101 19 EHS.0250.020R (RoHS) CHIP COIL SPRING 0.30-1.2-5T 1 L107 20 ERS.0124.000R (RoHS) RES_(0402)-10 0 OHM 6 C27,R22,C104,C23,C145,R229 21 ERS.0124.100R (RoHS) RES_(0402)-10 10 OHM 1 R103 22 ERS.0124.101R (RoHS) RES_(0402)-10 100 OHM 1 R205 23 ERS.0124.102R (RoHS) RES_(0402)-10 1 KOHM 2 R8,R211 24 ERS.0124.103R (RoHS) RES_(0402)-10 10 KOHM 6 R9,R210,R104,C207,R2,R4 25 ERS.0124.104R (RoHS) RES_(0402)-10 100 KOHM 3 R220,R222,R226 26 ERS.0124.153R (RoHS) RES_(0402)-10 15 KOHM 2 R106,R11 27 ERS.0124.221R (RoHS) RES_(0402)-10 220 OHM 1 R207 28 ERS.0124.222R (RoHS) RES_(0402)-10 2.2 KOHM 2 R21,R14 29 ERS.0124.331R (RoHS) RES_(0402)-10 330 OHM 1 R224 30 ERS.0124.333R (RoHS) RES_(0402)-10 33 KOHM 1 R30 31 ERS.0124.471R (RoHS) RES_(0402)-10 470 OHM 1 R102 32 ERS.0124.472R (RoHS) RES_(0402)-10 4.7 KOHM 2 R3,R107 33 ERS.0124.473R (RoHS) RES_(0402)-10 47 KOHM 9 R1,R5,R18,R212,R221,R225,R223,R17,R24 34 ERS.0124.474R (RoHS) RES_(0402)-10 470 KOHM 1 R209 35 ERS.0124.824R (RoHS) RES_(0402)-10 820 KOHM 1 R206 36 ERS.0224.000R (RoHS) RES_(0603)-10 0 OHM 1 L8 37 ERS.0324.4R7R (RoHS) RES_(0805)-10 4.7 OHM 1 R7 38 ERT.1113.220RB1 (ROHS) THERMAL RES_(0402) 22 OHM ERTJ0EA220J(Panasonic) 1 R6 39 SDD.1109.017RA1 (RoHS) DIODE_SW BA591 YD 2 D101,D102 40 SDD.1207.001RD1 (RoHS) DIODE_SW LL4148/MM4148 MELF(LL-34) ZZ 2 D1,D202 41 SDD.3007.001R (RoHS) DIODE_SCHOTTKY BARRIER IN5819(SOD-123) 1 D2 42 SIC.1210.074R (RoHS) IC_uP EM78P468N (BONDING IC) O.T.P 1 IC5 43 SIC.2103.021R (RoHS) IC_LI YD34119 (SOP-8) 1 IC201 44 SIC.2103.116R (RoHS) IC_RDA1846 1 IC204 45 STR.1115.009R (RoHS) TR_SS PDTA143ZE (PHILIPS) 1 Q208 46 STR.1206.010R (RoHS) GENERAL PURPOSE TRANSISTOR BC807-25(SOT-23) 2 Q203,Q1 47 STR.2213.004R (RoHS) TR_RF POWER HE3078(SOT-89) 1 Q102 48 ERS.0124.243R (RoHS) RES_(0402)-10 24 KOHM 1 R20 49 ERS.0124.105R (RoHS) RES_(0402)-10 1 MOHM 1 R19 50 EHS.0133.102R (RoHS) CHIP COIL SQUARE 1.0uH/K(0805) 1 L202 51 ECS.22A9.225R (RoHS) CAP_C_C.H.D. F2.2uF/Z(0603) Y:YF153L 1 C8 52 EHS.0250.018R (RoHS) CHIP COIL SPRING 0.30-1.1-4T 2 L1,L2 53 ERS.0124.183R (RoHS) RES_(0402)-10 18 KOHM 2 R10,R12 54 ERS.0124.184R (RoHS) RES_(0402)-10 180 KOHM 1 R13 55 ECS.2197.392R (RoHS) CAP_C_C.H.D. B3.9nF/K(0402) 1 C6 56 ERS.0124.561R (RoHS) RES_(0402)-10 560 OHM 1 R16 57 ECS.1111.020RA1 (RoHS) CAP_C CHIP 2PF/B/(CH)/(0402)C0402COG2R0B (EYANG) 2 C24,C142 58 ECS.1111.2R2RA1 (RoHS) CAP_C_CHIP 2.2PF/B(CH)(0402)C0402COG2R2B(EYANG) 1 C4 59 ECS.1111.2R5RA1 (RoHS) CAP_C CHIP 2.5PF/B/(CH)/(0402) (EYANG) 1 C2 60 ECS.1111.050RC1 (RoHS) CAP_C_CHIP 5PF/B(CH)(0402)(EYANG) 3 C12,C143,C1 61 ECS.1113.060RB1 (RoHS) CAP_C_CHIP 6PF/D(CH)(0402) A:COG150L(EYANG) 3 C103,C134,C125 62 ECS.1113.090RA1 (RoHS) CAP_C_CHIP 9PF/D(CH)(0402) (EYANG) 1 C132 63 ECS.1113.080RB1 (RoHS) CAP_C_CHIP 8PF/D(CH)(0402) A:COG150L(EYANG) 1 C3 64 ECS.1116.100RA1 (RoHS) CAP_C_CHIP 10PF/J(CH)(0402)C0402COG100J(EYANG) 1 C35 65 ECS.1116.101RD1 (RoHS) CAP_C_CHIP 100PF/J(CH)(0402)C0402COG101J(EYANG) 13 C20,C32,C136,C218,C30,C140,C144,C219,C220,C221, C224,C212,C213 66 ECS.1116.120RA1 (RoHS) CAP_C_CHIP 12PF/J(CH)(0402)C0402COG120J(EYANG) 1 C5 67 ECS.1116.150RB1 (RoHS) CAP_C_CHIP 15PF/J(CH)(0402) A:COG(EYANG) 1 C31 68 ECS.1116.220RA2 (RoHS) CAP_C_CHIP 22PF/J(CH)(0402) C0402COG220J(EYANG) 3 C37,C231,C232 69 ECS.1116.330RA2 (RoHS) CAP_C_CHIP 33PF/J(CH)(0402) A:COG150L(EYANG) 2 C18,C22 70 ECS.1116.390RA1 (RoHS) CAP_C_CHIP 39PF/J(CH)(0402) A:COG150L(EYANG) 1 C138 71 ECS.1213.060RA1 (RoHS) CAP_C_CHIP 6PF/D(CH)(0603) (EYANG) 1 L5 72 STR.1206.013R (RoHS) GENERAL PURPOSE TRANSISTOR LBC807-25LT1(SOT-23) 1 Q4 73 STR.2306.046R (RoHS) TR_RF LBC847BWT1C(SOT-323) 4 Q204,Q207,Q2,Q3 74 STR.2306.033R (RoHS) TR_RF FCS957(SOT-323) 1 Q103 75 SIC.0109.033R (RoHS) IC_VOL ME6229C33M5G 静 态电流≦ 58uA(SOT-23-5) 1 IC203 76 ECS.1116.300RA1 (RoHS) CAP_C_CHIP 30PF/J(CH)(0402) A:COG150L(EYANG) 1 C124 77 SIC.0109.067R (RoHS) IC_VOL ME2802A33M3(SOT-23-3) 1 IC207

Applicant: Cobra Electronics Corporation FCC ID: BBO0121A IC: 906A-0121A DUT Type: Portable UHF GMRS/FRS PTT Radio Transceiver Model(s): CXT135, CX101 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 48 Date(s) of Evaluation Dec. 12, 2011 Test Report Serial No. 113011BBO-T1137-S95U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Jan. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Test Lab Accreditation ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name COBRA ELECTRONICS CORPORATION Applicant Information Address 6500 West Cortland Street, Chicago, IL 60707 United States Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supp. C ( 01-01) KDB Publication 447498 D01v04 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Part 95 Family Radio Face Held Transmitter (FRF) Device Classification(s) IC Licence-exempt Radio Apparatus: Category I Equipment (RSS-210 Issue 8) Application Type(s) FCC/IC New Certification Device Identifier(s) FCC ID: BBO0121A IC: 906A-0121A Device Model(s) CXT135, CX101 (only difference in models is the CXT135 contains an external audio jack) Test Sample Serial No. None (Identical Prototype) Hardware Revision No. V1.4 Firmware Revision No. V1.4a Date of Sample Receipt Nov. 30, 2011 Date(s) of Evaluation Dec. 12, 2011 Device Description Portable FM UHF GMRS/FRS Push-To-Talk (PTT) Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) Transmit Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) CXT135 0.35 Watts 25.44 dBm ERP 462.5625 MHz GMRS Ch. 1 RF Output Power Tested CX101 0.29 Watts 24.62 dBm ERP 462.5625 MHz GMRS Ch. 1 Ni-MH Battery 3x AAA 1.2 V 300 mAh Battery Type(s) Tested Alkaline Battery 3x AAA 1.5 V Energizer Industrial Antenna Type(s) Tested External (Non-detachable) Body-worn Accessories Tested Plastic Belt-Clip (supplied with DUT) Audio Accessories Tested Ear-bud with Lapel-Microphone & PTT (P/N: GA-EBM2) Face-held 0.117 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled Max. Measured SAR Level(s) Body-worn 0.339 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and International Standard IEC 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Applicant: Cobra Electronics Corporation FCC ID: BBO0121A IC: 906A-0121A DUT Type: Portable UHF GMRS/FRS PTT Radio Transceiver Model(s): CXT135, CX101 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 48 Date(s) of Evaluation Dec. 12, 2011 Test Report Serial No. 113011BBO-T1137-S95U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Jan. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________ 4 3.0 RF OUTPUT POWER MEASUREMENTS ________________________________________________ 5 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F < 0.5 GHZ) _____________________________ 5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES____________________________ 5 6.0 FLUID DIELECTRIC PARAMETERS ___________________________________________________ 6 FLUID DIELECTRIC PARAMETERS (CONT.)________________________________________________ 7 7.0 SAR MEASUREMENT SUMMARY _____________________________________________________ 8 8.0 SAR LEVEL CORRECTION FOR FLUID DEVIATION (IC RSS-102 / IEC 62209-2) _______________ 9 9.0 DETAILS OF SAR EVALUATION _____________________________________________________ 10 10.0 SAR EVALUATION PROCEDURES __________________________________________________ 10 11.0 SYSTEM PERFORMANCE CHECK __________________________________________________ 11 12.0 SIMULATED EQUIVALENT TISSUES ________________________________________________ 12 13.0 SAR LIMITS _____________________________________________________________________ 12 14.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________________ 13 15.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________ 14 16.0 BARKSI PLANAR PHANTOM_______________________________________________________ 14 17.0 DEVICE HOLDER __…
