BBOBB650VHF Marine Radio Transceiver

Thank you for purchasing a Cobra Marine® VHF radio. When used properly, this Cobra® product will give you many years of reliable service. BlueBound 650B BlueBound 650W VHF Marine Radio Transceiver Cobra Electronics Corporation 1701 Golf Road Suite 3-900, Rolling Meadows, Illinois, 60008, United States HVIN:BlueBound 650B HVIN:BlueBound 650W How Your Cobra Marine VHF Radio Works This radio is a battery-powered portable transceiver for use on the water. It gives you 2-way ves- sel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navi- gation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders and make radiotelephone calls to anywhere in the world through a marine oper- ator. Besides 2-way communications, in the U.S.A., the radio can provide quick access to receive ten NOAA (National Oceanographic and Atmospheric Administration) and two Canadian weather channels for alerting you to weather emergencies with a tone on a weather channel you can select for your area. Customer Assistance Should you encounter any problems with this product or not understand its features, please refer to this manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Call: 800-543-1608 • Monday-Friday 9:00 AM-5:00 PM EST Open a support ticket on Cobra.com: https://www.cobra.com/pages/contact-us Chat with a live agent: https://www.cobra.com/ • Monday-Friday 10:00 AM-6:30 PM EST • Look for the chat icon at the lower bottom right side of the web pages. For Assistance Outside the U.S.A Contact Your Local Dealer Radio Overview_______________________________________________ LCD Display Overview_______________________________________________ Product Features Power Settings Select 1, 3 or 6 Watts of output power for near or distant calling Built-In GPS Receiver Shows GPS coordinates on screen and automatically sends GPS location with DSC calls Digital Selective Calling (DSC Class-D) Allows the ability to maintain a listening watch on VHF Channel 16 while simultaneously monitoring Channel 70 for DSC calls. Allows sending a distress message at the touch of a button as well as specific station-to-station calls. Active Noise Cancelling Reduce background noise on both incoming and outgoing transmissions. Bluetooth Connectivity Pair your cell phone to receive voice calls through the BlueBound 650B or pair with a wireless headset for hands free communication. USA/International/Canada Channels Allows operation on any of the three (3) different channel maps established for these areas Floating and Waterproof IPX7 waterproofing ensures radio floats when immersed in water Float N’ Flash Radio strobe light will flash while floating when dropped in water Dock Charger Dock charger with additional battery charging slot for recharging radio Charging Adapters Includes charging dock adapter cables for both AC and power outlets. Instant Channel 16/9 Provides instant access to priority channel 16 and calling channel 9 Tri-Watch Use to monitor three channels at once, Channel 16 and two user selected channels Rechargeable Lithium-ion Battery Recharge using the included USB-C dock charger and adaptor Favorite Channels Save important channels as favorites Speaker Mic Jack Allows for connection to the Cobra speaker mic accessory Backlit Keypad & Day/Night Display Day/Night LCD display and backlit functional buttons for high visibility Locking Battery Latch Quick release battery latch with sliding lock tab BURP Expels water from the speaker grill if the unit is dropped in the water or is subjected to extreme rain and weather Table of Contents Introduction (Page 1) Radio Overview (Page 2) Product Features (Page 3) Safety Information (Pages 5–8) Operation (Pages 9–20, 23–30) • Included in This Package (Page 7) • Batteries and Charging (Page 10) • Power Button (Page 11) • Power Saver (Page 11) • Volume Control (Page 11) VHF Marine Radio Procedures Emergency Messages & Distress Procedures NOAA Weather (WX) Navigation Compass (NAV) Digital Selective Calling (DSC) Bluetooth Operation Radio Care Warranty Specifications VHF Marine Channel Assignments & Maps Before using your Cobra marine VHF radio, please read these general precautions and warnings. How Your Cobra Marine VHF Radio Works Proper usage of this radio is important to achieve full functionality, so please read the operating instructions carefully before first use and refer to this guide again whenever necessary. Please pay special attention to the WARNING and NOTICE statements in this manual. WARNING : Statements identify conditions that could result in personal injury or loss of life. NOTICE : Statements identify conditions that could cause damage to the radio or other equipment. Safety Training Information This Cobra Marine VHF radio complies with the following guidelines and standards regarding RF energy and electromagnetic energy levels as well as evaluation of those levels for human exposure. 1. FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for human exposure to radio frequency electromagnetic fields. 2. American National Standards Institute (C95.1-1992), IEEE Recommended Practice for the measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. 3. American National Standards Institute (C95.3-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300GHz. 4. Industry Canada RSS-102-Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). a. Conformité d’exposition de la fréquence du Canada RSS-102-Radio d’industrie (rf) de l’appareillage de communication par radio (toutes les bandes de fréquence). ALWAYS use only Cobra authorized accessories. DO NOT operate the radio in an explosive atmosphere, near blasting sites, or in any are…

Text truncated - open the document above for the full version.

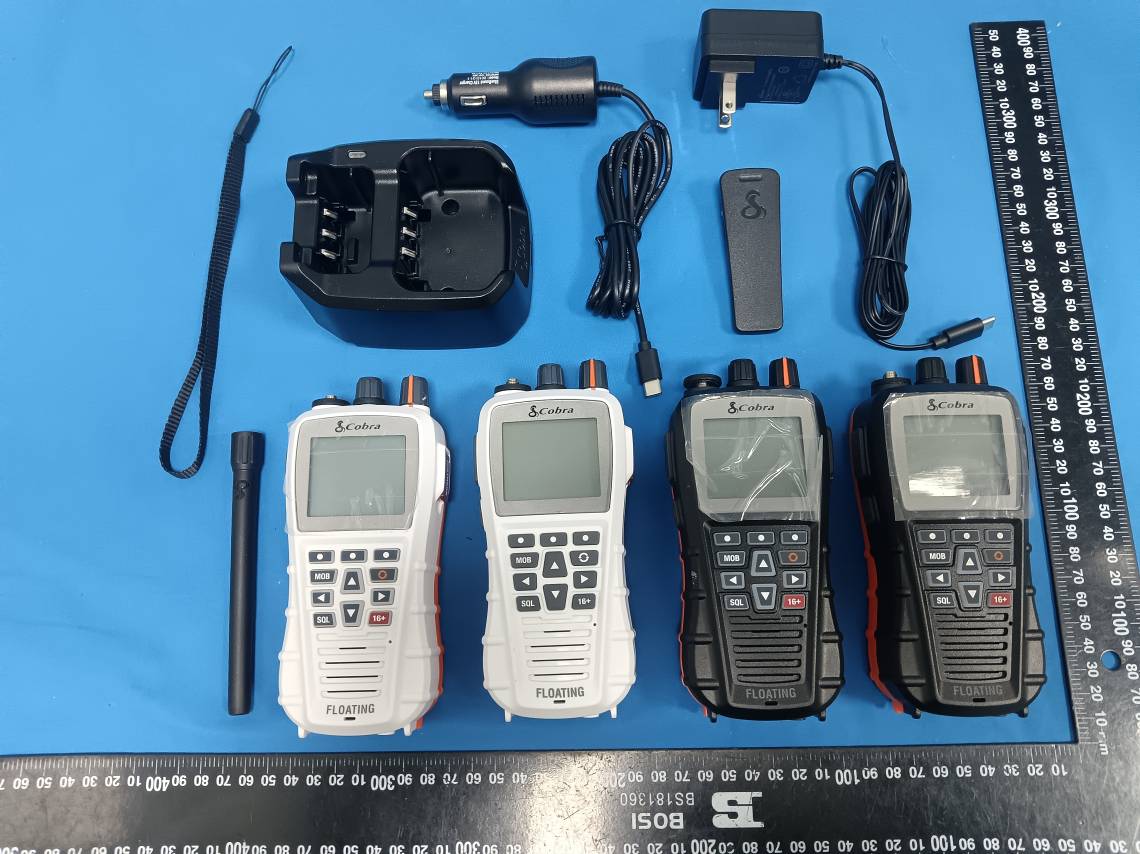

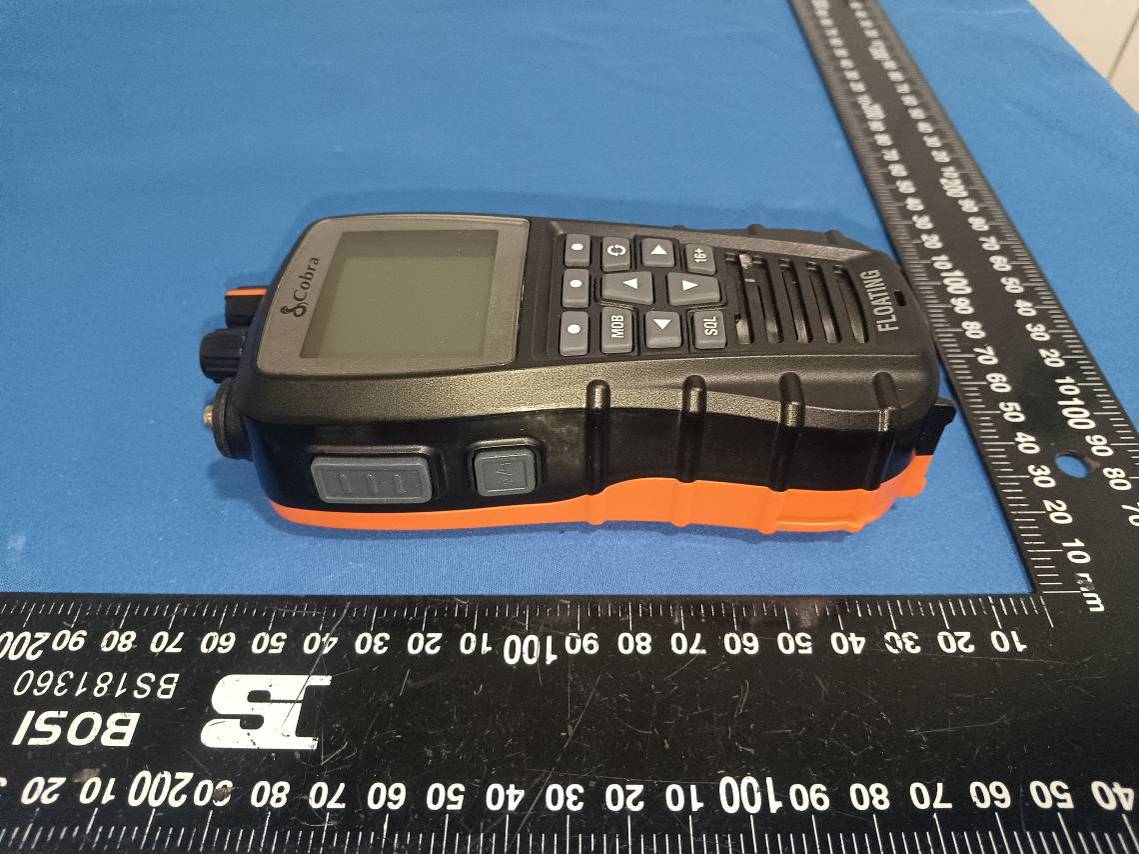

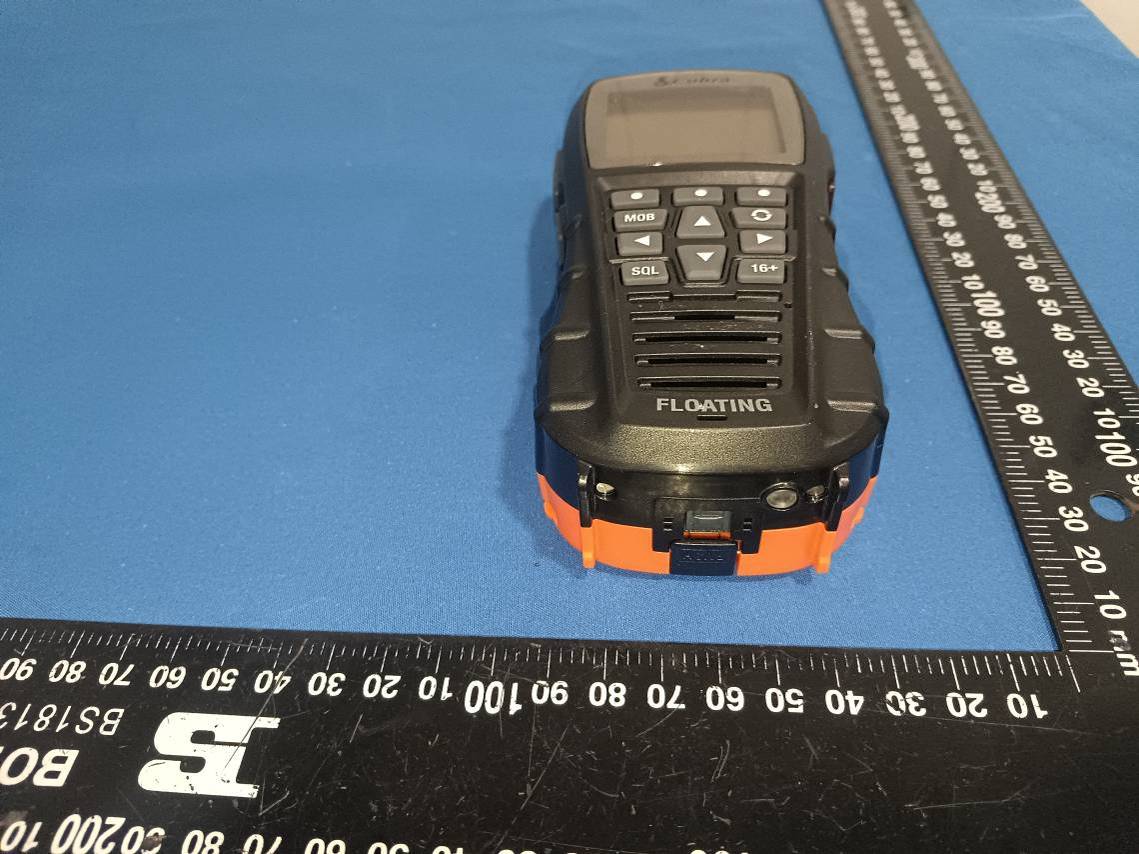

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 1 / 24 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 2 / 24 Model: BlueBound 650B Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 3 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 4 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 5 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 6 / 24 Model: 0190011-1 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 7 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 8 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 9 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 10 / 24 Model: BlueBound 650W Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 11 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 12 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 13 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 14 / 24 Model:0190011-3 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 15 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 16 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 17 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 18 / 24 Charging base Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 19 / 24 Charging base Lable Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 20 / 24 Adapter 1# Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 21 / 24 Adapter 2# Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 22 / 24 VHF Antenna Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 23 / 24 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-FCC-EXP Page 24 / 24 Battery Lable *****END *****

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-00C-TSP Page 1 / 2 TEST SETUP PHOTOGRAPHS Radiated Emission 30M-1GHz View Radiated Emission Above 1GHz View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502V04204E-RF-00C-TSP Page 2 / 2 RF Conducted Test Photo *****END *****

TEST REPORT Applicant: Cobra Electronics Corporation Address: 1701 Golf Road Suite 3-900, Rolling Meadows, Illinois, 60008, United States P r o d u c t N a m e : VHF Marine Radio Transceiver F C C I D : BBOBB650 Standard(s): 47 CFR Part 2 47 CFR Part 80 ANSI C63.26-2015 Report Number: 2502V04204E-RF-00C Report Date: 2025/10/22 The above device has been tested and found compliant with the requirement of the relevant standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Alice Tan Approved By: Pedro Yun Title: RF Engineer Title: RF Supervisor Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Each test item follows the test standard(s) without deviation. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-RF-00C Report Template Version: FCC-80-V1.3 Page 2 of 56 CONTENTS DOCUMENT REVISION HISTORY ................................................................................................ 4 1. GENERAL INFORMATION .......................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................. 5 1.2 ACCESSORY INFORMATION: ..................................................................................................................... 5 1.3 ANTENNA INFORMATION DETAIL▲: ....................................................................................................... 5 1.4 EQUIPMENT MODIFICATIONS ................................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................................. 6 3. DESCRIPTION OF TEST CONFIGURATION ........................................................................... 7 3.1 OPERATION FREQUENCY DETAIL: ........................................................................................................... 7 3.2 EUT OPERATION CONDITION: ................................................................................................................. 7 3.3 EUT EXERCISE SOFTWARE ...................................................................................................................... 7 3.4 SUPPORT EQUIPMENT LIST AND DETAILS ............................................................................................... 8 3.5 SUPPORT CABLE LIST AND DETAILS ........................................................................................................ 8 3.6 BLOCK DIAGRAM OF TEST SETUP ............................................................................................................ 8 3.7 TEST FACILITY .......................................................................................................................................... 9 3.8 MEASUREMENT UNCERTAINTY ................................................................................................................ 9 4. REQUIREMENTS AND TEST RESULTS ................................................................................. 10 4.1 AUTOMATIC TIMING ............................................................................................................................... 10 4.1.1 Applicable Standard ........................................................................................................................................... 10 4.1.2 Block Diagram of Test Setup ............................................................................................................................. 10 4.1.3 Test Procedure .................................................................................................................................................... 10 4.1.4 Test Data And Result ......................................................................................................................................... 11 4.2 TRANSMITTER FREQUENCY TOLERANCES ............................................................................................. 12 4.2.1 Applicable Standard ........................................................................................................................................... 12 4.2.2 Block Diagram of Test Setup ............................................................................................................................. 12 4.2.3 Test Procedure .................................................................................................................................................... 12 4.2.4 Test Data And Result ......................................................................................................................................... 14 4.3 MODULATION REQUIREMENTS ............................................................................................................... 16 4.3.1 Applicable Standard ..........................................................................................................................…

Text truncated - open the document above for the full version.

IEC 62238:2003 TEST REPORT For Cobra Electronics Corporation 1701 Golf Road Suite 3-900, Rolling Meadows, Illinois, 60008, United States Test Model: BlueBound 650B Multiple Model: BlueBound 650W, 0190011-1, 0190011-3 Report Type: Original Report Product Type: VHF Marine Radio Transceiver Report Number: 2502V04204E-01B Report Date: 2025/12/18 Reviewed By: Alice Tan RF Engineer Approved By: Pedro Yun RF Supervisor Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) (No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China) Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-01B Report Template Version: DGRF-CE-62238-V1.0 Page 2 of 66 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................................... 6 GENERAL INFORMATION ................................................................................................................................................ 7 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .............................................................................................. 7 TECHNICAL SPECIFICATION ................................................................................................................................................... 7 OBJECTIVE ............................................................................................................................................................................ 7 TEST METHODOLOGY ............................................................................................................................................................ 7 TEST FACILITY ...................................................................................................................................................................... 7 MEASUREMENT UNCERTAINTY ............................................................................................................................................. 8 DECLARATIONS ..................................................................................................................................................................... 8 SYSTEM TEST CONFIGURATION ................................................................................................................................... 9 DESCRIPTION OF TEST CONFIGURATION ................................................................................................................................ 9 EQUIPMENT MODIFICATIONS ................................................................................................................................................. 9 EUT EXERCISE SOFTWARE ................................................................................................................................................... 9 SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................................................. 9 SUPPORT CABLE LIST AND DETAILS ...................................................................................................................................... 9 TEST EQUIPMENT LIST ........................................................................................................................................................ 10 ENVIRONMENTAL CONDITIONS ........................................................................................................................................... 10 SUMMARY OF TEST RESULTS ...................................................................................................................................... 11 3 - VIBRATION TEST ......................................................................................................................................................... 12 APPLICABLE STANDARD ...................................................................................................................................................... 12 METHOD OF MEASUREMENT ............................................................................................................................................... 12 REQUIREMENT ..................................................................................................................................................................... 12 TEST RESULT....................................................................................................................................................................... 12 4 - TEMPERATURE TESTS ............................................................................................................................................... 13 APPLICABLE STANDARD ...................................................................................................................................................... 13 METHOD OF MEASUREMENT ............................................................................................................................................... 13 REQUIREMENT ..................................................................................................................................................................... 13 TEST RESULT....................................................................................................................................................................... 13 5 - TRANSMITTER FREQUENCY ERROR ...................................................................................................................... 14 APPLICABLE STANDARD ...................................................................................................................................................... 14 LIMIT ...........................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 43 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 44 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 45 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 46 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 47 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 48 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 49 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 50 of 54 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 51 of 54 APPENDIX E - RETURN LOSS AND IMPEDANCE MEASUREMENT CLA150 - SN:4020 Extended Loop Calibrations Referring to KDB 865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Test Equipment Information: Equipment Model S/N Calibration Date Calibration Due Date Simulated Tissue 150 MHz Head TS-150H 2409015001 Each Time / Oval Flat Phantom ELI V8.0 2051 NCR NCR Network Analyzer E5071C MY46519680 2023/07/16 2024/07/15 Network Analyzer Calibration Kit 50 Ω 51026 NCR NCR Justification of the extended calibration CLA150 - SN:4020 150MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/16 (Cal. Report) -22.5 / 44.5 / -4.4 / 2023/11/15 (Extended) -24.9 10.7 46.8 -2.3 -1.4 -3 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 52 of 54 Loop Verification Data> CLA150 - SN:4020 (Date of Measurement: 2023/11/15) 150MHz - Head Name Tilt Signature Calibrated By: Mark Dong SAR Engineer Approved By: Brave Lu SAR Supervisor Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 53 of 54 CLA150 - SN:4020 Extended Loop Calibrations Referring to KDB 865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Test Equipment Information: Equipment Model S/N Calibration Date Calibration Due Date Simulated Tissue 150 MHz Head TS-150H 2409015001 Each Time / Oval Flat Phantom ELI V8.0 2051 NCR NCR Network Analyzer E5071C MY46519680 2024/07/11 2025/07/10 Network Analyzer Calibration Kit 50 Ω 51026 NCR NCR Justification of the extended calibration CLA150 - SN:4020 150MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/16 (Cal. Report) -22.5 / 44.5 / -4.4 / 2024/11/15 (Extended) -25.7 14.2 46.9 -2.4 -1.6 -2.8 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 54 of 54 Loop Verification Data> CLA150 - SN:4020 (Date of Measurement: 2024/11/15) 150MHz - Head Name Tilt Signature Calibrated By: Mark Dong SAR Engineer Approved By: Brave Lu SAR Supervisor ***** END OF REPORT *****

Report Template Version: FCC SAR-V1.0 1 of 54 FCC SAR TEST REPORT Applicant: Cobra Electronics Corporation Address: 1701 Golf Road Suite 3-900, Rolling Meadows, Illinois, 60008, United States P r o d u c t N a m e : VHF Marine Radio Transceiver F C C I D : BBOBB650 Standard(s): 47 CFR Part 2(2.1093) Report Number: 2502V04204E-20A Report Date: 2025/10/25 The above device has been tested and found compliant with the requirement of the relevant standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Mark Dong Approved By: Brave Lu Title: SAR Engineer Title: SAR Supervisor Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Each test item follows the test standard(s) without deviation. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 2 of 54 SAR TEST RESULTS SUMMARY Mode Max. SAR Level(s) Reported(W/kg) Limit (W/kg) PTT(156.05-157.425MHz) 1g Head SAR(Face Up) 0.56 8.0 1g Body SAR(Body Back) 0.62 Simultaneous 1g Head SAR(Face Up) 0.58 1g Body SAR(Body Back) 0.69 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques RF Exposure Procedures: TCB Workshop April 2019 KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 643646 D01 SAR Test for PTT Radios v01r03 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for Occupational /Controlled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502V04204E-20A Report Template Version: FCC SAR-V1.0 3 of 54 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 1.GENERAL INFORMATION .................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .............................................................................. 5 2.REFERENCE, STANDARDS, AND GUIDELINES ............................................................................................... 6 2.1 SAR LIMITS ........................................................................................................................................................... 6 2.2 TEST FACILITY ....................................................................................................................................................... 7 3.DESCRIPTION OF TEST SYSTEM ....................................................................................................................... 8 4. EQUIPMENT LIST AND CALIBRATION ......................................................................................................... 13 4.1 EQUIPMENTS LIST & CALIBRATION INFORMATION .............................................................................................. 13 5. SAR MEASUREMENT SYSTEM VERIFICATION .......................................................................................... 14 5.1 LIQUID VERIFICATION .......................................................................................................................................... 14 5.2 SYSTEM ACCURACY VERIFICATION ..................................................................................................................... 15 5.3 SAR SYSTEM VALIDATION DATA .............................................................................................................…

Text truncated - open the document above for the full version.
