BBO19DXIVCB TRANSCEIVER

A1 English Our Thanks, The CB Story, and Customer Assistance Introduction Thank you for purchasing the Cobra 19 DX IV CB Radio Transceiver. Properly used, this Cobra product will give you many years of reliable service. The Citizens Band Story The Citizens Band lies between the shortwave broadcast and 10-meter amateur radio bands, and was established by law in 1949. The Class D two-way communications service was opened in 1959. (CB also includes a Class A citizens band and Class C remote control frequencies.) Customer Assistance Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help DeskEnglish only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance OperatorsEnglish and Spanish. 8:00 a.m. to 6:00 p.m. CT Mon. through Fri. (except holidays) 773-889-3087 (phone). QuestionsEnglish and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. [email protected] (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance © 2004 Cobr a ® Electronics Cor por ation 6500 W est Cor tland Street Chicago , Illinois 60707 USA www .cobr a.com MOBILERADIO 19DXIV Printed in China Part No. 480-170-P V ersion A Owner’s Manual Nothingcomes close to a Cobra ® English Nothingcomes close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com CB Radios microTALK ® Radios Radar/Laser Detectors Safety Alert ® Traffic Warning Systems Handheld GPS Receivers Mobile GPS Navigation Systems HighGear ® Accessories CobraMarine ™ VHF Radios Power Inverters Accessories The Cobra line of quality products includes: Customer Service 17 Nothing comes close to a Cobra ® Order Form and Optional Accessories Introduction A3 Nothing comes close to a Cobra ® Product Features and FCC Regulations A2 English Product Features Introduction Channel 9/ NOR/Channel 19 Button CB/PA Button On-Off/ Volume Knob Squelch/ RF Gain Knob Channel Selector Knob Microphone Connector TX Indicator Icon S/RF Power Meter LCD Channel Display Antenna Connector External Speaker Jack Public Address Jack Power Connection Optional Accessories • You can find quality Cobra products and accessories at your local Cobra dealer, or in the U.S.A., you can order directly from Cobra. Ordering from U.S.A. Call 773-889-3087 for pricing or visit www.cobra.com. For credit card orders,complete and return this order form to fax number 773-622-2269. Or call 773-889-3087 (Press 1 from the main menu) 8:00 a.m. to 6:00 p.m. CT, Monday through Friday. Make check or money order payable to: Cobra Electronics, Attn: Accessories Dept. 6500 West Cortland Street, Chicago, IL 60707 USA To order online,please visit our website: www.cobra.com The Cobra line of quality products includes: CB Radios microTALK ® Radios Radar/Laser Detectors Safety Alert ® Traffic Warning Systems Handheld GPS Receivers Mobile GPS Navigation Systems HighGear ® Accessories CobraMarine™ VHF Radios Power Inverters Accessories Order Form • Name Address (No P.O. Boxes) CityState/ProvinceZipCountry Telephone Credit Card NumberType:rVisa rMasterCard rDiscoverExp. Date Customer Signature Item #U.S. Cost EachQtyAmount U.S. Subtotal (Tax if Applicable) Shipping/Handling Total Amount Shipping/Handling* $10.00 or less . . . . . $3.00 $10.01-$25.00 . . . . . $5.50 $25.01-$50.00 . . . . . $7.50 $50.01-$90.00 . . . . $10.50 $90.01-$130.00 . . . $13.50 $130.01-$200.00 . . $16.50 $200.01 plus . . . . . 10% of pur chase *For AK, HI and PR add additional $26.95 for FedEx Next Day or $10.95 for FedEx 2nd Day. Excludes weekend and holiday shipments. Please allow two to three weeks for delivery in the U.S. Prices subject to change without notice. T ax Table California . . . 7.25% Illinois . . . . . 8.75% Indiana . . . . . 6% Michigan . . . 6% Ohio. . . . . . . 6% Wisconsin . . 5% Product Features • Product Features • Features • 40 CB Radio Channels • Instant Channel 9/ NOR • PA System • Compact Size • Dynamic Microphone • Nine Foot Microphone Cord • Front Panel Microphone Connector FCC Regulations • FCC Regulations FCC regulations permit only “transmission” (one-party to another) rather than “broadcast” (to a wide audience). Thus, advertising is not allowed on CB channels because that is “broadcasting”. FCC Warnings All transmitter adjustments other than those supplied by the manufacturer as front panel operating controls, must be made by, or under the supervision of, the holder of an FCC-issued general Radio-Telephone Operator’s License. Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra, may cause violation of the technical regulations of Part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules. You should read and understand Part 95 (included with this unit) of the FCC Rules and Regulations, before operating your Cobra radio, even though the FCC no longer requires you to obtain an operator’s license. RX TX Audio Shield Microphone Connector Detail Talk Button Introduction 1 Nothing comes close to a Cobra ® Contents Introduction Our Thanks to You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1 The Citizens Band Story . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1 Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2 FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3 Warnings . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

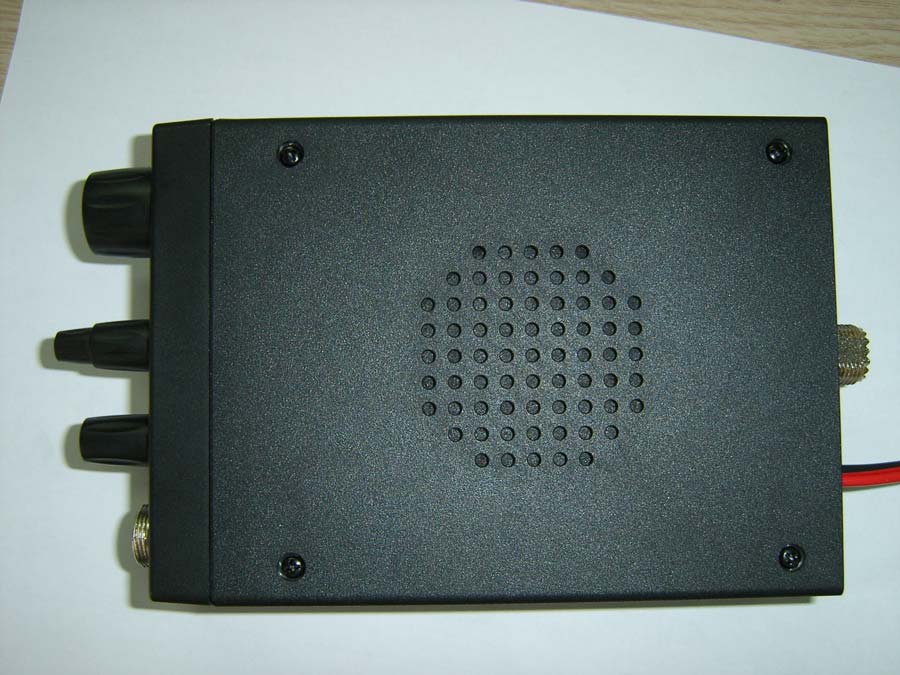

B. TECHNICAL DESCRIPTION 1. GENERAL MODEL 19DX IV CB IS AN MOBIRE AM RADIO TRANSCEIVER FOR USE OF THE CITIZENS BAND RADIO. Q FRONT PANEL CONTROLS (1) LCD (CHANNEL) (2) RX/TX SIGNAL LEVEL INDICATOR (3) VOLUME CONTROL(WITH ON/OFF SWITCH) (4) SQUELCH CONTROL (5) RF GAIN CONTROL (6) UP/DN ROTARY SWITCH (7) CH 9/19 S/W (8) CB/PA S/W (9) MICROPHONE SOCKET Q ASSESSABLE CONNECTORS a. ANTENNA SOCKET b. EXTERNAL BATTERY WIRE (battery(+)(-)) c. EXTERNAL CONNECTOR(SPEAKER OUTPUT) d. EXTERNAL CONNECTOR(PA OUTPUT) 2. TYPE OF EMISSION : AM( A3E) 3. FREQUENCY RANGE STANDARD 40 CB CHANNELS 26.965 [MHz] (1CH)- 27.405 [MHZ] (40CH) 4. RF POWER OUTPUT : 4.0 [W] 5. DC INPUT VOLTAGE AND CURRENT WITH 13.2 [V] DC INPUT TO POWER AMP TRANSMITTER POWER AMP ---------------------- VOLTAGE 12.6 V CURRENT 727 mV TRANSMITTER DRIVER AMP ---------------------- VOLTAGE 12.6 V CURRENT 120 mV 6. RECEIVER IF AND LOCAL OSCILLATOR FREQUENCIES . FIRST IF -------------------------------------- 10.7 [MHz] SECOND IF ---------------------------------- 450 [KHz] FIRST LOCAL OSCILLATOR ----------- 37.665 [MHz] Above receiving frequencies SECOND LOCAL OSCILLATOR ------- 10.250 [MHz]

D. SEMICONDUCTORS AND FUNCTION Q I.C REF.NO DESCRIPTION FUNCTION MANUFACTURER IC4 TMP86CH21U CPU TOSHIBA IC5 TB31202FN PLL IC TOSHIBA IC1 KIA 7217AP AM AUDIO AMP DURING TX K.E.C IC11 TK71550ASCL REGULATOR 5V TOKO QTRANSISTOR REF.NO DESCRIPTION FUNCTION MANUFACTURER QL1 KTC3880S-Y VCO BUFFER K.E.C QL2 KTC3880S-Y VCO OSILLATOR K.E.C QL3 KTC3880S-Y VCO BUFFER K.E.C QB1 KTC3875GR POWER SOURCE K.E.C QM1 KTA1504G TX B+ SOURCE K.E.C QB2 KTC3875GR RX B+ SOURCE K.E.C QM1 KTC3875GR AM ALC CONTROL K.E.C QM2 KTA1504G AM MODULATION CONTROL K.E.C QM3 KTC3875GR AM MICROPHONE AMP K.E.C QM5 KTA1504G TX MIC B+ K.E.C QR1 KTC3875GR RX SQ SWITCHING K.E.C QR9 KTC3875GR RX SQ SWITCHING K.E.C QR11 KTC3875GR RX SQ SWITCHING K.E.C QR2 KTC3880S-Y RX RF AMP K.E.C QR3 KTC3880S-Y 1 st MIXER(10.7MHZ) K.E.C QR4 KTC3880S-Y 2 nd MIXER(450KHZ) K.E.C QR5 KTC3880S-Y AM IF AMP K.E.C QR6 KTC3880S-Y AM IF AMP K.E.C QR7 KTA1504G AM DET(ANL) K.E.C QT1 KTC3880S-Y TX AMP K.E.C QT2 KTC3880S-Y TX AMP K.E.C QT3 2SC 2314 TX DRIVER AMP SANYO QT4 2SC2078 TX FINAL AMP SANYO Q DIODE REF.NO DESCRIPTION FUNCTION MANUFACTURER DL1 KDV251S VCO K.E.C DL2 1N 4148 PTT MAMI CHIP DL3 KDS114 RX/TX CONTROL K.E.C DL4 KDS114 MIC B+ CONTROL K.E.C DB1 ZENER 9.1 POEWR SOURCE K.E.C DB2 KDS 184S TX B+/ RX B+ CONTROL K.E.C DB3 KDS 184S CPU VDD CONTROL K.E.C DR2 1N 4148 RF GAIN CONTROL MAMI CHIP DR5 KDS226 CB PROTECT FOR STRONG SIGNAL K.E.C DR3 IN60 AM DETECTOR MAMI CHIP DR4 KDS 184S SIGNAL_LEVEL CONTROL K.E.C DR7 1N 4148 SQ CONTROL MAMI CHIP D17 1N 4004 PROTECT FOR REVERSE BATTERY MAMI CHIP DM1 1N4148 DET FOR ALC CONTROL MAMI CHIP DM2 1N4004 TX HIGH MOD SWITCHING MAMI CHIP LED1,2 LAMP PILOT LCD BACK LIGHT LAMP HONG EIC

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752ZUT4\1752ZUT4TestReport.doc COVER SHEET Test Report Product Name: CB TRANSCEIVER FCC ID: BBO19DXIV Applicant: COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 Date Receipt: OCTOBER 25, 2004 Date Tested: NOVEMBER 9, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752ZUT4\1752ZUT4TestReport.doc TABLE OF CONTENTS APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV TABLE OF CONTENTS LIST TEST REPORT: PAGE 1........GENERAL INFORMATION TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........AUDIO FREQUENCY RESPONSE PAGE 4........AUDIO INPUT VS MODULATION GRAPH PAGE 5........OVERMODULATION TRANSIENT RESPONSE PAGE 6........OCCUPIED BANDWIDTH TEST PROCEEDURE PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........METHOD OF MEASURING CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10.......RADIATED SPURIOUS EMISSIONS PAGE 11.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 12.......FREQUENCY STABILITY PAGE 13-18....EQUIPMENT LIST EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATICS USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752ZUT4\1752ZUT4TestReport.doc Page 1 of 18 GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCC ID: BBO19DXIV CB TRANSCEIVER in quantity, for use under FCC RULES PART 95 SUBPART D. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included in the exhibits. 2.983 (d) TECHNICAL DESCRIPTION 2.1033(c)(4) Type of Emission: 8K0A3E Authorized Bandwidth: 8.0KHz 2.1033(c)(5) Frequency Range: 26.965 - 27.405 MHz 2.1033(c)(6) Power Range and Controls: There are NO user Power controls. 2.1033(c)(7) Maximum Output Power Rating as defined in the rules: 4.0 Watts into a 50 ohm resistive load. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY: Vce = 13.8 VDC Ice = 0.50 A Pin = 6.9 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752UT4\1752UT4TestReport.doc Page 2 of 18 2.1033(c)(11) A photograph for drawing of the FCC ID Label and the where it will be placed on the device is included in the exhibits. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields are included in the exhibits. 2.1033(c)(13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF power output RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: 4 WATTS Transmitter under Test Power Meter Watt Meter TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752ZUT4\1752ZUT4TestReport.doc Page 3 of 18 2.1047 Modulation characteristics: 2.1047(a) AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with EIA/TIA-382-A Standard. The audio frequency response curve is shown below. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. Audio Frequency Response Plot -60 +40 -40 -20 +0 +20 d B 100 10k200 5001k2k5k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752UT4\1752UT4TestReport.doc Page 4 of 18 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with EIA/TIA-382-A Standard. The audio input curves versus modulation are below. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. Modulation Limiting Plots: 2.5 KHz (Green), 1.0 KHz (Blue), 300 Hz (Yellow) 2.2 k H z -40 +0-30-20-10 dBu TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO19DXIV REPORT #: C\COBRA\1752ZUT4\1752ZUT4TestReport.doc Page 5 of 18 2.1047 OVER MODULATION TRANSIENT RESPONSE 95.637 (d) A. MEASUREMENT PROCEDURE 1. Set audio modulating signal at 2500Hz, at a level 16dB greater than required for 50% modulation at audio frequency of maximum response. This signal is pulsed at one(1) P.P.S. with a pulse width of 0.5sec. 2. Tune the Spectrum Analyzer to the c…
