BBO19MINICB RADIO

The maximum gain supported 5 dBi 76.5 63.8 76.5 (Used in Canada) (Used in Canada) (Used in USA)

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Request for Confidentiality FCC ID: To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely —————— BBO19MINI 2021.08.16 Cobra Electronics Corporation 6500 West Cortland Street Chicago, IL 60707 United States Cobra Electronics Corporation Contact person: Chris de Waal Title: Senior Project Engineer

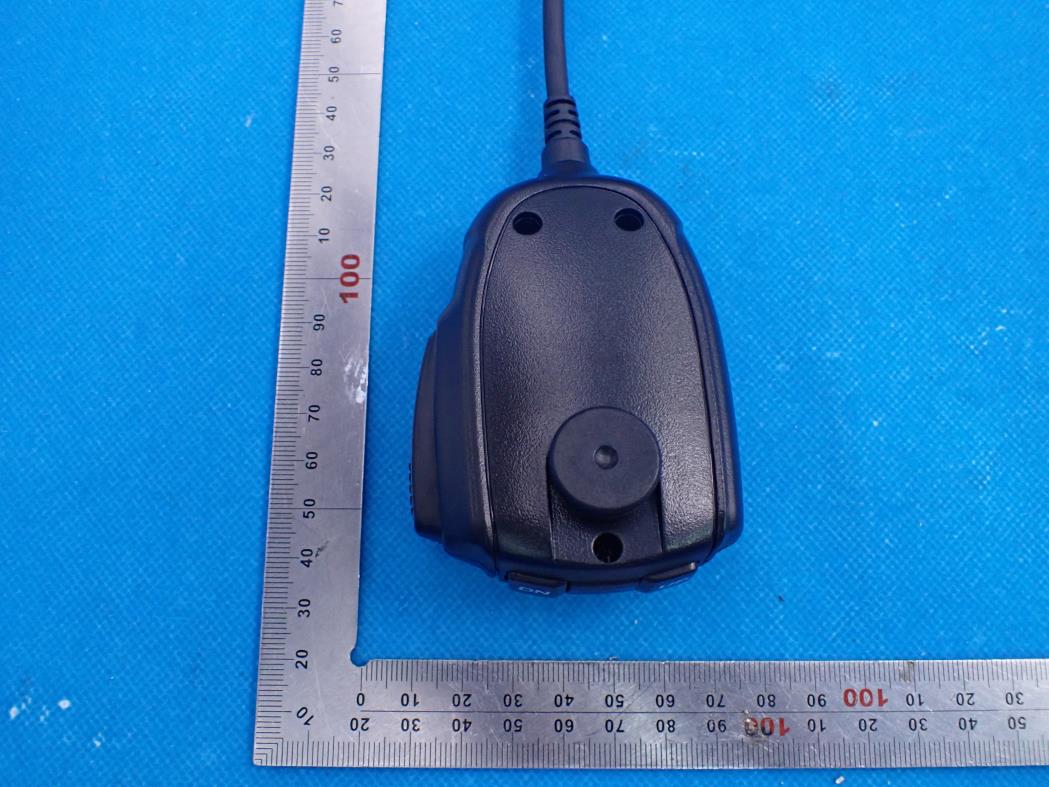

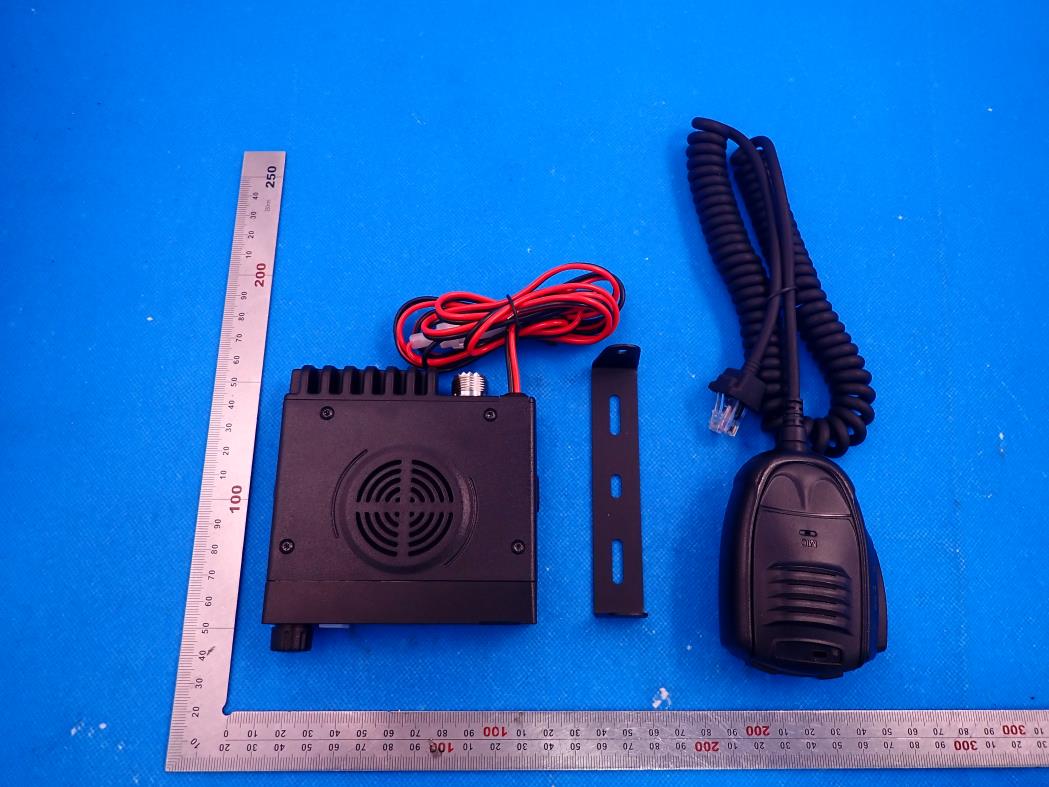

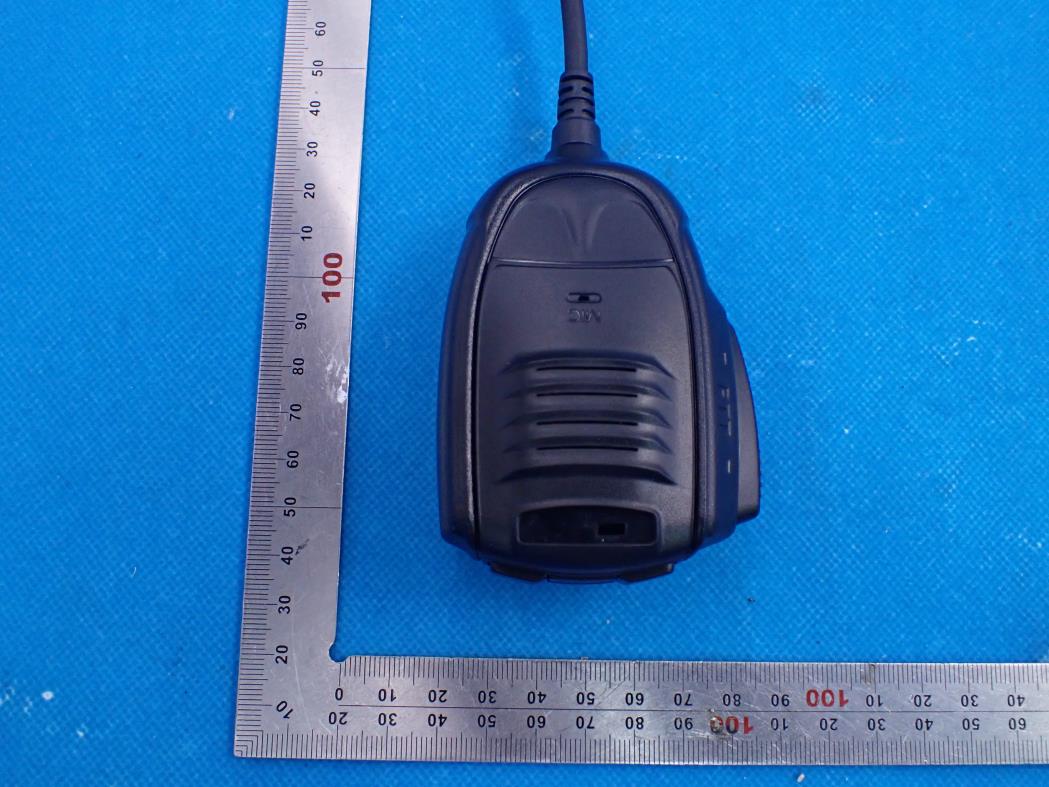

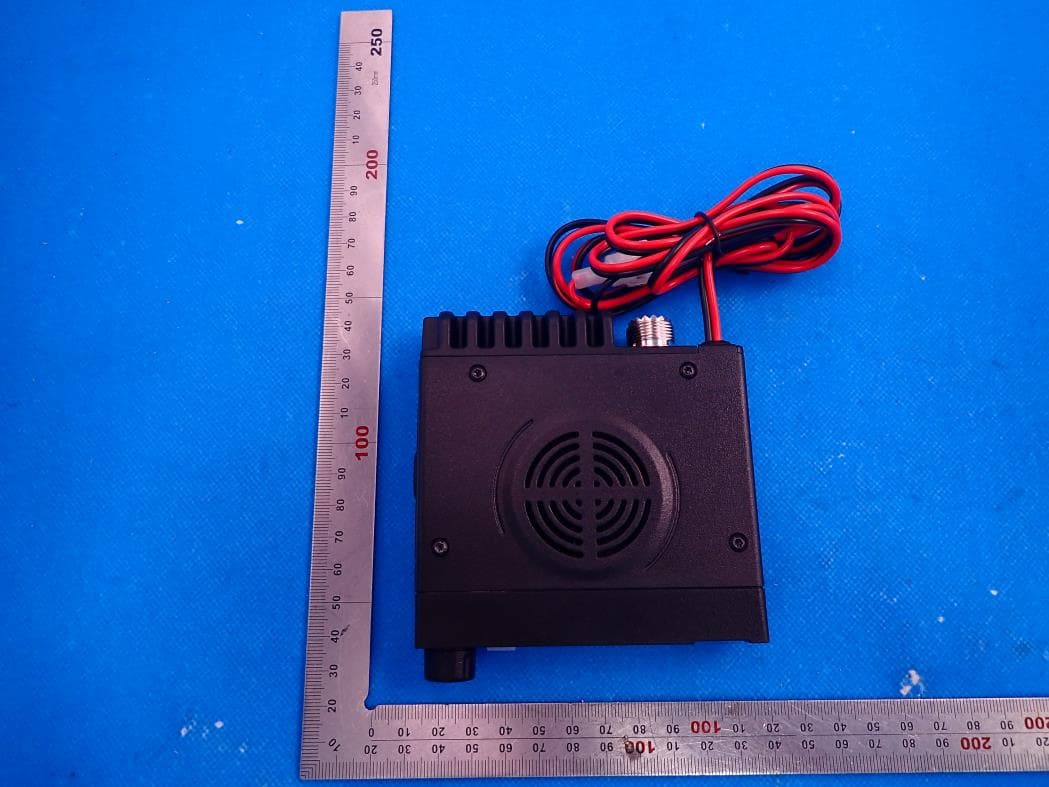

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location FCC ID: BBO19MINI IC: 906A-19MINI 19MINICB

Internal Photos OPEN VIEW- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT Hand microphone OPEN VIEW 1- OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT

RF EXPOSURE EVALUATION 1.TEST RESULT CERTIFICATION Applicant Cobra Electronics Corporation Address 6500 West Cortland Street Chicago, IL 60707-4013 United States manufacturer Cobra Electronics Corporation Address 6500 West Cortland Street Chicago, IL 60707-4013 United States Factory Cobra Electronics Corporation Address 6500 West Cortland Street Chicago, IL 60707-4013 United States Product Designation: CB Radio Brand Name: COBRA Test Model: 19MINICB FCC ID: BBO19MINI Date of Test: Jun. 10, 2021~Jul. 09, 2021 2.TECHNICAL INFORMATION A major technical description of EUT is described as following: Operation Frequency 26.965MHz-27.405MHz Modulation AM Antenna Designation Detachable Antenna type External Antenna Output power 4W Antenna gain 0dBi (Typical), 5dBi (Max) Power Supply DC 13.8V 3.RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. 3.3 CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 45.1cm away from the body of the user. Warning statement to the user for keeping at least 45.1cm separation distance and the prohibition of operating to a person has been printed on the user’s manual. So, this product under normal use is located on electromagnetic far field between the human body. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3.4 EUT OPERATION CONDITION Make the EUT to transmit at Bottom channel, Middle channel and Top channel individually. 3.5 TEST RESULTS Note: report the worst result in this part Antenna Gain=5.0dBi (Numeric 3.16), π=3.141 Duty Cycle=50% TEST Frequency (MHz) Tune-up Tolerance (dBm) Max tune-up (dBm) Max tune-up (mW) Correct Power (mW) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Result (Pass/Fail) 26.965 35.72±0.3 36.02 3999.45 1999.7237 0.24727265 0.247554973 Pass Note: 1. The output power is refer to AGC01284210601FE10. 2. Correct Power= Max tune-up output power * Duty Cycle 2. According to the user manual, the minimum separate distance which used for MPE calculate is 45.1cm.

Page 1 of 36 FCC Test Report Report No.: AGC01284210601FE10 FCC ID : BBO19MINI PRODUCT DESIGNATION : CB Radio BRAND NAME : COBRA MODEL NAME : 19MINICB APPLICANT : Cobra Electronics Corporation DATE OF ISSUE : Jul. 09, 2021 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01284210601FE10 Page 2 of 36 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 09, 2021 Valid Initial Release Report No.: AGC01284210601FE10 Page 3 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................... 5 2. PRODUCT INFORMATION .............................................................................................................................. 6 2.1 PRODUCT TECHNICAL DESCRIPTION ................................................................................................ 6 2.2 TEST FREQUENCY LIST ........................................................................................................................ 7 2.3 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 8 2.4 TEST METHODOLOGY .......................................................................................................................... 8 2.5 CALCULATION OF EMISSION INDICATORS ........................................................................................ 8 2.6 STATEMENT - COMPLIANCE TO §95.977 ............................................................................................ 8 2.7 SPECIAL ACCESSORIES ....................................................................................................................... 8 2.8 EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. TEST ENVIRONMENT ..................................................................................................................................... 9 3.1 ADDRESS OF THE TEST LABORATORY .............................................................................................. 9 3.2 TEST FACILITY ....................................................................................................................................... 9 3.3 ENVIRONMENTAL CONDITIONS......................................................................................................... 10 3.4 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 3.5 LIST OF EQUIPMENTS USED ............................................................................................................. 11 4.SYSTEM TEST CONFIGURATION ................................................................................................................. 12 4.1 EUT CONFIGURATION ......................................................................................................................... 12 4.2 EUT EXERCISE ..................................................................................................................................... 12 4.3 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 12 4.4 EQUIPMENT USED IN TESTED SYSTEM........................................................................................... 12 4.5 SUMMARY OF TEST RESULTS ........................................................................................................... 13 5. DESCRIPTION OF TEST MODES ................................................................................................................. 14 6.FREQUENCY STABILITY ............................................................................................................................... 15 6.1 PROVISIONS APPLICABLE .................................................................................................................. 15 6.2 MEASUREMENT PROCEDURE ........................................................................................................... 15 6.3 MEASUREMENT SETUP ...................................................................................................................... 15 6.4 MEASUREMENT RESULTS.................................................................................................................. 16 7. EMISSION BANDWIDTH ............................................................................................................................... 17 7.1 PROVISIONS APPLICABLE .................................................................................................................. 17 7.2 MEASUREMENT PROCEDURE ........................................................................................................... 17 7.3 MEASUREMENT SETUP ...................................................................................................................... 17 7.4 MEASUREMENT RESULTS.................................................................................................................. 18 8. RATIATED SPURIOUS EMISSION ................................................................................................................. 19 8.1 PROVISIONS APPLICABLE .................................................................................................................. 19 Report No.: AGC01284210601FE10 Page 4 of 36 8.2 MEASUREMENT PROCEDURE ........................................................................................................... 19 8.3 MEASUREMENT SETUP ...................................................................................................................... 20 8.4 MEASUREMENT RESULTS...................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC01284210601FE10 Page 21 of 36 Radiated Emissions Above 1GHz Test Setup 8.4 MEASUREMENT RESULTS Preliminary calculation Final Result P(dBm)=30+10log【P(W)】=36.02dBm Limit= Preliminary calculation-60dB=-24dBm 1. Factor=Antenna Factor + Cable loss. (Below 1GHz) 2. Factor=Antenna Factor+ Cable loss -Pre-amplifier. (Above 1 GHz) 3. Margin=Limit- Level 4. the unwanted emission should be attenuated below TP by at least 60 dB. 5. In the frequency range of 9KHz-30MHz, in addition to displaying the Fundamental level, the radiated spurious emission level is much less than 60dB of the carrier power, so it is ignored. Report No.: AGC01284210601FE10 Page 22 of 36 Test Mode: TX-CH1 Polarity: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 80.5750 -83.42 -56.80 -24.00 32.80 26.62 220 Horizontal 2 107.8750 -85.06 -60.09 -24.00 36.09 24.97 34 Horizontal 3 350.6500 -90.43 -57.22 -24.00 33.22 33.21 351 Horizontal 4 512.5000 -91.23 -54.46 -24.00 30.46 36.77 127 Horizontal 5 539.8000 -77.81 -40.08 -24.00 16.08 37.73 109 Horizontal 6 566.1250 -75.03 -36.37 -24.00 12.37 38.66 109 Horizontal Test Mode: TX-CH1 Polarity: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 53.2750 -85.22 -54.90 -24.00 30.90 30.32 111 Vertical 2 80.5750 -77.67 -49.06 -24.00 25.06 28.61 121 Vertical 3 107.8750 -88.07 -57.32 -24.00 33.32 30.75 56 Vertical 4 350.6500 -92.85 -59.86 -24.00 35.86 32.99 65 Vertical 5 539.8000 -82.51 -45.20 -24.00 21.20 37.31 269 Vertical 6 566.1250 -82.38 -44.46 -24.00 20.46 37.92 232 Vertical Report No.: AGC01284210601FE10 Page 23 of 36 Test Mode: TX-CH19 Polarity: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 543.7000 -78.54 -40.67 -24.00 16.67 37.87 100 Horizontal 2 571.0000 -80.30 -41.47 -24.00 17.47 38.83 109 Horizontal Test Mode: TX-CH19 Polarity: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 54.2500 -84.77 -54.29 -24.00 30.29 30.48 102 Vertical 2 81.5500 -77.20 -48.63 -24.00 24.63 28.57 112 Vertical 3 108.8500 -88.63 -57.69 -24.00 33.69 30.94 102 Vertical 4 517.3750 -89.37 -52.58 -24.00 28.58 36.79 223 Vertical 5 543.7000 -84.10 -46.70 -24.00 22.70 37.40 260 Vertical 6 4209.2459 -46.53 -43.34 -13.00 30.34 3.19 0 Vertical Report No.: AGC01284210601FE10 Page 24 of 36 Test Mode: TX-CH40 Polarity: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 81.5500 -80.57 -54.12 -24.00 30.12 26.45 212 Horizontal 2 108.8500 -84.98 -59.96 -24.00 35.96 25.02 27 Horizontal 3 521.2750 -85.40 -48.32 -24.00 24.32 37.08 100 Horizontal 4 548.5750 -78.23 -40.19 -24.00 16.19 38.04 100 Horizontal 5 575.8750 -85.32 -46.32 -24.00 22.32 39.00 110 Horizontal 6 1714.4714 -44.49 -46.10 -24.00 22.10 -1.61 73 Horizontal Test Mode: TX-CH40 Polarity: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 54.2500 -84.51 -54.03 -24.00 30.03 30.48 112 Vertical 2 81.5500 -76.58 -48.01 -24.00 24.01 28.57 112 Vertical 3 108.8500 -88.24 -57.30 -24.00 33.30 30.94 84 Vertical 4 521.2750 -87.14 -50.26 -24.00 26.26 36.88 251 Vertical 5 548.5750 -84.27 -46.75 -24.00 22.75 37.52 260 Vertical 6 908.3500 -92.20 -48.80 -24.00 24.80 43.40 214 Vertical Report No.: AGC01284210601FE10 Page 25 of 36 8.5 EMISSION MASK PLOT The detailed procedure employed for Emission Mask measurements are specified as following: -Connect the equipment as illustrated. -Spectrum set as follow: 1. Centre frequency = fundamental frequency, Span=50kHz for 10kHz , RBW=300Hz, VBW=1000Hz ; 2. Sweep = auto, Detector function = peak, Trace = max hold 3. Key the transmitter, and set the level of the unmodulated carrier to a full scale reference line. This is the 0dB reference for the measurement. 4. Modulate the transmitter with a 2500 Hz sine wave at an input level 16 dB greater than that necessary to produce 50% of rated system deviation The input level shall be established at the frequency of maximum response of the audio modulating circuit. 5. Transmitters employing digital modulation techniques that bypass the limiter and the audio low-pass filter shall be modulated as specified by the manufacturer. 6. Measure and record the results in the test report. Report No.: AGC01284210601FE10 Page 26 of 36 Test plot as follows: Emission Mask @ 26.965MHz-4W Emission Mask @ 27.205MHz-4W Emission Mask @ 27.405MHz-4W Report No.: AGC01284210601FE10 Page 27 of 36 9. SPURIOUS EMISSION ON ANTENNA PORT 9.1 PROVISIONS APPLICABLE Please refer to FCC 47 CFR 2.1051, 2.1057 & 95.979 for specification details. Emissions shall be attenuated below the mean output power of the transmitter as follows: FCC Rules Attenuation Limit (dBc) § 95.979 At least 53 + 10 log (P) dB § 95.979 60 dB in any frequency band centered on a harmonic (i.e., an integer multiple of two or more times) of the carrier frequency. 53 + 10 log (Pwatts) Calculation: Limit (dBm) =EL-53-10log10 (TP) Notes: EL is the emission level of the Output Power expressed in dBm, In this application, the EL is P( dBm). Limit (dBm) = P( dBm)-53-10 log (Pwatts) = -23 dBm 9.2 MEASUREMENT METHOD 1. The RF output of the EUT was connected to a spectrum analyzer through appropriate attenuation. 2. The resolution bandwidth of the spectrum analyzer was set to 100 kHz. Sufficient scans were taken to 3. show any out of band emission up to 10th . Harmonic for the lower and the highest frequency range. 4. Set RBW 1 kHz, VBW 3 kHz in the frequency band 9KHz to 150KHz; Set RBW 10 kHz, VBW 30 kHz in the frequency band 150KHz to 20MHz; Set RBW 100 kHz, VBW 300 kHz in the frequency band 20MHz to 1GHz; While set RBW=1MHz.VBW=3MHz from the 1GHz to 10th Harmonic. 5. The audio input was set the unmodulated carrier, the resulting picture is print out for each channel separation. 9.3 MEASUREMENT SETUP Report No…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION BELOW 30MHz TEST SETUP RADIATED EMISSION 30MHz-1GHz TEST SETUP-TX MODE RADIATED EMISSION ABOVE-1GHz TEST SETUP-RX MODE
