BBO2135AFRS/GMRS TRANSCEIVER

Introduction © 2012 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Making Life Easier and Safer Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip or optional wrist strap. The belt clip easily attaches to your belt, purse, or backpack. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. [email protected] (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance A1 Owner’s Manual Nothing Comes Close to a Cobra ® Nothing Comes Close to a Cobra ® For more information or to order any of our products, please visit our website: www.cobra.com Belt Clip Printed in China Part No. 480-840-P English Version B TWO-WAY RADIO MODEL CXT545 CXT545_MANL.indd 1-11/17/13 8:11 AM HI / LO SCAN HI / LO SCAN 2 Product Features 1 3 7 4 8 11 5 15 14 16 17 10 6 9 1. Antenna 2. External Speaker/ Microphone/ USB Charge Jack 3. Mode/Power Button 4. Call/Lock Button 5. Channel Up/Down Buttons 6. Backlit LCD Display 7. Speaker/Microphone 8. Volume Up/Down Buttons 9. LED Light Button 10. Talk Button 11. Memory/Escape Button 12. Max Range Hi/Lo Button 13. Scan Button 14. Wrist Strap Connection 15. Belt Clip 16. Battery Compartment 17. Battery Door Latch 18. Rubberized Grips 19. LED Flashlight Product Features A2 Introduction 12 13 19 18 Product Features A3 Introduction Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only. • 10 Channel NOAA All Hazards Radio • Weather Alert • 121 Privacy Codes (38 CTCSS codes/ 83 DCS codes) • Hands-Free Operation (VOX) • VibrAlert ® Silent Paging • Scan Channels, privacy codes • Backlit LCD Display • LED Flashlight • Call Alert Five selectable tones • Button Lock • Speaker/ Microphone/ Charge Jack • Roger Beep Selectable On/Off • Battery/Power Saver • Keystroke Tones • Battery Level Indicator • Low Battery Audible Alert • Auto Squelch • Maximum Range Extender • Belt Clip Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 15 for licensing and other related information. Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. Backlit LCD Display 1. Battery Level Indicator 2. Roger Beep Icon 3. VOX Icon 4. Weather Icon 5. Lock Icon 6. Hi/Low Power Icon 7. DCS/CTCSS Icons 8. Scan/Memory Icon 9. Weather Alert Icon 10. DCS/CTCSS Privacy Code Numbers 11. Power Saver Icon 12. Channel Numbers 13. Receive/Transmit Icon 14. Memory Channel Number 15. VibrAlert ® / Call Alert Icon 16. Key Tone Icon 1 2 3 4 5 6 11 12 13 10 8 7 9 14 15 Limited One-Year Warranty on Radio(s) • For Products Purchased in the U.S.A. Cobra Electronics Corporation warrants that its Cobra microTALK ® radios and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective microTALK ® radios, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Exclusions: This limited warranty does not apply: 1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. For Products Purchased Outside the U.S.A. Please contact your local dealer for warranty information. 90-Day Warranty on Rechargeable Batteries For products purchased in the U.S.A. and Canada. Trademark Acknowledgement • Cobra ® , microTALK ® , Nothing Comes Close to a Cobra ® , VibrAlert ® and the snake design are registered trademarks of Cobra Electronic…

Text truncated - open the document above for the full version.

Customer AssistanceWarrantyIntroduction OperationOperation Mode Functions 8 9 Nothing Comes Close to a Cobra ® Set DCS Privacy Codes • To select a DCS privacy code: 1. After selecting a channel, press the Mode/Power button until the DCS icon appears and the small numbers flash on the display (01 through 83). 2. Press using the Channel Up or Channel Down button to select a DCS privacy code. You can hold the Up or Down button for fast advance. 3. When DCS privacy code is displayed, choose one of the following: a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. DCS Privacy Code If CTCSS is turned on at the channel selected, the display will flash the DCS icon and “OFF.” To switch from CTCSS to DCS, press the Channel Up or Channel Down button while the display is flashing “OFF.” The display will then show the small numbers flashing and you will then be able to proceed to step 2. HI / LO SCAN Mode/Power HI / LO SCAN Channel Button Voice Activated Transmit (VOX) • In VOX mode, your microTALK ® radio can be used “hands-free,” automatically transmitting when you speak. You can set the VOX sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise. To turn VOX mode on or off: 1. Press the Mode/Power button until the VOX icon flashes on the display. The current On or Off setting is displayed. 2. Press the Channel Up or Channel Down button to turn VOX On or Off. 3. Choose one of the following: a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. To set VOX sensitivity: 1. Press the Mode/Power button until the VOX icon flashes and the current sensitivity level is displayed. The current VOX sensitivity level is displayed with letters “LE” and a Number 1 through 5, with Number 5 being the most sensitive level and Number 1 being the least sensitive level. 2. Press the Channel Up or Channel Down button to change the setting. 3. Choose one of the following: a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. VOX Icon VOX Sensitivity Level HI / LO SCAN Mode/Power HI / LO SCAN Channel Button HI / LO SCAN Mode/Power HI / LO SCAN Channel Button CXT545_MANL.indd 8-91/17/13 8:12 AM VibrAlert ® and Call Alert • Your microTALK ® radio can alert you to incoming signals by sounding an audible call tone, by vibrating silently or both. To change call settings: 1. Press the Mode button until the Call Setting icon flashes on the display. The current setting (“01” vibrate + ring, “02” ring only) is displayed. 2. Press the Channel Up or Channel Down button to change the call setting. 3. Choose one of the following: a. Press the Mode button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. Customer AssistanceWarrantyIntroduction Operation Mode Functions 10 11 Operation Mode Functions Nothing Comes Close to a Cobra ® Ten Call Tone Settings • You can choose between ten different Call Tone Settings to transmit a call alert. To change a call tone setting: 1. Press the Mode/Power button until the letter “C” and the current call tone number (01 through 10) is displayed. The current call tone will sound for three seconds. 2. Press the Channel Up or Channel Down button to hear the other call tone settings. 3. Choose one of the following: a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. Call Tone Setting HI / LO SCAN Mode/Power HI / LO SCAN Channel Button Call Tone On/ Vibrate On Call Tone On/ Vibrate Off Roger Beep Confirmation Tone • Your listener will hear an audible tone when you release the Talk button. This alerts the other party that you are finished talking and it is OK for them to speak. To turn roger beep on or off: 1. Press the Mode/Power button until the Roger Beep icon flashes. The current on or off setting is displayed. 2. Press the Channel Up or Channel Down button to select roger beep on or off. 3. Choose one of the following: a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press and hold the Mode button to enter the new setting and return to Standby mode. c. Press Talk or Call/Lock button to enter the new setting and return to Standby mode. d. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. Channel Button Roger Beep Off HI / LO SCAN Mode/Power HI / LO SCAN Channel Button Key Tone On/Off • When Key Tone is On, an audible tone will sound each time a button is pressed. To turn key tone on or off: 1. Current key tone status On/Off will flash. 2. Press the Channel Up or Channel Down button to select key tone on o…

Text truncated - open the document above for the full version.

February 5, 2013 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBO2135A Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions Parts List Tune Up info This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Paul Lee Project Engineer

January 22, 2013 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBO2135A Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for the transceiver bearing FCC identifier BBO2135A. The subject transceiver is a compact handheld model as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For Belt Clip Battery Door Clip Batteries this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the batteries as separate items, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the batteries are installed and whenever the batteries are removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBO2135A" to the insert card within the clamshell packaging. Sincerely, Paul Lee Project Engineer

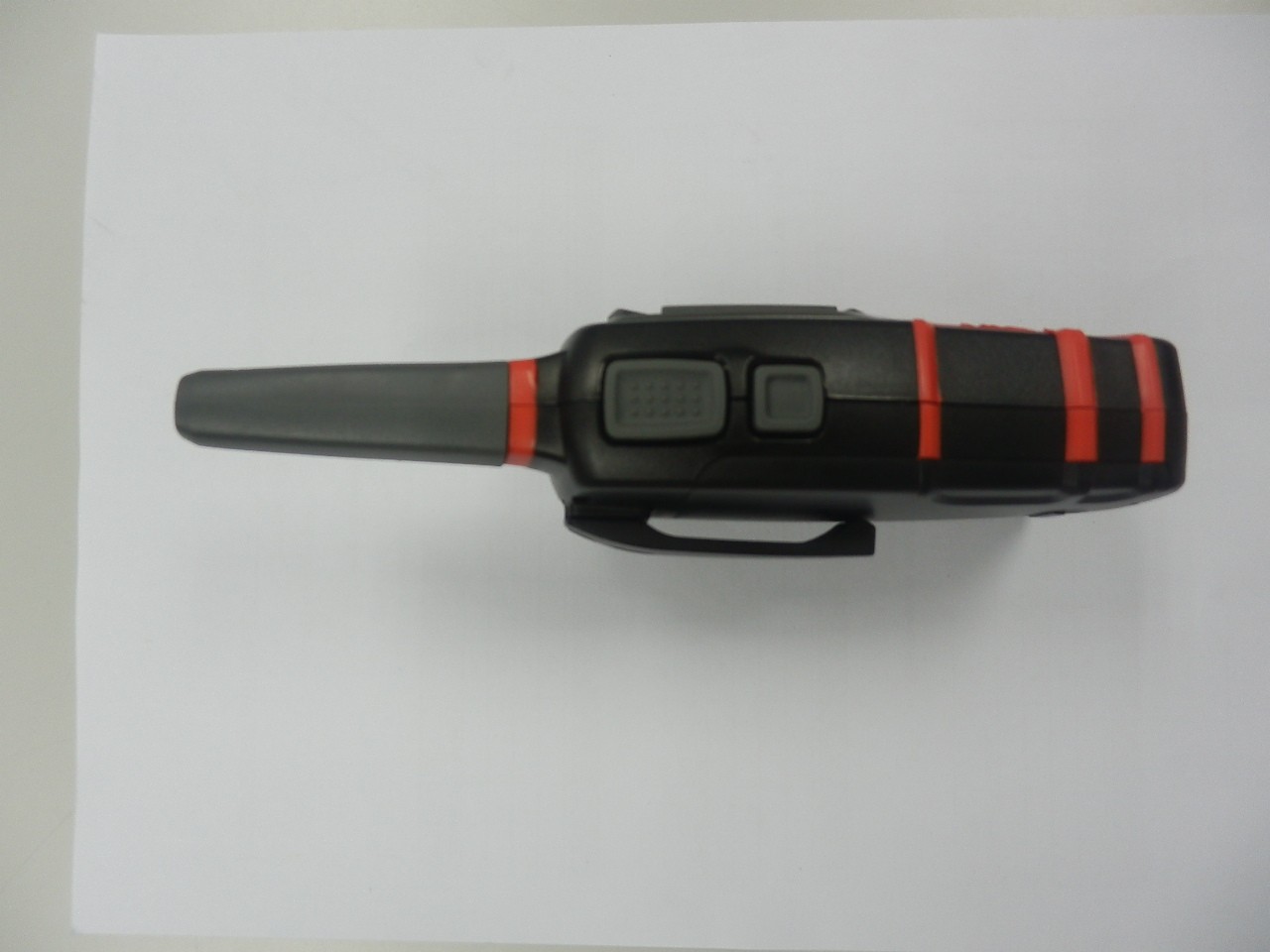

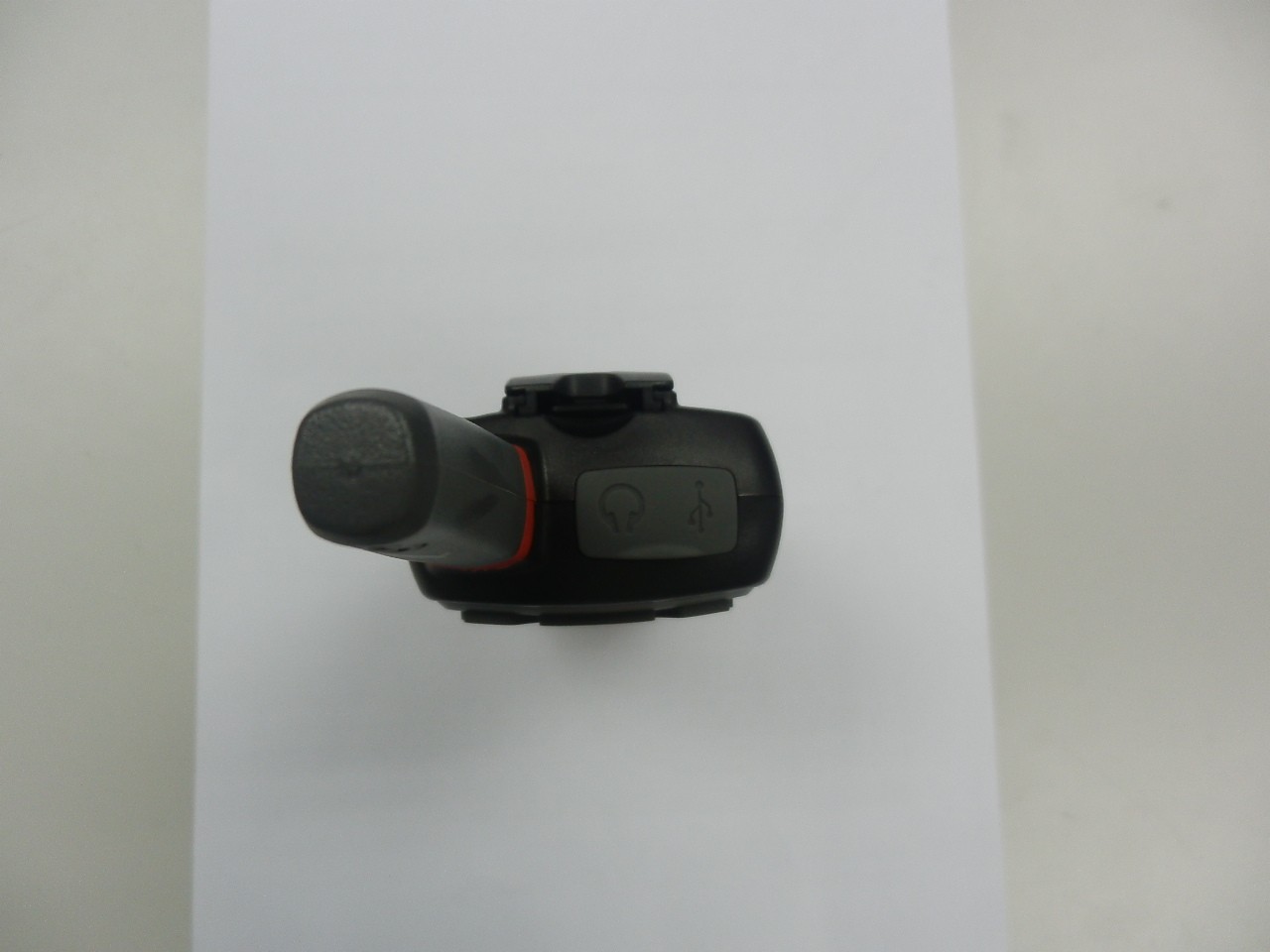

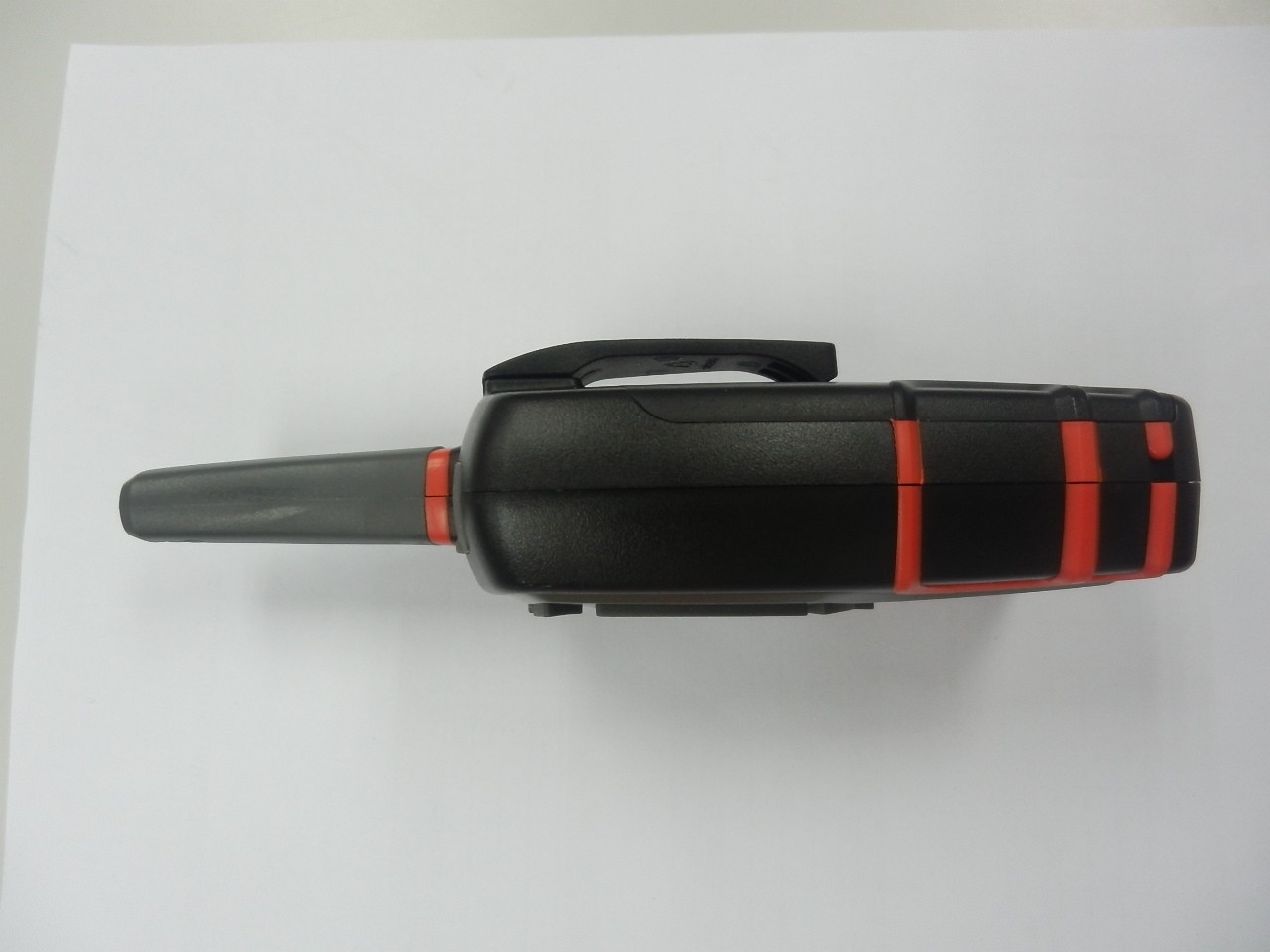

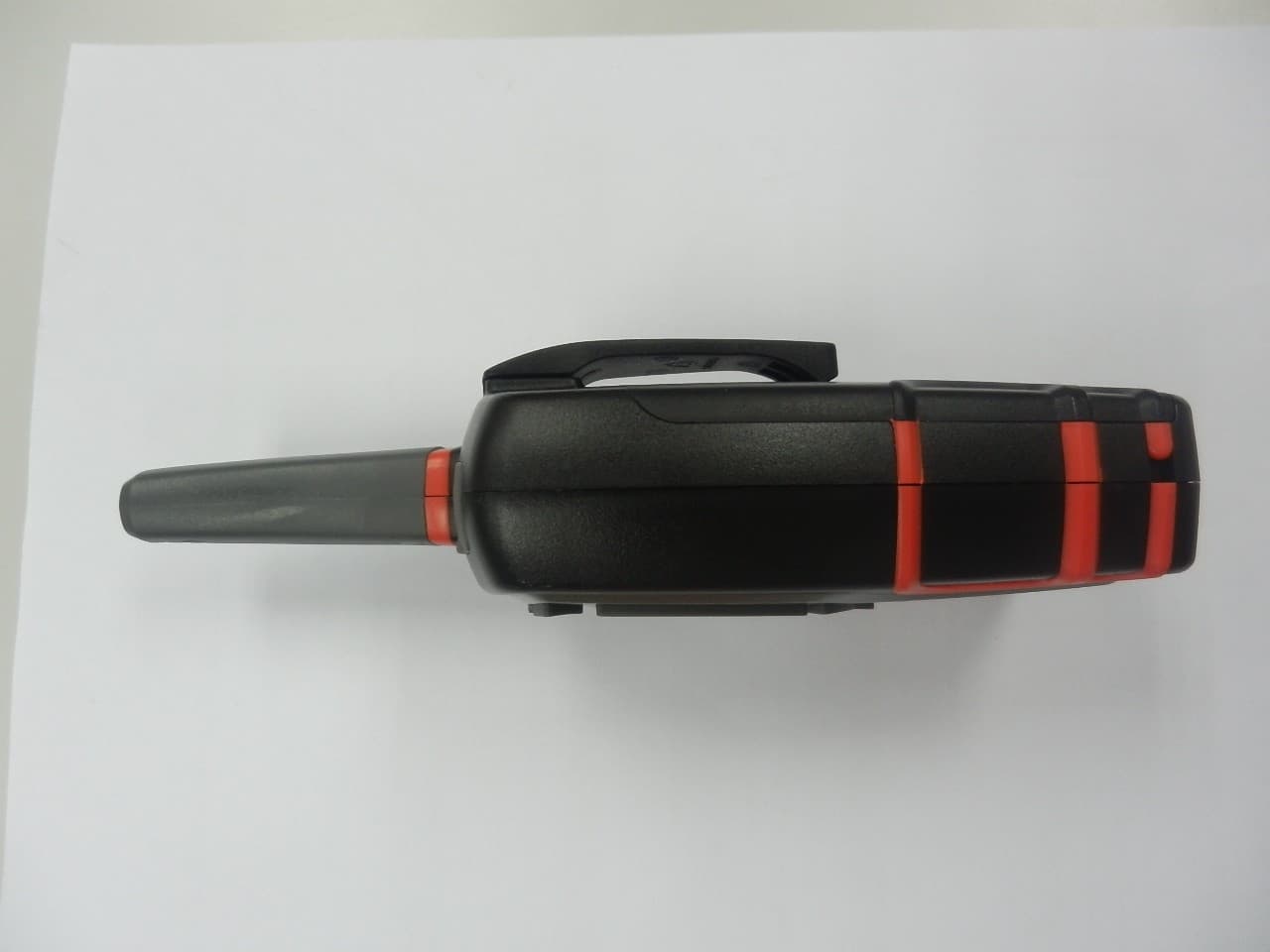

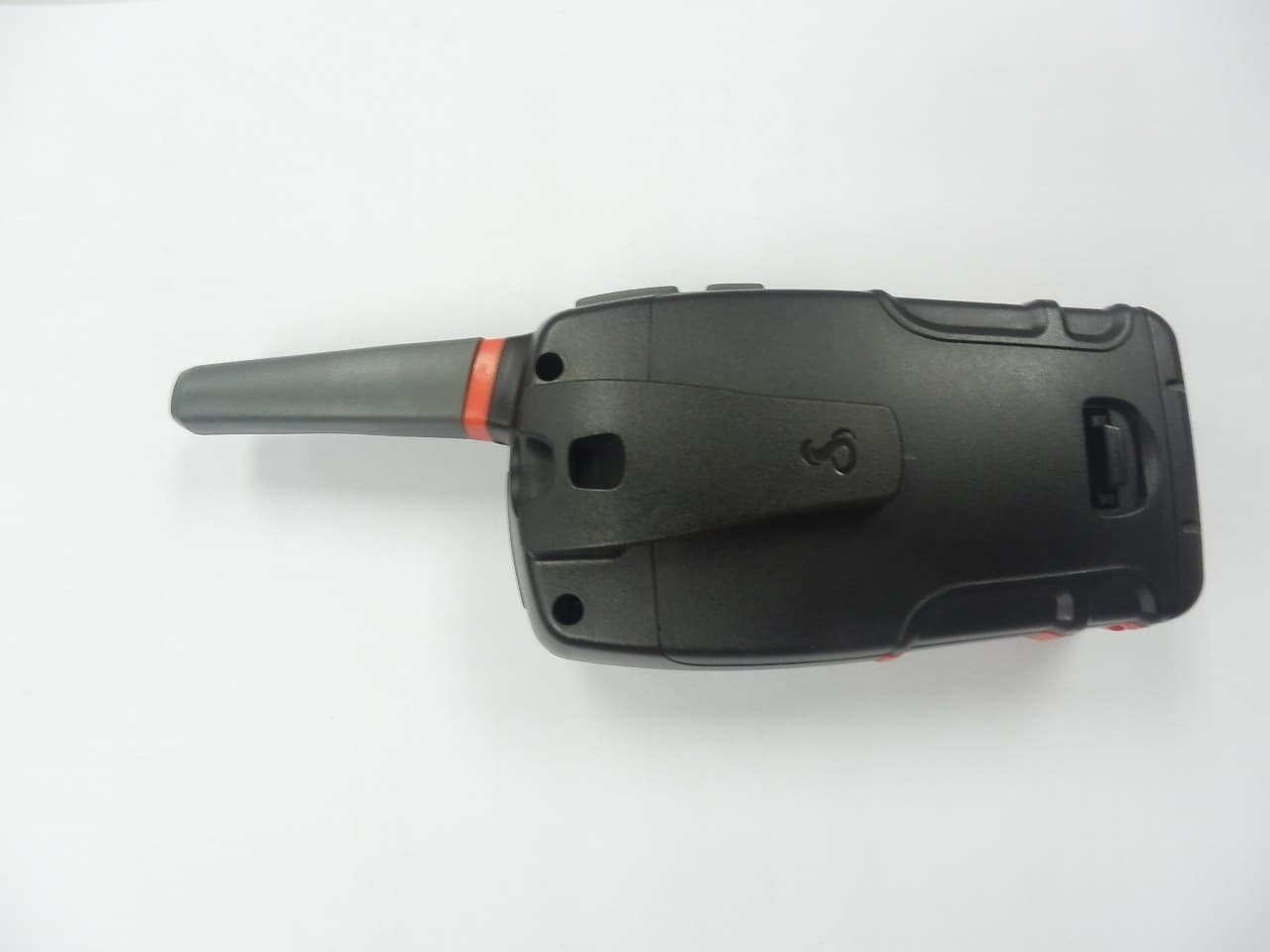

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBO2135A EXTERNAL PHOTOS

CXT545 SERIAL NUMBER TEMPLATE SILVER TEXT OVER BLACK LABEL 1:1 26.2 mm 10.2 mm REV 1/25/13 MODEL NO: CXT545 FCC ID: BBO2135A IC: 906A-2135A MADE IN CHINA CXT545 SERIAL NUMBER TEMPLATE SILVER TEXT OVER BLACK LABEL 2:1 MODEL NO: CXT545 FCC ID: BBO2135A IC: 906A-2135A MADE IN CHINA MODEL NO: CXT545 FCC ID: BBO2135A IC: 906A-2135A MADE IN CHINA

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBO2135A INTERNAL PHOTOS

Applicant: Cobra Electronics Corporation FCC ID: BBO2135A IC: 906A-2135A DUT Type: Portable UHF GMRS/FRS PTT Radio Transceiver Model(s): CXT595 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 42 Date(s) of Evaluation Jan. 29-31, 2013 Test Report Serial No. 012513BBO-T1217-S95 Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Feb. 4, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Test Lab Accreditation ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name COBRA ELECTRONICS CORPORATION Applicant Information Address 6500 West Cortland Street, Chicago, IL 60707 United States Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supp. C ( 01-01) KDB Publication 447498 D01v05 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Part 95 Family Radio Face Held Transmitter (FRF) Device Classification(s) IC Licence-exempt Radio Apparatus: Category I Equipment (RSS-210 Issue 8) Application Type(s) FCC/IC New Certification Device Identifier(s) FCC ID: BBO2135A IC: 906A-2135A Device Model(s) CXT545, CXT545C, CXT545PC, CXT575PC, CXT595, CXT595PC (All models are electrically and mechanically identical) Device Model(s) Tested CXT595 (S/N: None (Identical Prototype)) Hardware Revision No. 1.1 Firmware Revision No. 1.0 Date of Sample Receipt Jan. 25, 2013 Date(s) of Evaluation Jan. 29-31, 2013 Device Description Portable FM UHF GMRS/FRS Push-To-Talk (PTT) Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) Transmit Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Conducted Output Power Rated (Alkaline): 2.0W Tolerance: 1.7 - 2.05W Ni-MH Battery 3x AAA 1.2 V 300 mAh Battery Type(s) Tested Alkaline Battery 3x AAA 1.5 V Energizer Industrial Antenna Type(s) Tested External (Non-detachable) Body-worn Accessories Tested Plastic Belt-Clip (supplied with DUT) Audio Accessories Tested Ear-bud with Lapel-Microphone & PTT (P/N: GA-EBM2) Face-held 1.07 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled Max. Measured SAR Level(s) Body-worn 0.634 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g 50% ptt duty cycle General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and International Standard IEC 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: Cobra Electronics Corporation FCC ID: BBO2135A IC: 906A-2135A DUT Type: Portable UHF GMRS/FRS PTT Radio Transceiver Model(s): CXT595 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 42 Date(s) of Evaluation Jan. 29-31, 2013 Test Report Serial No. 012513BBO-T1217-S95 Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Feb. 4, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________ 4 3.0 RF OUTPUT POWER MEASUREMENTS ________________________________________________ 5 4.0 NUMBER OF TEST CHANNELS_______________________________________________________ 5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES____________________________ 5 6.0 FLUID DIELECTRIC PARAMETERS ___________________________________________________ 6 7.0 SAR MEASUREMENT SUMMARY _____________________________________________________ 8 8.0 SCALING FOR MANUFACTURER’S TUNE-UP TOLERANCE _______________________________ 8 9.0 DETAILS OF SAR EVALUATION ______________________________________________________ 9 10.0 SAR EVALUATION PROCEDURES ___________________________________________________ 9 11.0 SYSTEM PERFORMANCE CHECK __________________________________________________ 10 12.0 SIMULATED EQUIVALENT TISSUES ________________________________________________ 11 13.0 SAR LIMITS _____________________________________________________________________ 11 14.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________________ 12 15.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________ 13 16.0 BARKSI PLANAR PHANTOM_______________________________________________________ 13 17.0 DEVICE HOLDER ________________________________________________________________ 13 18.0 TEST EQUIPMENT LIST __________________________________…
