BBO2146AFRS/GMRS TRANSCEIVER

Introduction © 2014 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Making Life Easier and Safer Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip or optional wrist strap. The belt clip easily attaches to your belt, purse, or backpack. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance A1 Owner’s Manual Nothing Comes Close to a Cobra ® Nothing Comes Close to a Cobra ® For more information or to order any of our products, please visit our website: www.cobra.com Belt Clip Printed in China Part No. 480-987-P English Version A TWO-WAY RADIO MODEL CXT645 CXT645_MANL.indd 1-19/5/14 9:55 AM 2 Product Features 1 3 7 4 8 11 5 15 14 16 17 10 6 9 1. Antenna 2. External Speaker/ Microphone/ USB Charge Jack 3. Mode/Power Button 4. Call/Lock Button 5. Channel Up/Down Buttons 6. Backlit LCD Display 7. Speaker/Microphone 8. Volume Up/Down Buttons 9. LED Light Button 10. Push-to-Talk Button 11. Memory/Escape Button 12. Max Range Hi/Lo Button 13. Scan Button 14. Wrist Strap Connection 15. Belt Clip 16. Battery Compartment 17. Battery Door Screw 18. Rubberized Grips 19. LED Flashlight 20. Weather Button Product Features A2 Introduction 12 13 19 18 Product Features A3 Introduction Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only. • 10 Channel Weather Radio • Weather Alert • 121 Privacy Codes (38 CTCSS codes/ 83 DCS codes) • Hands-Free Operation (VOX) • VibrAlert ® Silent Paging • Scan Channels, privacy codes • Backlit LCD Display • LED Flashlight • Call Alert Five selectable tones • Button Lock • Speaker/ Microphone/ Charge Jack • Roger Beep Selectable On/Off • Battery/Power Saver • Keystroke Tones • Battery Level Indicator • Low Battery Audible Alert • Auto Squelch • Maximum Range Extender • Belt Clip Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 19 for licensing and other related information. Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. Backlit LCD Display 1. Battery Level Indicator 2. Roger Beep Icon 3. VOX Icon 4. Weather Icon 5. Lock Icon 6. Hi/Low Power Icon 7. DCS/CTCSS Icons 8. Scan/Memory Icon 9. Weather Alert Icon 10. DCS/CTCSS Privacy Code Numbers 11. Power Saver Icon 12. Channel Numbers 13. Receive/Transmit Icon 14. Memory Channel Number 15. VibrAlert ® / Call Alert Icon 16. Key Tone Icon 1 2 3 4 5 6 11 12 13 10 8 7 9 14 15 NOTES 16 HI / LO SCAN 20 CXT645_MANL.indd 2-179/5/14 9:55 AM Caring for Your microTALK ® Radio • Your microTALK ® radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Installing Batteries • To install or replace batteries: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2. Using a flat head screw driver or edge of a coin (a quarter may be used), remove the screw securing the back battery panel. 3. Insert the supplied three AA rechargeable batteries or non-rechargeable alkaline batteries. Position batteries according to polarity markings. 4. Replace battery compartment cover, screw and belt clip. • Do not attempt to charge alkaline batteries. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc.) batteries. To charge batteries in radio: 1. Check to see that the batteries have been inserted properly. 2. Insert the cable into the charge jack located at the top of the radio. 3. Plug the cable into USB power source. Use only the supplied rechargeable batteries and charger for recharging your Cobra microTALK radio. Cobra recommends your radio is turned off while being charged. Non-rechargeable alkaline batteries can also be used in your radio. Remove Belt Clip Remove Screw Insert Batteries Introduction 1 Nothing Comes Close to a Cobra ® Radio Charger Jack CXT645_MANL.indd 19/5/14 9:55 AM Operation Battery Low • When battery power is low, the final bar in the Battery Low icon will blink and an audible tone will sound twice before the radio shuts off. Your batteries should be replaced or recharged, if using rechargeable batteries. Auto Battery Save • If there are no transmissions within 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This will not affect the radio’s ability to receive incoming transmissions. Communicating with Another Person • 1. Press and hold the Talk button. 2. With the microphone about two inches (5 cm) from your mouth, speak in a normal voice. 3. Release the Talk bu…

Text truncated - open the document above for the full version.

September 19, 2014 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBO2146A Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions Tune Up info This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Chris De Waal Sr. Project Engineer

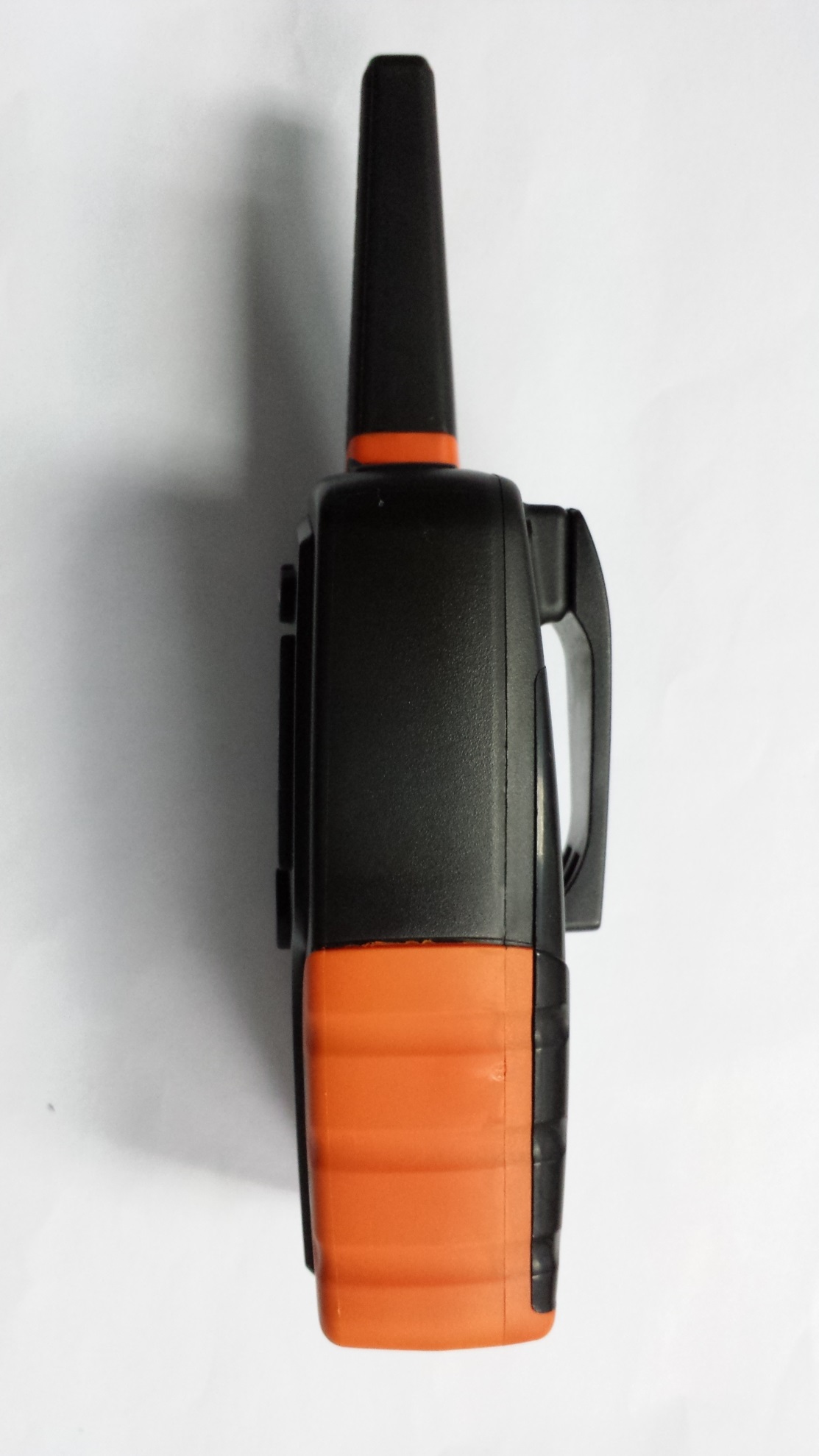

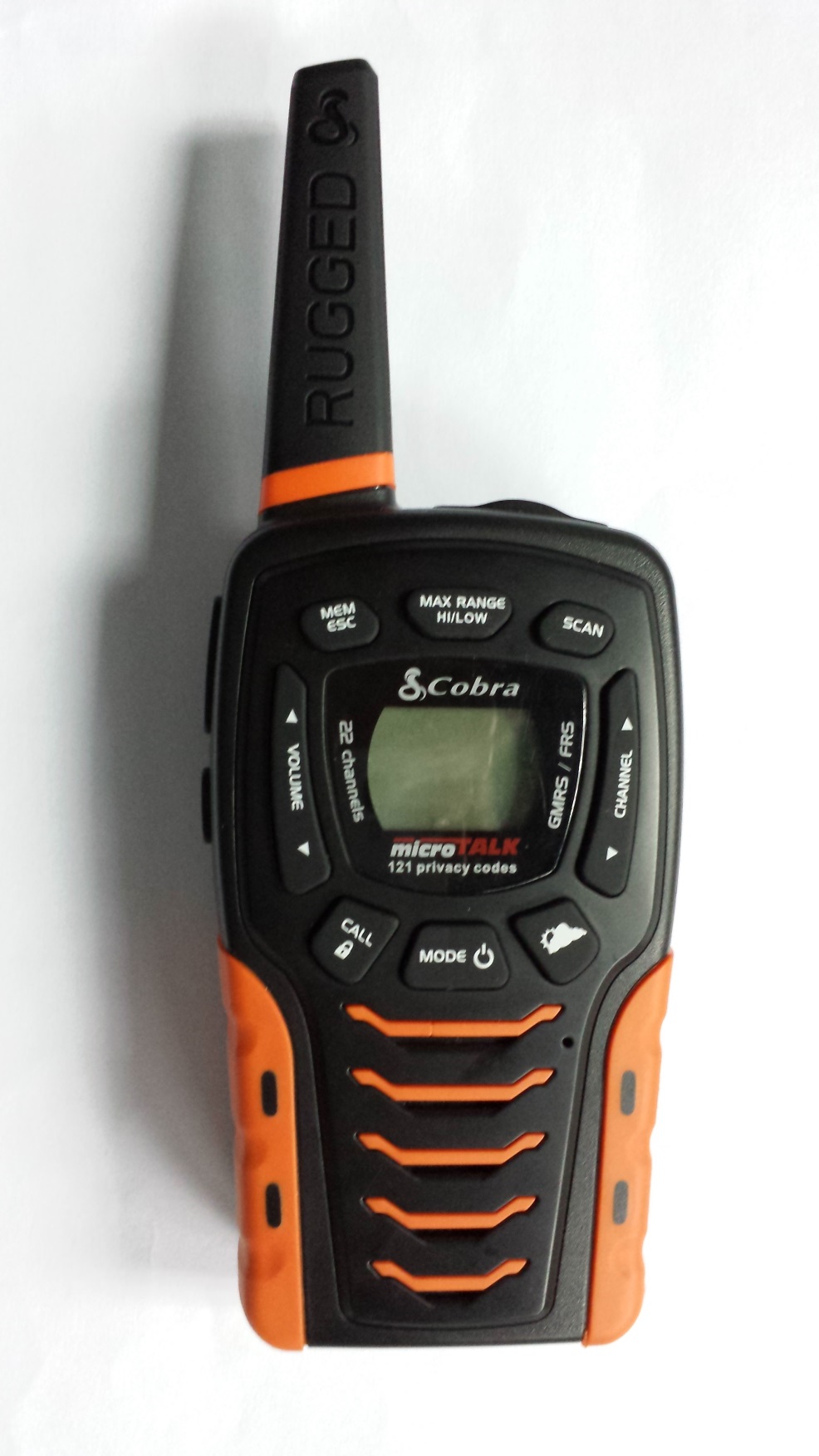

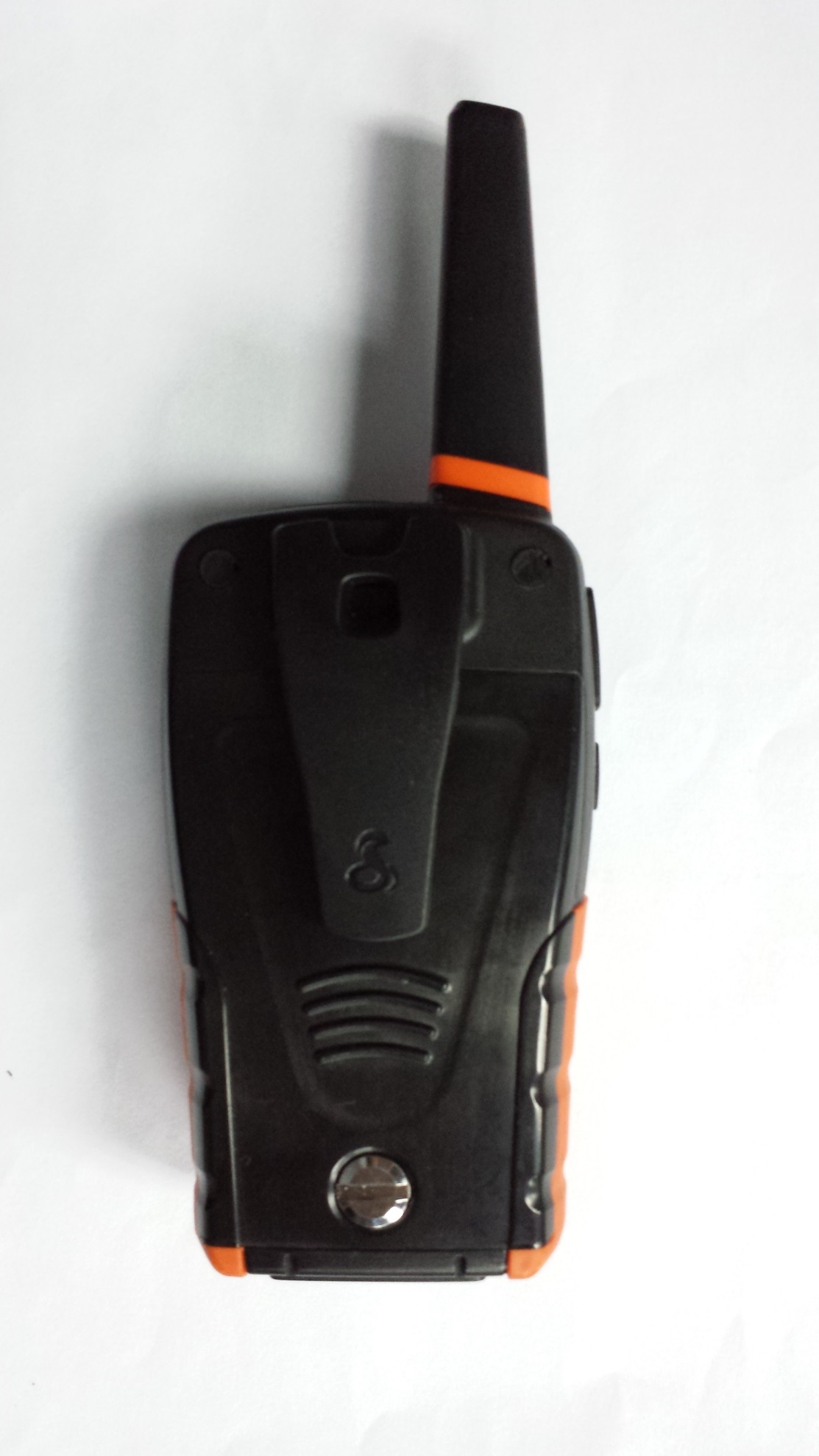

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO2146A IC: 906A-2146A EXTERNAL PHOTOS

CXT645 SERIAL NUMBER TEMPLATE SILVER TEXT OVER BLACK LABEL 1:1 8/19/14 CXT645 SERIAL NUMBER TEMPLATE SILVER TEXT OVER BLACK LABEL 2:1 MODEL NO: CXT645 FCC ID: BBO2146A IC: 906A-2146A MADE IN CHINA MODEL NO: CXT645 FCC ID: BBO2146A IC: 906A-2146A MADE IN CHINA 27mm 11mm

September 19, 2014 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBO2146A Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for the transceiver bearing FCC identifier BBO2135A. The subject transceiver is a compact handheld model, authorized under 47CFR Part 95 for FRS and GMRS services. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 1. Figure 1. The consumer packaging for these models includes the batteries as separate items, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the batteries are installed and whenever the batteries are removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBO2146A" to the insert card within the clamshell packaging. Sincerely, Chris De Waal Sr. Project Engineer

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Cobra Electronics Corporation Dates of Test: September 26, 2014 6500 West Cortland St. Test Report Number: SAR.20140904 Chicago, IL 60707 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and EN/IEC 62209 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: BBO2146A IC Certificate: 906A-2146A Model(s): CXT645, CXT645C Test Sample: Engineering Unit Same as Production Serial Number: FCC #2 Equipment Type: Push-To-Talk Handheld Radio for General Population Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 462.55 – 467.7125 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 33.11 dBm Conducted Signal Modulation: FM Body Worn Accessories: Standard Belt Clip Audio Accessories: Model GA-EBM2 Antenna Type: Standard Integral Antenna Battery: Standard (Model 3-AA NiMH, 3-AA Alkaline) Application Type: Certification FCC Rule Parts: Part 2, 95A KDB Test Methodology: KDB 447498 D01 v05r02, KDB 643646 D01 v01r01, KDB 865664 D01 v01r03, KDB 865664 D02 v01r01 Industry Canada: RSS-102 Issue 4, Safety Code 6 Maximum SAR Value: 0.34 W/kg for Face; 0.28 W/kg for Body Reported Separation Distance: 25 mm for Face; 0 mm for Body © 2014 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140904 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................14 4. Phantom & Simulating Tissue Specifications .....................................................................15 Head & Body Simulating Mixture Characterization ................................................................15 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................16 Uncontrolled Environment .....................................................................................................16 Controlled Environment .........................................................................................................16 6. Measurement Uncertainty .................................................................................................17 7. System Validation..............................................................................................................18 Tissue Verification .................................................................................................................18 Test System Verification ........................................................................................................18 8. SAR Test Data Summary ..................................................................................................19 Procedures Used To Establish Test Signal ...........................................................................19 Device Test Condition ...........................................................................................................19 Radio Body Test .......................................................................................................................20 SAR Data Summary – Head SAR Face Measurements ........................................................23 SAR Data Summary – Body SAR Measurements .................................................................24 9. Test Equipment List ...........................................................................................................25 10. Conclusion ....................................................................................................................26 11. References ....................................................................................................................27 Appendix A – System Validation Plots and Data .......................................................................28 Appendix B – SAR Test Data Plots ...........................................................................................33 Appendix C – SAR Test Setup Photos ..........................................................…

Text truncated - open the document above for the full version.

FCC PART 95 AND IC RSS-210 (i8) FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBO2146A IC 906A-2146A MODEL NUMBER CXT645, CXT645C PRODUCT DESCRIPTION FRF/GMRS TRANSCEIVER FCC STANDARD APPLIED IC STANDARD APPLIED 47 CFR § 95 Personal Radio Service Subpart A – General Mobile Radio Service (GMRS) Subpart B – Family Radio Service (FRS) IC Standard RSS-210 (i8), Annex 6 DATE SAMPLE RECEIVED 9/15/2014 DATE TESTED 9/24/2014 TESTED BY Cory Leverett APPROVED BY Sid Sanders TIMCO REPORT NO. 1643AUT14TestRepRev2.docx TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBO2146A IC: 906A-2146A Report: C\COBRA\1643AUT14\1643AUT14TestRepRev2.docx Page 2 of 22 Table of Contents GENERAL REMARKS ............................................................................................... 3 GENERAL INFORMATION......................................................................................... 4 TEST PROCEDURES: .............................................................................................. 5 TEST REPORT SUMMARY ......................................................................................... 8 RF POWER OUTPUT ................................................................................................ 9 MODULATION CHARACTERISTICS .......................................................................... 10 AUDIO FREQUENCY RESPONSE PLOT ............................................................................... 10 Audio input versus modulation ........................................................................................ 11 Post Limiter Filter .......................................................................................................... 12 EMISSION DESIGNATOR AND FREQUENCIES .......................................................... 13 OCCUPIED BANDWIDTH ....................................................................................... 14 20 dB OBW FRS CH 8 / MASK B ...................................................................................... 15 20 dB OBW GMRS CH 22 / MASK B .................................................................................. 16 99 % Power OBW FRS CH 8 / MASK B .............................................................................. 17 99% Power OBW GMRS CH 22 / MASK B .......................................................................... 18 FIELD STRENGTH OF SPURIOUS EMISSIONS........................................................... 19 GMRS Test Data: ........................................................................................................... 19 FRS Test Data: .............................................................................................................. 20 FREQUENCY STABILITY ........................................................................................ 21 EMC EQUIPMENT LIST .......................................................................................... 22 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBO2146A IC: 906A-2146A Report: C\COBRA\1643AUT14\1643AUT14TestRepRev2.docx Page 3 of 22 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Engineering Project Manager Date: 9/24/2014 Table of Contents Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBO2146A IC: 906A-2146A Report: C\COBRA\1643AUT14\1643AUT14TestRepRev2.docx Page 4 of 22 GENERAL INFORMATION EUT Specification EUT Description FRF/GMRS TRANSCEIVER EUT Application Portable short range communications FCC ID BBO2146A IC 906A-2146A Model Number CXT645, CXT645C Serial Number N/A Operating Frequency GMRS:462.5500-462.7250 MHz FRS: 462.5625-467.7125 MHz Test Frequencies GMRS: 462.5625 MHz FRS: 467.7250 MHz No. of Channels 22 Type of Emission 10K5F3E EUT Power Source 110–120Vac/50–60Hz (Optional AC power Adapter) DC Power 13.8V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Fixed Test Conditions The temperature was 26ºC with a relative humidity of 50-60%. Modification to the EUT None Test Exercise The EUT was placed in continuous transmit mode of operation Applicable Standards ANSI/TIA 603-D:2004, FCC CFR 47 Part 25 Test Facility Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Table of Contents Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBO2146A IC: 906A-2146A Report: C\COBRA\1643AUT14\1643AUT14TestRepRev2.docx Page 5 of 22 TEST PROCEDURES: General: The test procedures used are detailed in ANSI/TIA 603-D:2004. Power Output: RF power was conducted per ANSI/TIA 603-C: 2004 using the substitution method Bandwidth: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 …
