BBO29LTDCB Radio

Table of Contents Contents The CB Story ........................................................................................A1 FCC Regulations FCC Warnings Included Accessories Controls & Indicators ......................................................................A2 Our Thanks to You ............................................................................A3 Customer Support Installation Location ................................................................................................2 Mounting and Connection ............................................................2 Antennas CB Antenna .........................................................................................6 Marine Installation ............................................................................6 Ignition Noise Interference ............................................................7 Operating Your 29 LTD Classic Turning On Your CB .........................................................................8 Setting Channel Selector ...............................................................9 Calibrate For SWR (Standing Wave Ratio) ............................10 To Receive ........................................................................................13 Selecting a Channel ......................................................................14 S-Meter ..............................................................................................14 NB-ANL/ANL/Off (Noise Blanker/Automatic Noise Limiter Switch) ...............................................................15 Bright/Dim Switch .........................................................................16 RF Gain Control...............................................................................17 Setting Delta-Tune ........................................................................18 Setting Squelch ..............................................................................18 To Transmit ......................................................................................20 Setting Dynamike® ........................................................................20 Transmit ............................................................................................21 RF Meter ............................................................................................22 External Speaker ............................................................................23 PA (Public Address) .......................................................................24 Home And Office Set-Up ...........................................................26 Temporary Mobile Set-Up ..........................................................27 How Your CB Can Serve You .......................................................28 A Few Rules You Should Know .................................................28 Channel 9 Emergency Messages .............................................28 CB 10 Codes .....................................................................................30 Frequency Ranges ............................................................................32 29 LTD Classic Specifications ......................................................33 FCC Statement ..............................................................................34-35 Warranty Information ....................................................................36 Product Service ..................................................................................37 Order Info .............................................................................................38 Features of This Product • 40 CB Radio Channels • Heavy-Duty Dynamic Microphone • Full 4 Watts AM RF Power Output • SWR Calibration • Instant Channel 9/19 • 4-Pin Front Mount Microphone Connector • Delta -Tune • Switchable Automatic Noise Limiter & Noise Blanker • Adjustable Dynamike® Boost • 9 Ft. Mic Cord • RF Gain 1 AW-1210038-1B_29LTD_CLASSIC_MANL_REV_022021.indd 1AW-1210038-1B_29LTD_CLASSIC_MANL_REV_022021.indd 12/24/21 2:54 PM2/24/21 2:54 PM Installation Installation Location 32 Mounting and Connection Mounting and Connection Hold the radio with the mounting bracket in the exact desired location. If there is no interference, remove the bracket and use it as a template to mark the location for the mounting screws. Location Plan location of transceiver and microphone bracket before starting the installation. Select a location that is convenient for operation, yet does not interfere with the driver or passenger. The transceiver is usually mounted to the underside of the dash with the microphone bracket beside it. Note The transceiver is held in the universal mounting bracket by two thumbscrews which allow for adjustment at a convenient angle. The bracket includes two self-tapping screws and star washers. The mounting must be mechanically strong, conveniently located. continued Drill the holes and secure the bracket. 2 1 Connect the antenna cable plug to the receptacle marked “ANT” on the back of the unit. 3 AW-1210038-1B_29LTD_CLASSIC_MANL_REV_022021.indd 2-3AW-1210038-1B_29LTD_CLASSIC_MANL_REV_022021.indd 2-32/24/21 2:54 PM2/24/21 2:54 PM Installation Installation 54 Note For best performance, we recommend the radio be connected directly to the battery. Note Before installing the CB radio, visually check the vehicle’s battery connection to determine which terminal is positive or negative. A negatively grounded vehicle has its negative lead grounded to the chassis. Note Connecting to an accessory fuse prevents the unit from being left on accidentally, and also permits operating the unit without running the engine. Connect the red lead of the DC power cord to the positive post of the battery or to an accessory 12 volt fuse. Connect the black lead to the of the DC power cord to the negative post of the battery or to the vehicle chassis. 4 5 Plug the power cord into the jack marked “Po…

Text truncated - open the document above for the full version.

Cobra Electronics Corporation Address: 6500 West Cortland Street,Chicago,Illinois,United States.60707 Tel:773-804-6285 Fax:773-889-1622 E- Mail: [email protected] FCC Confidential Authorization 2021/05/19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: BBO29LTD In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cobra Electronics Corporation .hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Chris de Waal Title: Senior Project Engineer

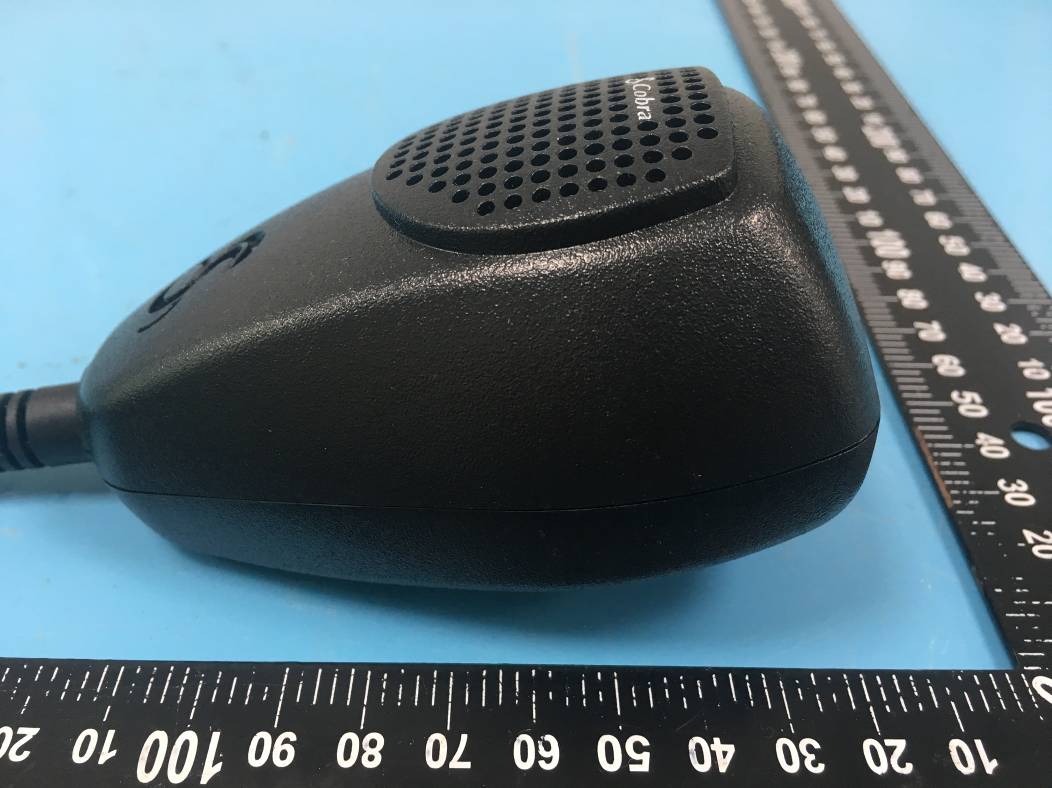

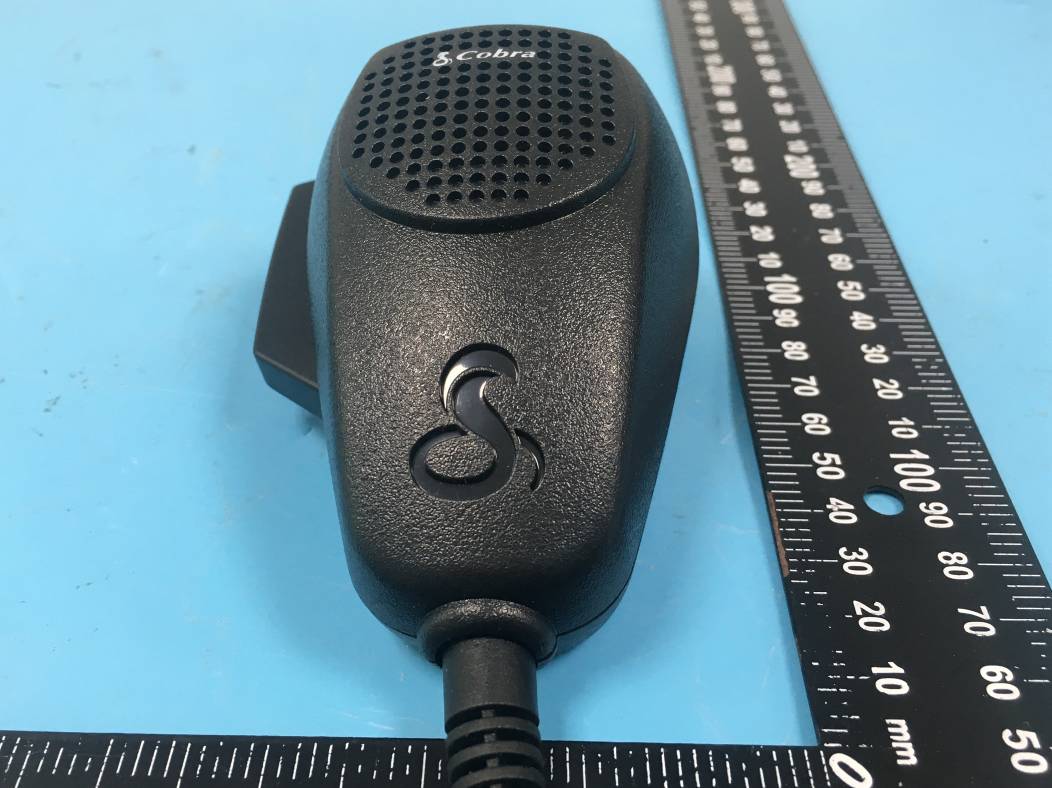

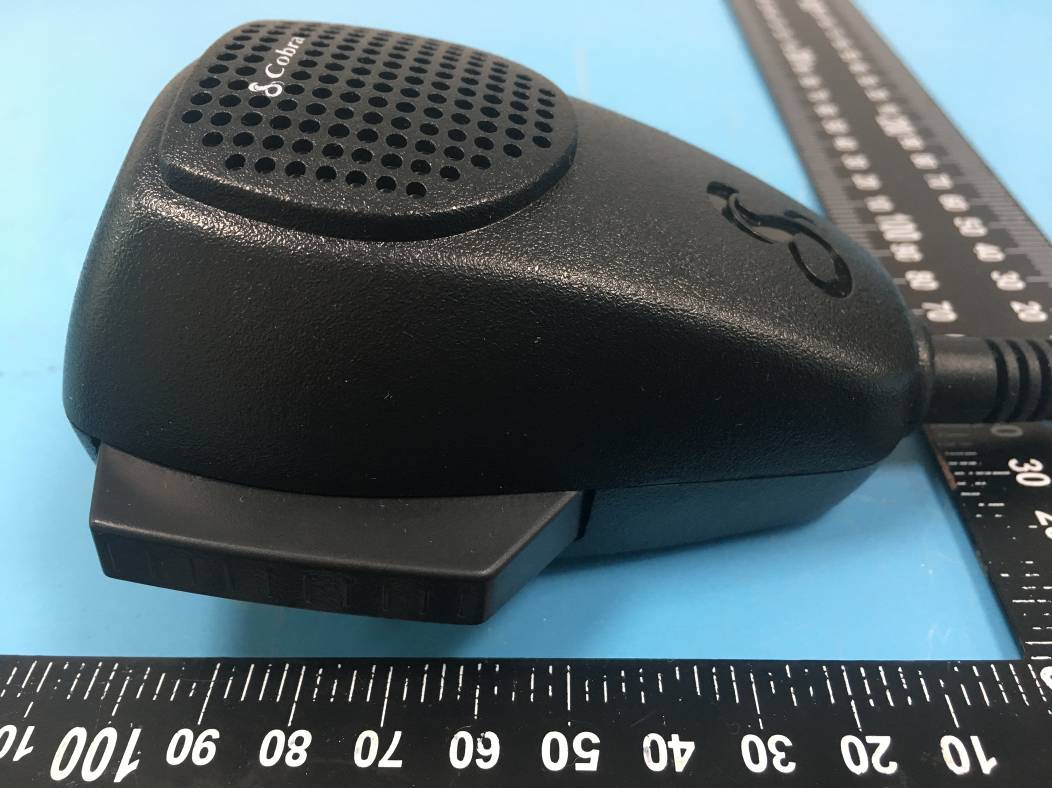

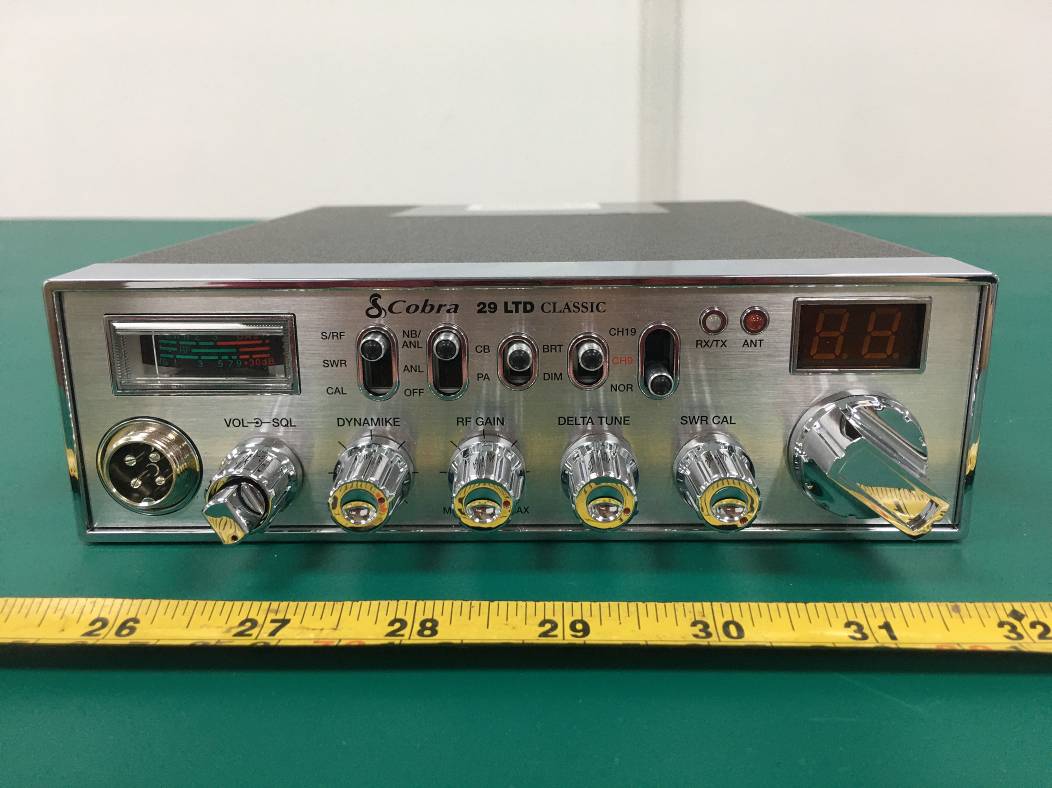

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 7 of 7

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210120005-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210120005-00 FCC Part 95 Page 9 of 24 §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) According to subpart 1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency Range (MHz) Maximum Antenna Gain Tune Up Conducted Power MPE Limit (mW/cm 2 ) Minimum Safe Distance (cm) (dBi) (numeric) (mW) 26.965-27.405 0 1 4000 0.24 36.42 To maintain compliance with the FCC’s RF exposure guidelines, please place the equipment at least 36.42cm from nearby persons. Result: Compliance

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 95 MEASUREMENT AND TEST REPORT For Cobra Electronics Corporation 6500 West Cortland Street, Chicago, Illinois, United States 60707 FCC ID: BBO29LTD Report Type: Original Report Product Type: CB Radio Report Number: RSZ210120005-00 Report Date: 2021-05-10 Reviewed By: Jacob Kong RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210120005-00 FCC Part 95 Page 2 of 24 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................................... 9 RESULT ........................................................................................................................................................................ 9 FCC §2.1046 & §95.967 - RF OUTPUT POWER ..................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1047 & §95.975 - MODULATION CHARACTERISTIC .......................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1049 & §95.973 & §95.979- OCCUPIED BANDWIDTH AND EMISSION MASK ............................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 17 FCC §2.1053 & §95.…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210120005-RF Page 1 of 1 EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View
