BBOESR700RADAR DETECTOR

Important Information And Customer Assistance Introduction 3 English Important Information • Federal Laws Governing The Use Of Radar Detectors It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1934 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. Safety Alert Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area. Safe Driving Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Security Of Your Vehicle Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. product [email protected] (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer ESR 700 9 BAND ® RADAR/LASER DETECTOR WITH EXTRA SENSORY DETECTION NothingComes Close to a Cobra ® EnglishNothingComes Close to a Cobra ® English Operating Instructions Printed in China Part No. 480-913-P Version A For more information or to order any of our products, please visit our website: www.cobra.com ©2013 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com CBRadios microTALK ® Radios Radar/LaserDetectors SafetyAlert ® TrafficWarningSystems HighGear ® Accessories CobraMarine ® VHFRadios MarineChartplotters PowerInverters Accessories The Cobra line of quality products includes: Customer Assistance Warranty Accessories Order Info Nothing Comes Close to a Cobra ® 17 Display And Product Features Introduction Nothing Comes Close to a Cobra ® 5 Controls, Indicators And Connections I ntroduction 4 English Detection And Separate Alerts For: Radar signals (X, K and Ka bands, with signal strength indicated), laser and VG-2 signals LaserEye For 360° detection of laser signals Instant-On Ready Detects radar guns with “instant-on” (very fast) speed monitoring capabilities Tone Alerts With adjustable volume UltraBright Data Display Is easy to read City Or Highway Modes to reduce false alerts Safety Alert Traffic warning system distinguishes important safety alerts from other K band signals Manual Mute Or Auto Mute A mute function of audio alerts Mounting Mounts easily on windshield or dashboard Product Features • Congratulations! You’ve made a smart choice by purchasing the ESD 767 radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes: Controls, Indicators And Connections • Display • This booklet describes the simple steps for mounting and setting up your detector. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive. 12V DC Power Jack On-Off/ Volume Control Allows you to adjust the volume of the tone alerts. City Button For Cityor Highway modes to reduce false alerts. LaserEye For 360° detection of laser signals. Windshield Bracket Release Button Speaker Mute Button For manual mute or auto mute of audio alerts. Windshield Bracket Mount Laser Indicator VG-2 And Safety Indicators Radar Indicators Power Indicator City/ Highway Mode Indicators WARNING Modifications or parts substitutions not approved by Cobra Electronics Corporation may violate FCC Rules and void your authority to operate this equipment. NOTE: In This Manual When steady, the display will be shown: • X K ⁄KaL V ⁄S Cty • X K ⁄K a L V ⁄S Cty Customer Assistance Ordering From U.S.A. Call 773-889-3087 for pricing or visit www.cobra.com. For Credit Card Orders Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday. Make Check or Money Order Payable To Cobra Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A. To Order Online Please visit our website: www.cobra.com Item #Description 420-030-N-001Straight 12V Power Cord 420-026-N-001Coiled 12V Power Cord 545-159-N-001Windshield Mounting Bracket CLP-2BDual Port Power Adapter Nothing Comes Close to a Cobra ® 1 Table Of Contents Introduction Introduction Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A1 Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A1 Controls, Indicators And Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . .A2 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A3 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A3 Your Detector Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOESR700 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: ESR 700 Block Diagram ESR 700 Circuits (Schematics) ESR 700 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of March, 2014 (expected ship date): ESR 700 External Photos ESR 700 Test Setup Photos ESR 700 Manual ESR 700 Internal Photos Sincerely, Jeff Sterling Sr. Director, Hardware Engineering

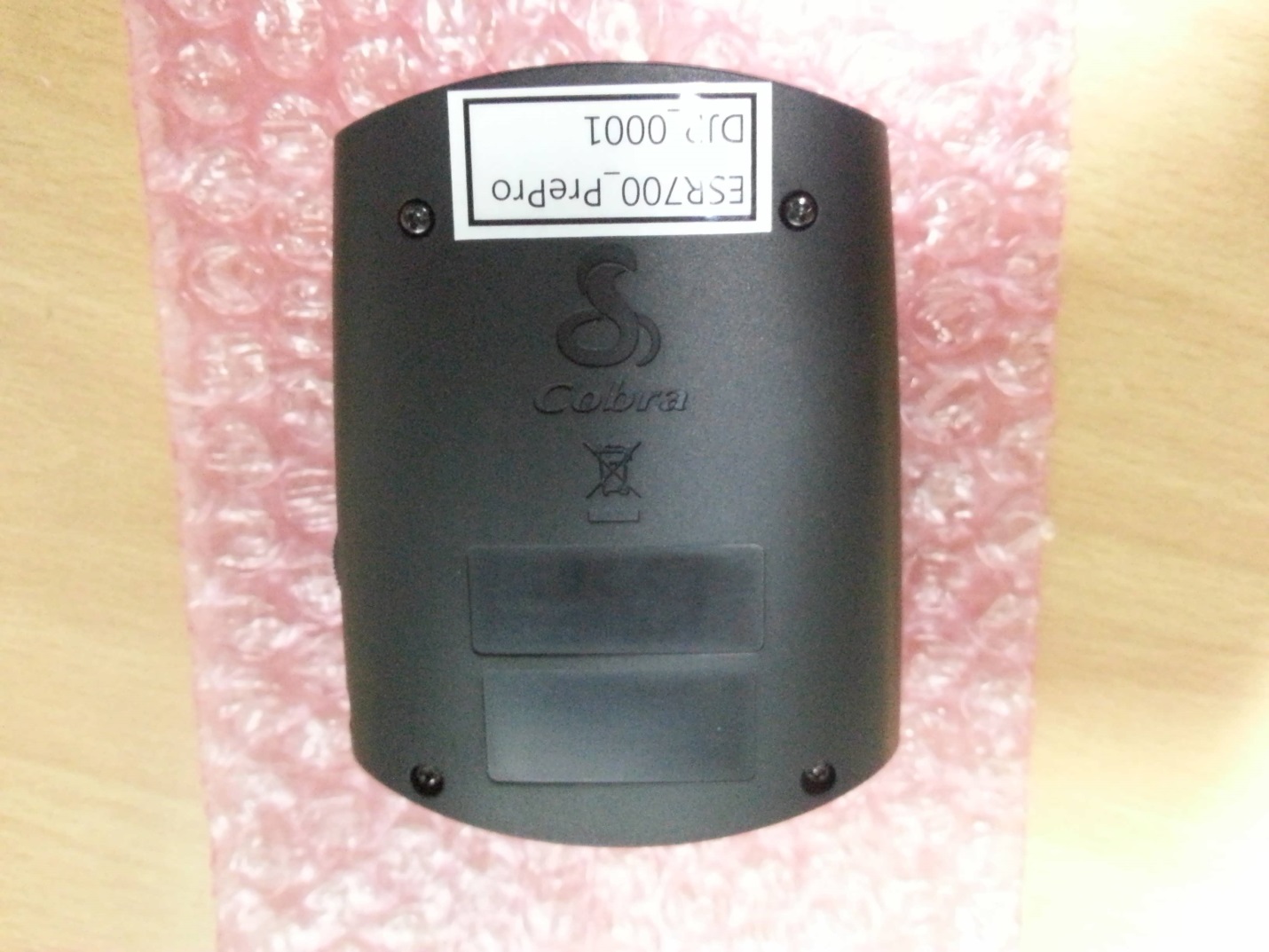

COBRA ELECTRONICS CORP. FCC ID: BBOESR700 EXTERNAL PHOTOS

ESR 700 Serial Number Labels 1:1 Silver Text on Black Background ESR 700 FCC ID Labels 1:1 Silver Text on Black Background MODEL NO: ESR 700 COBRA ELECTRONICS CORPORATION US PATENT NO. 6,094,148 & OTHER PATENTS PENDING S/N NO. MADE IN CHINA RoHS FCC ID: BBOESR700 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and , 2) this device must accept any interference received including any interference that may cause undesited operation. REV. 11.20.13 ESR 700 LABEL

COBRA ELECTRONICS CORP. FCC ID: BBOESR700 INTERNAL PHOTOS

FCC PART 15 RADAR DETECTOR REPORT Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID: BBOESR700 Product Description RADAR DETECTOR Date Sample Received 11/21/2013 Date Tested 11/25/2013 Tested By CORY LEVERETT Approved By Sid Sanders Report Number 2000AUT13TestReport.docx Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOESR700 REPORT: C\COBRA\2000AUT13\2000AUT13TestReport.docx Page 2 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Sid Sanders Date: 11/25/13 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOESR700 REPORT: C\COBRA\2000AUT13\2000AUT13TestReport.docx Page 3 of 9 GENERAL INFORMATION The test results relate only to the items tested. DUT Description RADAR DETECTOR FCC ID BBOESR700 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOESR700 REPORT: C\COBRA\2000AUT13\2000AUT13TestReport.docx Page 4 of 9 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 2811A01175 06/05/13 06/05/15 Analyzer Silver Tower RF Preselector HP 85685A 2926A00983 06/05/13 06/05/15 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 06/05/13 06/05/15 Antenna: Biconnical Eaton 94455-1 1096 05/10/13 05/10/15 Antenna: Log-Periodic Electro- Metrics LPA-25 1122 05/09/13 05/09/15 Antenna: Standard Gain Horn 8.2-12.5 GHz Systron Donner DBG-520- 20 Not Serialized 12/12/99 12/12/99 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOESR700 REPORT: C\COBRA\2000AUT13\2000AUT13TestReport.docx Page 5 of 9 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero span or a frequency span where the analyzer does not show a “Measurement Uncalibrated” message. Record the peak value. If the peak measurement is compliant with the average limit an average measurement is not necessary. If the peak value exceeds the average limit by less than 20 dB proceed to Step 3. 3) Determine the average level of the emission: Center Frequency Set to the frequency determined in Step 1 Span Zero RBW Equal to or greater than 1 MHz VBW Equal to or greater than 10 Hz Detector Function Peak This measurement uses video averaging and must be done in Linear mode. The analyzer Reference Level is adjusted so that a signal is clearly visible on the screen. Measure the value of the emission using Max Hold for a minimum of 2 minutes. Record this as the average value. Step 2 and Step 3 should be repeated for other spurious emissions. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOESR700 REPORT: C\COBRA\2000AUT13\2000AUT13TestReport.docx Page 6 of 9 TEST PROCEDURES CONTD. Formula Of Conversion Factors: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the preselector was accounted for in the spectrum analyzer meter reading. Example: Freq (MHz) Meter Reading + ACF +CL = FS 33 20 dBuV + 10.36 d…
