ENGLISH Nothing comes close to a Cobra ™ FPO Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL FRS 130-2 VP Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL FRS 130-2 VP Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL FRS 130-2 VP Nothing comes close to a Cobra ™ Nothing comes close to a Cobra ™ Nothing comes close to a Cobra ™ English, pages 1-8French, pages 9-16Spanish, pages 17-22 (ENGLISH)(FRENCH)(SPANISH) (ENG)(FR)(SPAN) COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 1 PRODUCT FEATURES ENGLISH ENGLISH 1 INTRODUCTION This device complies with part 15 of the FCCrules. Operation is subject to the condition thatthis device does not cause harmful interference.FCC Warnings : Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than thoserecommended by Cobra ® , may cause a violation of the technical regulations of part 95 of the FCC Rules, or violation of TypeAcceptance requirements of Part 2 of the Rules. ON-OFF/VOLUME switch backlit LCDdisplay CHANNEL SELECT buttons speaker/microphone belt clip CALL buttonTALKbutton LIGHT/MAXRANGE button LIGHT/MAXRANGEbutton ON-OFF/VOLUME switch external speaker/microphone jack battery compartment battery charger pads LOCK tab TALKbutton Antenna Product Features• TWO-WAY RADIO with up to a 2 mile (3 km) range • 14 CHANNELS• BATTERY SAVER circuitry• CALL ALERT• “ROGER BEEP” confirmation tone• AUTO SQUELCH• MAXIMUM RANGE extender• BACKLIT LCD display• EXTERNAL SPEAKER/MICROPHONE jack• BELT CLIP• WRIST STRAP• 2 NiCAD BATTERY packs• 2-PORT DESKTOP CHARGERMaking Life Easier and SaferPeople have found lots of convenient and helpful ways to use their microTALK ® radios. Over time, you’re bound to discover uses of your own. For example, you can...• stay in touch with others while hiking, bicycling, etc. • keep track of family and friends in a shopping mall • communicate between different floors of a building • talk with neighbors• check with traveling companions in another car • arrange a meeting spot at crowded public events Caring for Your microTALK ® Radio Your microTALK ® radio will give you years of trouble-free service if cared for properly. Here area few suggestions: 1) Handle the radio gently,2) Keep it away from dust, 3) Never put theradio in water or in a damp place and 4) Avoid exposure to extreme temperatures. Installing or Replacing Batteries1. Pull down the LOCK tab to remove the battery compartment cover. 2. Insert your NiCAD battery pack or four AAA batteries. Position batteries according to polarity markings. ( NOTE: NiCAD batteries are included with your microTALK ® radio. When not using your NiCADs, always use high quality alkaline batteries.Recharge NiCAD battery pack according to theinstructions for the FA-CG charger.) LOCK tab 2 COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 2 OPERATION 4 ENGLISH OPERATION 3 ENGLISH Talking to Another Person1. Press and hold the TALK button.2. With the microphone about 2 inches (5 cm) from your mouth, speak in a normal voice. 3. Release the button when you’re finished talking and listen for a response. You cannot receive incoming calls while pressing the TALK button. “Roger Beep” Confirmation ToneYour listener will hear an audible tone whenyou release the TALK button. This alerts theother party that you are finished talkingand it is o.k. for them to speak. Listening for a ResponseWhen you are finished talking:1. Release the TALK button to receive incoming transmissions. Your microTALK ® is always in listening mode while the TALK button is not pressed. 2. Adjust the volume by rotating the ON-OFF/VOLUME switch. Illuminating the Display1. Press and release the LIGHT/MAX RANGE button to illuminate the display for 10 seconds. TALK button LIGHT/MAX RANGEbutton VOLUME switch TALK button 2 inches away Turning On Your microTALK ® Radio 1. Rotate the ON-OFF/VOLUME switch clockwise to turn on the unit (and to adjust the volume). An audible tone will indicate the radio is on. Battery LowWhen battery power is low, the BATT LOWindicator will blink.Auto Battery SaveYour microTALK ® radio has a unique circuit designed to extend battery life. If there areno transmissions within 10 seconds, theunit will automatically switch to BatterySave mode and POWER SAVER will appearin the display. This will not affect the unit’sability to receive incoming transmissions. Selecting a Channel1. With the radio on, select any of the 14 channels by pushing the CHANNEL UP or CHANNEL DOWN button. ( NOTE: Both radios must be tuned to the same channel to communicate.) Calling Another PersonTo alert another person that you are calling:1. Press and release the CALL button. The other person will hear a 2-second ringing tone. You cannot send or receive transmissionsduring the 2-second call tone. ON-OFF/VOLUME switch CHANNELUPbutton CHANNELDOWNbutton CALL button COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 4 LIMITED 2-YEAR WARRANTY•CUSTOMER ASSISTANCE 6 OPERATION 5 ENGLISH Customer AssistanceAfter reading this owner’s manual, if you have any questionsabout installing or operating your microTALK ® radio, or if you are missing any parts, please contact Cobra ® first. Do not return this product to the store. Cobra ® Electronics offers the following customer support services.• Automated Help Desk is available 24 hours a day, 7 days a week at 773-889-3087. • Customer Service Operators are available at the same number 8:00 a.m. to 6:00 p.m. CST Monday through Friday (except holidays). • Questions can be faxed to 773-622-2269.• Technical assistance is available on-line in the Frequently Asked Questions (FAQ) section at www.cobra.com or by e-mail to [email protected]. If your product should require factory service please call Cobra ® first before sending your unit in. This will ensure the fastest turn-around time on your repair. You may be asked to send your unit to the Cobra ® factory. It will be necessary to furnish the follo…

Text truncated - open the document above for the full version.

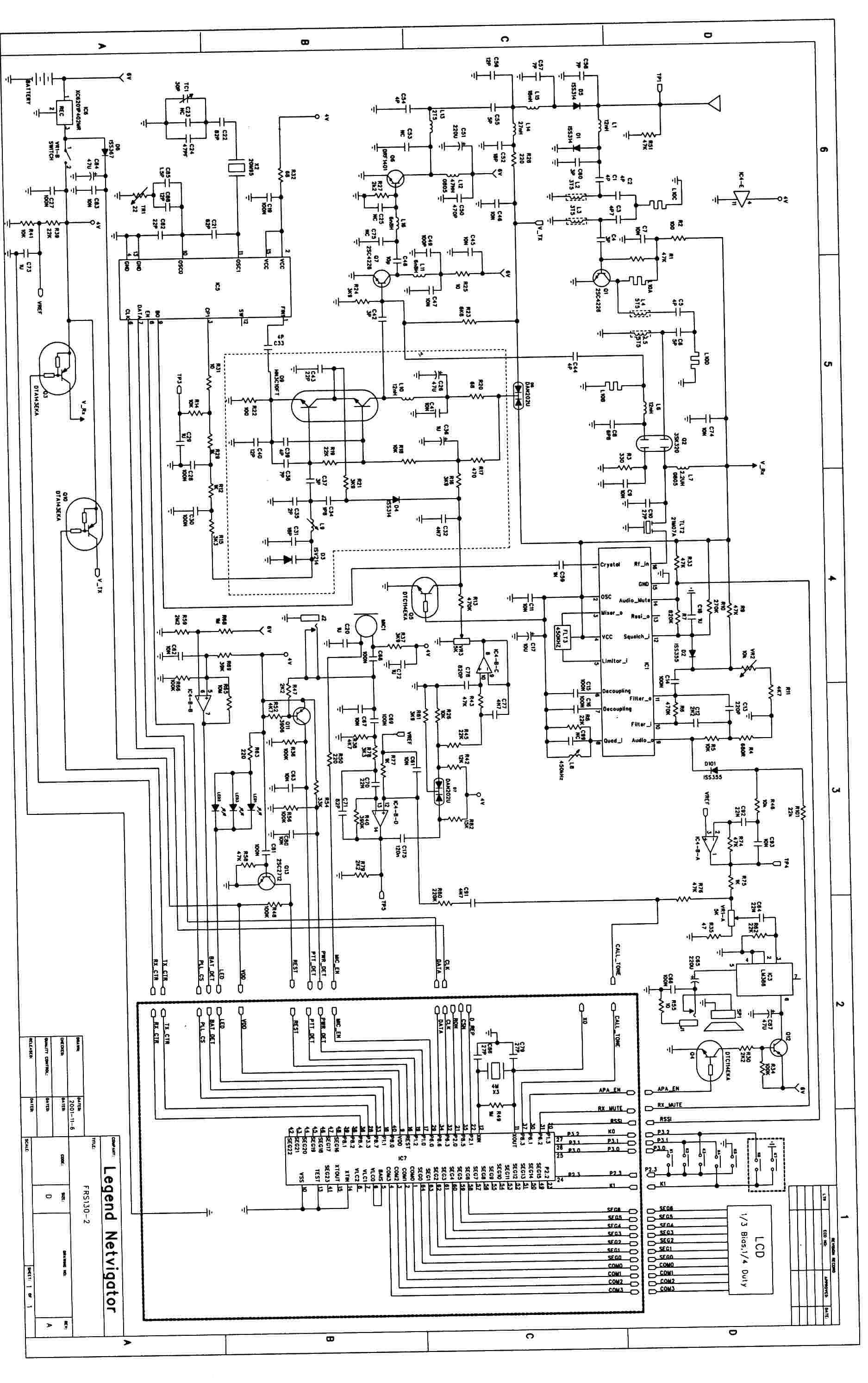

FRS130 Block Diagram ANT. BPF 462~468MHz RF AMP 462~ 468MHz BPF MIXER 3SK320 21.4MHz BPF 1 st I.F. VR02 SQ Control FM I.F & Demodulation IC1 450KHz 2 nd I.F. IC4A De-emphasis Rx-MUTE Volume PA IC03 Speaker Tone PA-enable P30 P20 P37 P40 IC4B Batt-Low Detect Keyboard P29 To all circuits PWR Battery 4.5V P2 Tx/Rx MCU Vdd P1~4 P58~64 LCD P32.P33,P34 PLL IC5 VCO MIC-ENABLE MIC IC4D IC4C Pre- Emphasis &Limiter Active LPF VR3 Mod. Control driver 2SC4226 RF Power AMP DRF1401 LPF 462~468HMz P2427

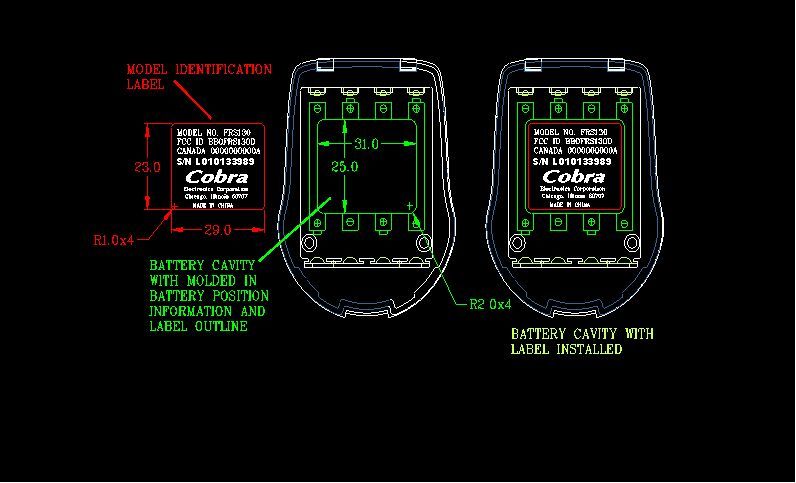

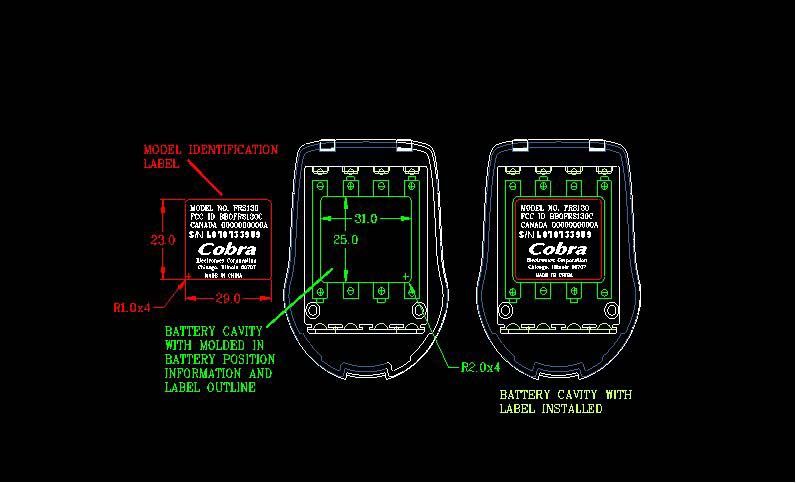

HYAK LABORATORIES, INC. 7011 Calamo Street, Suite 107 Springfield, Virginia 22150 (703) 451-1188 Fax (703) 644-7492 [email protected] December 4, 2001 Federal Communicatio ns Co mmission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOFRS130D; EA870155, filed 11/30/01 Gentle me n: Please amend the filed Form 731 to reflect a correction in the FCC ID. Correct FCC ID should read FCC ID: BBOFRS130C. A corrected FCC ID label and location sketch has been uploaded. Best regards, Georgia Hall

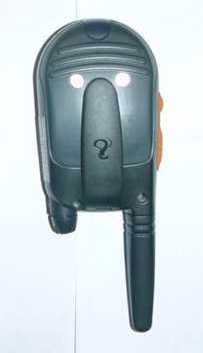

Front View Back View

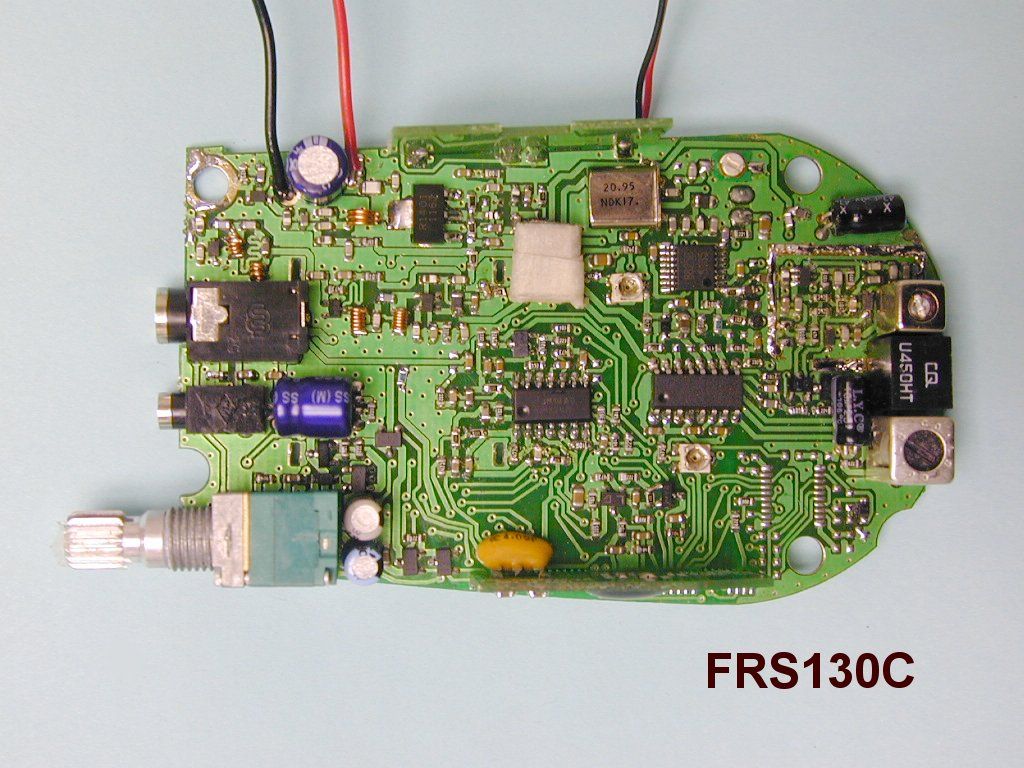

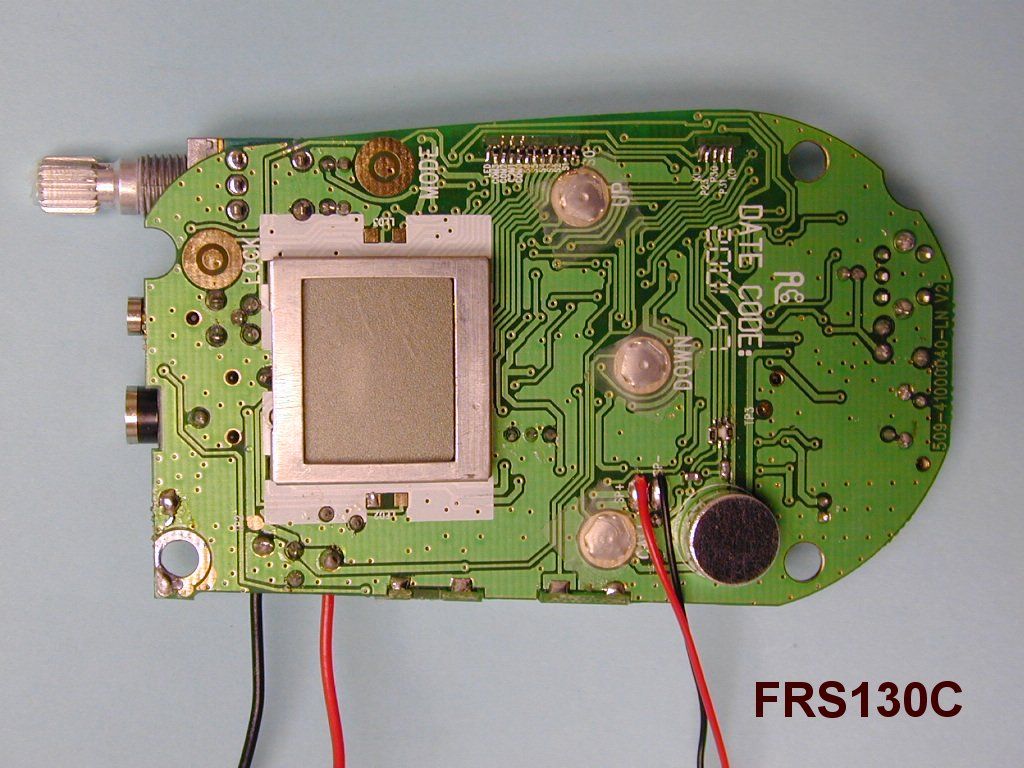

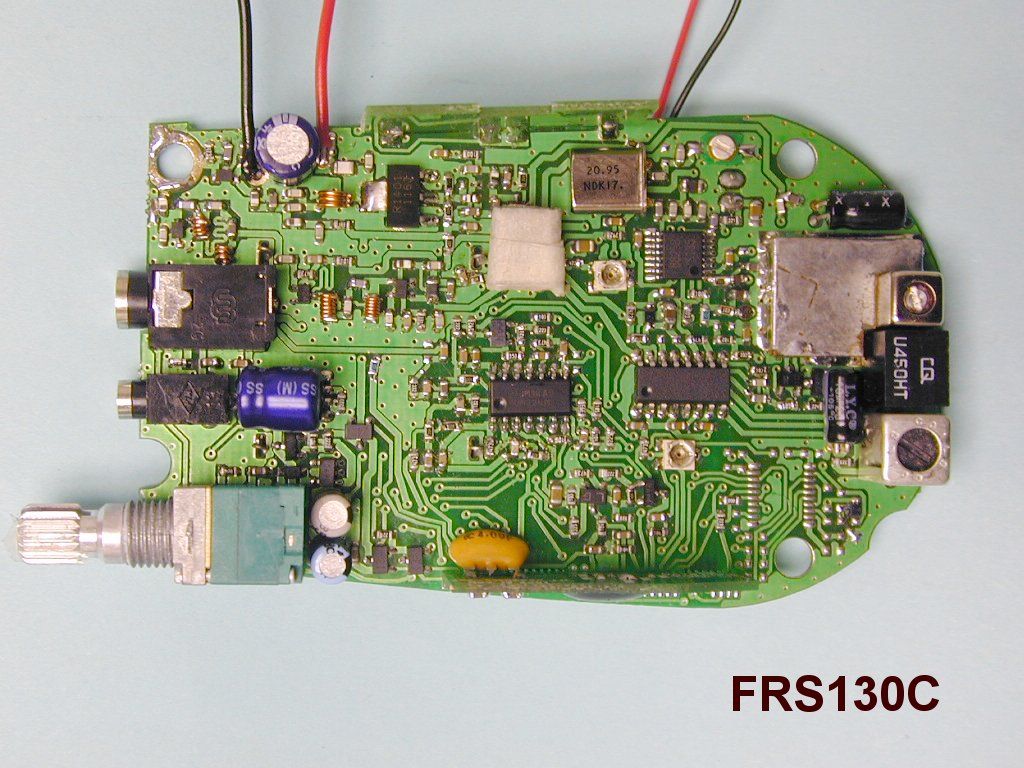

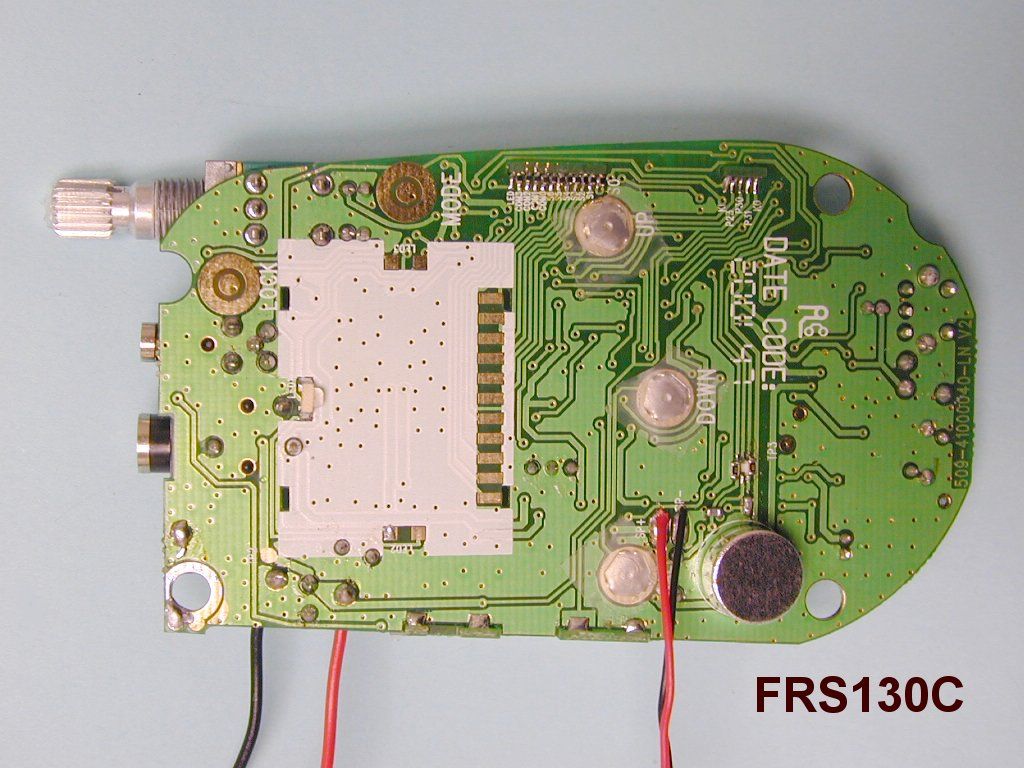

Circuit Board, Track Side Circuit Board, Component Side

Operational Description: User pushes button on side of FRS, talks into mike, transmitter antenna sends hertizan waves. User releases button, listens for reply on integral receiver.

FRS 130 TX alignment procedure 1) Adjust power supply to 6V, turn on the unit. 2) In RX mode, set to CH1, measure the VCO voltage. 3) Adjust the VCO voltage to 0.8V by tuning the coil L9. 4) Press PTT button, the unit then in TX mode, the VCO voltage will change to about 0.8V +/- 0.2V. 5) Measure the TX frequency, adjust the frequency to 462.5625MHz +/- 100Hz by Variable-capacitor TC1 (30pF). 6) Also measure the TX power within the range 500mW +/- 100mW. 7) Release the PTT button, change to CH14. 8) Press the PTT button again, measure the TX frequency which must be 467.7125MHz +/-300Hz and also measure the TX power as in step 6. 9) The VCO voltage in CH14 TX mode must less than 2.9V.

Safety Information For FRS UNIT Your wireless handheld portable transceiver contains a low power transmitter. When the PTT button is pushed it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important: To maintain compliance with the FCC s RF exposure guidelines hold the transmitter at least 2 inches (5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. If you wear the handset on your body while using the headset accessory, use only the Cobra supplied belt clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. If the distance between the antenna and the body is LESS THAN 1.0”(2.5cm) DO NOT USE THIS DEVICE IN THE BODY WORN CONFIGURATION. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately 2” from your face and speak in a normal voice, with the antenna pointed up and away.

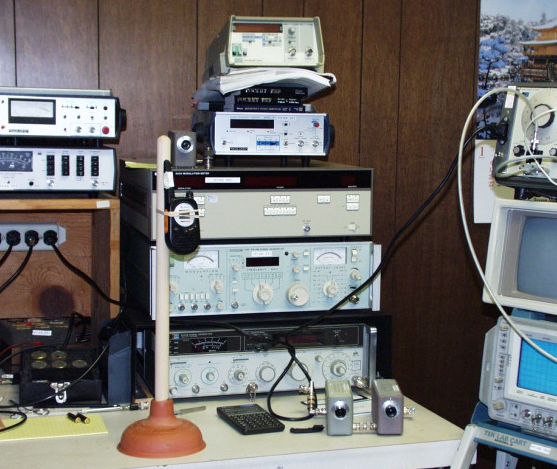

ENGINEERING STATEMENT For Type Certification of Cobra Electronics Corporation Model No: FRS 130 FCC ID: BBOFRS130D I am an Electronics Engineer, a principal in the firm of Hyak Laboratories, Inc., Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. Hyak Laboratories, Inc. has been authorized by Cobra Electronics Corporation to make type certification measurements on the FRS 130 transceiver. These tests made by me or under my supervision in our Springfield laboratory. Test data and documentation required by the FCC for Type Certification are included in this report. The data verifies that the above mentioned transceiver meets FCC requirements and Type Certification is requested. ______________________________ Rowland S. Johnson Dated: November 13, 2001 A. INTRODUCTION The following data are submitted in connection with this request for type certification of the FRS 130 transceiver in accordance with Part 2, Subpart J of the FCC Rules. The FRS 130 is a portable, battery operated, UHF, frequency modulated transceiver intended for 12.5 kHz channel family radio service applications in the 462.5625-467.7125 MHz band. It operates from a nominal 6.0 Vdc battery supply. MFR rated output power is 0.5 watts ERP(d). B. GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Paragraph 2.983 of the Rules) 1. Name of applicant: Cobra Electronics Corporation 2. Identification of equipment: FCC ID: BBOFRS130D a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as a separate exhibit. 3. Quantity production is planned. 4. Technical description: a. 11k0F3E emission b. Frequency range: 462.5625 - 467.7125 MHz. c. Operating power of transmitter is fixed at the factory at less than 0.5 W ERP. d. Maximum power permitted is 0.5 watts, and the FRS 130 fully complied with that power limitation. e. The dc voltage and dc currents at final amplifier: Collector voltage: 5.8 Vdc Collector current: 0.31 A f. Function of each active semiconductor device: See Appendix 1. g. Complete schematic diagram is submitted as a separate exhibit. h. A draft instruction manual is submitted as a separate exhibit. i. The transmitter tune-up procedure is submitted as a separate exhibit. 2 B. GENERAL INFORMATION (continued) j. A description of circuits for stabilizing frequency is included in Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included in Appendix 3. l. Not applicable. 5. Data for 2.985 through 2.997 follow this section. C. RF Power Output (Paragraph 2.985(a) of the Rules) The FRS 130 has a permanently attached built-in antenna without provisions for a coaxial connector. RF power output was determined by substitution. TABLE 1 Operating Freq., MHz Power watts into a dipole antenna 462.5625 0.45 D. MODULATION CHARACTERISTICS 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with an Audio Precision System One integrated test system. 2. Modulation limiting curves are shown in Figure 2, using a Boonton 8220 modulation meter. Signal level was established with a Audio Precision System One integrated test system. The curves show compliance with paragraphs 2.987(b). 3. Figure 3 is a graph of the post-limiter low pass filter which provides a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One integrated test system on the Boonton 8220 modulation meter audio output. 3 4. Occupied Bandwidth (Paragraphs 2.989(c) of the Rules) Figure 4 is a plot of the sideband envelope of the transmitter output taken with a Tektronix 494P spectrum analyzer. Modulation corresponded to conditions of 2.989(c)(1) and consisted of 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2169 Hz, the frequency of maximum response. Measured modulation under these conditions was 1.9 kHz. Emission designator: (2M + 2D) (2 x 3 kHz) + (2 x 2.5 kHz) = 11k0F3E 4 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: BBOFRS130D FIGURE 1 5 FIGURE 2 AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: BBOFRS130D FIGURE 2 6 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: BBOFRS130D FIGURE 3 7 FIGURE 4 OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 12.5 kHz (6.25-12.5 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (12.5-31.25 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 40 than 250% of the authorized (P = 0.45) bandwidth (over 31.25 kHz) OCCUPIED BANDWIDTH FCC ID: BBOFRS130D FIGURE 4 8 D. MODULATION CHARACTERISTICS (Continued) The plots are within FCC limits. The horizontal scale frequency) is 10 kHz per division and the vertical scale amplitude) is a logarithmic presentation equal to 10 dB per division. E. SPURIOUS EMISSIONS AT THE ANTENNA TERMINALS (Paragraph 2.991 of the Rules) The FRS 130 has a permanently attached antenna. There is no connector for an external antenna. Therefore, no antenna terminal conducted measurements were made. F. DESCRIPTION OF RADIATED SPURIOUS MEASUREMENT FACILITIES A description of the Hyak Laboratories’ radiation test facility is a matter of record with the FCC. The facility was accepted for radiation measurements from 25 to 1000 MHz on October 1, 1976 and is currently listed as an accepted site. G. MEASUREMENTS OF SPURIOUS RADIATION Measurements of radiated spurious emissions from the FRS 130 were made by substitution with a Tektronix 494P spectrum analyzer using Singer DM-105 for the measurements to …
