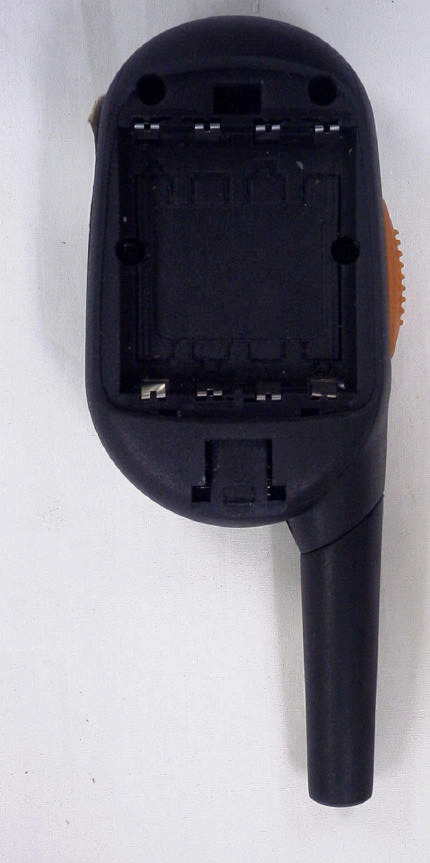

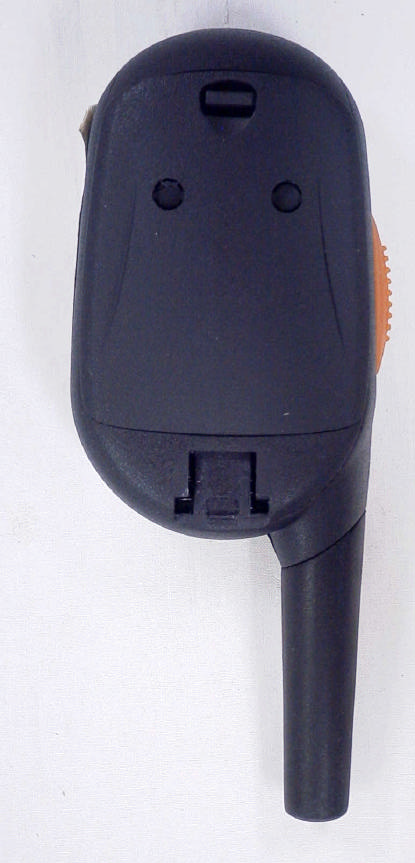

BBOFRS132FRS Transceiver - Transmitter Portion

FRS132 2-WAYRADIO MODEL NothingComes Close To A Cobra ™ English Owner’s Manual Printed in China Part No. 480-051-P 2 English Making Life Easier & Safer Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip or wrist strap. The belt clip easily attaches to your belt, purse, or backpack. Simply squeeze the clip and place it where you prefer. For Assistance In the U.S.A. or Canada In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra ® Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. or in French Contact Your Local Dealer ©2002 Cobra ® Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Belt Clip Wrist Strap Customer Assistance Battery Compartment Battery Door Latch Belt Clip 3 English Product Features Introduction On/Off Power Button Backlit LCD Display Channel Up/ Down Buttons Speaker/Microphone Call Button Light/Max Range Button Antenna Volume Up/ Down Button(s) Lock Button Talk Button Speaker/ Microphone Jack Important FCC Licensing Information This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. FCC Warnings:Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra ® , may cause a violation of the technical regulations of part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules. Industry Canada Notice:Operation is subject to the following two (2) conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. «IC» before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction. Wrist Strap Connector 4 English Product Features Introduction Features • Two-Way Radio With a range up to two (2) miles (3 km). • 14 Channels Seven shared with FRS/ GMRS, seven FRS only. • UHF FM Frequencies • Backlit LCD Display • Call Alert • Key Lock Button • “Roger Beep” Selectable On/Off confirmation tone. • Battery/Power Saver • Auto Squelch • Maximum Range Extender • Speaker/ Microphone Jack • Belt Clip • Wrist Strap Caring for Your microTALK ® Radio Your microTALK ® radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Installing and Replacing Batteries 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2. Pull up on the Battery Latchto remove the battery compartment cover. 3. Insert four (4) AAA batteries. (Always use high quality alkaline batteries.) Position batteries according to polarity markings. 4. Replace Battery Compartment cover and belt clip. See information on page 11 for optional battery pack and desktop charger accessories. Insert Batteries Pull Up Lock Tab Remove Belt Clip Backlit LCD Display Receive/Transmit Tower Icon Lock Icon Roger Beep Icon Battery Low Icon Main Channel Numbers Turning On Your microTALK ® Radio 1. Press and hold the Powerbutton for two (2) seconds. A series of audible tones will indicate the radio is On. Your microTALK ® radio is now in Standby Mode, ready to receive transmissions. The radio is always in Standby Modeexcept when the Talk or Callbuttons are pressed. Battery Low When battery power is low, the Battery Low icon will blink. Your batteries should be replaced or recharged, if using rechargeable batteries. Battery/Power Saver Your microTALK ® radio has a unique circuit designed to extend battery life. If there are no transmissions within ten (10) seconds, the radio will automatically switch to Battery Save Mode. This will not affect the radio’s ability to receive incoming transmissions. Talking to Another Person 1. Press and hold the Talkbutton. 2. With the microphone about two (2) inches (5cm) from your mouth, speak in a normal voice. 3. Release the Talkbutton when you are finished talking and listen for a response. You cannot receive incoming calls while pressing the Talkbutton. Both radios must be tuned to the same channel to communicate. 5 English Using Your Radio Operation On/Off Power Battery Low Talk Button 2" From Mouth 6 English Using Your Radio Selecting a Channel 1. With the radio On, select any of the 14 channels by pressing the Channel Up or Channel Downbutton. Both radios must be tuned to the same channel to communicate. Channels 1 through 7 are shared with FRS/ GMRS. Channels 8 through 14 are FRS only. See page 8 for FRS frequency allocations and compatibility charts. Listening for a Response When You are Finished Talking: 1. Release theTalkbutton to receive incoming transmissions. Your microTA…

Text truncated - open the document above for the full version.

FRS 132 BBOFRS132 906B-FRS132 Placement of FCC/IC Label on FRS 132

TECHNICAL DESCRIPTION Model FRS132 FCC: BBOFRS132 IC: 906B-FRS132 Page 1 A). GENERAL DESCRIPTION The FRS132 radio is a self-contained transceiver unit intended for use as a general communication tool. The FRS132 model has 14 channels. The useable range, while dependent upon terrain and other radio propagation principles, is typically two miles based on the transmit power specified at 0.5 watts ERP. Product features are as follows: FEATURES FRS132 FRS Channels 14 Channel Indicator LCD Range 2 Mile Alkaline Battery Source 4 x AAA (not included) Transmitter Output Power 500 mW Auto Squelch Yes Automatic Battery Save Yes Automatic Channel State Saver Yes Call/ Ring Alert 1 Tone PWR Button Keypad Supported Accessories Removable belt clip B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit internal to U300. The frequency of operation of the voltage controlled oscillator (VCO), composed of Q50 and Q51 operating in cascode, is phase locked to a voltage controlled crystal reference (VCXO) operating at 10.25 MHz (X300). Compensation for temperature variations on the crystal reference is accomplished using a thermister (TH300) to change the reactance of the reference crystal circuitry. Compensation for voltage variations on the crystal reference is accomplished through a supply voltage regulator The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency plus 10.7 MHz) in the receive mode. The crystal reference frequency is used as the second LO connected internally in U300 to the second mixer to produce the second IF of 450KHz. TECHNICAL DESCRIPTION Model FRS132 FCC: BBOFRS132 IC: 906B-FRS132 Page 2 C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 27dBm that is fed to the antenna. The transmitter is a two stage amplifier composed of Q200, and Q201. The first stage is operated class A, and the final is operated class AB. The fundamental transmit signal is fed through a low pass filter in order to suppress the harmonics to below –60 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a high pass filter at 300 Hz, a hard clipper circuit (internal to U300) to limit maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz (internal to U300). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q101) centered from 460 to 470 MHz that provides approximately 15 dB of gain. The output of the LNA is filtered through an LC network. The filtered receive signal is one input to the 1 st mixer, the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency plus 10.7 MHz. The output of the mixer is tuned to the 1 st IF of 10.7 MHz. The 1 st IF fed to a crystal filter centered at 10.7 MHz with a bandwidth of 15 kHz. The filtered 1 st IF is then fed through the 1 st IF amplifier to the 2 nd mixer internal to the multi-function radio IC (U300). The 2 nd LO (10.25 MHz) is generated by the 10.25 MHz VCXO that is the reference frequency for the PLL. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 10.7 MHz crystal filter provides approximately 55 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is bandpass filtered from 300 to 3 kHz (internal to U300) and amplified to provide 200 mW of audio power (U150), which differentially drives the 16 ohm speaker. A squelch circuit is provided (U300 pins 29,30 and40) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 7 kHz. When the detected noise exceeds a threshold set to trigger at approximately 12 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D200 and D100 are both turned on (representing less than 0.7 ohms). D200 allows the transmit signal to pass to the antenna and D100 shorts one leg of a Pi matching network (C2,L100,and C101) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D200 and D100 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm Pi matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D200. TECHNICAL DESCRIPTION Model FRS132 FCC: BBOFRS132 IC: 906B-FRS132 Page 3 F). RADIO CONTROL CIRCUIT A microprocessor (U400) is used to control the transceiver. User stimulus is provided through a tack switch for PTT (push to talk), along with the keypad for channel selection, channel monitor, and page. Pressing the PTT switch instructs U400 to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3-wire serial link to the multi-function radio IC (U300), turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the channel Up/Down buttons instructs U400 to increment or decrement respectively the channel frequency by one channel from the channel previously selected. In receive mode the microcontroller periodically switches on the VCO and receiver …

Text truncated - open the document above for the full version.

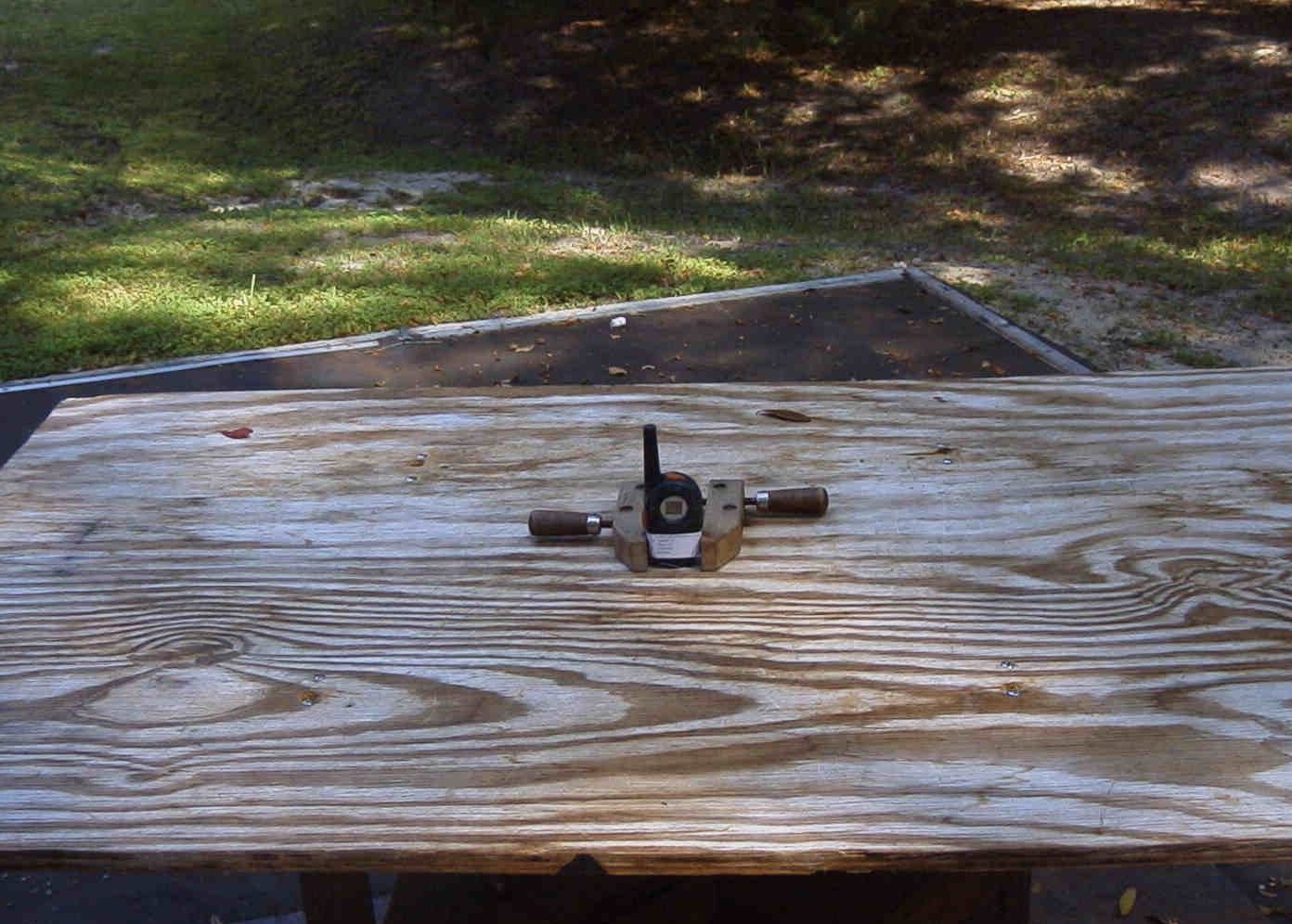

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 TEST REPORT: PAGE 1-2....COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 3......RF POWER OUTPUT PAGE 4......MODULATION CHARACTERISTICS PAGE 5......AUDIO FREQUENCY RESPONSE PLOT PAGE 6......MODULATION LIMITING PLOT – 300 Hz PAGE 7......MODULATION LIMITING PLOT – 1000 Hz PAGE 8......MODULATION LIMITING PLOT – 2500 Hz PAGE 9......AUDIO LOW PASS FILTER PLOT PAGE 10......OCCUPIED BANDWIDTH PAGE 11......OCCUPIED BANDWIDTH PLOT PAGE 12......OCCUPIED BANDWIDTH PLOT - CW PAGE 13......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 14......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 15......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 16......FREQUENCY STABILITY PAGE 17-20...LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 2.........EXTERNAL PHOTOGRAPHS EXHIBIT 3.........INTERNAL PHOTOGRAPHS EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5.........SCHEMATIC EXHIBIT 6.........USER'S MANUAL EXHIBIT 7.........CIRCUIT DESCRIPTION EXHIBIT 8.........TUNING PROCEDURE EXHIBIT 9.........TEST SET-UP PHOTOGRAPH APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 1 of 20 GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2)COBRA ELECTRONICS CORPORATIONwill manufacture the FCCID: BB0FRS132 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. The UUT is a PTT Radio with a maximum duty cycle of 50%. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 6. 2.1033(c) (4) Type of Emission: 10K0F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2000 Bn = 2(3000)+2(2000) = 10K Authorized Bandwidth 12.5 kHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 95.647 The antenna is an integral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 6.0 Volts DC Ice = 0.20A. Pin = 1.2 Watts APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 2 of 20 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in EXHIBIT #7. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 5 of this report. The block diagram is included as EXHIBIT 4 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identifica tion label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 2-3. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 3 of 20 2.1046(a) RF power output. 95.639 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = .5W ERP R.F. POWER OUTPUT TEST SET UP Agilent Spectrum Analyzer TRANSMITTER UNDER TEST WITH INTERNAL ANTENNA <-- 3.0 meters--> SIGNAL DIPOLE Tuned, Calibrated GENERATOR ANTENNA Antenna which may be raised from 1 to 4 meters above ground and changed in polarization Equipment placed 80 cm above ground on a rotatable platform. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 4 of 20 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on page 5. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are shown in pages 6-8. Curves are provided for audio input frequen cies of 300, 1000, and 3000 Hz. 95.637(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1 kHz. See the plot; page 9. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 5 of 20 AUDIO FREQUENCY RESPONSE GRAPH Cobra ElectronicsCorp. PR135 -60 -55 -50 -45 -40 -35 -30 -25 100100010000 Frequency dBmV audio response APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2TestReport.doc Page 6 of 20 MODULATION LIMITING GRAPH – 300 Hz Modulation Limiting Cobra Electronics Corp. PR135 0 500 1000 1500 2000 2500 3000 -50-40-30-20-10 dBmV Deviation 300 Hz APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BB0FRS132 REPORT #: C\COBRA\1005AUT2\1005AUT2Te…

Text truncated - open the document above for the full version.

Test Report S/N: 093002-281BBO Test Date(s): October 02, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) Device Type:Portable UHF FRS PTT Radio Transceiver FCC ID:BBOFRS132 Model(s):FRS132 Modulation:FM (UHF) Tx Frequency Range:462.5625 - 467.7125 MHz Max. RF Output Power:0.5 Watts (ERP) No. of Channels:14 Antenna Type(s):Fixed Battery Type(s):1.5V AAA Alkaline (x4) Max. SAR Measured:0.264 W/kg Face-held / 0.465 W/kg Body-worn Test Report S/N: 093002-281BBO Test Date(s): October 02, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 7 7.0SYSTEM VALIDATION............................................................. 8 8.0SIMULATED TISSUES............................................................. 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS......................................................10 11.0PROBE SPECIFICATION.........................................................11 12.0SAM PHANTOM......................................................................11 13.0LARGE PLANAR PHANTOM.....................................................11 14.0DEVICE HOLDER....................................................................11 15.0TEST EQUIPMENT LIST...........................................................12 16.0MEASUREMENT UNCERTAINTIES............................................13 17.0REFERENCES.......................................................................14 APPENDIX A - SAR MEASUREMENT DATA.............................................15 APPENDIX B - SYSTEM VALIDATION.....................................................16 APPENDIX C - DIPOLE CALIBRATION...................................................17 APPENDIX D - PROBE CALIBRATION....................................................18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............20 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................21 Test Report S/N: 093002-281BBO Test Date(s): October 02, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOFRS132 (Model: FRS132)3 of 21 Portable UHF FRS PTT Radio Transceiver (462.5625-467.7125MHz) 1.0 INTRODUCTION This measurement report demonstrates compliance of the Cobra Electronics Corporation Model: FRS132 Portable UHF FRS PTT Radio Transceiver FCC ID: BBOFRS132 with FCC 47 CFR §2.1093 (see reference [1]) and Health Canada Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS- 102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Device Under Test (DUT) FCC Rule Part(s)47 CFR §2.1093 IC Rule Part(s)RSS-102 Issue 1 (Provisional) Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) Device TypePortable FRS PTT Radio Transceiver FCC IDBBOFRS132 Model(s)FRS132 Serial No.Pre-production ModulationFM (UHF) Tx Frequency Range462.5625 - 467.7125 MHz Max. RF Output Power0.5 Watts (ERP) Battery Type(s)1.5V AAA Alkaline (x4) Antenna Type(s)Fixed Test Report S/N: 093002-281BBO Test Date(s): October 02, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOFRS132 (Model: FRS132)4 of 21 Portable UHF FRS PTT Radio Transceiver (462.5625-467.7125MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment …

Text truncated - open the document above for the full version.
