BBOFRS225CFace Held Family Radio

How to Use Your Cobra M i c ro Ta l k2 - Way Radio 1 Features of This Product • Two-way radio with up to a 2 mile range •14 channels •38 Subcodes • Backlit LCD • Roger beep confirmation tone • Call feature • SuperFlex™ antenna • Water Resistant • Speaker/Microphone jacks • Belt clip • Wrist strap • Lock Function Contents Features..........................................................................1 Family Radio Service................................................A1 FCC Warnings Included Accessories Controls & Indicators................................................A2 Our Thanks to You......................................................A3 Customer Support...................................................A3 Operating your microTALK Battery Installation...................................................2 Turning On..................................................................3 Illuminating the Display........................................3 Auto Squelch.............................................................4 Maximum Range Extender/Auto Monitor......4 Select Channel..........................................................5 Select CTCSS Subcode............................................5 Calling Another Party.............................................6 Talking To Another Party.......................................6 Roger Beep Confirmation Tone...........................7 Listening For Another Party.................................7 Lock Function............................................................8 microTALK Range.....................................................9 Making Life Easier And Safer...............................10 microTALKSNAP Removable Front....................11 External Microphone/Speaker Jack...................12 Caring for Your microTALK....................................14 Frequency Ranges.....................................................16 microTALK Specifications.......................................16 Limited Two Year Warranty....................................18 Optional Accessories................................................19 Order Form....................................................................20 If You Think You Need Service.............Back Cover FRS_225 12/29/00 2:24 PM Page 1 Turnthe On/Off/Volume switch.An audible “tone”will indicate the unit is on. Pull lock tab down to remove battery cover. Insertthree “AA” batteries. Position batteries according to po l a ri ty marki n g s. Operation 3 Operation 2 Note Batteries are not included with microTALK 2-way radio. Always use 3 high q u a l i ty AA alkaline batte ri e s or optional batte ry pack (sold separa te ly ) . Only the Cobra NiMH bat- tery (Part #FA-AA) pack can be recharged. Note When batteries are low the i n d i ca tor willb l i n k . Note Visit Cobra Electronics ( w w w. co b ra e l e ct ro n i c s. co m ) for information abo u t optional batte ry pack and d e s k top charger acce s s o ri e s. Install Batteries Battery Installation 12 Turning On Your microTALK Note Whenever the unit is on you can receive communi- cations. Turning On Your microTALK Illuminating the Display Illuminating the Display 1 1 Push and releaseLIGHT/MAX RANGE button to illuminate display for ten seconds. FRS_225 12/29/00 2:24 PM Page 2 Selectany of the 14 channels by pushing the channel up or down buttons. Select Main Channel (1-14) Turn on the microTALK 2-Way Radio. Operation 5 Select Channel Note Units must be on same channel and subcode to communicate. Note Channels 8-12 generally are less used and give bet- ter results for communica- tions in most areas. Note Push and hold the channel button for fast channel advance. Operation 4 Note To learn more about the range of your microTALK, see page 9. Range is dependent on battery condition and geographic terrain. Auto Squelch Maximum Range Extender 2 1 Maximum Range Extender Auto Squelch can be temporarily removed to allow all signals to enter (Maximum Range Extender). Auto Squelch Your microTALK is equipped with Auto Squelch, which automatically shuts off weak transmissions and unwanted noise due to terrain conditions or if you have reached your range limit. 1 Push and holdLIGHT/MAX RANGE button to allow all signals to enter. Auto Monitor Auto Monitor When the signal you want to hear is consistently weak,you may place the radio in Maximum Range mode without having to constantly hold the button:Press and hold the Maximum Range Extender button for five seconds. Two beeps confirm Auto Monitor is on.To return to normal operation,momentarily press the Maximum Range Extender button again or change channels. Note Selecting a CTCSS subcode will allow you to only hear conversations on that selection.For example, you may be with a group of friends. If all of you select channel 7 and subcode 1,you will hear your friends but will not hear anybody else on channel 7,subcodes 2 through 38. Select CTCSS Subcode (00-38) Press the mode butto n .After a short delay,s m a l l n u m bers will flash next to the channel display LCD indicating the subc h a n n e l . Select CTCSS Subcode 1 Select subcode number by moving the chan- nel button up or down. When the desired code is displayed push the mode button and release. An audible tone will confirm your selection. 2 3 FRS_225 12/29/00 2:24 PM Page 4 2 The TX / RX indicato r will be displayed. Operation 7 Note While the TALK button is depressed you cannot receive incoming calls. Note Both units must be ON and tuned to the same channel. Your incoming “Call”signal volume is dependent on the unit volume s e t t i n g. Roger Beep Confirmation Tone Listening For Another Party Operation 6 Calling Another Party To alert another party that you wish to communicate: Talking To Another Party Push and releaseCALL button.The unit you are calling will hear a two second ringing tone. Roger Beep Confirmation Tone Calling Another Party Note While the TALK button is depressed you cannot receive incoming calls. Talking To …

Text truncated - open the document above for the full version.

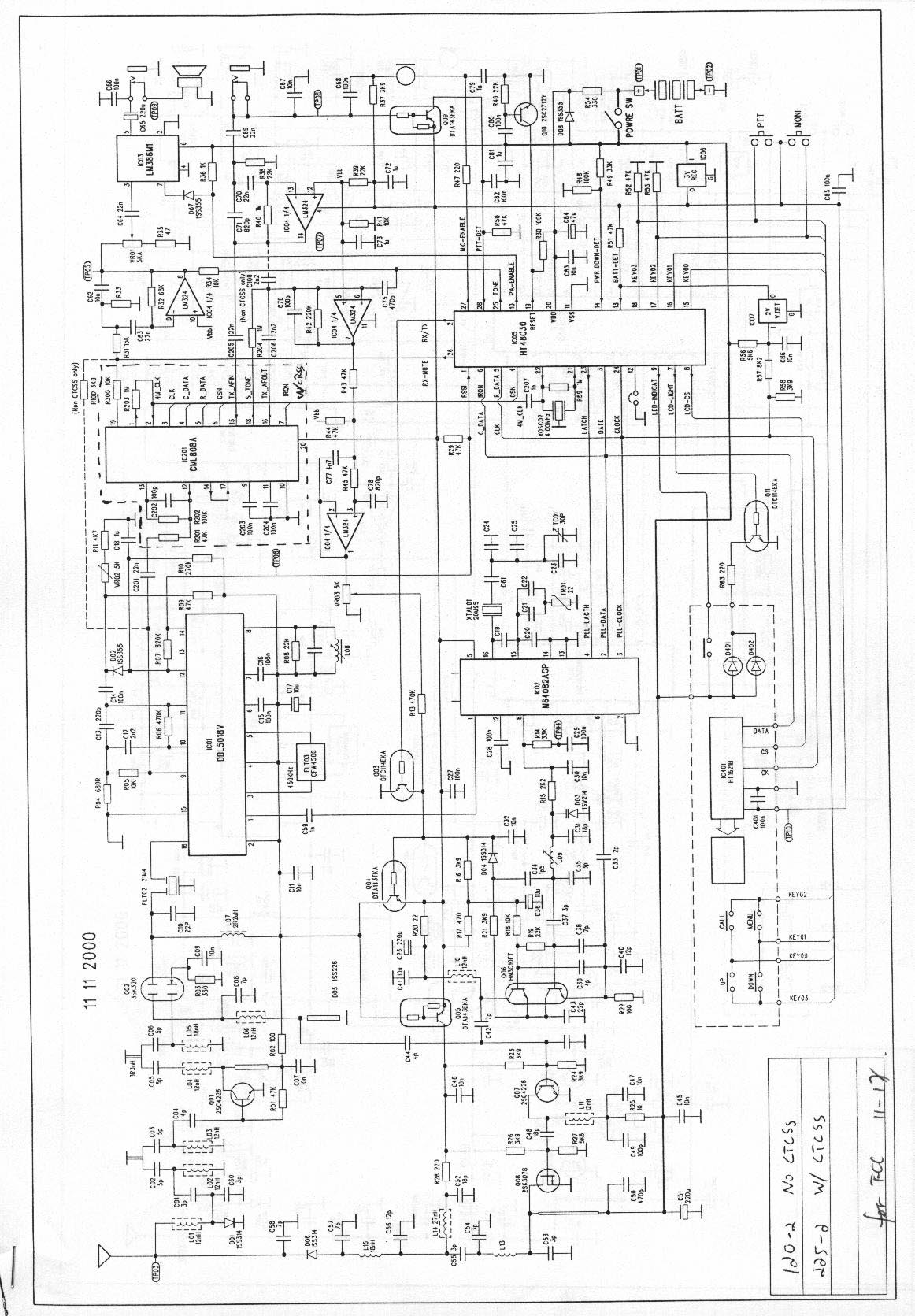

ANT. BPF 462~468MHz RFAMP 462~468MHzBPF MIXER 3SK320 21.4MHz BPF 1 s t I.F. VR02 SQ Control FM I.F & Demodulation IC01 450KHz2 nd I.F. IC04C De-emphasis Rx-MUTE Vo lume PA IC03 Speaker Tone PA-enable P10 P26 P25 P13 IC07 Batt-LowDetect Keyboard P16~P18 T o all c ircu its PWR Battery4.5V P2 Tx/Rx MCUIC05 Vdd P7~P9 LCD P 3.P 23,P 24 PLLIC02 VCO MIC-ENABLE MIC IC04D IC04B IC04A PRE-AMP Pre-Emphasis&Lim iter Act iveLPF VR03Mod.Control driver 2SC4226 RF PowerAMP 2SK3078 LPF 462~468HMz IC201 CTCSS Encode/Decode IC Rx-IN Rx-OUT CTCSS CTR P4-6 Tx-IN Tx-OUT

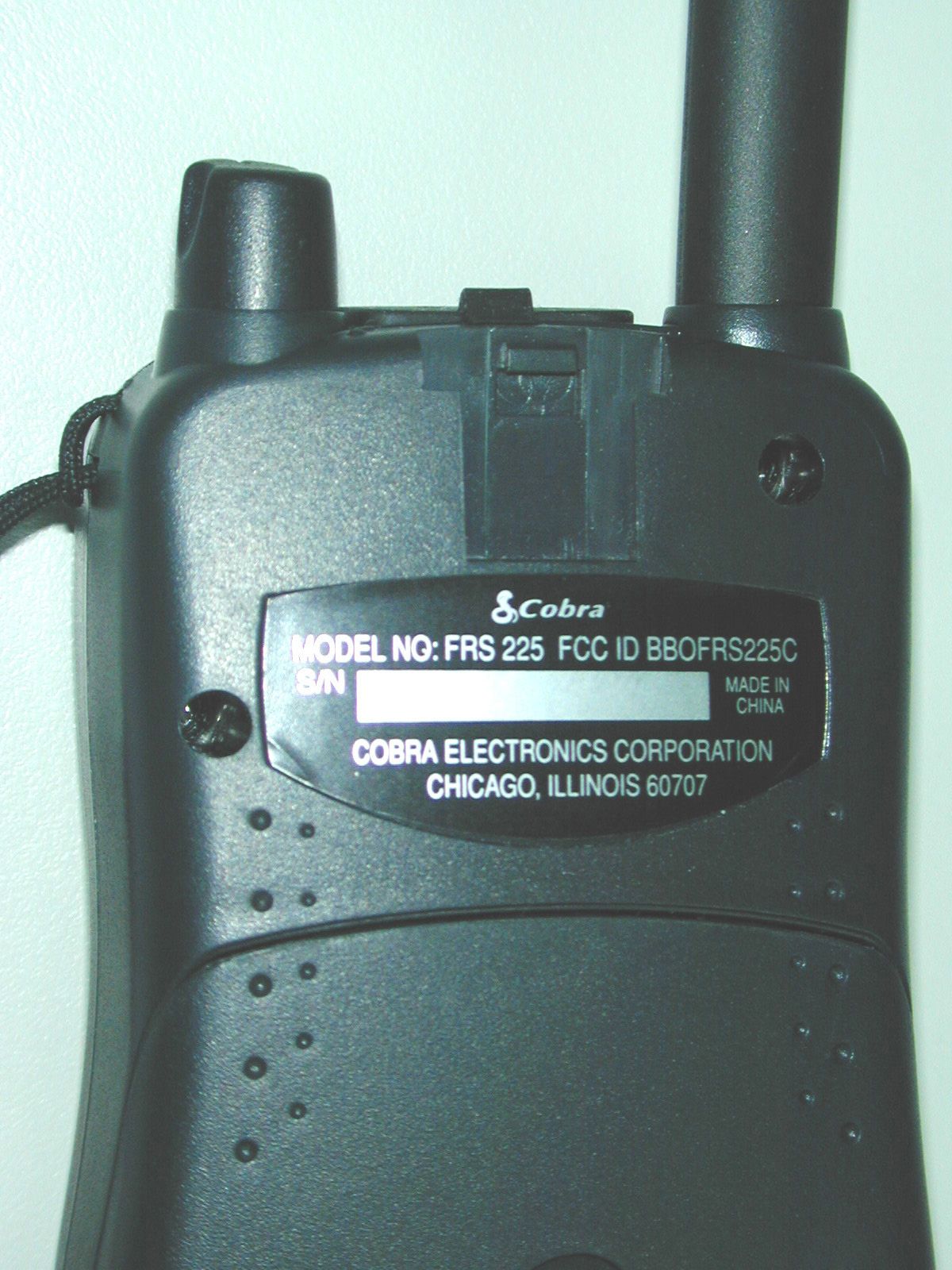

Front View Back View

Circuit Board – Track Side Circuit Board – Component Side

FRS 120/225 TX alignment procedure 1) Adjust power supply to 4.5V, turn on the unit. 2) In RX mode, set to CH1, measure the VCO voltage. 3) Adjust the VCO voltage to 0.75V by tuning the coil L09. 4) Press PTT button, the unit then in TX mode, the VCO voltage will change to about 1V +/- 0.2V. 5) Measure the TX frequency, adjust the frequency to 462.5625MHz +/- 100Hz by Variable-capacitor TC01 (30pF). 6) Also measure the TX power within the range 500mW +/- 100mW. 7) Release the PTT button, change to CH14. 8) Press the PTT button again, measure the TX frequency which must be 467.7125MHz +/-300Hz and also measure the TX power as in step 6. 9) The VCO voltage in CH14 TX mode must less than 2.7V.

How to Use Your Cobra M i c ro Ta l k2 - Way Radio 1 Features of This Product • Two-way radio with up to a 2 mile range •14 channels •38 Subcodes • Backlit LCD • Roger beep confirmation tone • Call feature • SuperFlex™ antenna • Water Resistant • Speaker/Microphone jacks • Belt clip • Wrist strap • Lock Function Contents Features..........................................................................1 Family Radio Service................................................A1 FCC Warnings Included Accessories Controls & Indicators................................................A2 Our Thanks to You......................................................A3 Customer Support...................................................A3 Operating your microTALK Battery Installation...................................................2 Turning On..................................................................3 Illuminating the Display........................................3 Auto Squelch.............................................................4 Maximum Range Extender/Auto Monitor......4 Select Channel..........................................................5 Select CTCSS Subcode............................................5 Calling Another Party.............................................6 Talking To Another Party.......................................6 Roger Beep Confirmation Tone...........................7 Listening For Another Party.................................7 Lock Function............................................................8 microTALK Range.....................................................9 Making Life Easier And Safer...............................10 microTALKSNAP Removable Front....................11 External Microphone/Speaker Jack...................12 Caring for Your microTALK....................................14 Frequency Ranges.....................................................16 microTALK Specifications.......................................16 Limited Two Year Warranty....................................18 Optional Accessories................................................19 Order Form....................................................................20 If You Think You Need Service.............Back Cover FRS_225 3/2/01 3:23 PM Page 1 Pull lock tab down to remove battery cover. Insertthree “AA” batteries. Position batteries according to po l a ri ty marki n g s. Operation 2 Note Batteries are not included with microTALK 2-way radio. Always use 3 high q u a l i ty AA alkaline batte ri e s or optional batte ry pack (sold separa te ly ) . Only the Cobra NiMH bat- tery (Part #FA-AA) pack can be recharged. Note When batteries are low the i n d i ca tor willb l i n k . Note Visit Cobra Electronics ( w w w. co b ra e l e ct ro n i c s. co m ) for information abo u t optional batte ry pack and d e s k top charger acce s s o ri e s. Install Batteries Battery Installation 12 FRS_225 3/2/01 3:23 PM Page 2 Turnthe On/Off/Volume switch.An audible “tone”will indicate the unit is on. Operation 3 Turning On Your microTALK Note Whenever the unit is on you can receive communi- cations. Turning On Your microTALK Illuminating the Display Illuminating the Display 1 1 Push and releaseLIGHT/MAX RANGE button to illuminate display for ten seconds. FRS_225 3/2/01 3:23 PM Page 3 Operation 4 Note To learn more about the range of your microTALK, see page 9. Range is dependent on battery condition and geographic terrain. Auto Squelch Maximum Range Extender Maximum Range Extender Auto Squelch can be temporarily removed to allow all signals to enter (Maximum Range Extender). Auto Squelch Your microTALK is equipped with Auto Squelch, which automatically shuts off weak transmissions and unwanted noise due to terrain conditions or if you have reached your range limit. 1 Push and holdLIGHT/MAX RANGE button to allow all signals to enter. Auto Monitor Auto Monitor When the signal you want to hear is consistently weak,you may place the radio in Maximum Range mode without having to constantly hold the button:Press and hold the Maximum Range Extender button for five seconds. Two beeps confirm Auto Monitor is on.To return to normal operation,momentarily press the Maximum Range Extender button again or change channels. FRS_225 3/2/01 3:23 PM Page 4 Selectany of the 14 channels by pushing the channel up or down buttons. Select Main Channel (1-14) Turn on the microTALK 2-Way Radio. Operation 5 Select Channel Note Units must be on same channel and subcode to communicate. Note Channels 8-12 generally are less used and give bet- ter results for communica- tions in most areas. Note Push and hold the channel button for fast channel advance. 2 1 Note Selecting a CTCSS subcode will allow you to only hear conversations on that selection.For example, you may be with a group of friends. If all of you select channel 7 and subcode 1,you will hear your friends but will not hear anybody else on channel 7,subcodes 2 through 38. Select CTCSS Subcode (00-38) Press the mode butto n .After a short delay,s m a l l n u m bers will flash next to the channel display LCD indicating the subc h a n n e l . Select CTCSS Subcode 1 Select subcode number by moving the chan- nel button up or down. When the desired code is displayed push the mode button and release. An audible tone will confirm your selection. 2 3 FRS_225 3/2/01 3:23 PM Page 5 2 The TX / RX indicato r will be displayed. Note Both units must be ON and tuned to the same channel. Your incoming “Call”signal volume is dependent on the unit volume s e t t i n g. Operation 6 Calling Another Party To alert another party that you wish to communicate: Talking To Another Party Push and releaseCALL button.The unit you are calling will hear a two second ringing tone. Calling Another Party Note While the TALK button is depressed you cannot receive incoming calls. Talking To Another Party 1 34 1 ReleaseTALK button and listen for response. Hold mic about 2 inches f rom mouth. Speak in a n o rm…

Text truncated - open the document above for the full version.

ENGINEERING STATEMENT For Type Certification of Cobra Electronics Corporation Model No: FRS 225 FCC ID: BBOFRS225C I am an Electronics Engineer, a principal in the firm of Hyak Laboratories, Inc., Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. Hyak Laboratories, Inc. has been authorized by Cobra Electronics Corporation to make type certification measurements on the FRS 225 transceiver. These tests made by me or under my supervision in our Springfield laboratory. Test data and documentation required by the FCC for Type Certification are included in this report. The data verifies that the above mentioned transceiver meets FCC requirements and Type Certification is requested. ______________________________ Rowland S. Johnson Dated: November 28, 2000 A. INTRODUCTION The following data are submitted in connection with this request for type certification of the FRS 225 transceiver in accordance with Part 2, Subpart J of the FCC Rules. The FRS 225 is a portable, battery operated, UHF, frequency modulated transceiver intended for 12.5 kHz channel family radio service applications in the 462.5625-467.7125 MHz band. It operates from a nominal 4.5 Vdc battery supply. MFR rated output power is 0.5 watts ERP. B. GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Paragraph 2.983 of the Rules) 1. Name of applicant: Cobra Electronics Corporation 2. Identification of equipment: FCC ID: BBOFRS225C a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as a separate exhibit. 3. Quantity production is planned. 4. Technical description: a. 11k0F3E emission b. Frequency range: 462.5625 - 467.7125 MHz. c. Operating power of transmitter is fixed at the factory at less than 0.5 W ERP. d. Maximum power permitted is 0.5 watts, and the FRS 225 fully complied with that power limitation. e. The dc voltage and dc currents at final amplifier: Collector voltage: 4.3 Vdc Collector current: 0.54 A f. Function of each active semiconductor device: See Appendix 1. g. Complete schematic diagram is submitted as a separate exhibit. h. A draft instruction manual is submitted as a separate exhibit. i. The transmitter tune-up procedure is submitted as a separate exhibit. 2 B. GENERAL INFORMATION (continued) j. A description of circuits for stabilizing frequency is included in Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included in Appendix 3. l. Not applicable. 5. Data for 2.985 through 2.997 follow this section. C. RF Power Output (Paragraph 2.985(a) of the Rules) The FRS 225 has a permanently attached built-in antenna without provisions for a coaxial connector. RF power output was determined by substitution. TABLE 1 Operating Freq., MHz Power watts into a dipole antenna 462.5625 0.495 D. MODULATION CHARACTERISTICS 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with an Audio Precision System One integrated test system. 2. Modulation limiting curves are shown in Figure 2, using a Boonton 8220 modulation meter. Signal level was established with a Audio Precision System One integrated test system. The curves show compliance with paragraphs 2.987(b). 3. Figure 3 is a graph of the post-limiter low pass filter which provides a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One integrated test system on the Boonton 8220 modulation meter audio output. 3 4. Occupied Bandwidth (Paragraphs 2.989(c) of the Rules) Figure 4 is a plot of the sideband envelope of the transmitter output taken with a Tektronix 494P spectrum analyzer. Modulation corresponded to conditions of 2.989(c)(1) and consisted of 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2926 Hz, the frequency of maximum response. Measured modulation under these conditions was 1.9 kHz. Emission designator: (2M + 2D) (2 x 3 kHz) + (2 x 2.5 kHz) = 11k0F3E 4 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: BBOFRS225C FIGURE 1 5 FIGURE 2 AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: BBOFRS225C FIGURE 2 6 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: BBOFRS225C FIGURE 3 7 FIGURE 4 OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 12.5 kHz (6.25-12.5 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (12.5-31.25 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 40 than 250% of the authorized (P = 0.495) bandwidth (over 31.25 kHz) OCCUPIED BANDWIDTH FCC ID: BBOFRS225C FIGURE 4 8 D. MODULATION CHARACTERISTICS (Continued) The plots are within FCC limits. The horizontal scale frequency) is 10 kHz per division and the vertical scale amplitude) is a logarithmic presentation equal to 10 dB per division. E. SPURIOUS EMISSIONS AT THE ANTENNA TERMINALS (Paragraph 2.991 of the Rules) The FRS 225 has a permanently attached antenna. There is no connector for an external antenna. Therefore, no antenna terminal conducted measurements were made. F. DESCRIPTION OF RADIATED SPURIOUS MEASUREMENT FACILITIES A description of the Hyak Laboratories’ radiation test facility is a matter of record with the FCC. The facility was accepted for radiation measurements from 25 to 1000 MHz on October 1, 1976 and is currently listed as an accepted site. G. MEASUREMENTS OF SPURIOUS RADIATION Measurements of radiated spurious emissions from the FRS 225 were made by substitution with a Tektronix 494P spectrum analyzer using Singer DM-105 for the measurements to 1…
