BBOIRAD100RADAR DETECTOR WITH BLUETOOTH

Quick Start Guide Printed in China Part No. 480-667-P Version B Thank you for purchasing Cobra iRadar ™ , the world’s first connected radar/laser/red light camera detector. Cobra iRadar uses Bluetooth ® wireless technology to connect your iPhone ® /iPod touch ® to display radar alerts and change settings. Follow these simple steps to get your Cobra iRadar up and running. Cobra iRadar is made for: iPod touch (3rd Generation) iPhone 3GS iPhone 3G. NOTE: *Location-based alerts and GPS settings available only with iPhone. Only radar/laser alerts and settings will work with iPod touch 3rd generation or higher. Connecting with Cobra iRadar Plug in your Cobra iRadar detector unit using the included cigarette lighter adapter. Turn unit on. A red LED will light. On your iPhone/iPod touch, enter the Settings menu. Press General, then Bluetooth. Make sure Bluetooth is switched to ON. NOTE: This device complies with part 15 of FCC rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. CAUTION: Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment. iRadar 100 should appear under Devices. Note: Your iPhone/iPod touch may take 30 seconds to one minute to recognize the device. It will initially appear as “Headset” and will then turn into iRADAR 100. If you cannot see the device, try restarting both iRadar and your iPhone/iPod touch and re-do steps 1 through 5. Press iRADAR 100, then press Pair. The LED on the detector unit will flash blue. When pairing has been completed, it will turn solid blue. Press Yes to install Cobra iRadar application from the App Store. If you already have the Cobra iRadar App, you can press NO. Now open the App and enjoy using iRadar! Cobra iRadar App Dashboard Display speedometer, compass and car battery voltage. View Map* View user-marked locations, red light camera locations in your area and GPS-based speed & direction of travel. Settings Configure your Cobra iRadar settings. Note: All radar/laser/red light camera detector settings will be inactive if you are not paired with Cobra iRadar or are out of range. To download the App manually, enter the App Store on your iPhone/iPod touch and search for “Cobra iRadar” and follow the onscreen instructions. For more information about AURA ™ , please visit: www.cobra.com/AURA. For more information on iRadar accessories, go to: www.cobrairadar.com.

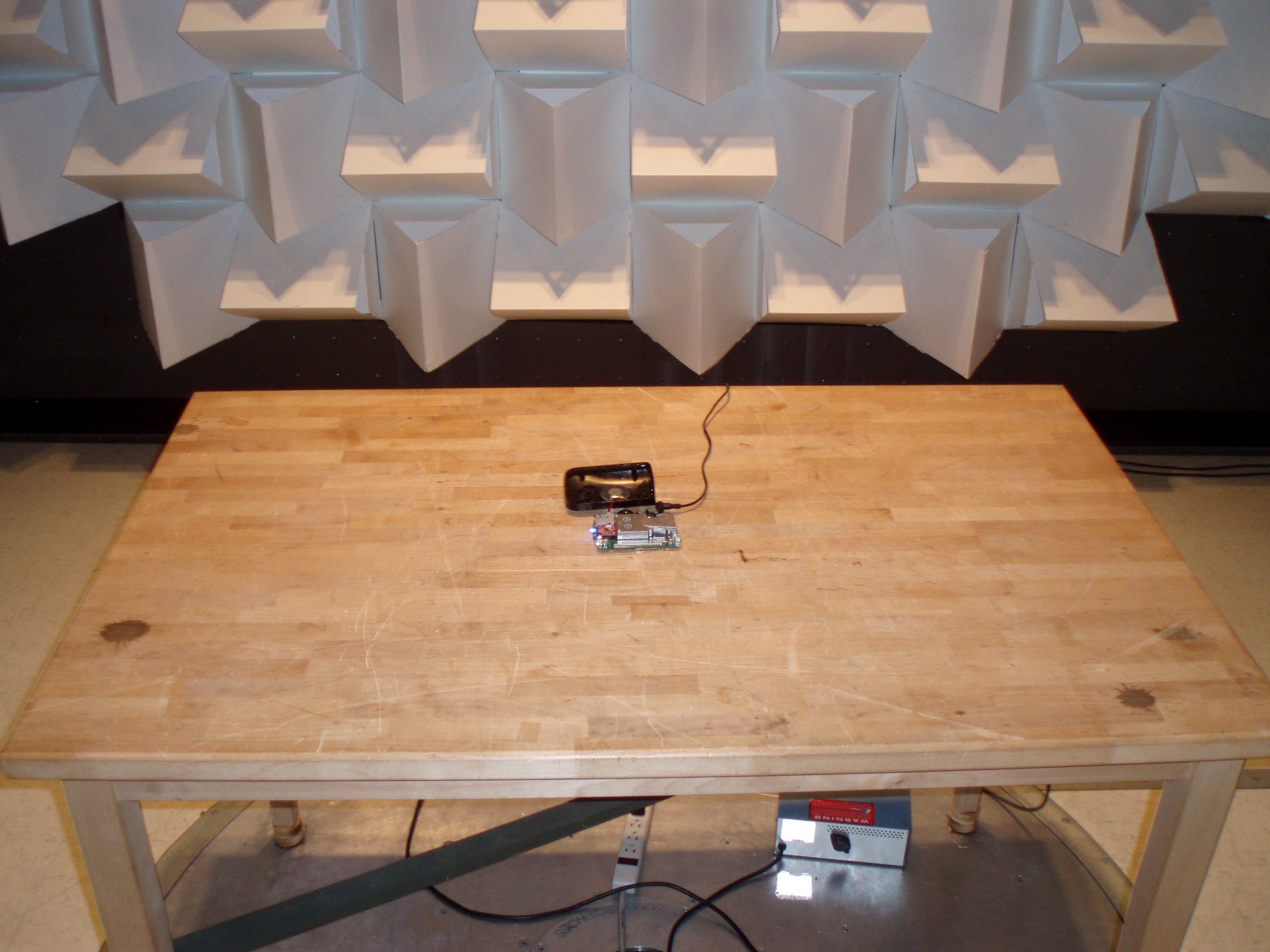

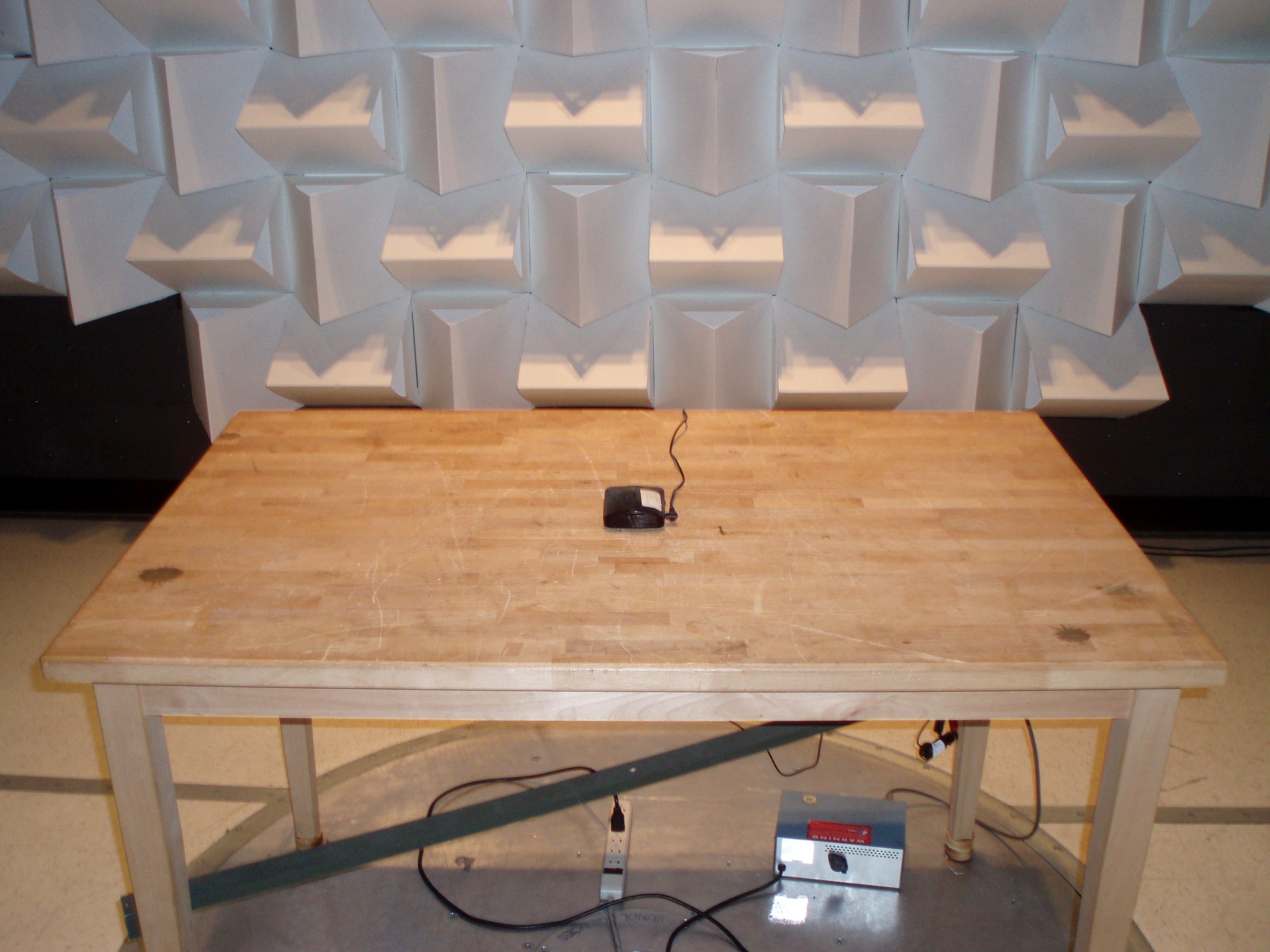

August 12, 2010 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC IDs - BBOIRAD100 and BBORBTM100, Request for Confidentiality To Whom It May Concern: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: IRAD100 Block Diagrams IRAD100 Circuits (Schematics) IRAD100 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of September 2010 (expected ship date): IRAD100 External Photos IRAD100 Test Setup Photos IRAD100 Quick Start Guide ( Manual) IRAD100 Internal Photos Sincerely, Ron Kabler Director, Engineering Cobra Electronics Corporation

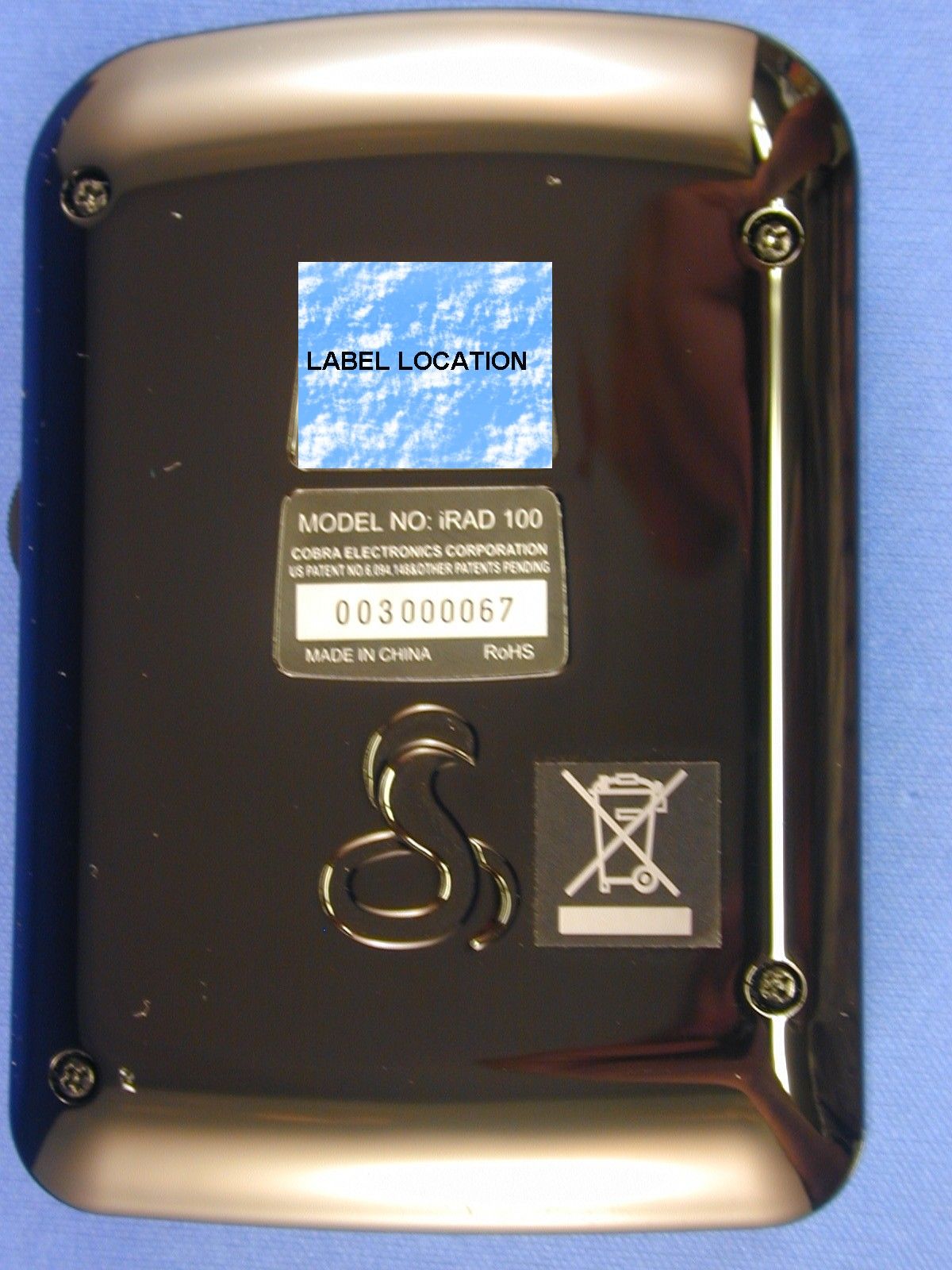

TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] 8/18/2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Cobra Electronics Corp.’s FCC ID: BBOIRAD100 To Whom It May Concern: When the application for certification was originally submitted, the label sample uploaded contained an incorrect FCC Identifier which was discovered after uploading. The test report had to be revised to contain the correct FCC Identifier and therefore the test report and label sample were superceded. Should you have any questions regarding this, please do not hesitate to contact us. Regards, Sharon Hoffman TIMCO ENGINEERING, INC.

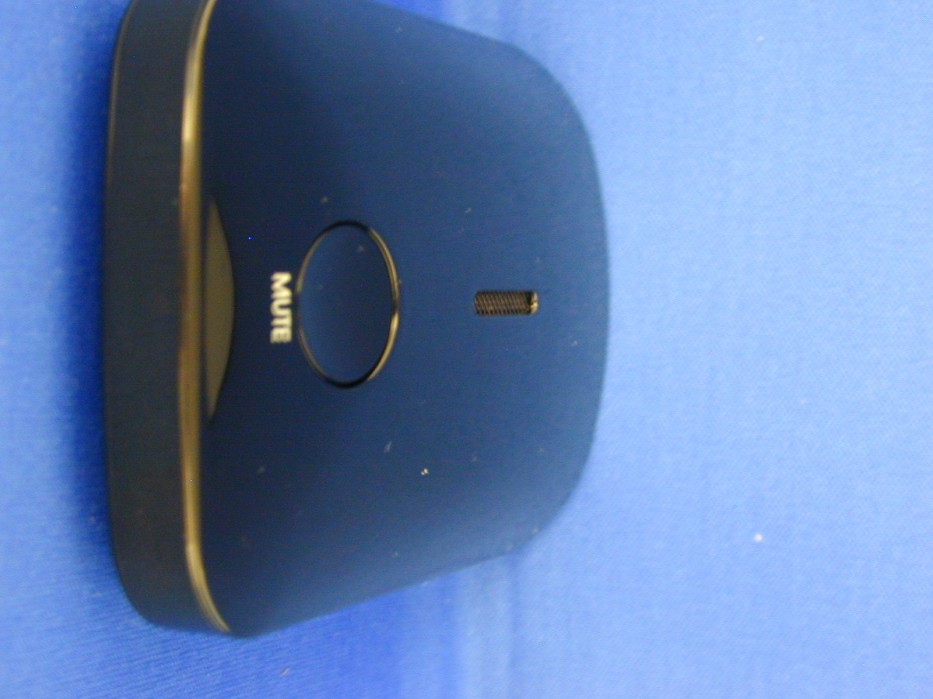

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO1RADIO100 EXTERNAL PHOTOS

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBO1RADIO100 INTERNAL PHOTOS

FCC PART 15 RADAR DETECTOR REPORT Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOIRAD100 Model Number IRAD-100 Product Description RADAR DETECTOR WITH BLUETOOTH Date Sample Received 7/8/2010 Date Tested 8/2/2010 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 1643BT10TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOIRAD100 REPORT #: C\COBRA\1643BT10\1643BT10TestReport.doc Page 2 of 11 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................................. 3 GENERAL INFORMATION .......................................................................................................... 4 TEST EQUIPMENT LIST ............................................................................................................. 5 TEST PROCEDURES .................................................................................................................. 6 RADIATED SPURIOUS EMISSIONS ........................................................................................... 8 VERTICAL PLOT......................................................................................................................... 9 HORIZONTAL PLOT ................................................................................................................. 10 RADIATED EMISSIONS TEST SETUP PHOTO 1 ...................................................................... 11 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOIRAD100 REPORT #: C\COBRA\1643BT10\1643BT10TestReport.doc Page 3 of 11 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 8/2/2010 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOIRAD100 REPORT #: C\COBRA\1643BT10\1643BT10TestReport.doc Page 4 of 11 GENERAL INFORMATION The test results relate only to the items tested. DUT Description RADAR DETECTOR WITH BLUETOOTH FCC ID BBOIRAD100 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOIRAD100 REPORT #: C\COBRA\1643BT10\1643BT10TestReport.doc Page 5 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOIRAD100 REPORT #: C\COBRA\1643BT10\1643BT10TestReport.doc Page 6 of 11 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detecto…
