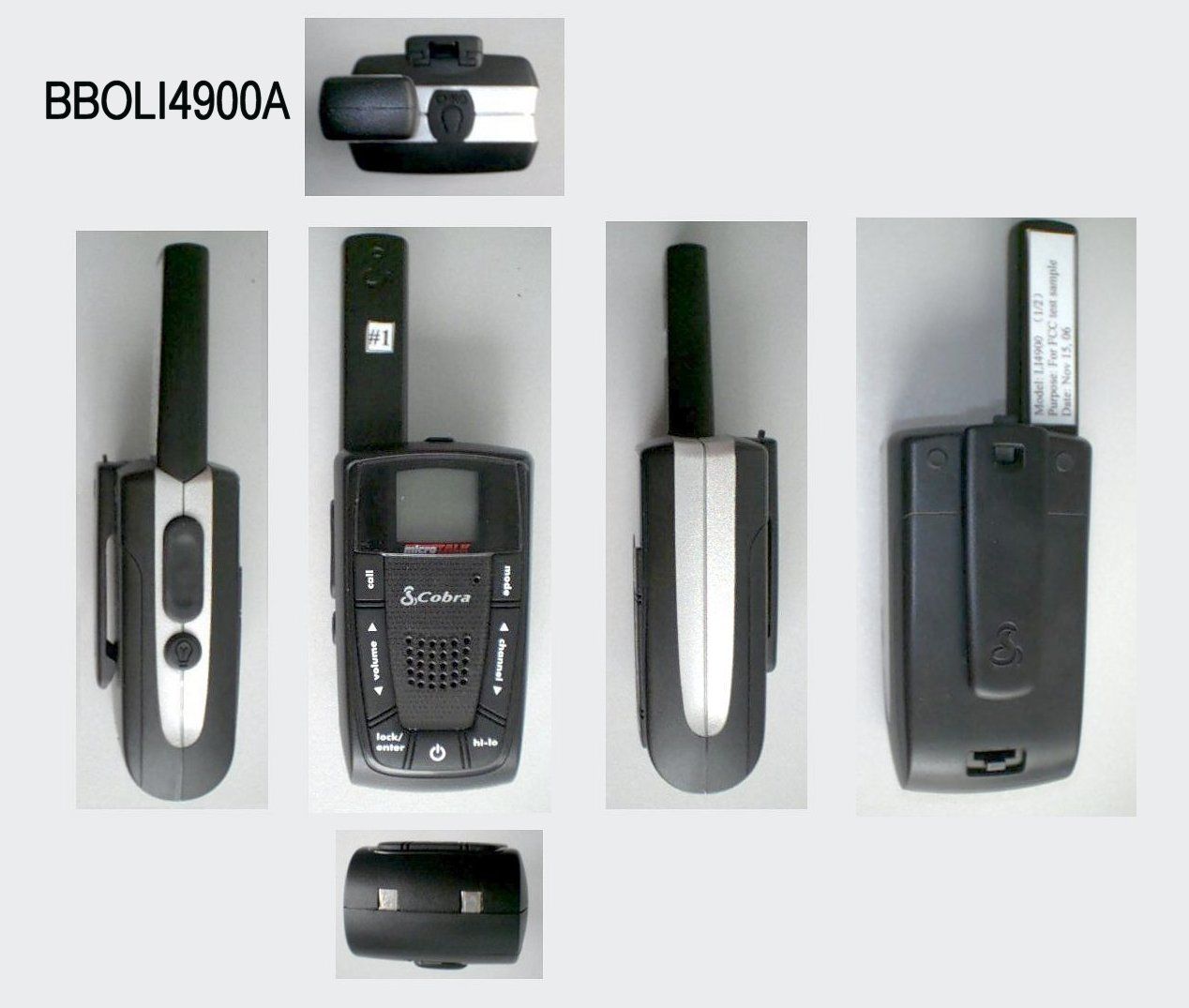

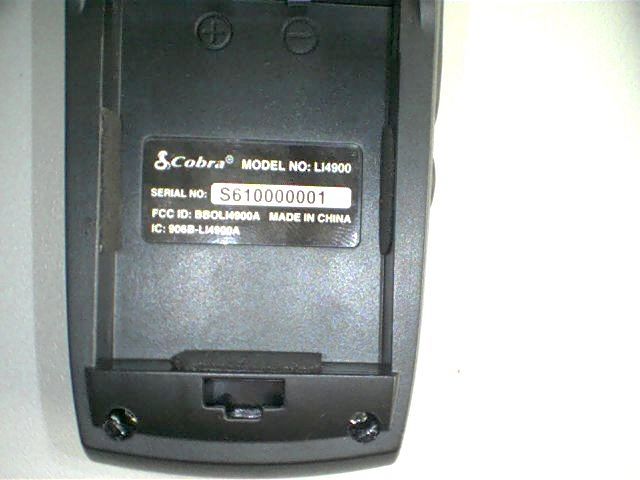

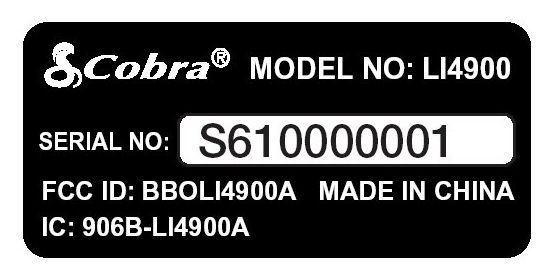

BBOLI4900AFRS/GMRS RADIO

Owner’s Manual NothingComes Close to a Cobra ® TWO-WAY RADIO MODEL LI 4900 WX Printed in Thailand Part No. 480-316-P Version A LI4900WX.qxd:9512-PR3900-2DXVP 11/6/06 9:54 AM Page FC1 A1 Making Life Easier and Safer Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK radio while on the go. Carrying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. Simply squeeze the clip and place it where you prefer. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer ©2007 Cobra Electronics Corporation™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Customer Assistance Belt Clip LI4900WX.qxd:9512-PR3900-2DXVP 11/6/06 9:54 AM Page A1 A2 Product Features Introduction 1 2 3 4 5 7 6 10 12 13 9 1. Antenna 2. External Speaker/ Microphone/Charge Jack 3. Backlit LCD Display 4.ModeButton 5.Channel Up/DownButton 6.Hi-Lo PowerButton 7. Speaker/Microphone 8.On/Off PowerButton 9.Lock/Enter Button 10.Volume Up/Down Button 11.Light/Max Range Button 12.TalkButton 13.CallButton 14. Wrist Strap Connector 15. Belt Clip 16. Battery Compartment 17. Battery Door Latch 14 15 16 17 8 11 LI4900WX.qxd:9512-PR3900-2DXVP 11/6/06 9:54 AM Page A2 A3 Product Features Introduction Backlit LCD Display Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other related information. Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 10 Channel NOAA All Hazards Radio •121 Privacy Codes (38 CTCSS codes/ 83 DCS codes) • Hands-Free Operation (VOX) • VibrAlert ® Silent Paging • 10 Channel Memory • Signal Strength Meter • Scan Channel, privacy codes, memory • Selectable Hi•Low Power In GMRS • Backlit LCD Display • Button Lock • Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack • Roger Beep Selectable on/off • Battery/ Power Saver • Keystroke Tones Selectable on/off • Auto Squelch • Maximum Range Extender •Belt Clip 1 2 3 4 6 8 9 12 1415 17 10 13 1. Signal Strength Meter Icon 2. Call Alert and VibrAlert Icon 3. Lock Icon 4. Keystroke Tones Icon 5. DCS Icon 6. Roger Beep Icon 7. VOX Icon 8. Memory Icon 9. CTCSS Icon 10. Memory Location Number 11. Privacy Code Numbers 12. Receive/Transmit Icon 13. Hi-Low Power Icons 14. Battery Low Indicator 15. Scan Icon 16. Power Saver Icon 17. Channel Numbers 5 7 11 16 LI4900WX.qxd:9512-PR3900-2DXVP 11/6/06 9:54 AM Page A3 OperationCustomer AssistanceWarranty 1 Introduction Caring for Your microTALK Radio • Your microTALK radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Rechargeable Battery Pack and Desktop Charger • To install or replace battery pack: 1.Remove belt clip by releasing belt clip latch and sliding clip up. 2.Pull up on the battery door latch to remove the battery compartment cover. 3.Insert lithium ion battery pack. Position battery pack according to polarity markings. 4.Replace battery compartment cover and belt clip. Estimated operation time on full charge: 10 hours. Rechargeable battery packs must be recycled or disposed of properly in compliance with all applicable laws. They may not be thrown in the trash. Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra ® for recycling. Wrap battery packs carefully and mail postage prepaid to: Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 USA, Attn: Battery Recycling. Do not put battery packs into fire or expose to high heat. They may explode. Pull Up Latch Remove Belt Clip Insert Battery Pack LI4900WX.qxd:9512-PR3900-2DXVP 11/6/06 9:54 AM Page 1 2 For charging microTALK radio(s) in desktop charger: 1. Insert radio(s) into desktop charger as shown. 2.Insert round connector of 120-volt adapter into jack on back of charger. 3.Plug 120-volt adapter into electrical outlet. If charging light is not on, check position of radio. Radio should be upright. The charge indicator light will stay onas long as the radio is in the charging well. It normally takes about 15 hours to fully recharge battery pack. Battery pack will not be damaged if it stays in the charging well longer than that. Note:To charge a single radio, you can bypass the desktop charger and simply insert the wall adapter’s round connector directly into the speaker/microphone/charge jack located on the top of the radio. Use only the supplied rechargeable batteries and charger for recharging y…

Text truncated - open the document above for the full version.

28 November 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI4900A Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radio technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 8.4VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the trimmer capacitor (VC101) such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 8.4VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 0.5 Watt output power with a maximum error of +/- 0.1 Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone positive terminal. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR101 for +/- 2.0 KHz maximum deviation. F. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before proceeding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 8.4 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication.

LI4900A.BOM Bill Of Materials for Li4900-USA.sch on Thu Nov 16 10:25:44 2006 ----------------------------------------------------------------------------------------------------------- -- Item Qty Reference VALUE ----------------------------------------------------------------------------------------------------------- -- 1 1 U102 AN29160AA 2 1 ANT1 3 1 BAT101 8.4V(4.2X2) Li ion 4 1 C170 000 5 1 C217 100P 6 14 C6 C12 C149 C162 C201 C211 C218 C224 C227 C258 C267 102 C269-270 C277 7 19 C25 C28 C31 C45 C48 C106 C108 C141 C154 C160 C169 C175 C220 103 C252 C263 C274 C293 C301 C308 8 30 C22 C24 C26 C32 C34 C42-43 C46 C116-118 C120-121 C132 C134 104 C145-146 C164 C166 C171-172 C180-181 C187-188 C219 C251 C287 C298 C307 9 20 C1-3 C8 C100-101 C103-105 C109 C113-114 C131 C150 C153 C178 105 C186 C247 C282 C292 10 2 C14 C111 10P 11 7 C35 C44 C107 C167 C182 C230 C268 10U 12 1 C143 123 13 5 C11 C208 C210 C226 C233 12P 14 2 C148 C159 150P 15 3 C127 C137 C151 152 16 4 C19 C221 C275 C281 15P 17 5 C204 C256 C266 C272 C300 1P 18 1 C23 2.2uF 19 2 C176-177 20P 20 1 C40 220P 21 1 C147 222 22 3 C129 C168 C174 223 23 1 C184 270P 24 1 C115 273 25 4 C152 C273 C279-280 27P 26 5 C202-203 C216 C260 C278 2P 27 1 C229 30P 28 4 C15 C20 C110 C133 33P 29 1 C138 390P 30 1 C285 39P 31 3 C212 C223 C244 3P 32 13 C9 C17 C33 C41 C50 C125-126 C213 C237 C243 C250 C253 C283 470P 33 5 C135 C173 C190 C199 C299 472 34 7 C4 C29-30 C122 C140 C183 C290 473 35 1 C179 47P 36 2 C262 C306 4P 37 2 C124 C139 560P 38 1 C130 563 39 5 C21 C231 C239 C246 C257 5P 40 10 C5 C36-39 C47 C51 C142 C248 C276 682 41 2 C155 C185 683 42 7 C10 C13 C16 C112 C238 C254 C259 6P 43 7 C206 C232 C240 C264-265 C271 C284 7P 44 2 C205 C255 9P 45 11 C18 C27 C49 C158 C215 C222 C225 C242 C245 C288 C296 NC 46 1 SW3 CALL 47 1 SW8 CH DOWN 48 1 SW9 CH UP 49 1 SW5 HI/LO 50 1 SW7 LAMP 51 1 SW1 LOCK 52 1 SW11 MODE 53 1 SW6 POWER 54 1 SW2 PTT 55 1 SW4 VOL DOWN 56 1 SW10 VOL UP 57 1 C156 100U 58 1 C289 1U 59 1 C165 220U 60 1 C7 22U 61 1 LCD1 LCD DISPLAY 62 1 D1 103CST 63 1 D203 HVU131 64 3 D201-202 D205 KDS114 第 1 页 LI4900A.BOM 65 1 D3 NC 66 1 D2 ISS364 67 5 D4 D10-13 103CST 68 2 D500-501 1N4001 69 1 D9 IN4001 70 4 D5-8 103CST 71 1 D14 9V1 72 1 U103 BRC24C02 73 1 U101 EM78P568 74 1 X101 21.25MHz 75 1 X102 32.768K 76 1 X103 450KHz 77 1 F202 21.7M 78 1 F101 450HTW 79 1 F201 F462 80 1 JK500 ST-369-5S 81 1 JK101 EXT_SPK/MIC 82 1 L5 000 83 1 L222 100nH 84 1 L210 15nH 85 1 L211 1U5 86 2 L215 L228 1uH 87 3 L208 L225-226 22nH 88 1 L4 2U2 89 2 L206-207 33nH 90 7 L3 L201-202 L204 L216 L219 L224 3T5 91 4 L2 L212-213 L223 47nH 92 1 L227 56nH 93 3 L203 L217-218 5T5 94 1 L6 NC 95 1 U3 LDO-814 96 4 LED301-302 LED500-501 LCDLIGHT 97 1 MIC101 WM-54BH 98 1 M 1K 99 1 Q10 2SK3079 100 1 Q2 2SC1623 101 4 Q5 Q107 Q204 Q307 2SC3904 102 4 Q1 Q11 Q207 Q209 2SC4226 103 7 Q7 Q201-203 Q208 Q210 Q216 2SC5066 104 3 Q3 Q13-14 NC 105 5 Q6 Q8-9 Q15 Q211 SRC1204EF 106 1 Q4 2SA1980SF 107 7 R13 R32 R45 R49 R63 R210 R250 000 108 5 R58-60 R62 R251 0R 109 3 R5 R56-57 10 110 7 R9 R16 R101 R148 R208 R238 R242 100 111 1 R108 100(TR) 112 13 R1 R14 R51 R105-107 R111 R121 R129 R141 R166 R182 R243 100K 113 17 R23 R28 R35 R41 R43-44 R119 R152 R162 R187 R197 R206 R225 10K R230 R234 R237 R246 114 1 R140 120K 115 1 R118 12K 116 3 R61 R124 R165 150K 117 1 R136 15K 118 1 R17 180K 119 1 R137 18K 120 11 R22 R55 R104 R131 R144 R151 R219 R232-233 R248-249 1K 121 1 R147 1K5 122 3 R42 R52 R142 1M 123 1 R194 1M(1%) 124 2 R224 R239 22 125 7 R213 R220 R235 R241 R244-245 R253 220 126 3 R15 R29 R192 220K 127 9 R8 R18-19 R33 R50 R143 R163 R259 R370 22K 128 1 R216 270 129 1 R26 270K 130 3 R112 R116 R122 27K 131 4 R38 R133 R227-228 2K2 132 2 R161 R186 2M 133 1 R184 2M(1%) 134 1 R128 2M2 135 1 R27 33 136 3 R145 R180 R185 330K 137 3 R4 R188 R222 33K 138 2 R25 R123 390K 第 2 页 LI4900A.BOM 139 1 R252 39K 140 2 R20 R236 3K3 141 5 R6 R37 R203 R231 R371 47 142 2 R117 R135 470K 143 12 R30 R53-54 R102 R127 R138 R149 R154 R159-160 R169 R260 47K 144 9 R2 R10-11 R39-40 R134 R202 R212 R226 4K7 145 3 R240 R500 R502 51 146 2 R36 R191 51K 147 1 R120 560K 148 2 R7 R126 5K6 149 1 R12 68 150 2 R501 R503 680 151 3 R171 R201 R215 68K 152 1 R247 6K8 153 2 R155-156 82 154 1 R150 820 155 1 R31 82K 156 8 R3 R21 R24 R34 R46-48 R214 NC 157 1 U1 S-1133U60-U5T1G 158 1 DD101 SDS2836 159 1 SPK101 8R 160 2 CH+ CH- 1K 161 7 TP1-4 TP101 TP201 TP204 162 1 U4 LM324 163 1 VC101 10P 164 2 VD1 VD201 1SV270 165 1 VD202 BB535 166 1 VR202 1K 167 2 VR101 VR103 22K 168 1 VR102 47K 第 3 页

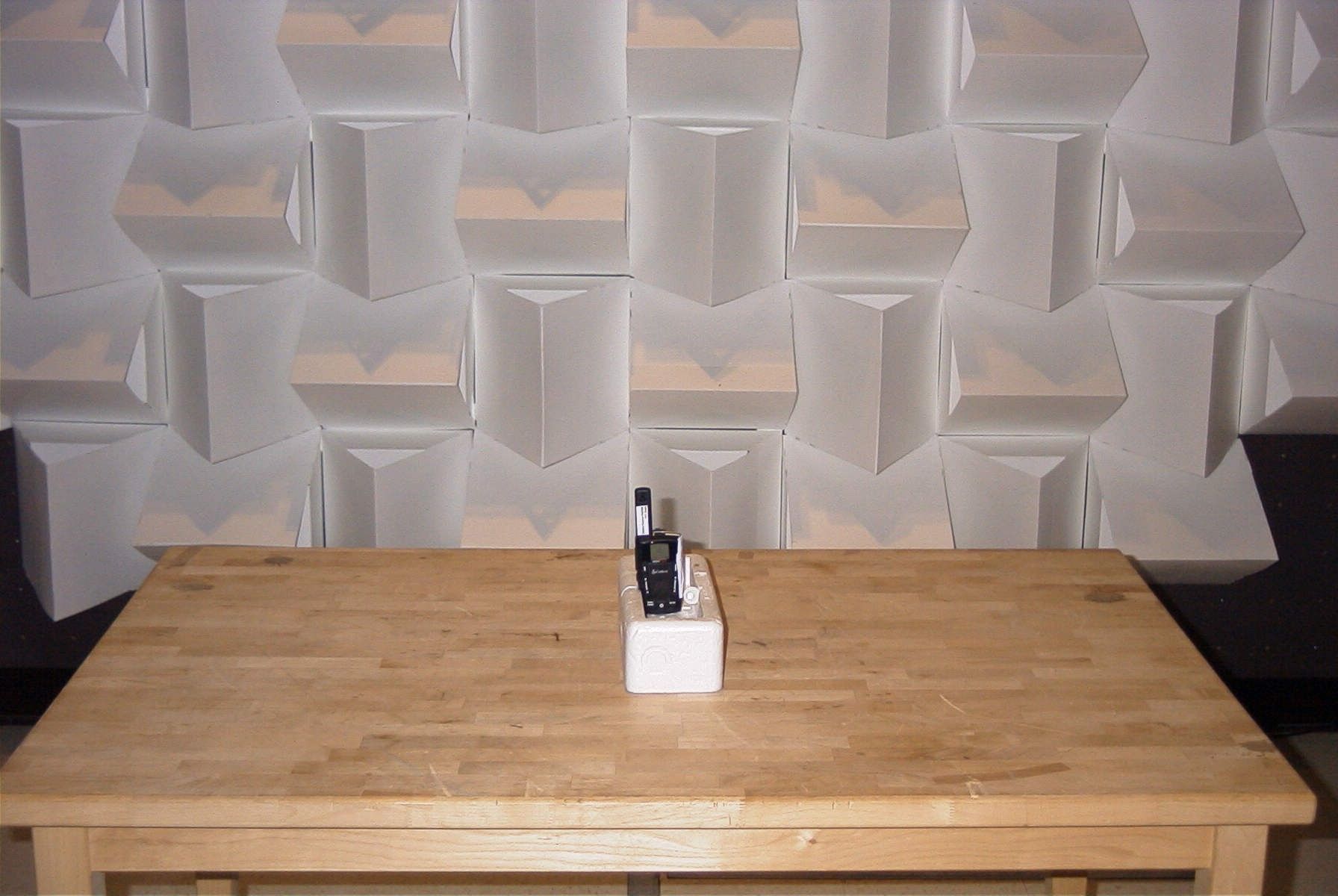

Company: Cobra Electronics Corporation FCC ID: BBOLI4900A IC ID: 906B-LI4900A Model(s): LI4890 / LI4900 / LI4925 / LI4950 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 34 Date(s) of Evaluation January 11, 2007 Test Report Serial No. 121106BBO-T799-S95U Report Revision No. Revision 1.0 Report Issue Date January 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR COBRA ELECTRONICS CORPORATION PORTABLE UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): LI4890 / LI4900 / LI4925 / LI4950 Test Report Serial No. 121106BBO-T799-S95U Test Report Revision No. Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. IDENTIFIER(S) FCC ID: BBOLI4900A IC: 906B-LI4900A FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOLI4900A IC ID: 906B-LI4900A Model(s): LI4890 / LI4900 / LI4925 / LI4950 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 34 Date(s) of Evaluation January 11, 2007 Test Report Serial No. 121106BBO-T799-S95U Report Revision No. Revision 1.0 Report Issue Date January 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER: BBOLI4900A IC IDENTIFIER: 906B-LI4900A Device Model(s): LI4890 / LI4900 / LI4925 / LI4950 Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.962 Watts (29.83 dBm) ERP (462.6375 MHz) GMRS Ch. 4 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: Li-ion 7.4 V, 950 mAh Body-Worn Accessories Tested: Plastic Belt-Clip (4 mm thickness) Audio Accessories Tested: Ear-bud with Lapel-Microphone (P/N: GA-EBM2) Max. SAR Level(s) Evaluated: Face-held: 0.581 W/kg (1g) - 50% duty cycle Body-worn: 0.791 W/kg (1g) - 50% duty cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOLI4900A IC ID: 906B-LI4900A Model(s): LI4890 / LI4900 / LI4925 / LI4950 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 34 Date(s) of Evaluation January 11, 2007 Test Report Serial No. 121106BBO-T799-S95U Report Revision No. Revision 1.0 Report Issue Date January 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________________ 9 10.0 ROBOT SYSTE…
