NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com A1 Making Life Easier and Safer Owner’s Manual NothingComes Close to a Cobra ® TWO-WAY RADIO MODEL LI 5600 DX Printed in China Part No. 480-409-P Version A IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK radio while on the go. Carrying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only.www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons © 2008 Cobra Electronics Corporation 6500 W est Cortland Str eet Chicago, Illinois 60707 USA www.cobra.com Customer Assistance Belt Clip 10289_LI5600DX_PH2 8/10/07 11:28 AM Page RC1 29 A3 Product Features A2 Product Features IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Backlit LCD Display IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other r elated information. IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. Features •22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 142 Privacy Codes (38 CTCSS codes/ 104 DCS codes) • Hands-Free Operation (VOX) •VibrAlert ® Silent Paging •10 Channel Memory •Signal Strength Meter •Scan Channels, privacy codes, memory • Selectable Hi•Low Power In GMRS • Backlit LCD Display •Button Lock •Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack •Roger Beep Selectable on/off • Battery/ Power Saver •Keystroke Tones Selectable on/off • Auto Squelch •Maximum Range Extender •Belt Clip 1 2 3 4 5 7 6 10 12 13 9 1. Antenna 2.External Speaker/ Microphone/Charge Jack 3. Backlit LCD Display 4.ModeButton 5.Channel Up/DownButton 6.Hi-Lo PowerButton 7.Speaker/Microphone 8. On/Off PowerButton 9. Lock/Enter Button 10.Volume Up/Down Button 11.Light/Max Range Button 12.TalkButton 13.CallButton 14. Wrist Strap Connector 15. Belt Clip 16.Battery Compartment 17. Battery Door Latch 14 15 16 17 8 11 1 2 3 4 6 8 9 12 1415 17 10 13 1. Signal Strength Meter Icon 2. Call Alert and VibrAlert Icon 3. Lock Icon 4. Keystroke Tones Icon 5. DCS Icon 6.Roger Beep Icon 7. VOX Icon 8. Memory Icon 9.CTCSS Icon 10. Memory Location Number 11. Privacy Code Numbers 12.Receive/Transmit Icon 13.Hi-Low Power Icons 14. Battery Low Indicator 15.Scan Icon 16.Power Saver Icon 17. Channel Numbers 5 7 11 16 Introduction Limited One-Year Warranty on Radio(s) & Charger • For Products Purchased in the U.S.A. Cobra Electronics Corporation warrants that its Cobra microTALK radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective microTALK radios, chargers, products or component parts upon delivery to the Cobra Factor y Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may var y from state to state. Exclusions: This limited warranty does not apply:1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. For Prod…

Text truncated - open the document above for the full version.

01 October 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI5600 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

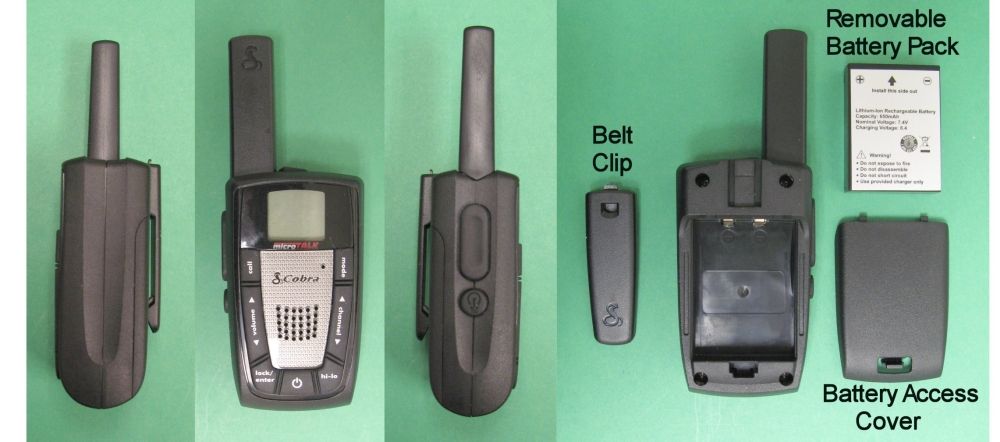

01 October 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI5600 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOLI5600. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the battery is installed and whenever the battery is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOLI5600" to the insert card within the clamshell packaging. Sincerely, Robert Mudra Engineering Manager

Alignment Procedure Model: Li- 5600 1. VCO and TX Set unit: CH1 8.4 V DC supply 50 Ohm Dummy 1) PLL VCO Align: ~ Read DC voltage at VCO Test Point (TP4) and align 1.0 ± -0.2V with L18 ~ Press PTT and check TX VCO voltage ~ Change Channel to CH14 and read VCO voltage ~ Press PTT and check TX VCO voltage 2) TX Freq. Align: ~ Press PTT at CH1 and read Frequency with Frequency counter ~ Align 462.5625MHz ± 50Hz with C85 10pF trimmer 3) TX Mod. Align: ~ Set CH1 100mV 1KHz Mic Input ~ Press PTT and align max modulation ± 2.0 ± 0.1 KHz with VR1 100K Ohm Semi 4) CTCSS/DCS Align: ~ Set CH1 DCS 01 ~ Press PTT and read CTCSS modulation level ~ Change CTCSS 38 and read modulation level ~ Change DCS 01 and read modulation level ~ Change DCS 83 and read modulation level 5) Check TX Power Output: ~ Set CH1 Power High ~ Press PTT and read TX Power output ~ Change Channel 8 to Power Low and read TX Power output 2. RX Set unit : CH1 8.4V DC supply 16 Ohm Load 1) RX Audio Distortion: ~ Set CH1, SSG 1mV, Audio level 5 (about 650mV) ~ Read Distortion 2) RX Sensitivity: ~ Reduce SSG level 3) Squelch Align: ~ Set to 10dB Sinad with SSG level align ~ Align squelch with VR2 100K Semi

安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : ABM-R0R0-896A 主件名称 : (RoHS) PCBA_BM FOR LI-5650 基本单位 : PCS 机型 机型机型机型 : LI-5650 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 变更日期 : 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 1 ABM-R0R0-896S (RoHS) SMT_BM FOR LI-5650 1 0 2 BMS-B081-171R (RoHS) PCB_MS(PTT) 2-LAYER 1.0T FOR L I-5600 1 0 3 ECC-6300-100RA1 (RoHS) CAP_C_TRIMMER HCV06C100 10PF 6.0X6.0X5.0mm 1 C85 0.01 4 ECE-2012-470R (RoHS)CAP_E_MINI 47uF/6.3V(D4XL6) 1 C15 3 0.01 5 ECE-2022-101R (RoHS) CAP_E_MINI 100uF/10V(D5XL7) 2 C2 0,32 0.005 6 ECE-2022-470R (RoHS) CAP_E_MINI 47uF/10V(D4XL7) 1 C33 0.005 7 ECE-2112-101R (RoHS) CAP_E_MINI 100uF/6.3V(D4XL7) Y Q 1 C23 0.005 8 ECE-2112-220R (RoHS)CAP_E_MINI 22uF/6.3V(D4XL7) 1 C24 4 0 9 EFT-1420-001R (RoHS) CRYSTAL FILTERS ET21.7MHz 1 FL3 0 10 EFT-2120-004RA1 (RoHS) CERAMIC FILTER LTM450HTW(FT ) 1 FL2 0 11 EFT-2120-006R (RoHS) CERAMIC DISCRIMINATOR CDBM450C32(THICK:3.0) 1 IFT1 0 12 EFT-5720-001R (RoHS) SAW_FILTERS 465M-50 OHM KSF46 5CR2 1 FL1 0 13 EIF-0102-014R (RoHS) IFT COIL 450KHz-5.7mm 1 0.01 14 EJK-5400-004R (RoHS) EARPHONE JACK ST-020SMT-050-100 INSERT FORCE :1~2kgf,PUSH OUT:0.6~2kgf 1 JACK 0 15 EMC-0101-121R (RoHS) MIC GJK-OF-6050P(2V 2.2K) -62 dB+/-1dB 1 0.01 16 EXR-1420-007RC1 (RoHS) XTAL_21.250MHz(18PF)HC-49U/S+/-7.5PPM(-20~+5 5 °C ) 1 X1 0 17 EXR-1510-003R (RoHS) XTAL_32.768KHz+/-20ppm D2XL6 1 X2 0 18 MFB-0600-584R (RoHS) ZEBRA BAR FOR LI-5600 1 0.01 19 MMT-0000-094R (RoHS) DC MOTOR 6ZK039HB FOR LI-5600 1 0.01 20 MMT-0500-864R (RoHS) SHIELD COVER 15.7X9.9X1.8mm FOR LI-5600 1 0.01 21 MMT-1400-422R (RoHS) LCD BRACKET(METALLIC) FOR LI- 5600 1 0.01 22 MPF-1400-451R (RoHS) LCD BRACKET FOR LI-5600 1 0.01 23 PLB-1302-101R (RoHS) PVC KEYPAD OVERLAY( 带 9 个锅仔 ) FOR LI-5600 1 0.01 24 PLB-1302-102R (RoHS) PVC PTT OVERLAY( 带有 2 个锅仔 ) FOR LI-5600 1 0.01 25 PLB-4001-068R (RoHS) REFLECT LABEL FOR LI-5600 1 0.01 26 SLD-4400-085R (RoHS) LCD QTR2728-DPFHZ-01 22.8X22.8X2.0 FOR LI-56 00 1 0 列印时间 : 2007-9-21 9:13:50 第 1 / 1 页 制表 : 思丽霞 审核 :____________________ 审批 :____________________ 批准 :_____________________ 安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : ABM-R0R0-896S 主件名称 : (RoHS) SMT_BM FOR LI-5650 基本单位 : PCS 机型 机型机型机型 : LI-5650 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 00001 变更日期 : 2007-9-1 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 1 BBM-B081-485R (RoHS) PCB_BM 4-LAYER-1.0T 82.5X41.0mm FOR LI-5650 1 0 2 ECS-1112-010R (RoHS) CAP_C_CHIP 1PF/C(CH)(0402) A:COG150L(SAMSUNG ) 1 C241 0.01 3 ECS-1112-020R (RoHS) CAP_C_CHIP 2PF/C(CH)(0402) A:COG150L(SAMSUNG ) 1 C123 0.01 4 ECS-1112-030R (RoHS) CAP_C_CHIP 3PF/C(CH)(0402) A:COG150L(SAMSUNG ) 2 C232,C236 0.01 5 ECS-1112-040R (RoHS) CAP_C_CHIP 4PF/C(CH)(0402) A:COG150L(SAMSUNG ) 4 C108,C109,C225,C227 0.01 6 ECS-1112-3R3R (RoHS) CAP_C_CHIP 3.3PF/C(CH)(0402) A:COG150L(SAMSU NG) 3 C113,C233,C242,C240 0.01 7 ECS-1113-060R (RoHS) CAP_C_CHIP 6PF/D(CH)(0402) A:COG150L(SAMSUNG ) 2 C102,C104 0.01 8 ECS-1113-070R (RoHS) CAP_C_CHIP 7PF/D(CH)(0402) A:COG150L(SAMSUNG ) 3 C98,C101,C247 0.01 9 ECS-1113-080R (RoHS) CAP_C_CHIP 8PF/D(CH)(0402) A:COG150L(SAMSUNG ) 4 C89,C105,C230,C243 0.01 10 ECS-1113-090R (RoHS) CAP_C_CHIP 9PF/D(CH)(0402) A:COG150L(SAMSUNG ) 2 C83,C141 0.01 11 ECS-1116-100R (RoHS) CAP_C_CHIP 10PF/J(CH)(0402) A:COG150L (SAMSU NG) 3 C84,C120,C239 0.01 12 ECS-1116-101R (RoHS) CAP_C_CHIP 100PF/J(CH)(0402) A:COG150L(SAMSU NG) 14 C7,C100,C111,C118,C122,C132,C159,C220,C222,C228,C 234,C29,C186,C187 0.01 13 ECS-1116-120R (RoHS) CAP_C_CHIP 12PF/J(CH)(0402) A:COG150L(SAMSUN G) 5 C114,C119,C126,C150,C238 0.01 14 ECS-1116-121R (RoHS) CAP_C_CHIP 120PF/J(CH)(0402) A:COG150L(SAMSU NG) 2 C56,C65 0.01 15 ECS-1116-150R (RoHS) CAP_C_CHIP 15PF/J(CH)(0402) A:COG150L(SAMSUN G) 4 C115,C158,C231,C14 0.01 16 ECS-1116-151R (RoHS) CAP_C_CHIP 150PF/J(CH)(0402) A:COG150L(SAMSU NG) 1 C131 0.01 17 ECS-1116-180R (RoHS) CAP_C_CHIP 18PF/J(CH)(0402) A:COG150L(SAMSUN G) 3 C13,C38,C146 0.01 18 ECS-1116-200R (RoHS) CAP_C_CHIP 20PF/J(CH)(0402) A:COG150L(SAMSUN G) 1 C82 0.01 19 ECS-1116-220R (RoHS) CAP_C_CHIP 22PF/J(CH)(0402) A:COG150L(SAMSUN G) 5 C26,C27,C130,C143,C208 0.01 20 ECS-1116-221R (RoHS) CAP_C_CHIP 220PF/J(CH)(0402) A:COG150L(SAMSU NG) 2 C145,C152 0.01 21 ECS-1116-270R (RoHS) CAP_C_CHIP 27PF/J(CH)(0402) A:COG150L(SAMSUN G) 1 C34 0.01 22 ECS-1116-330R (RoHS) CAP_C_CHIP 33PF/J(CH)(0402) A:COG150L(SAMSUN G) 5 C3,C4,C121,C213,C217 0.01 23 ECS-1116-391R (RoHS) CAP_C_CHIP 390PF/J(CH)(0402) A:COG150L(SAMSU NG) 1 C49 0.01 24 ECS-1116-470R (RoHS) CAP_C_CHIP 47PF/J(CH)(0402) A:COG150L(SAMSUN G) 4 C39,C51,C140,C144 0.01 25 ECS-1212-030R (RoHS) CAP_C CHIP 3PF/C/(CH)/(0603) A:COG150L(SAMSU NG) 1 C124 0.01 26 ECS-1212-2R7R (RoHS) CAP_C_CHIP 2.7PF/C(CH)(0603) A:COG150L(SAMSU NG) 1 C205 0.01 列印时间 : 2007-9-21 9:13:51 第 1 / 6 页 制表 : 思丽霞 审核 :____________________ 审批 :____________________ 批准 :_____________________ 安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : ABM-R0R0-896S 主件名称 : (RoHS) SMT_BM FOR LI-5650 基本单位 : PCS 机型 机型机型机型 : LI-5650 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 00001 变更日期 : 2007-9-1 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 27 ECS-1213-060R (RoHS) CAP_C_CHIP 6PF/D(CH)(0603) A:COG150L (SAMSUN G) 2 C202,C206 0.01 28 ECS-1216-150R (RoHS) CAP_C_CHIP 15PF/J(CH)(0603) A:COG150L(SAMSUN G) 2 C204,C211 0.01 29 ECS-1216-220R (RoHS) CAP_C_CHIP 22PF/J(CH)(0603) A:COG150L(SAMSUN G) 1 C210 0.01 30 ECS-2197-102R (RoHS) CAP_C_C.H.D. B0.001uF/K(0402) X:X7R282L 8 C8,C67C147,C149,C157,C214,C218,C246 0.01 31 ECS-2197-103R (RoHS) CAP_C_C.H.D. B0.01uF/K(0402) X:X7R282L 14 C9,C10,C43,C45,C46,C94,C127,C133,C135,C2 ,C70,C112,C258,C260 0.01 32 ECS-2197-104R (RoHS) CAP_C_C.H.D. B0.1uF/K(0402) X :X7R282L 34 C19,C22,C37,C53,C76,C77,C78,C79,C87,C88,C92,C95,C96 ,C136,C138,C142,C164,C229,C11,C16, C18,C25,C28,C31,C36,C50,C99,C106,C110,C215,C219,C22 1,C235,C245 0.01 33 ECS-2197-152R (RoHS) CAP_C_C.H.D. B1.5nF/K(0402) X :X7R282L 2 C30,C61 0.01 34 ECS-2…

Text truncated - open the document above for the full version.

Company: Cobra Electronics Corporation FCC ID: BBOLI5600 IC ID: 906B-LI5600 Model(s): LI5590/LI5600/LI5625/LI5650/LI5675 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 33 Date(s) of Evaluation October 09, 2007 Test Report Serial No. 100907BBO-T858-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date October 15, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT COBRA ELECTRONICS CORPORATION PRODUCT PORTABLE FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S) LI5590 / LI5600 / LI5625 / LI5650 / LI5675 IDENTIFIER(S) FCC ID: BBOLI5600 IC: 906B-LI5600 APPLICATION TYPE Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 RF EXPOSURE CATEGORY General Population / Uncontrolled RF EXPOSURE EVALUATION(S) Face-held & Body-worn TEST REPORT SERIAL NO. 100907BBO-T858-S95U TEST REPORT REVISION NO. Revision 1.0 (Initial Release) TEST REPORT ISSUE DATE October 15, 2007 Testing By Report By Reviewed By TEST REPORT SIGNATORIES Sean Johnston Celltech Labs Inc. Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOLI5600 IC ID: 906B-LI5600 Model(s): LI5590/LI5600/LI5625/LI5650/LI5675 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 33 Date(s) of Evaluation October 09, 2007 Test Report Serial No. 100907BBO-T858-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date October 15, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name COBRA ELECTRONICS CORPORATION Company Information Address 6500 West Cortland Street, Chicago, IL 60707 United States FCC 47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) Procedure(s) Applied IC RSS-102 Issue 2 Device RF Exposure Category Portable General Population / Uncontrolled Environment FCC ID: BBOLI5600 IC: 906B-LI5600 Model(s) LI5590 / LI5600 / LI5625 / LI5650 / LI5675 Device Identifier(s) Serial No. 0083407 (Identical Prototype) Device Description Portable FM UHF FRS/GMRS PTT Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) Transmit Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested 610 mW 27.85 dBm ERP462.7250 MHz GMRS Ch. 22 Antenna Type(s) Tested External Fixed Stubby (Non-detachable) Battery Type(s) Tested Lithium-ion 7.4 V 650 mAh Body-worn Accessories Tested Plastic Belt-Clip (4 mm thickness) Audio Accessories Connected Ear-bud with Lapel-Microphone (P/N: GA-EBM2) Face-held 1.10 W/kg 1g50% duty cycle ANSI/IEEE Limit 1.6 W/kg 1g Max. SAR Level(s) Evaluated Body-worn 1.12 W/kg 1g50% duty cycle ANSI/IEEE Limit 1.6 W/kg 1g Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean JohnstonCelltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOLI5600 IC ID: 906B-LI5600 Model(s): LI5590/LI5600/LI5625/LI5650/LI5675 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 33 Date(s) of Evaluation October 09, 2007 Test Report Serial No. 100907BBO-T858-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date October 15, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 MEASUREMENT SUMMARY _________________________________________________________ 5 4.0 DETAILS OF SAR EVALUATION______________________________________________________ 6 5.0 EVALUATION PROCEDURES _________________________________________________…

Text truncated - open the document above for the full version.

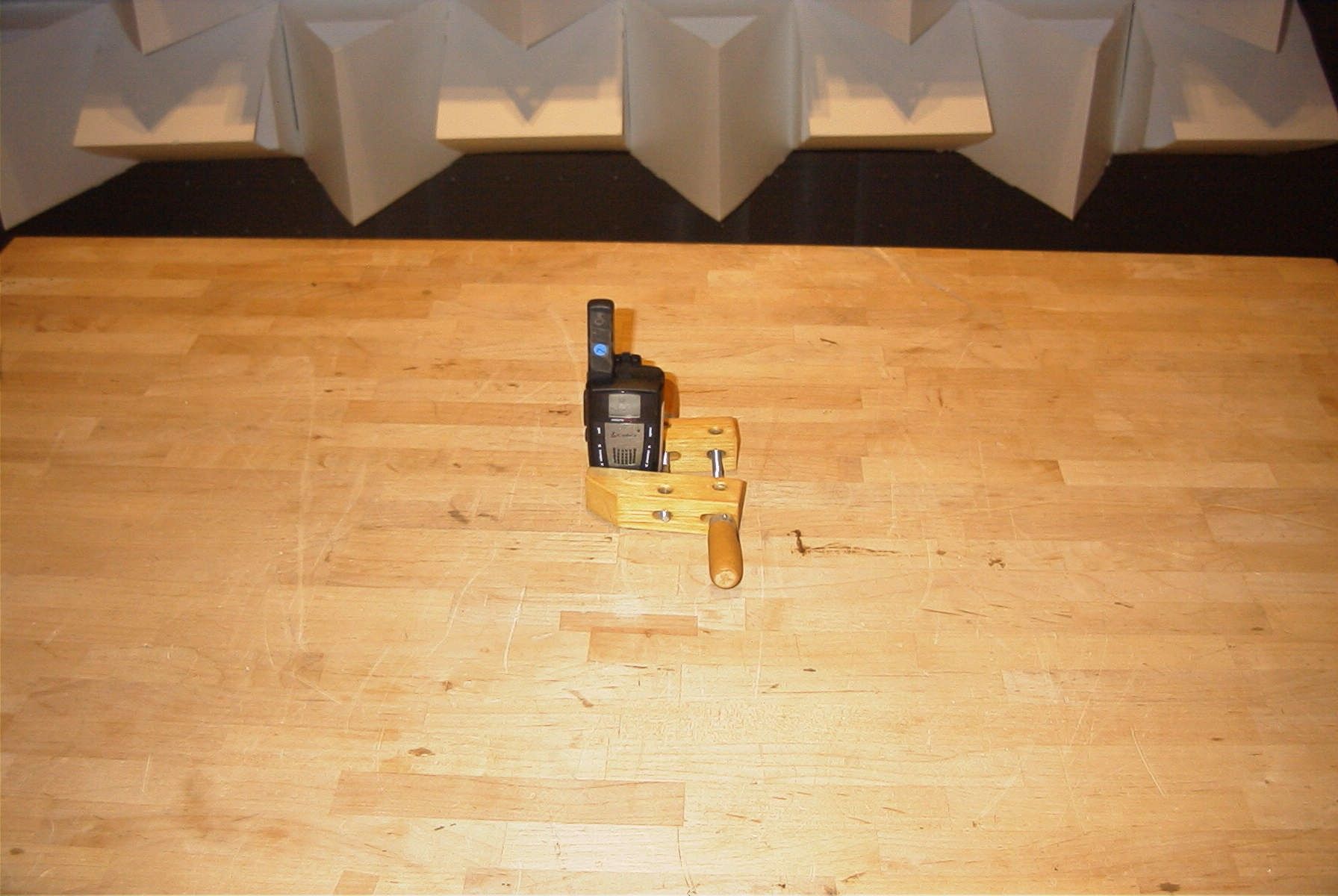

849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM FCC PART 95 AND IC RSS-210 FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 USA FCC ID BBOLI5600 IC CERT # 906B-LI5600 MODEL NUMBERS LI5600, LI5590, LI5625, LI5650, LI5675 PRODUCT DESCRIPTION FRS/GMRS TRANSCEIVER DATE SAMPLE RECEIVED 10/3/2007 DATE TESTED 10/04/2007 TESTED BY Joe Scoglio APPROVED BY Joe Scoglio TIMCO REPORT NO. 3257AUT7TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate # 0955-01 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI5600 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST PROCEDURES ................................................................................................. 5 RF POWER OUTPUT .................................................................................................. 6 MODULATION CHARACTERISTICS............................................................................ 7 EMISSION DESIGNATOR AND FREQUENCIES ........................................................ 10 OCCUPIED BANDWIDTH ......................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS - TX ................................................. 14 FIELD STRENGTH OF SPURIOUS EMISSIONS - RX ................................................. 16 FREQUENCY STABILITY.......................................................................................... 17 TEST EQUIPMENT LIST........................................................................................... 18 IC Cert #: 906B-LI5600 Report: C\COBRA\3257AUT7\3257AUT7TestReport.doc Page 2 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI5600 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Joe Scoglio Signature: On File Function: Eng. Tech Date: 10/4/07 IC Cert #: 906B-LI5600 Report: C\COBRA\3257AUT7\3257AUT7TestReport.doc Page 3 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI5600 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description FRS/GMRS TRANSCEIVER FCC ID BBOLI5600 IC Cert # 906B-LI5600 Model Number LI5600, LI5590, LI5625, LI5650, LI5675 Operating Frequency 462.5500-462.7250, 462.5625-467.7125 No. of Channels 22 Type of Emission 10K5F3E Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna Fixed Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Modifications None Test Exercise The DUT was placed in continuous transmit mode of operation Applicable StandardsTIA 603 , FCC CFR 47 Part 2 & Part 95, Industry Canada RSS-210 IC Cert #: 906B-LI5600 Report: C\COBRA\3257AUT7\3257AUT7TestReport.doc Page 4 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI5600 TEST PROCEDURES Bandwidth: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: RF power was conducted per TIA/EIA STANDARD 603 using the substitution method Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the DUT was 76°F with a humidity of 55%. IC Cert #: 906B-LI5600 Report: C\COBRA\3257AUT7\3257AUT7TestReport.doc Page 5 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI5600 RF POWER OUTPUT Rule Part No.: 2.1033(c)(6)(7), 2.1046(a), Part 95, RSS-210 Requirements: Power output shall not exceed 0.50 Watts effective radiated power for the FRS channels. There can be no provisions for increasing the power or varying the power. No GMRS channel, under any condition of modulation, shall exceed: 1. 50W Carrier power (average TP during one modulated RF cycle) when transmitting emissions type A1D, F1D, G1D, A3E, F3E, or G3E. 2. 50W peak envelope TP when transmitting emission type H1D, J1D, R1D, H3E, J3E, or R3E. Method of Measurement: RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWE…
