BBOLI6500FRS/GMRS TRANSCEIVER

NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com A1 Making Life Easier and Safer Owner’s Manual NothingComes Close to a Cobra ® English TWO-WAY RADIO MODEL LI 6550 WX Printed in China Part No. 480-321-P Version A IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK radio while on the go. Carr ying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. Simply squeeze the clip and place it where you prefer. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (online: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons © 2007 Cobra Electronics Corporation™ 6500 W est Cortland Street Chicago, Illinois 60707 USA www.cobra.com Customer Assistance B B e e l l t t C C l l i i p p 29 A3 Product Features A2 Product Features IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Backlit LCD Display IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Impor tant FCC Licensing Inf ormation This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other related inf ormation. IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Maximum range may vary and is based on unobstr ucted line-of-sight communication under ideal conditions. Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 10 Channel NOAA ALL Hazards Radio •121 Privacy Codes (38 CTCSS codes/ 83 DCS codes) • Hands-Free Operation (VOX) • VibrAlert ® Silent Paging • 10 Channel Memory • Signal Strength Meter • Scan Channel, privacy codes, memory • Selectable Hi•Med•Low Power In GMRS • Backlit LCD Display • Button Lock • Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack • Roger Beep Selectable on/off • Battery/ Power Saver • Keystroke Tones Selectable on/off • Auto Squelch • Maximum Range Extender •Belt Clip Limited One-Year Warranty on Radio(s) & Charger • For Products Purchased in the U.S.A. Cobra Electronics Corporation warrants that its Cobra microTALK radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective microTALK radios, chargers, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Exclusions: This limited warranty does not apply:1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. For Products Purchased Outside the U.S.A. Please contact your local dealer for warranty information. 90-Day Warranty on Cobra Lithium Ion Rechargeable Battery Packs and Earbud Microphones For products purchased in the U.S.A. and Canada. Trademark Acknowledgement • Cobra ® , microTALK ® , Nothing Comes Close to a Cobra ® , VibrAlert ® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA. Warranty and Trademark Acknowledgement Warranty IntroOperationCustomer A ssistance Warranty Notice Main Icons S econdary Icons 11 22 33 44 55 77 66 1100 1122 1133 99 1. Antenna 2. External Speaker/ Microphone/Charge Jack 3…

Text truncated - open the document above for the full version.

03 October 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI6500 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

KDB Inquiry Tracking Number - 407488

COBRA ELECTRONICS CORP. FCC ID: BBOLI6500 EXTERNAL PHOTOS

8 December 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI6500 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOLI6500. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOLI6500" to the insert card within the clamshell packaging. Sincerely, Robert Mudra Engineering Manager

COBRA ELECTRONICS CORP. FCC ID: BBOLI6500 INTERNAL PHOTOS

LI6500B.BOM Item VALUE QTY REF-DES 1 AN29160AA 1 U102 2 1 ANT1 3 8.4V(4.2X2) Li ion 1 BAT101 4 000 1 C170 5 100P 1 C217 6 102 14 C6 C12 C149 C162 C201 C211 C218 C224 C227 C258 C267 C269-270 C277 7 103 20 C18 C25 C28 C31 C45 C48 C106 C108 C141 C154 C160 C169 C175 C220 C252 C263 C274 C293 C301 C308 8 104 34 C8 C22 C24 C26 C32 C34 C42-43 C46 C115-118 C120-121 C132 C134 C145-146 C164 C166 C168 C171-172 C180-181 C186-188 C219 C251 C287 C298 C307 9 105 18 C1-3 C100-101 C103-105 C109 C113-114 C131 C150 C153 C178 C247 C282 C292 10 10P 2 C14 C111 11 10U 6 C35 C107 C167 C182 C230 C268 12 123 1 C143 13 12P 5 C11 C208 C210 C226 C233 14 150P 2 C148 C159 15 152 3 C127 C137 C151 16 15P 4 C19 C221 C275 C281 17 1P 5 C204 C256 C266 C272 C300 18 2.2uF 1 C23 19 20P 2 C176-177 20 220P 1 C40 21 222 1 C147 22 223 3 C27 C129 C174 23 270P 1 C184 24 27P 4 C152 C273 C279-280 25 2P 6 C202-203 C216 C231 C260 C278 26 30P 1 C229 27 33P 4 C15 C20 C110 C133 28 390P 1 C138 29 39P 1 C285 30 3P 2 C212 C223 31 470P 13 C9 C17 C33 C41 C125-126 C213 C237 C242-243 C250 C253 C283 32 472 5 C135 C173 C190 C199 C299 33 473 7 C4 C29-30 C122 C140 C183 C290 34 47P 1 C179 35 4P 2 C262 C306 36 560P 2 C124 C139 37 563 1 C130 38 5P 3 C21 C239 C257 39 682 10 C5 C36-39 C44 C47 C142 C248 C276 40 683 2 C155 C185 41 6P 10 C10 C13 C16 C112 C238 C244-246 C254 C259 42 7P 7 C206 C232 C240 C264-265 C271 C284 43 9P 2 C205 C255 44 NC 7 C49 C158 C215 C222 C225 C288 C296 45 CALL 1 SW3 46 CH DOWN 1 SW8 47 CH UP 1 SW9 48 HI/LO 1 SW5 49 LAMP 1 SW7 50 LOCK 1 SW1 51 MODE 1 SW11 52 POWER 1 SW6 53 PTT 1 SW2 54 VOL DOWN 1 SW4 55 VOL UP 1 SW10 56 0.47U 1 C289 57 100U 1 C156 58 220U 1 C165 59 22U 2 C7 C102 60 LCD DISPLAY 1 LCD1 61 103CST 1 D1 62 HVU131 1 D203 63 KDS114 3 D201-202 D205 64 NC 1 D3 65 ISS364 1 D2 66 103CST 3 D4 D10-11 67 1N4001 2 D500-501 68 103CST 4 D5-8 69 BRC24C02 1 U103 70 EM78P568 1 U101 71 21.25MHz 1 X101 72 32.768K 1 X102 第 1 页 LI6500B.BOM 73 450KHz 1 X103 74 21.7M 1 F202 75 450HTW 1 F101 76 F462 1 F201 77 ST-369-5S 1 JK500 78 EXT_SPK/MIC 1 JK101 79 100nH 1 L222 80 15nH 1 L210 81 1U5 1 L211 82 1uH 4 L1 L3 L215 L228 83 22nH 3 L208 L225-226 84 2U2 1 L4 85 33nH 2 L206-207 86 3T5 7 L5 L201-202 L204 L216 L219 L224 87 47nH 3 L2 L213 L223 88 56nH 2 L212 L227 89 5T5 3 L203 L217-218 90 NC 1 L6 91 XC6203E602PR 1 U2 92 LDO-814 1 U3 93 LCDLIGHT 4 LED301-302 LED500-501 94 WM-54BH 1 MIC101 95 1K 1 M 96 2SK3078 1 Q11 97 2SK3079 1 Q10 98 2SC1623 1 Q2 99 2SC3904 9 Q5-6 Q9 Q13-14 Q104 Q107 Q204 Q307 100 2SC4226 3 Q1 Q207 Q209 101 2SC5066 7 Q7 Q201-203 Q208 Q210 Q216 102 SRC1204EF 4 Q8 Q12 Q15 Q211 103 2SA1979SF 1 Q3 104 2SA1980SF 1 Q4 105 000 3 R49 R210 R250 106 0R 4 R58-60 R251 107 10 3 R9 R56-57 108 100 4 R101 R148 R208 R242 109 100(TR) 1 R108 110 100K 14 R12 R14 R51 R105-107 R111 R121 R129 R141 R160 R166 R182 R243 111 100k 1 R1 112 10K 17 R16 R23 R28 R41 R43-44 R119 R152 R162 R187 R197 R206 R225 R230 R234 R237 R246 113 120K 1 R140 114 12K 1 R118 115 150K 3 R17 R124 R127 116 15K 1 R136 117 18K 1 R137 118 1K 11 R22 R55 R104 R131 R144 R151 R219 R232-233 R248-249 119 1K5 1 R147 120 1M 3 R42 R52 R142 121 1M5(1%) 1 R184 122 22 2 R224 R239 123 220 7 R213 R220 R235 R241 R244-245 R253 124 220K 3 R15 R29 R192 125 22K 15 R2 R8 R18-19 R30 R33 R46 R48 R50 R143 R154 R163 R252 R259 R370 126 270 1 R216 127 270K 1 R26 128 27K 3 R112 R116 R122 129 2K2 4 R38 R133 R227-228 130 2M 3 R161 R165 R186 131 2M2 1 R128 132 33 1 R27 133 330K 2 R180 R185 134 33K 4 R4 R35 R188 R222 135 39 2 R500 R502 136 390K 3 R25 R123 R145 137 3K3 2 R164 R236 138 47 9 R5-6 R10 R13 R37 R203 R231 R238 R371 139 470K 2 R117 R135 140 47K 12 R32 R45 R47 R53-54 R102 R138 R149 R159 R169 R217 R260 141 4K7 7 R11 R39-40 R134 R202 R212 R226 142 51 1 R240 143 51K 2 R36 R191 144 560K 1 R120 145 5K6 1 R7 146 68 2 R155-156 147 680 2 R501 R503 第 2 页 LI6500B.BOM 148 680K(1%) 1 R194 149 68K 3 R171 R201 R215 150 6K8 1 R247 151 820 1 R150 152 82K 1 R31 153 9K1 1 R126 154 NC 5 R3 R21 R24 R34 R214 155 SDS2836 1 DD101 156 8R 1 SPK101 157 1K 2 CH+ CH- 158 7 TP1-4 TP101 TP201 TP204 159 LM324 1 U4 160 10P 1 VC101 161 1SV270 2 VD1 VD201 162 BB535 1 VD202 163 22K 2 VR101 VR103 164 47K 2 VR102 VR202 第 3 页

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radio technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 8.4VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the trimmer capacitor (VC101) such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 8.4VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 0.5 Watt output power with a maximum error of +/- 0.1 Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone positive terminal. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR101 for +/- 2.0 KHz maximum deviation. F. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before proceeding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 8.4 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication.

Company: Cobra Electronics Corporation FCC ID: BBOLI6500 IC ID: 906B-LI6500 Model(s): LI6490 / LI6500 / LI6525 / LI6550 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 35 Date(s) of Evaluation January 04, 2007 Test Report Serial No. 121106BBO-T797-S95U Report Revision No. Revision 1.0 Report Issue Date January 12, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR COBRA ELECTRONICS CORPORATION PORTABLE UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): LI6490 / LI6500 / LI6525 / LI6550 Test Report Serial No. 121106BBO-T797-S95U Test Report Revision No. Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. IDENTIFIER(S) FCC ID: BBOLI6500 IC: 906B-LI6500 FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOLI6500 IC ID: 906B-LI6500 Model(s): LI6490 / LI6500 / LI6525 / LI6550 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 35 Date(s) of Evaluation January 04, 2007 Test Report Serial No. 121106BBO-T797-S95U Report Revision No. Revision 1.0 Report Issue Date January 12, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER: BBOLI6500 IC IDENTIFIER: 906B-LI6500 Device Model(s): LI6490 / LI6500 / LI6525 / LI6550 Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 1.03 Watts (30.12 dBm) ERP (462.6375 MHz) GMRS Ch. 4 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: Li-ion 7.4 V 950 mAh (P/N: MN-0160001) Body-Worn Accessories Tested: Plastic Belt-Clip (4 mm spacing) Audio Accessories Tested: Earbud with Lapel-Microphone (P/N: GA-EBM2) Max. SAR Level(s) Evaluated: Face-held: 0.657 W/kg (1g) - 50% duty cycle Body-worn: 0.755 W/kg (1g) - 50% duty cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOLI6500 IC ID: 906B-LI6500 Model(s): LI6490 / LI6500 / LI6525 / LI6550 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 35 Date(s) of Evaluation January 04, 2007 Test Report Serial No. 121106BBO-T797-S95U Report Revision No. Revision 1.0 Report Issue Date January 12, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________________ 9 10.0 ROBOT SY…

Text truncated - open the document above for the full version.

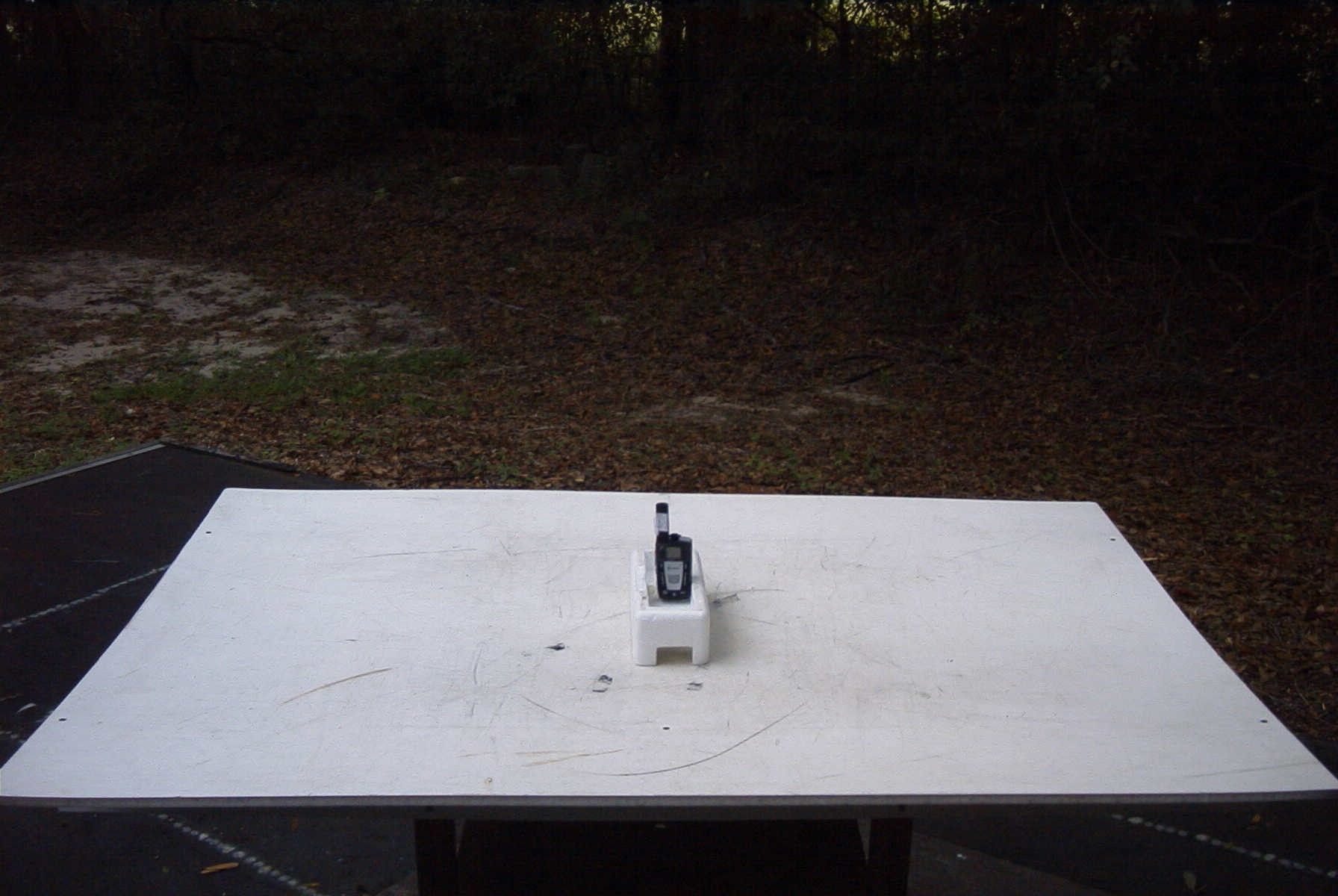

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc COVER SHEET Test Report Product Name: FRS/GMRS TRANSCEIVER FCC ID: BBOLI6500 Applicant: COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA Date Receipt: 10/9/2006 Date Tested: 12/12/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST TEST REPORT: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4........MODULATION LIMITING GRAPH PAGE 5........AUDIO LOW PASS FILTER GRAPH PAGE 6........OCCUPIED BANDWIDTH PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........UNWANTED RADIATION – GMRS PAGE 10.......UNWANTED RADIATION - FRS PAGE 11.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 12.......FREQUENCY STABILITY PAGE 13.......LIST OF TEST EQUIPMENT EXHIBITS INCLUDED: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc Page 1 of 13 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOLI6500 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included is included in the exhibits. 2.1033(c) (4) Type of Emission: 9K7F3E 95.631 Bn = 2M + 2DK M = 2500 D = 2.35K Bn = 2(2500)+2(2350) = 9.7K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5 kHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc Page 2 of 13 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (7.4V)(.130A) = 0.96 Watts FOR MEDIUM POWER SETTING INPUT POWER:(7.4V)(.180A) = 1.33 Watts FOR HIGH POWER SETTING INPUT POWER: (7.4V)(.240A) = 1.77 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included in the exhibits. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 7.4 V, and the transmitter properly adjusted the RF output measures: GMRS - 1.00 Watt ERP FRS - .50 Watt ERP TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc Page 3 of 13 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. Audio Frequency Response Plot Ma xFre q .a t1 ColorLine StyleThickDataAxis BlueSolid1Anlr.Level A!Norm alizeLeft -6 +6 -4 -2 +0 +2 +4 d B 1003k200300400 500 600800 1k2k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6500 REPORT #: C\COBRA\2833AUT6\2833AUT6TestReport.doc Page 4 of 13 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input freque…
