BBOLI6700FRS/GRMS TRANSCEIVER

NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com A1 Making Life Easier and Safer Owner’s Manual NothingComes Close to a Cobra ® English TWO-WAY RADIO MODEL LI 6700 WX Printed in China Part No. 480-411-P Version A IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK radio while on the go. Carrying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microT ALK radio. If you r equir e further assistance after reading this manual, Cobra Electronics offers the following customer assistance ser vices: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (online: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons © 2008 Cobra Electronics Corporation™ 6500 W est Cor tland Street Chicago, Illinois 60707 USA www.cobra.com Customer Assistance Belt Clip LI6700WX_MANL_ph2.qxd 4/30/07 11:02 AM Page RC1 29 A3 Product Features A2 Product Features IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Backlit LCD Display IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Important FCC Licensing Information This radio operates on General Mobile Radio Ser vice (GMRS) fr equencies which r equire a Federal Communications Commission (FCC) license. See page 27 for licensing and other r elated infor mation. IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Maximum range may vary and is based on unobstr ucted line-of-sight communication under ideal conditions. Features •22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 10 Channel NOAA ALLHazards Radio •142 Privacy Codes (38 CTCSS codes/ 104 DCS codes) • Hands-Free Operation (VOX) •VibrAlert ® Silent Paging •10 Channel Memory •Signal Strength Meter •Scan Channel, privacy codes, memory • Selectable Hi•Med•Low Power In GMRS • Backlit LCD Display •Button Lock •Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack •Roger Beep Selectable on/off • Battery/ Power Saver •Keystroke Tones Selectable on/off • Auto Squelch •Maximum Range Extender •Belt Clip Limited One-Year Warranty on Radio(s) & Charger • For Products Purchased in the U.S.A. Cobra Electronics Corporation warrants that its Cobra microTALK radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective microTALK radios, chargers, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Exclusions: This limited warranty does not apply:1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a r esult of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the pr oduct resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. For Products Purchased Outside the U.S.A. Please contact your local dealer for warranty information. 90-Day Warranty on Cobra Lithium Ion Rechargeable Battery Packs For products purchased in the U.S.A. and Canada. Trademark Acknowledgement • Cobra ® , microT ALK ® , Nothing Comes Close to a Cobra ® , VibrAler t ® and the snake design ar e register ed trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA. Warranty and Trademark Acknowledgement Warranty I ntroOperationCustomer Assistance W arranty Notice M ain Icons Secondary Icons 1 2 3 4 5 7 6 10 12 13 9 1. Antenna 2.External Speaker/ Microphone/Charge Jack 3. Backlit LCD Display 4.ModeButton 5.Channel Up/DownButtons 6.…

Text truncated - open the document above for the full version.

13 June 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI6700 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

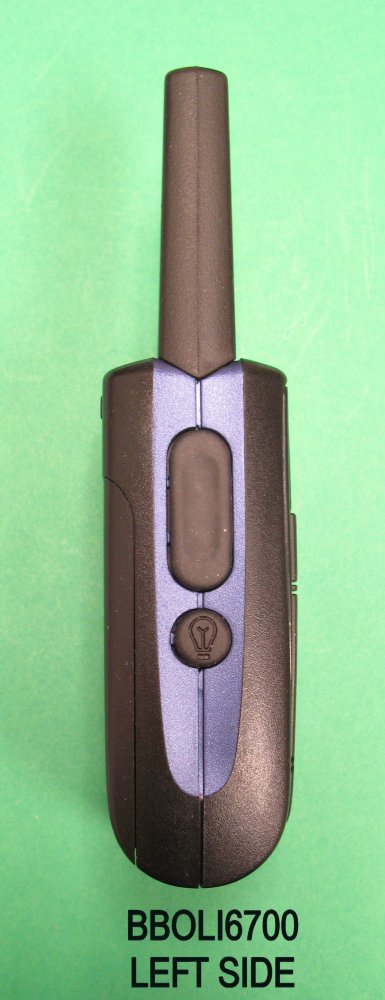

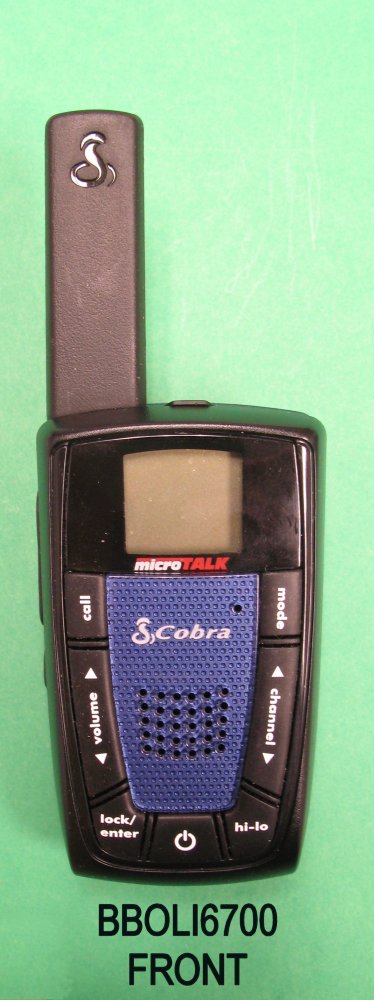

COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 EXTERNAL PHOTOS

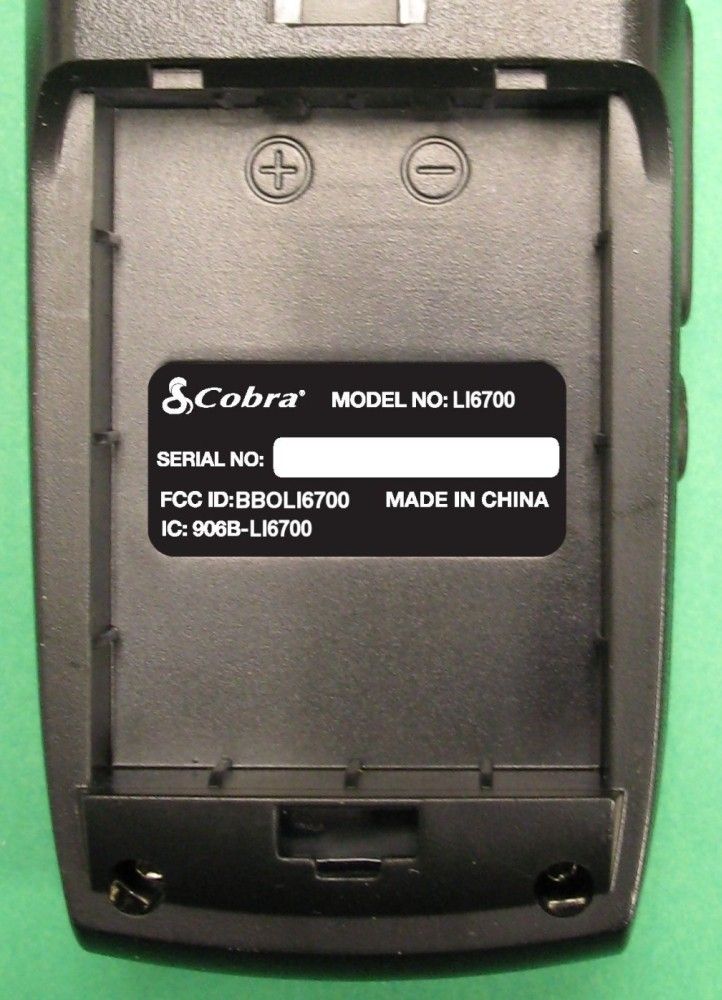

13 June 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOLI6700 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOLI6700. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOLI6700" to the insert card within the clamshell packaging. Sincerely, Robert Mudra Engineering Manager

COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 INTERNAL PHOTOS

report.rep Bill Of Materials for Li6700-USA.sch on Wed May 16 11:27:06 2007 ------------------------------------------------- Item Qty Reference Description ------------------------------------------------- 1 1 U102 AN29160AA 2 1 ANT1 3 1 BAT101 8.4V(4.2X2) Li ion 4 1 C1 105 5 1 C4 473 6 1 C5 682 7 1 C8 105 8 1 C19 15P 9 1 C22 104 10 1 C23 2.2uF 11 1 C24 104 12 1 C25 103 13 1 C26 104 14 1 C27 223 15 1 C29 473 16 1 C30 473 17 1 C32 104 18 1 C33 470P 19 1 C35 10U 20 1 C36 153 21 1 C37 682 22 1 C38 682 23 1 C40 220P 24 1 C41 470P 25 1 C42 105 26 1 C43 104 27 1 C44 682 28 1 C45 103 29 1 C46 104 30 1 C47 682 31 1 C49 105 32 1 C50 332 33 1 C51 104 34 1 C100 105 35 1 C101 105 36 1 C102 10U 37 1 C103 105 38 1 C104 105 39 1 C105 105 40 1 C106 103 41 1 C107 10U 42 1 C108 103 43 1 C109 105 44 1 C110 33P 45 1 C111 8P 46 1 C112 6P 47 1 C113 105 48 1 C114 105 49 1 C115 223 50 1 C116 104 51 1 C117 104 52 1 C118 104 53 1 C120 104 54 1 C121 104 55 1 C122 473 56 1 C124 103 57 1 C125 150P 58 1 C126 150P 59 1 C127 152 60 1 C129 223 61 1 C130 563 62 1 C131 105 63 1 C132 103 64 1 C133 47P 65 1 C134 104 66 1 C135 104 67 1 C137 152 68 1 C138 390P 69 1 C139 560P 70 1 C140 563 71 1 C141 103 第 1 页 report.rep 72 1 C142 682 73 1 C143 123 74 1 C145 104 75 1 C146 105 76 1 C147 222 77 1 C148 150P 78 1 C149 102 79 1 C150 105 80 1 C151 562 81 1 C152 33P 82 1 C153 105 83 1 C154 103 84 1 C155 683 85 1 C159 150P 86 1 C160 103 87 1 C162 102 88 1 C164 104 89 1 C166 104 90 1 C167 10U 91 1 C168 105 92 1 C169 103 93 1 C171 104 94 1 C172 104 95 1 C173 472 96 1 C174 223 97 1 C175 103 98 1 C176 20P 99 1 C177 20P 100 1 C178 105 101 1 C179 47P 102 1 C180 104 103 1 C181 104 104 1 C182 10U 105 1 C183 473 106 1 C184 270P 107 1 C185 683 108 1 C186 105 109 1 C187 104 110 1 C188 104 111 1 C190 102 112 1 C199 222 113 1 C200 105 114 1 C201 102 115 1 C202 2P 116 1 C203 1P 117 1 C204 1P 118 1 C205 10P 119 1 C206 5P 120 1 C207 105 121 1 C208 12P 122 1 C210 12P 123 1 C211 102 124 1 C212 3P 125 1 C213 470P 126 1 C214 6P 127 1 C215 NC 128 1 C216 2P 129 1 C217 100P 130 1 C218 102 131 1 C219 104 132 1 C220 103 133 1 C221 15P 134 1 C222 NC 135 1 C223 3P 136 1 C224 102 137 1 C226 12P 138 1 C227 102 139 1 C229 30P 140 1 C230 10U 141 1 C231 5P 142 1 C232 7P 143 1 C233 12P 144 1 C234 103 145 1 C237 470P 146 1 C238 4P 第 2 页 report.rep 147 1 C239 6P 148 1 C240 6P 149 1 C242 470P 150 1 C243 470P 151 1 C244 5P 152 1 C245 4P 153 1 C246 4P 154 1 C247 105 155 1 C248 682 156 1 C249 470P 157 1 C250 470P 158 1 C251 104 159 1 C252 103 160 1 C253 470P 161 1 C254 6P 162 1 C255 9P 163 1 C256 1P5 164 1 C257 5P 165 1 C258 102 166 1 C259 6P 167 1 C260 2P 168 1 C262 4P 169 1 C263 103 170 1 C264 7P 171 1 C265 7P 172 1 C266 1P 173 1 C267 102 174 1 C269 102 175 1 C270 102 176 1 C271 7P 177 1 C272 1P 178 1 C273 27P 179 1 C274 103 180 1 C275 15P 181 1 C276 682 182 1 C277 102 183 1 C278 2P 184 1 C279 27P 185 1 C280 27P 186 1 C281 15P 187 1 C282 105 188 1 C283 470P 189 1 C284 7P 190 1 C285 39P 191 1 C287 104 192 1 C288 NC 193 1 C290 473 194 1 C292 105 195 1 C293 103 196 1 C296 NC 197 1 C298 104 198 1 C299 472 199 1 C300 1P 200 1 C301 103 201 1 C303 103 202 1 C304 104 203 1 C305 102 204 1 C306 4P 205 1 C307 104 206 1 C308 103 207 1 C309 5P 208 1 C312 12P 209 1 C313 33P 210 1 C314 10P 211 1 C315 6P 212 1 C316 33P 213 1 C317 6P 214 1 C318 103 215 1 C319 470P 216 1 C320 102 217 1 C339 682 218 1 C351 103 219 1 SW1 LOCK 220 1 SW2 PTT 221 1 SW3 CALL 第 3 页 report.rep 222 1 SW4 VOL DOWN 223 1 SW5 HI/LO 224 1 SW6 POWER 225 1 SW7 LAMP 226 1 SW8 CH DOWN 227 1 SW9 CH UP 228 1 SW10 VOL UP 229 1 SW11 MODE 230 1 C7 22U 231 1 C156 100U 232 1 C165 220U 233 1 C268 10U 234 1 C289 1U 235 1 LCD1 LCD DISPLAY 236 1 D1 103CST 237 1 D200 NC 238 1 D201 KDS114 239 1 D202 KDS114 240 1 D203 HVU131 241 1 D205 KDS114 242 1 D204 ISS364 243 1 D4 103CST 244 1 D9 LL4150ST 245 1 D10 103CST 246 1 D11 103AST 247 1 D13 103CST 248 1 D14 103CST 249 1 D500 1N4001 250 1 D501 1N4001 251 1 D5 103AST 252 1 D6 103AST 253 1 D7 103AST 254 1 D8 103AST 255 1 D12 9V1 256 1 U103 BRC24C02 257 1 U101 EM78P568 258 1 X101 21.25MHz 259 1 X102 32.768K 260 1 X103 450KHz 261 1 F202 21.7M 262 1 F101 450HTW 263 1 F201 F465 264 1 JK500 ST-369-5S 265 1 JK101 EXT_SPK/MIC 266 1 L201 3T5 267 1 L202 3T5 268 1 L203 5T5 269 1 L204 3T5 270 1 L205 3T5 271 1 L206 33nH 272 1 L207 33nH 273 1 L208 22nH 274 1 L209 2U2 275 1 L210 15nH 276 1 L211 1U5 277 1 L212 47nH 278 1 L213 47nH 279 1 L214 47nH 280 1 L215 1uH 281 1 L216 3T5 282 1 L217 5T5 283 1 L218 5T5 284 1 L219 3T5 285 1 L222 100nH 286 1 L223 47nH 287 1 L224 3T5 288 1 L225 22nH 289 1 L226 22nH 290 1 L227 56nH 291 1 L228 1uH 292 1 L231 1uH 293 1 L243 1uH 294 1 U2 XC6203E602PR 295 1 U3 LDO-814 296 1 LED301 LCDLIGHT 第 4 页 report.rep 297 1 LED302 LCDLIGHT 298 1 LED500 LCDLIGHT 299 1 LED501 LCDLIGHT 300 1 MIC101 WM-54BH 301 1 M 1K 302 1 Q10 RQA0008NXAQS 303 1 Q11 2SK3078 304 1 Q1 2SC4226 305 1 Q2 2SC1623 306 1 Q5 2SC3904 307 1 Q7 2SC5066 308 1 Q8 SRC1204EF 309 1 Q9 KRC405E 310 1 Q12 SRC1204EF 311 1 Q13 KRC405E 312 1 Q14 KRC405E 313 1 Q15 SRC1204EF 314 1 Q16 SRC1204EF 315 1 Q104 SRC1204EF 316 1 Q107 2SC3904 317 1 Q201 2SC5066 318 1 Q202 2SC5066 319 1 Q203 2SC5066 320 1 Q204 2SC3904 321 1 Q207 2SC4226 322 1 Q208 2SC5066 323 1 Q209 2SC4226 324 1 Q210 2SC5066 325 1 Q211 SRC1204EF 326 1 Q216 2SC5066 327 1 Q307 2SC3904 328 1 Q3 2SA1979SF 329 1 Q4 2SA1980SF 330 1 R1 100K 331 1 R2 4K7 332 1 R4 56K 333 1 R5 10 334 1 R6 47 335 1 R7 7K5 336 1 R11 4K7 337 1 R12 100K 338 1 R15 220K 339 1 R17 180K 340 1 R18 22K 341 1 R19 22K 342 1 R20 10 343 1 R22 1K 344 1 R23 10K 345 1 R25 390K 346 1 R26 270K 347 1 R27 33 348 1 R28 10K 349 1 R29 220K 350 1 R30 22K 351 1 R31 82K 352 1 R32 0R 353 1 R33 22K 354 1 R34 3K3 355 1 R35 10K 356 1 R36 51K 357 1 R42 1M 358 1 R43 10K 359 1 R44 10K 360 1 R45 0R 361 1 R46 22K 362 1 R47 0R 363 1 R48 47K 364 1 R49 0R 365 1 R50 22K 366 1 R51 100K 367 1 R52 1M 368 1 R53 47K 369 1 R56 10 370 1 R57 10 371 1 R58 0R 第 5 页 report.rep 372 1 R59 0R 373 1 R60 0R 374 1 R61 680K 375 1 R64 47K 376 1 R65 NC 377 1 R6…

Text truncated - open the document above for the full version.

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radio technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 8.4VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the trimmer capacitor (VC101) such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 8.4VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 0.5 Watt output power with a maximum error of +/- 0.1 Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone positive terminal. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR101 for +/- 2.0 KHz maximum deviation. F. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before proceeding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 8.4 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication.

Company: Cobra Electronics Corporation FCC ID: BBOLI6700 IC ID: 906B-LI6700 Model(s): LI6700 / LI6750 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 33 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 071707BBO-T841-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 01, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT COBRA ELECTRONICS CORPORATION PRODUCT PORTABLE FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S) LI6700 LI6750 IDENTIFIER(S) FCC ID: BBOLI6700 IC ID: 906B-LI6700 APPLICATION TYPE New Certification STANDARD(S) APPLIED 47 CFR §2.1093 Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 RF EXPOSURE CATEGORY General Population / Uncontrolled Exposure TEST REPORT SERIAL NO. 071707BBO-T841-S95U TEST REPORT REVISION NO. Revision 1.0 (Initial Release) TEST REPORT ISSUE DATE August 01, 2007 Testing and Test Report ByTest Report Reviewed By TEST REPORT SIGNATORIES Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing & Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOLI6700 IC ID: 906B-LI6700 Model(s): LI6700 / LI6750 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 33 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 071707BBO-T841-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 01, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 21-364 Lougheed Road Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 e-mail: [email protected] Fax: 250-765-7645 web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER:BBOLI6700IC IDENTIFIER:906B-LI6700 Device Model(s):LI6700LI6750Serial No. Tested: #8Identical Prototype Standard(s) Applied: FCC 47 CFR §2.1093 Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) Procedure(s) Applied: Industry Canada RSS-102 Issue 2 RF Exposure Category: General Population / Uncontrolled Environment Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) Transmit Frequency Range(s): 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.900 Watts 29.54 dBm ERP462.6625 MHz GMRS Ch. 5 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: Lithium-ion 7.4 V 950 mAh P/N: MN-0160001 Body-worn Accessories Tested: Plastic Belt-Clip (4 mm thickness) Audio Accessories Connected: Ear-bud with Lapel-Microphone Face-held0.575 W/kg 1g50% duty cycle Max. SAR Level(s) Evaluated: Body-worn 1.28 W/kg 1g50% duty cycle Test Report Approved By: Sean Johnston Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOLI6700 IC ID: 906B-LI6700 Model(s): LI6700 / LI6750 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 33 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 071707BBO-T841-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 01, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 MEASUREMENT SUMMARY _________________________________________________________ 5 4.0 DETAILS OF SAR EVALUATION______________________________________________________ 6 5.0 EVALUATION PROCEDURES ________________________________________________________ 6 6.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 7 7.0 SIM…

Text truncated - open the document above for the full version.

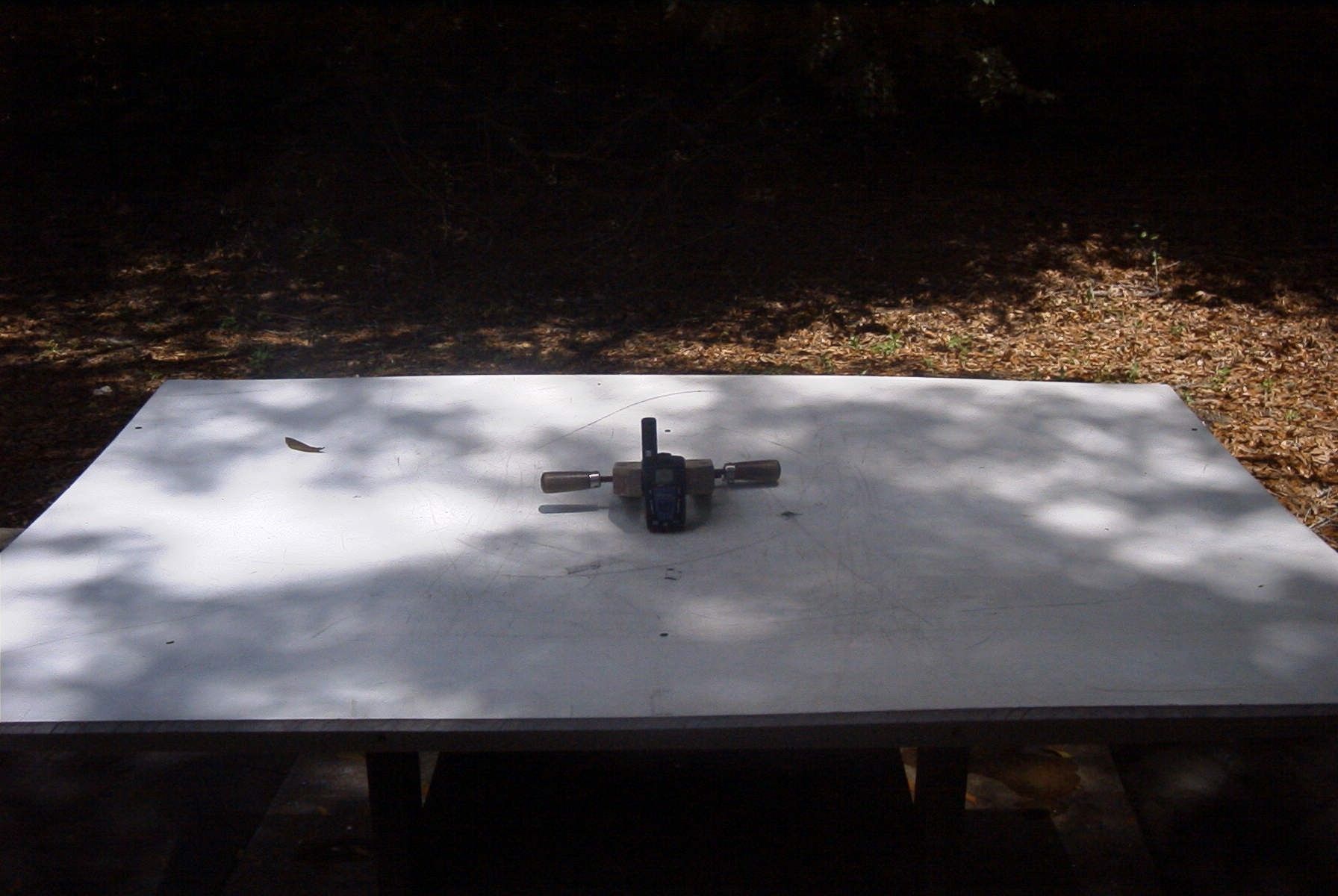

849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM FCC PART 95 AND IC RSS-210 FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 FCC ID BBOLI6700 IC CERT # 906B-LI6700 MODEL NUMBERS LI6690, LI6700, LI6725, LI6750, LI6775 PRODUCT DESCRIPTION FRS/GMRS TRANSCEIVER DATE SAMPLE RECEIVED 6/18/2007 DATE TESTED 7/16/2007 TESTED BY RICHARD BLOCK APPROVED BY Richard Block TIMCO REPORT NO. 2322AUT7TestReport.doc TOTAL PAGES 18 TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate # 0955-01 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST PROCEDURE ................................................................................................... 5 RF POWER OUTPUT .................................................................................................. 6 MODULATION CHARACTERISTICS............................................................................ 7 EMISSION DESIGNATOR AND FREQUENCIES ........................................................ 10 OCCUPIED BANDWIDTH ......................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS - TX ................................................. 14 FIELD STRENGTH OF SPURIOUS EMISSIONS - RX ................................................. 16 FREQUENCY STABILITY.......................................................................................... 17 TEST EQUIPMENT LIST........................................................................................... 18 IC Cert #: 906B-LI6700 Report: W:\C\COBRA\2322AUT7\2322AUT7TestReport.doc Page 2 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Richard Block Signature: < Richard Block> Function: Engineer Date: 7/23/2007 IC Cert #: 906B-LI6700 Report: W:\C\COBRA\2322AUT7\2322AUT7TestReport.doc Page 3 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description FRS/GMRS TRANSCEIVER FCC ID BBOLI6700 IC Cert # 906B-LI6700 Model Number LI6690, LI6700, LI6725, LI6750, LI6775 Operating Frequency 462.5500-462.7250, 467.5625-467.7125 No. of Channels 22 Type of Emission 10K5F3E Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna Fixed Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Modifications None Test Exercise The DUT was placed in continuous transmit mode of operation Applicable StandardsTIA 603 , FCC CFR 47 Part 2 and Part 95, IC RSS- 210 and RSS-GEN IC Cert #: 906B-LI6700 Report: W:\C\COBRA\2322AUT7\2322AUT7TestReport.doc Page 4 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 TEST PROCEDURE Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: RF power was conducted per TIA/EIA STANDARD 603 using the substitution method Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the DUT was 76°F with a humidity of 55%. IC Cert #: 906B-LI6700 Report: W:\C\COBRA\2322AUT7\2322AUT7TestReport.doc Page 5 of 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOLI6700 RF POWER OUTPUT Rule Part No.: Part 2.1046(a), Part 95, RSS-210 Test Requirements: Method of Measurement: RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Transmitter under Test Power Meter Spectrum Analyzer Audio Oscillator Test Data: OUTPUT POWER: GMRS: 0.9 Watts FRS: 0.3 Watts Part 2.1033 (C)(8) DC Input into the final amplifier FOR LOW POWER SETTING INPUT POWER: (7.4V)(.300A) = 2.22 Watts FOR HIGH POWER SETTING INPUT POWER: (7.4V)(.500A) =3.70 Watts IC Cert #: 906B-LI6700 Report: W:\C\COBRA\2322AUT7\2322AUT7TestReport.doc Page 6 of 18 Certificate # 0955-01 Applicant: COBRA EL…

Text truncated - open the document above for the full version.
