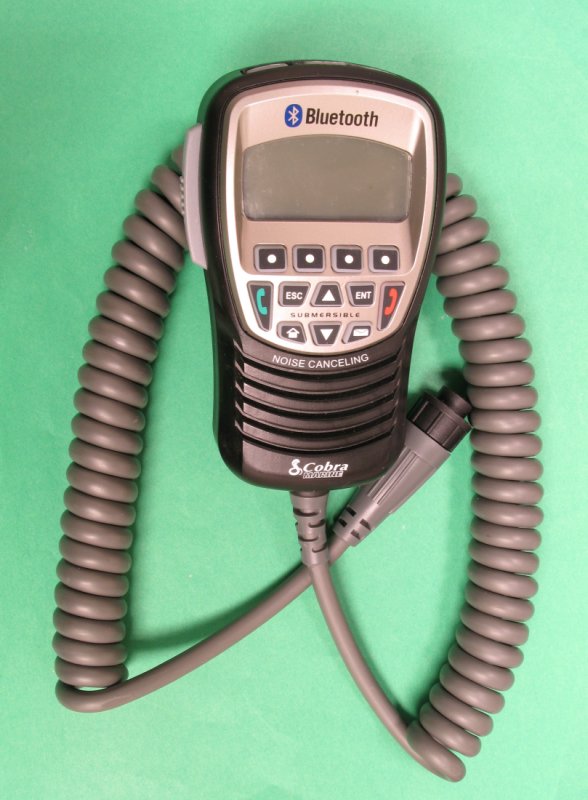

BBOMRF300BLUETOOTH HANDSET

A1 English Our Thanks to You and Customer Assistance I ntroOperationCustomer Assistance W arranty Notice Main Icons Secondary Icons CautionWarning I nstallation Customer A ssistance Introduction MARINE B B L L U U E E T T O O O O T T H H ® HANDSET MR F300 BT P r i n t e d i n C h i n a P a r t N o . 4 8 0 - 4 6 3 - P V e r s i o n A P a t e n t P e n d i n g Owner’s Manual NothingComes Close to a Cobra ® English Our Thanks to You • Thank you for purchasing a CobraMarine BluetoothHandset. Properly used, this Cobra product will give you many years of reliable service. How Your CobraMarine BluetoothHandset Works This handset allows use of mobile telephones (cell phones) afloat while protecting them from potential damage in the marine environment. Bluetoothwireless technology allows voice and data transmission over short distances by means of a radio link. Using that technology, the Bluetoothhandset allows your cell phone to be turned on and stowed in a waterproof and protected location on the vessel. Calls are then made and received using the Bluetooth handset on deck or in the cockpit of your boat. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Y our Local Dealer or Visit www.cobra.com. IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance Customer Assistance © 2008 Cobra Electronics Corporation 6500 W est Cortland Street Chicago, Illinois 60707 USA www.cobra.com IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance 10732 Cobra MR F300 Ecvr L2c gn.qxp 5/6/08 8:40 AM Page A1 W aiting Connected A3 English I ntroOperationCustomer Assistance W arranty Notice Main Icons Secondary Icons CautionWarning I nstallation Customer A ssistance Introduction A2 English Handset Controls and Indicators I ntroOperationCustomer Assistance W arranty Notice Main Icons Secondary Icons CautionWarning I nstallation Customer A ssistance Introduction Backlit LCD (Liquid Crystal Display) Screen • Red Phone Button Back Light/ Lock Button Function Buttons * Green Phone Button Level Missed Call Cell Phone Signal I ncoming Call Up Arrow Button Product Features • Hanger Peg Voice Dialing / Last Number Redial Button Disconnected Backlit LCD Screen, Product Features and Trademarks Outgoing Call Enter Button Home Button Push to Talk (PTT) Backlit LCD Screen Escape Button Down Arrow Button Widely Compatible Links with most Bluetoothenabled cell phones. Intuitive Operation Handset is similar to CobraMarine radio microphones for easy operation. Submersible Meets JIS7 submersible standards. Noise Cancelling Microphone Reduces effect of environmental noise when speaking. External Audio Output Allows connection of the F300 to your stereo’s AUX input. Key Lock Prevents accidental operation or setting changes when key lock is set. Backlit LCD Screen Allows adjustment of brightness and contrast for legibility in all light conditions. Illuminated Buttons Allows high visibility of all function buttons. Phonebook Allows storage of up to 50 name and number entries. Call Log Displays data on up to the 50 most recent calls including sent, received and missed. Mode/VOX Button Power Button * Function button effects vary with the mode in which the handset is operating. Button functions ar e shown dir ectly above them on the LCD screen. Pointers Trademark Acknowledgement • Cobra ® , CobraMarine ® , Nothing Comes Close to a Cobra ® and the snake design are registered trademarks of Cobra Electronics Corporation, U.S.A. Cobra Electronics Corporation TM and MicroBlue TM are trademarks of Cobra Electronics Corporation, U.S.A. The Bluetooth ® word mark and logo are registered trademarks owned by BluetoothSIG, Inc., and any use of such marks by Cobra Electronics Corporation, U.S.A. is under license. Other trademarks and trade names are the property of their respective owners. Microphone 10732 Cobra MR F300 Ecvr L2c gn.qxp 5/6/08 8:40 AM Page A2 Introduction I ntroOperationCustomer Assistance W arranty Notice Main Icons Secondary Icons CautionWarning I nstallation Customer A ssistance 1 Nothing Comes Close to a Cobra ® Table of Contents Introduction Our Thanks to You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1 Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1 Handset Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2 Backlit LCD (Liquid Crystal Display) Screen . . . . . . . . . . . . . . . . . . . . . . . A3 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3 Trademark Acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3 Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installation Included in this Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Operating Your Handset Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

03 June 2008 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOMRF300 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Parts List Block Diagram Operational Descriptions This request is made under the provisions of Section 0.459(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Engineering Manager Cobra Electronics Corporation

849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com FCC PART 15.249 AND INDUSTRY CANADA RSS-210 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOMRF300 Model Number MR F300 BT Product Description BLUETOOTH HANDSET Date Sample Received 6/9/2008 Date Tested 6/27/2008 Tested By Richard Block Approved By Mario de Aranzeta Report Number C\COBRA\1194AUT8\1194AUT8TestReport.doc Total Pages Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRF300 REPORT: C\COBRA\1194AUT8\1194AUT8TestReport.doc Page 2 of 11 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ................................................................................................................ 3 GENERAL INFORMATION........................................................................................................ 4 EMC EQUIPMENT LIST............................................................................................................ 5 TEST PROCEDURES................................................................................................................ 6 RADIATION INTERFERENCE................................................................................................... 7 OCCUPIED BANDWIDTH......................................................................................................... 8 BAND EDGE COMPLIANCE..................................................................................................... 9 POWER LINE CONDUCTED INTERFERENCE..................................................................... 11 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRF300 REPORT: C\COBRA\1194AUT8\1194AUT8TestReport.doc Page 3 of 11 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 7/21/2008 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRF300 REPORT: C\COBRA\1194AUT8\1194AUT8TestReport.doc Page 4 of 11 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification Applicable Standard Part 15.249 DUT Description BLUETOOTH HANDSET FCC ID BBOMRF300 Model Number MR F300 BT Operating Frequency TX: 2402 – 2408 MHz RX: Same 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications None Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRF300 REPORT: C\COBRA\1194AUT8\1194AUT8TestReport.doc Page 5 of 11 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/11/07 5/11/10 AC Voltmeter HP 400FL 2213A14499 CAL 12/29/06 12/29/08 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 11/30/07 11/30/09 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/30/07 11/30/09 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/30/07 11/30/09 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/30/07 11/30/09 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 3/30/07 3/30/09 Antenna: Dipole Kit Electro-Metrics TDA-30/1- 4 152 CAL 3/3/06 3/3/09 Antenna: Dipole Kit Electro-Metrics TDA-30/1- 4 153 CHAR 4/5/06 4/5/09 Frequency Counter HP 5385A 2730A03025 CAL 7/6/07 7/6/09 Hygro- Thermometer Extech 445703 0602 CAL 11/15/07 11/15/09 Antenna: Log- Periodic Electro-Metrics LPA-25 1122 CAL 12/1/06 12/1/08 Measuring Tape- 7.5M Kraftixx 7.5M PROFI CHAR 11/13/07 11/13/09 Modulation Analyzer HP 8901A 3435A06868 CAL 5/9/07 5/9/09 Digital Multimeter Fluke FLUKE-77- 3 79510405 CAL 5/14/07 5/14/09 System One Audio Precision System One SYS1-45868 CHAR 2/27/08 2/27/10 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/08 4/25/10 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRF300 REPORT: C\COBRA\1194AUT8\1194AUT8TestReport.doc Page 6 of 11 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maxim…
