BBOMRHH125BHANDHELD MARINE TRANSCEIVER

A1 English Our Thanks to You and Customer Assistance IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance Introduction VHF MARINE RADIO MR HH125 Printed in China Part No. 480-426-P Version E Owner’s Manual Nothing Comes Close to a Cobra ® English Our Thanks to You • Thank you for purchasing a CobraMarine ® VHF radio. Properly used, this Cobra ® product will give you many years of reliable service. How Your CobraMarine VHF Radio Works This radio is a battery-powered portable transceiver for use afloat. It gives you two-way vessel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navigation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders, and make radiotelephone calls to anywhere in the world through a marine operator. Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weather channels and alert you to weather emergencies with a tone on a weather channel you can select for your area. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance Customer Assistance © 2014 Cobra Electronics Corporation™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com MRHH125+_MANL_ENG.indd 1-24/25/14 4:59 PM A3 English IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance Introduction A2 English Radio Controls and Indicators IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance Introduction Backlit LCD (Liquid Crystal Display) Screen • Instant Channel 16/9 Button ON/OFF/ Volume Control External Speaker/ Microphone Jack Antenna Backlit LCD Screen Battery Compartment Backlight/ Key Lock Button Memory/ Escape Button Push to Talk Button (Talk) UIC Active Channel Map Icons Dual Watch Icon Battery Power Icon Button Lock Icon Weather Icon Key Tone Icon Scan Icon Active Channel Numbers Speaker Power Settings Select 1 or 3 watts of output power for near or distant calling. USA/International/Canada Channels Operate on any of the three (3) different channel maps set up for these areas. All NOAA Weather Channels Instant access to all National Weather Channels, 24 hours a day. Emergency Weather Alert Receive NOAA alerts when threatening weather is nearby. Waterproof Meets JIS4 waterproof standards. Key Lock Prevents accidental setting changes when key lock is set. Channel Scan/Memory Scan Scan through all or memorized channels to find conversations in progress. Instant Channel 16/9 Provides instant access to priority Channel 16 and calling Channel 9. Dual-Watch Use to monitor two (2) channels at once – Channel 16 and one programmable channel. Roger Beep Tone (Selectable) Confirmation tone indicates the completion of the user’s transmission and signals to others it is clear to talk. On or Off selectable. Rechargeable NiMH (Nickel-Metal Hydride) Batteries Five (5) rechargeable NiMH batteries supplied with the unit provide extended operating time compared to alkaline batteries and have no memory effect. Five (5) AAA alkaline batteries may also be used for emergency backup power. 12V Power Cord Included Charge the NiMH batteries in a car or boat. Speaker/Mic Jack Allows connecting optional Cobra Lapel Speaker/Mic. Memory Channels Allows programming of up to ten (10) VHF memory channels. Signal Strength Meter Shows the strength of incoming or outgoing signals. Illuminated Buttons Allows high visibility of all function buttons. Product Features • Belt Clip Engagement Microphone Low/High Power Icons Battery Door Latch Simplex Operation Icon Backlit LCD Screen and Product Features Roger Beep Icon Memory Channel Icon Weather Alert Icon Power Level/ Weather Button Enter/Setup Button Dual Watch/ Scan Button Channel Down Button Receive & Transmit Icons Signal Strength Icon Broadcast Receive Icon Squelch Defeat Button Charge Jack Wrist Strap Connector Channel Up Button MRHH125+_MANL_ENG.indd 3-44/25/14 4:59 PM Introduction IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons CautionWarning Installation Customer Assistance 1 Nothing Comes Close to a Cobra ® Table of Contents Introduction Our Thanks to You .................................................................................... A1 Customer Assistance ................................................................................ A1 Radio Controls and Indicators .................................................................. A2 Backlit LCD (Liquid Crystal Display) Screen ............................................. A3 Product Features ....................................................................................... A3 Important Safety Information ........................................................................ 2 Recommendations for Marine Communication ............................................ 4 FCC Licensing Information ..…

Text truncated - open the document above for the full version.

Applicant: Cobra Electronics Corp. FCC ID: BBOMRHH125B, IC: 906A- MRHH125B, Model: HH125+

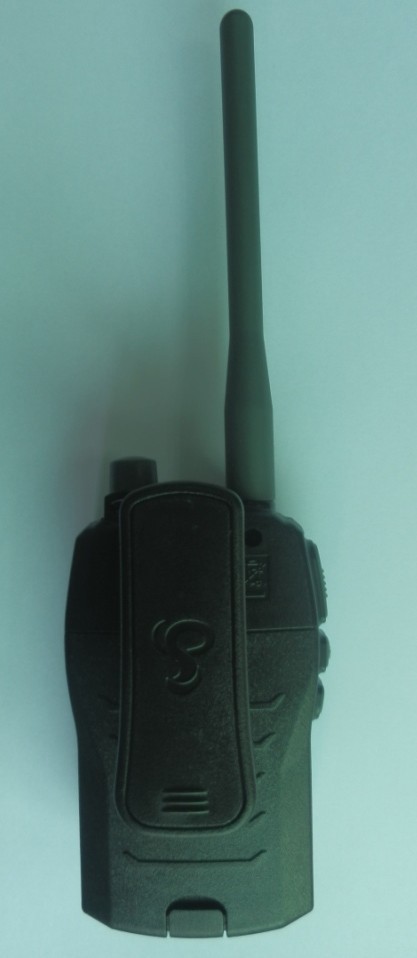

MR HH125+ serial number and location

Applicant: Cobra Electronics Corp. FCC ID: BBOMRHH125B, IC: 906A-MRHH125B, Model: HH125+ Internal Photos

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Cobra Electronics Corporation Dates of Test: April 25, 2014 6500 West Cortland St. Test Report Number: SAR.20140407 Chicago, IL 60707 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and EN/IEC 62209 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: BBOMRHH125B Model(s): HH125+ Test Sample: Engineering Unit Same as Production Serial Number: FCC #5 Equipment Type: Push-To-Talk Handheld Radio for General Population Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 156.05 – 157.425 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 34.65 dBm Conducted Signal Modulation: FM Body Worn Accessories: Standard Belt Clip Audio Accessories: Model 80-IC182 Antenna Type: Standard Integral Antenna Battery: Standard (Model 5-AAA NiMH, 5-AAA Alkaline) Application Type: Certification FCC Rule Parts: Part 2, 90 KDB Test Methodology: KDB 447498 D01 v05r02, KDB 643646 D01 v01r01, KDB 865664 D01 v01r01, KDB 865664 D02 v01 Maximum SAR Value: 0.31 W/kg for Face; 0.45 W/kg for Body Reported Separation Distance: 25 mm for Face; 0 mm for Body © 2014 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140407 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................11 4. Phantom & Simulating Tissue Specifications .....................................................................12 Head & Body Simulating Mixture Characterization ................................................................12 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................13 Uncontrolled Environment .....................................................................................................13 Controlled Environment .........................................................................................................13 6. Measurement Uncertainty .................................................................................................14 7. System Validation..............................................................................................................15 Tissue Verification .................................................................................................................15 Test System Verification ........................................................................................................15 8. SAR Test Data Summary ..................................................................................................16 Procedures Used To Establish Test Signal ...........................................................................16 Device Test Condition ...........................................................................................................16 Radio Body Test .......................................................................................................................17 SAR Data Summary – Head SAR Face Measurements ........................................................20 SAR Data Summary – Body SAR Measurements .................................................................21 9. Test Equipment List ...........................................................................................................22 10. Conclusion ....................................................................................................................23 11. References ....................................................................................................................24 Appendix A – System Validation Plots and Data .......................................................................25 Appendix B – SAR Test Data Plots ...........................................................................................30 Appendix C – SAR Test Setup Photos ......................................................................................33 Appendix D – Probe Calibration Data Sheets .............…

Text truncated - open the document above for the full version.

FCC PART 80 AND IC RSS-182 (i5) TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOMRHH125B IC CERTIFICATION 906A-MRHH125B MODEL NUMBER MR HH125+ PRODUCT DESCRIPTION HANDHELD MARINE TRANSCEIVER DATE SAMPLE RECEIVED 4/22/2014 DATE TESTED 4/28/2014 TESTED BY Cory Leverett APPROVED BY Cory Leverett TIMCO REPORT NO. 657AUT14TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH125B IC CERT #: 906A-MRHH125B Report: C\COBRA\657AUT14\657AUT14TestReport Page 2 of 21 Table of Contents GENERAL REMARKS ............................................................................................................ 3 GENERAL INFORMATION ..................................................................................................... 4 TEST PROCEDURES ............................................................................................................. 5 TECHNICAL DATA ................................................................................................................ 6 RF POWER OUTPUT ............................................................................................................. 7 MODULATION CHARACTERISTICS ...................................................................................... 8 AUDIO FREQUENCY RESPONSE .......................................................................................... 9 AUDIO LOW PASS FILTER ................................................................................................. 10 AUDIO INPUT VERSUS MODULATION ............................................................................... 11 OCCUPIED BANDWIDTH .................................................................................................... 12 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................... 17 FREQUENCY STABILITY ..................................................................................................... 20 EMC EQUIPMENT LIST ....................................................................................................... 21 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH125B IC CERT #: 906A-MRHH125B Report: C\COBRA\657AUT14\657AUT14TestReport Page 3 of 21 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Engineering Project Manager Date: April 30, 2014 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH125B IC CERT #: 906A-MRHH125B Report: C\COBRA\657AUT14\657AUT14TestReport Page 4 of 21 GENERAL INFORMATION DUT Specification DUT Description HANDHELD MARINE TRANSCEIVER FCC ID BBOMRHH125B IC Certification 906A-MRHH125B Model Number MR HH125+ Operating Frequency 156.025-157.425 MHz Test Frequencies 156.300, 156.700, 157.425MHz No. of Channels All U.S., Canadian, International and NOAA Weather Channels Type of Emission 16K0G3E, 16K0F3E Modulation Phase Modulation DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector Fixed Antenna Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 80, IC RSS- 182 (issue 5) and RSS-GEN (issue 3) Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH125B IC CERT #: 906A-MRHH125B Report: C\COBRA\657AUT14\657AUT14TestReport Page 5 of 21 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C: 2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI C63.4-2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the antenna. Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOM…
