BBOMRHH350MARINE TRANSCEIVER

16 / 9TW S C A N W X H M L ESC MEM ENT SETUP CALL FLOATING SUBMERSIBLE MEMSAMEATIS VOXLO M E D H I ROG VHF T R A B GMRS X CIU MARINE HH350 VHF MARINE RADIO MRHH350FLT P r i n t e d i n C h i n a P a r t N o . 4 8 0 - 8 4 4 - P V e r s i o n A Owner’s Manual NothingComes Close to a Cobra ® English A1 English Our Thanks to You and Customer Assistance Introduction Our Thanks to You • Thank you for purchasing a CobraMarine ® VHF radio. Properly used, this Cobra ® product will give you many years of reliable service. How Your CobraMarine VHF Radio Works This radio is a battery-powered portable transceiver for use afloat. It gives you two-way vessel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navigation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders, and make radiotelephone calls to anywhere in the world through a marine operator. Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weather channels and alert you to weather emergencies with a tone on a weather channel you can select for your area. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance ©2012 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com A2 English Radio Controls and Indicators Introduction Instant Channel 16/9 Button Channel Up Button ON/OFF/ Volume Control Speaker/ Microphone External Cover Antenna Backlit LCD Screen Tri-Watch Button Battery Backlight/ Key Lock Button Memory/Escape Button Push to Talk Button Channel Down Button Speaker Belt Clip Battery Door Screw Power Level/Weather Button SCAN Button Call/Enter Button VHF Microphone MRHH350_ENG_CVR_vA_F_v8_MR HH 330 Cover 11/28/12 4:48 PM Page 1 MEMSAMEATIS VOXLOMEDHI ROG VHF T R A B GMRS X CIU A3 English Introduction Backlit LCD (Liquid Crystal Display) Screen • UIC Active Channel Map Icons Button Lock Icon Low/Medium/High Power Icons Power Settings Selectable power settings produce 1, 3 or 6 watts of output power for near or distant calling. USA/International/Canada Channels Allows operation on any of the three (3) different channel maps established for these areas. All NOAA Weather Channels Instant access to all National Weather Channels, 24 hours a day. Submersible to JIS7 Standards Waterproof to 3.3 ft (1 m) of water for 30 minutes. Button/Key Lock Prevents accidental setting changes when button lock is set. Channel Scan/Memory Scan Use to scan through unlimited channels or memory locations to find conversations in progress. Matrix Display The display at the bottom of the LCD screen will show text letting the user know what mode, function or operation the radio is currently in. AA Battery Compatible Good for emergency backup. Requires optional AA battery tray (P/N CM 110-024). Instant Channel 16/9 Provides instant access to priority Channel 16 and calling Channel 9. Tri-Watch Use to monitor three (3) channels at once — Channel 16 and two (2) programmable channels. Floating This radio will float if dropped overboard. It has an orange stripe so it's easy to retrieve. Must use included battery to float. 120V/12V Charger Included Use to charge battery pack, at home, in a car or in a boat. Product Features • Backlit LCD Screen and Product FeaturesProduct Features Introduction Locking Desktop Charger Holds the radio or battery in place while charging. Vertical or horizontal mounting. Call Tones (Selectable) 10 selectable call tones Emergency Weather Alert Receive NOAA alerts when threatening weather is nearby. Speaker/Mic Jack Allows connecting optional Cobra Lapel Speaker/Mic and other Cobra accessories. Unlimited Memory Channels Allows programming of unlimited VHF memory channels. Signal Strength Meter Shows the strength of incoming or outgoing signals. Illuminated Buttons Allows high visibility of all function buttons. Roger Beep Tone (Selectable) Confirmation tone indicates the completion of the user’s transmission and signals to others it is clear to talk. On or Off selectable. BURP The Cobra exclusive BURP feature expels water from the speaker grill if the unit is dropped in the water or is subjected to extreme rain and weather. Product Features (continued) • A4 English Introduction Notes Call Tone Icon Weather Alert Icon Frequency Band Icon R oger Beep Icon Battery Power Icon Memory Icon Matrix Display Simplex Operation Icon Weather Icon Active Channel Transmit and Receive Icons Key Tone Icon Signal Level Icon Left blank intentionally for your notes MRHH350_ENG_CVR_vA_F_v8_MR HH 330 Cover 11/28/12 4:48 PM Page 4 Introduction 1 Nothing Comes Close to a Cobra ® Table of Contents Introduction Our Thanks to You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A1 Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A1 Radio Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A2 Backlit LCD (Liquid Crystal Display) Screen . . . . . . . . . . . . . . . . . . . . . . . .A3 Product Features . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

December 10, 2012 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOMRHH350 Dear Sirs: The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 80 for Marine VHF services. Figure 1. figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remains readable for the anticipated life of the device. The consumer packaging for these models is a cardboard giftbox and as such, the FCC identifier on the serial number label cannot be seen at time of purchase. In order to meet the requirements of 47 CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOMRHH350" on the outside of the gift box packaging where it can be readily seen. Sincerely, Chris deWaal Sr. Project Engineering Cobra Electronics Corporation

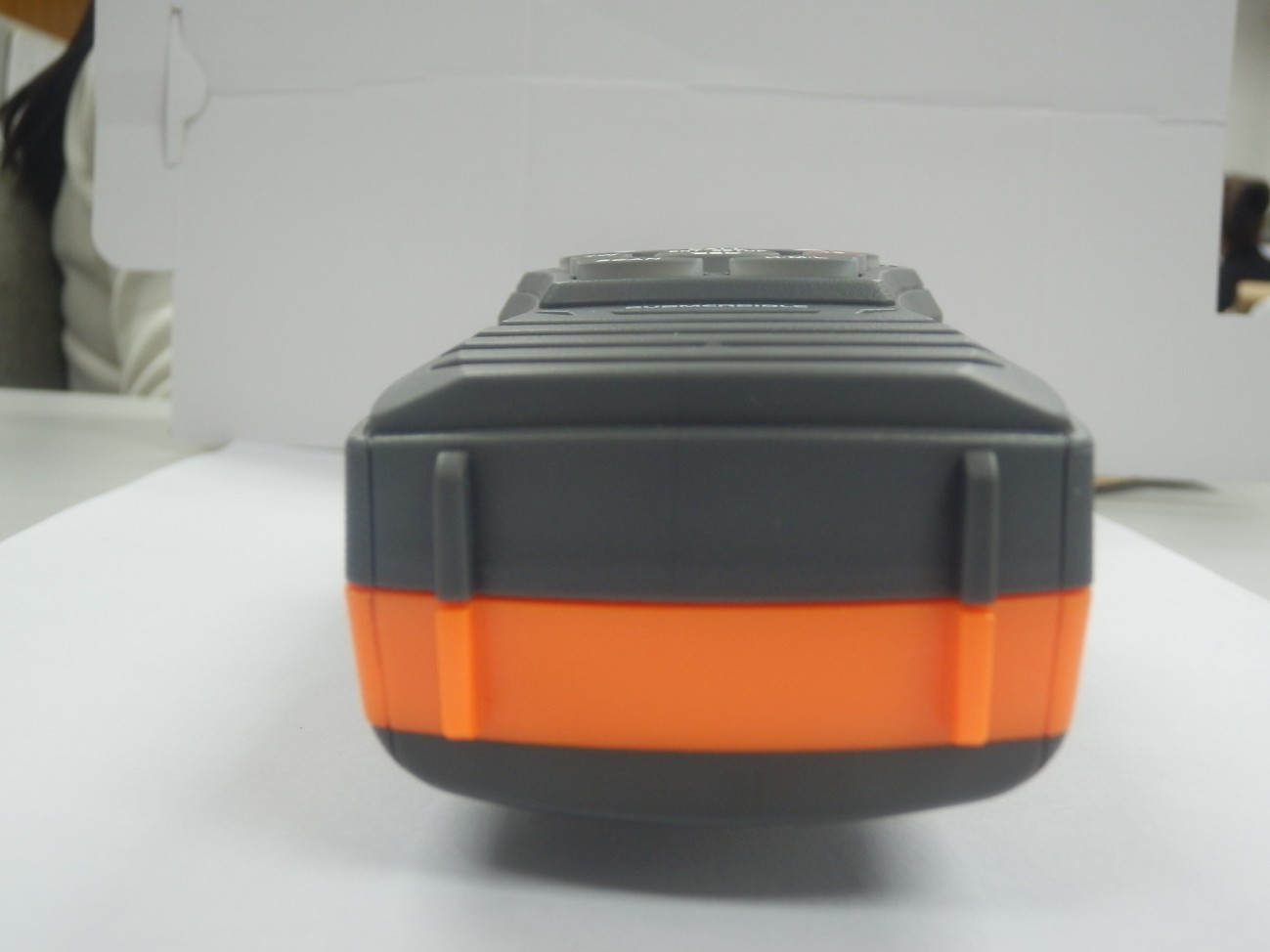

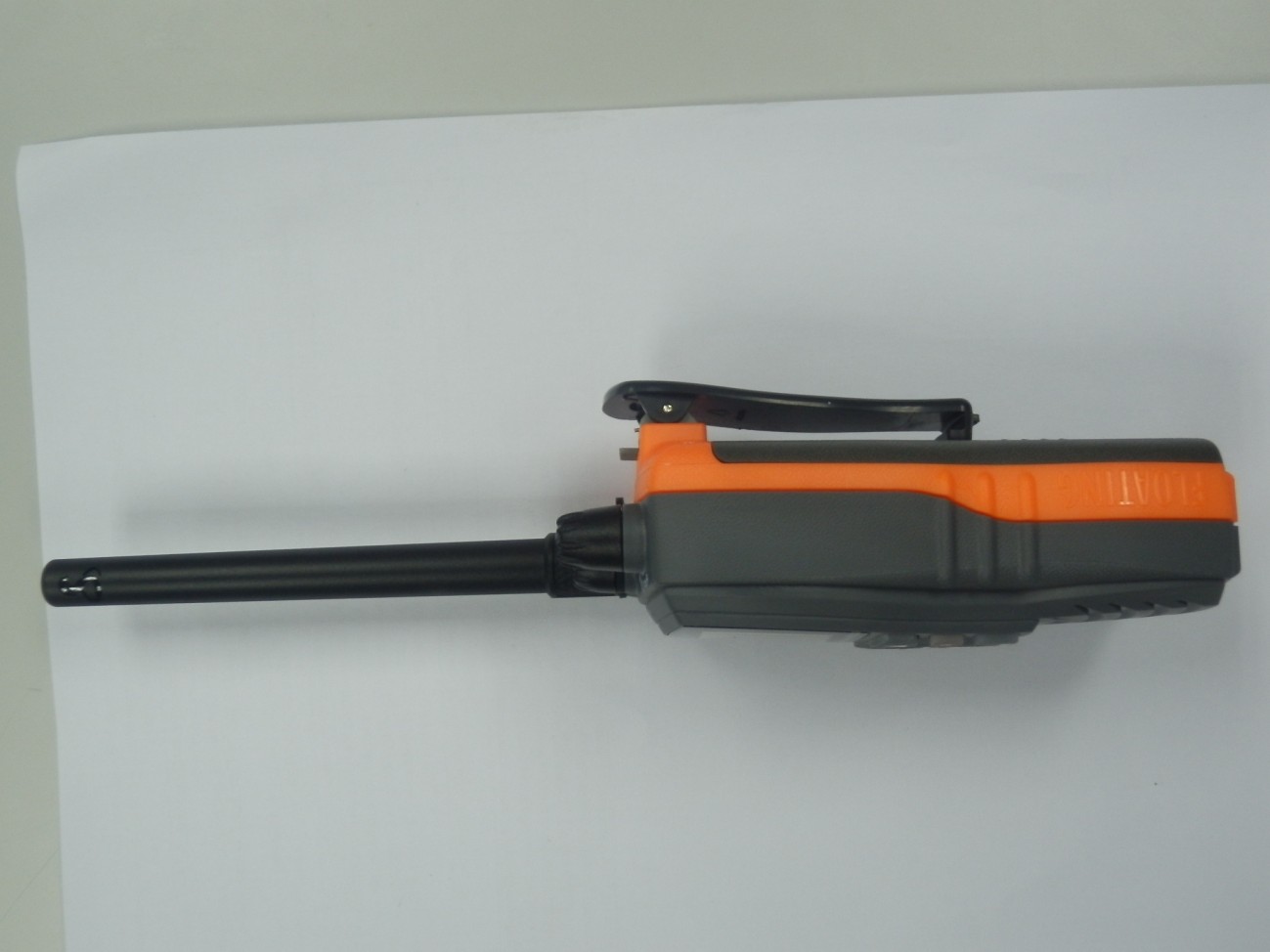

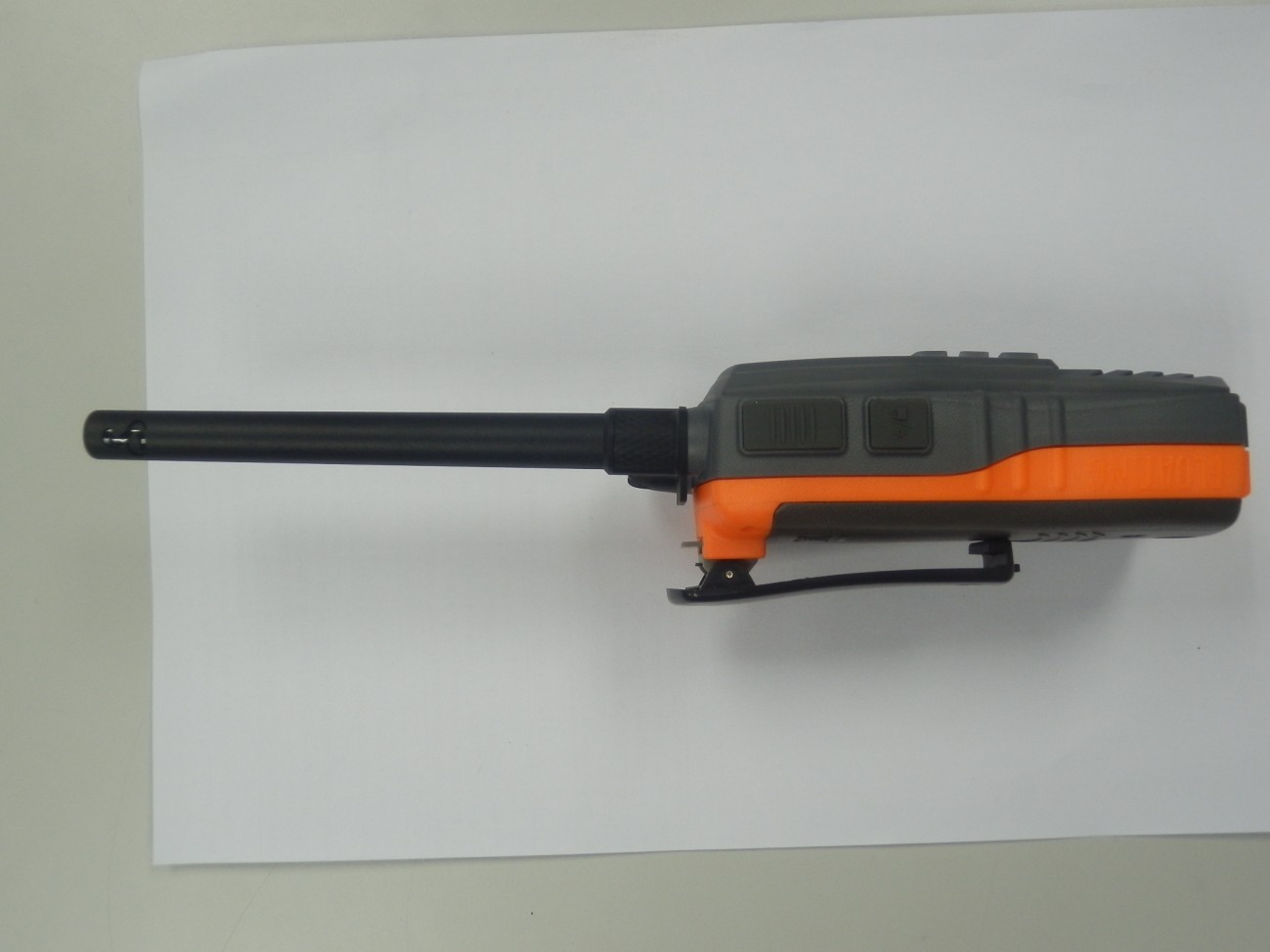

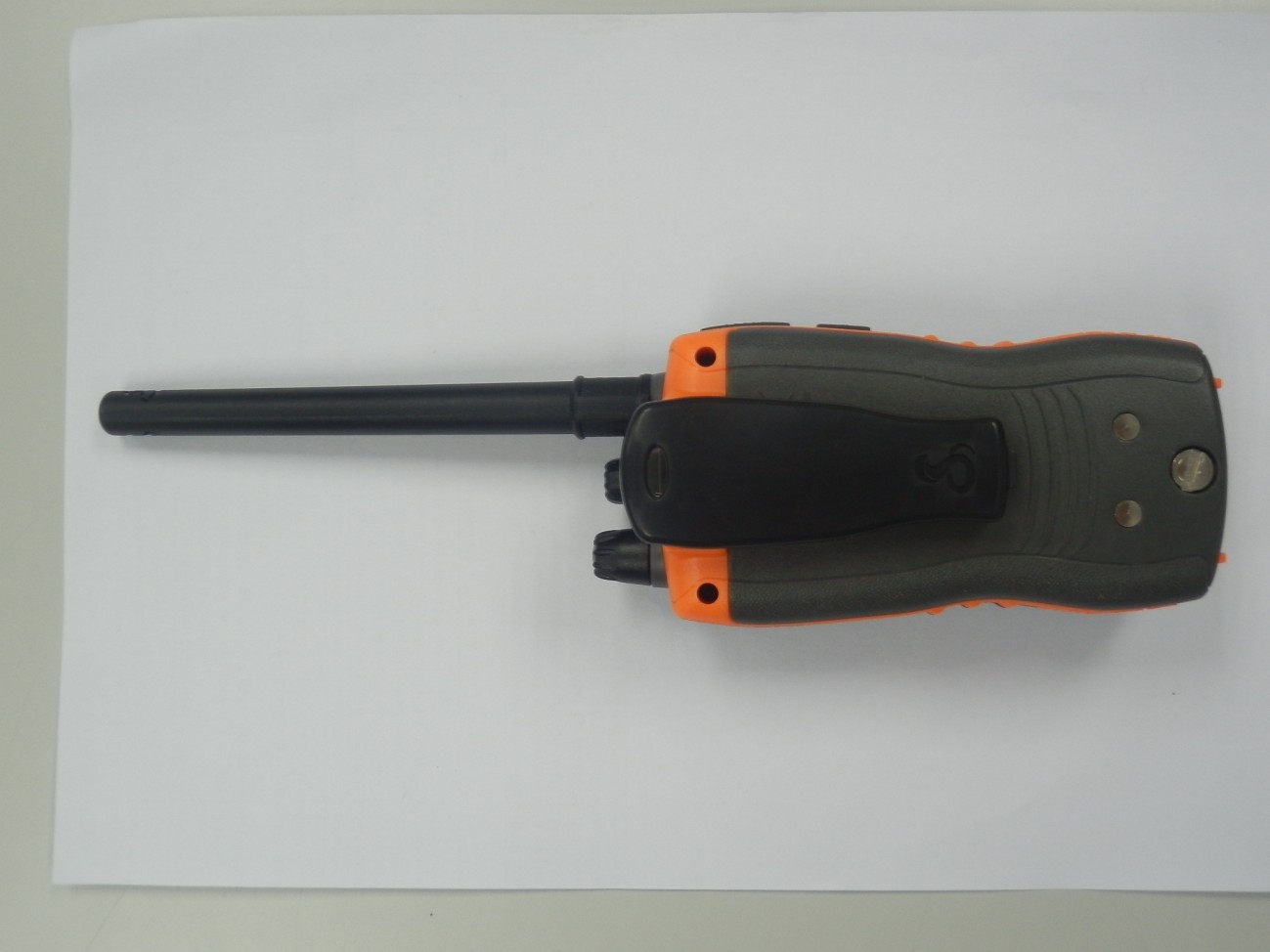

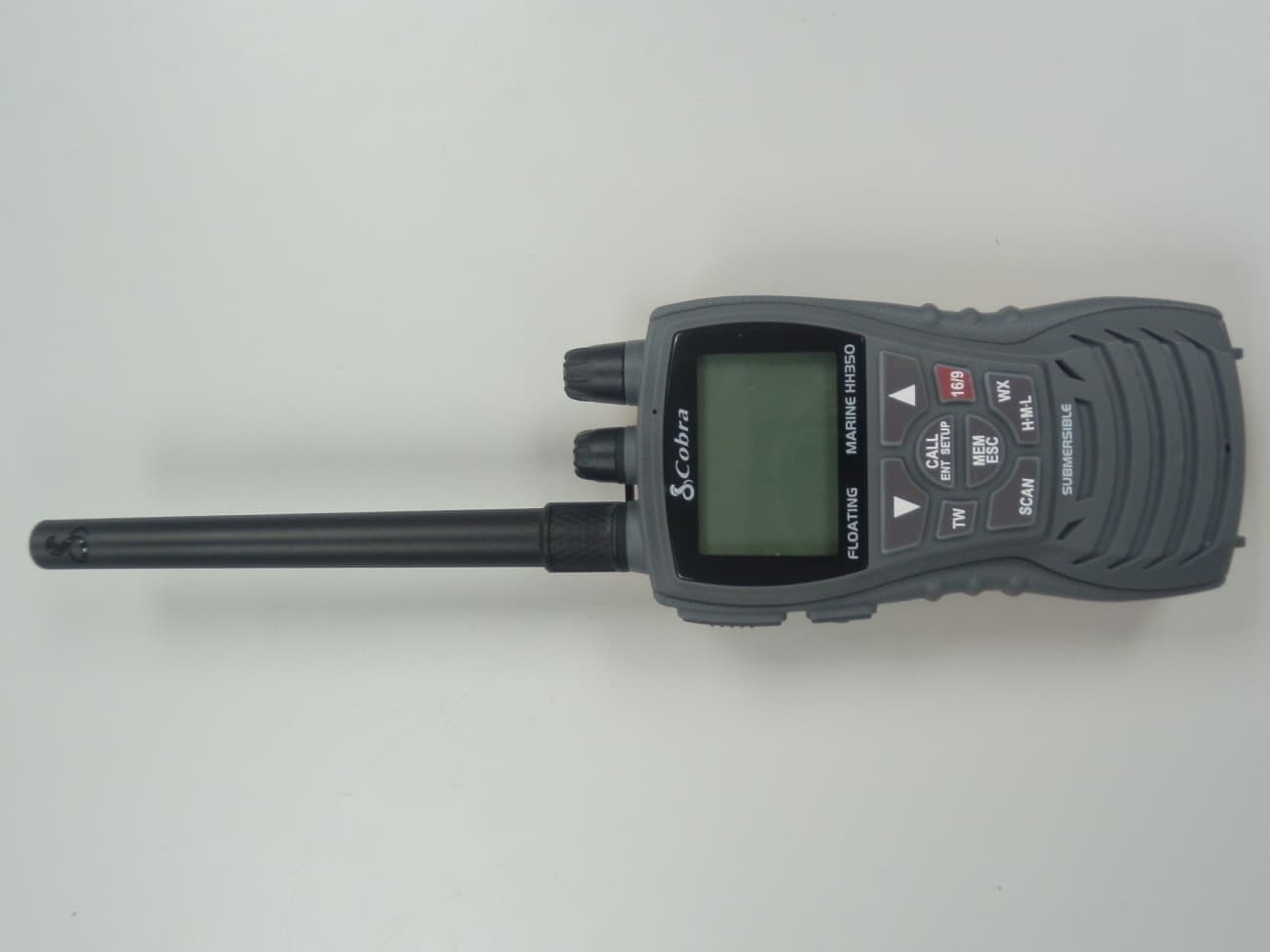

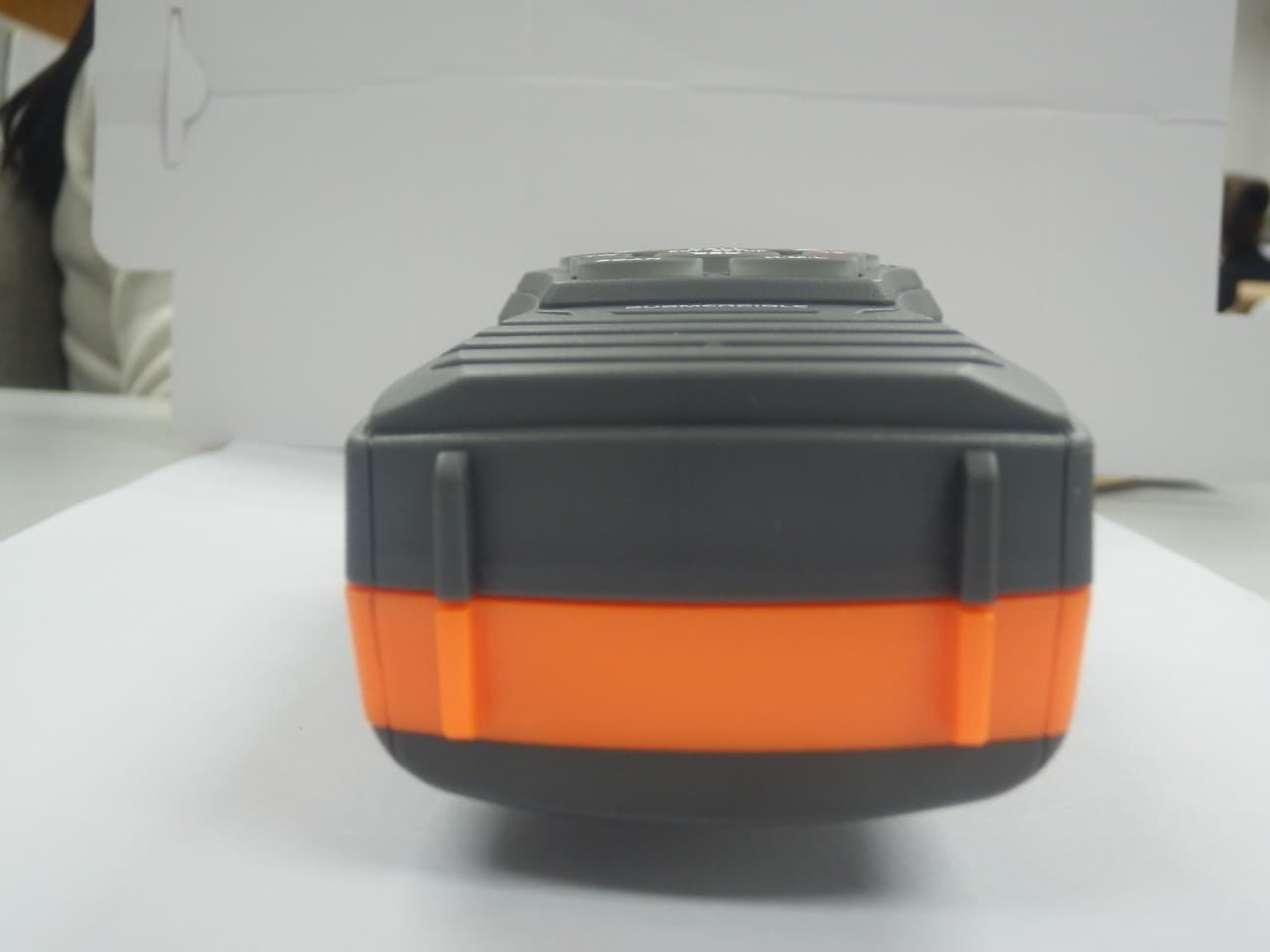

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBOMRHH350 EXTERNAL PHOTOS

MR HH350 USA RADIO SERIAL NUMBER (RATING) LABEL 1:1 35mm x 26.5mm MR HH350 RADIO SERIAL NUMBER (RATING) LABEL 2:1 Top portion of label black field with with reverse type. MODEL: MR HH350 FCC ID: BBOMRHH350 CANADA IC: 906A-MRHH350 COBRA ELECTRONICS CORP. CHICAGO, ILLINOIS 60707 www.cobra.com Made in China 000000000 S/N: SAMPLE 11.28.12 MODEL: MR HH350 FCC ID: BBOMRHH350 CANADA IC: 906A-MRHH350 COBRA ELECTRONICS CORP. CHICAGO, ILLINOIS 60707 www.cobra.com Made in China 000000000 S/N:

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBOMRHH350 INTERNAL PHOTOS

Applicant: Cobra Electronics Corporation FCC ID: BBOMRHH500 IC: 906A-MRHH500 Model(s): MR HH500 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 44 Date(s) of Evaluation Dec. 17, 2012 Test Report Serial No. 121112BBO-T1210-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Dec. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name COBRA ELECTRONICS CORPORATION Applicant Information Address 6500 West Cortlan Street, Chicago, IL 60707 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET 65, Supplement C FCC KDB 447498 D01v05 Procedure(s) Applied IC RSS-102 Issue 4 IEEE Standard 1528-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Maritime Radio Transmitter and Receiver (RSS-182) Device RF Exposure Category FCC/IC General Population / Uncontrolled Environment FCC ID: BBOMRHH500 Device Identifier(s) IC: 906A-MRHH500 Model(s) MR HH500 MR HH350 (not tested) Device Model(s) Note: Only model difference is that the MR HH350 does not have Bluetooth or voice recording. Models are mechanically and electrically identical. Co-located Transmitters Bluetooth (7mW) - not able to transmit simultaneously with radio. Test Sample Serial No. #8 (Identical Prototype) Date of Sample Receipt Dec. 11, 2012 Date(s) of Evaluations Dec. 17, 2012 Test Sample Hardware Rev. No. n/a Test Sample Firmware Rev. No. B6CD Device-Under-Test Description (DUT) Portable FM VHF Push-To-Talk (PTT) Marine Radio Transceiver with Bluetooth VHF Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Manuf. Rated Output Power 5.0 W +/- 0.8 W (average conducted) (Hi power setting) Measured RF Output Power 5.2 W 37.2 dBm Conducted 156.7 MHz (Ch. 14) Battery Type Tested Lithium-Ion 7.4 V 1000 mAh P/N: 110-350 Antenna Type Tested Removable Stubby P/N: N/A Body-worn Accessory Tested Belt-Clip (contains metal) P/N: 240-003 Audio Accessory Tested Speaker-Microphone P/N: CM330-001 Face-held 0.299 W/kg 1g 50% PTT duty factor Max. SAR Level(s) Evaluated Body-worn 0.630 W/kg 1g 50% PTT duty factor FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g 50% PTT duty factor General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: Cobra Electronics Corporation FCC ID: BBOMRHH500 IC: 906A-MRHH500 Model(s): MR HH500 DUT Type: Portable VHF PTT Marine Radio Transceiver 156.025-157.425 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 44 Date(s) of Evaluation Dec. 17, 2012 Test Report Serial No. 121112BBO-T1210-S80V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Dec. 19, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENT _____________________________________5 4.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ____________________________5 6.0 ACCESSORY LISTING_______________________________________________________________6 7.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________7 8.0 SAR MEASUREMENT SUMMARY ____________________________________________________10 9.0 SAR SCALING (MANUFACTURER TOLERANCE) _______________________________________10 10.0 CO-LOCATED TRANSMITTERS _____________________________________________________10 11.0 DETAILS OF SAR EVALUATION ____________________________________________________11 12.0 SAR EVALUATION PROCEDURES __________________________________________________11 13.0 SYSTEM PERFORMANCE CHECK ___________________________________________________12 14.0 SIMULATED EQUIVALENT TISSUES _________________________________________________13 15.0 SAR LIMITS _____________________________________________________________________13 16.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________14 17.0 PROBE SPEC…

Text truncated - open the document above for the full version.

FCC PART 80 AND IC RSS-182 (i5) TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOMRHH350 IC CERTIFICATION 906A-MRHH350 MODEL NUMBER MR HH350 PRODUCT DESCRIPTION MARINE TRANSCEIVER DATE SAMPLE RECEIVED 11/20/2012 DATE TESTED 12/6/2012 TESTED BY Sushant Kadimdivan APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 3002AUT12TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH350 IC CERT #: 906A-MRHH350 Report: C\COBRA\3002AUT12\3002AUT12TestReport.doc Page 2 of 20 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................... 3 GENERAL INFORMATION .................................................................................................... 4 TEST PROCEDURES ............................................................................................................ 5 TECHNICAL DATA ............................................................................................................... 6 RF POWER OUTPUT ............................................................................................................ 7 MODULATION CHARACTERISTICS ...................................................................................... 8 AUDIO FREQUENCY RESPONSE ......................................................................................... 9 AUDIO LOW PASS FILTER ................................................................................................. 10 AUDIO INPUT VERSUS MODULATION ............................................................................... 11 OCCUPIED BANDWIDTH ................................................................................................... 12 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) .................................... 14 FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................. 16 FREQUENCY STABILITY .................................................................................................... 19 EMC EQUIPMENT LIST ...................................................................................................... 20 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH350 IC CERT #: 906A-MRHH350 Report: C\COBRA\3002AUT12\3002AUT12TestReport.doc Page 3 of 20 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 12/21/2012 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH350 IC CERT #: 906A-MRHH350 Report: C\COBRA\3002AUT12\3002AUT12TestReport.doc Page 4 of 20 GENERAL INFORMATION DUT Specification DUT Description MARINE TRANSCIEVER FCC ID BBOMRHH350 IC Certification 906A-MRHHH350 Model Number MR HH350 Operating Frequency 156.025-157.425 MHz Test Frequencies 156.4 MHz, 157.475 MHz Type of Emission 16K0G3E Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector SMA male Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 80, IC RSS- 182 issue 5 and RSS-GEN issue 3 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH350 IC CERT #: 906A-MRHH350 Report: C\COBRA\3002AUT12\3002AUT12TestReport.doc Page 5 of 20 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C: 2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI C63.4-2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the …
