BBOMRHH425Handheld Marine Transceiver with GMRS

A1 English Our Thanks to You andCustomer Assistance Introduction VHF MARINE RADIO MR HH425LI VP Printed in China Part No. 480-344-P Owner’s Manual Nothing Comes Close to a Cobra ® English Our Thanks to You • Thank you for purchasing a CobraMarine ® VHF/GMRS Dual Band radio. Properly used, this Cobra ® product will give you many years of reliable service. How Your CobraMarine VHF/GMRS Radio WorksThis dual band radio is a battery-powered portable transceiver for use afloat or onland. In Marine VHF mode it gives you two-way vessel-to-vessel and vessel-to- shore station communications, primarily for safety and secondarily for navigationand operational purposes. In GMRS mode it allows you to reach other GMRS capable radios for short-distance two-way land mobile communication. This mode isnormally used for small group communication such as in a general residential areaor during recreational group outings. Note: GMRS radio usage requires an FCC License.Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weatherchannels and alert you to weather emergencies with a tone on a weather channelyou can select for your area.Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require furtherassistance after reading this manual, Cobra Electronics offers the following customerassistance services:For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).Customer Assistance Operators English and Spanish . 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone).Questions English and Spanish . Faxes can be received at 773-622-2269 (fax).Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions).English and Spanish. productinfo @ cobra.com (e-mail). For Assistance Outside the U.S.A.Contact Your Local Dealer Customer Assistance ©2007 Cobra Electronics Corporation™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com MRHH425VPCover.qxp:QXP-1058736909.qxp 10/26/06 1:39 PM Page A1 A1 English Our Thanks to You andCustomer Assistance Introduction VHF MARINE RADIO MR HH425LI VP Printed in China Part No. 480-344-P Owner’s Manual Nothing Comes Close to a Cobra ® English Our Thanks to You • Thank you for purchasing a CobraMarine ® VHF/GMRS Dual Band radio. Properly used, this Cobra ® product will give you many years of reliable service. How Your CobraMarine VHF/GMRS Radio WorksThis dual band radio is a battery-powered portable transceiver for use afloat or onland. In Marine VHF mode it gives you two-way vessel-to-vessel and vessel-to- shore station communications, primarily for safety and secondarily for navigationand operational purposes. In GMRS mode it allows you to reach other GMRS capable radios for short-distance two-way land mobile communication. This mode isnormally used for small group communication such as in a general residential areaor during recreational group outings. Note: GMRS radio usage requires an FCC License.Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weatherchannels and alert you to weather emergencies with a tone on a weather channelyou can select for your area.Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require furtherassistance after reading this manual, Cobra Electronics offers the following customerassistance services:For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).Customer Assistance Operators English and Spanish . 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone).Questions English and Spanish . Faxes can be received at 773-622-2269 (fax).Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions).English and Spanish. productinfo @ cobra.com (e-mail). For Assistance Outside the U.S.A.Contact Your Local Dealer Customer Assistance ©2007 Cobra Electronics Corporation™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com MRHH425VPCover.qxp:QXP-1058736909.qxp 10/26/06 1:39 PM Page A1 A3 English Backlit LCD Screenand Product Features Introduction A2 English Radio Controls and Indicators Introduction Backlit LCD (Liquid Crystal Display) Screen • InstantChannel 16/9 Button SCANButton SquelchControl Call/Enter Button Wrist StrapConnector ON/OFF/VolumeControl External Speaker/ Microphone Cover Dual Band Antenna Tri-Watch Button Backlight/ Key Lock Button Memory/EscapeButton Channel Up Button Channel Down Button UIC Active Channel Map Icons Roger Beep Icon Battery Power Icon Simplex Operation IconVoice Activated Transmit IconMemory ChannelMemory Channel IconCall Tone VibrAlert ® Icon Weather Alert Icon Weather Icon Low/Medium/High Power Icons Tri-Watch Icon Frequency Band Icons Transmit and Receive Icons Button Lock Icon Scan Icon Key Tone Icon Power Level/Weather Button Speaker USA/International/Canada ChannelsAllows operation on any of the threedifferent VHF channel maps establishedfor these areas. Instant access to allMarine VHF channels, 24 hours a day.15 GMRS ChannelsSeven (7) shared with GMRS/FRS andeight (8) GMRS only.All NOAA Weather ChannelsInstant access to all National WeatherChannels, 24 hours a day.Emergency Weather AlertCan alert you with an audible tone and visual alarm if threatening weather is nearby.Submersible to JIS7 StandardsWaterproof to 3.3 ft (1 m) of water for 30 minutes.Button/Key LockPrevents accidental setting changes when button lock is set. BandsExclusive dual VHF (Very HighFrequency) and GMRS (General MobileRadio Service) bands allow you to usedifferent frequencies while using thisradio …

Text truncated - open the document above for the full version.

22 English Introduction VHF Marine Channel Assignments VHF Marine Radio Protocols ChannelChannel MapFrequencyPower NumberUSAInt’l Canada Transmit ReceiveLimits 18 • 156.900161.500 18A •• 156.900156.900 19 • 156.950161.550 19A •• 156.950156.950 20 ••• 157.000161.6001 watt CAN 20A • 157.000157.000 21 •• 157.050161.650 21A •• 157.050157.050 22 • 157.100161.700 22A •• 157.100157.100 23 •• 157.150161.750 23A • 157.150157.150 24 ••• 157.200161.800 25 ••• 157.250161.850 26 ••• 157.300161.900 27 ••• 157.350161.950 28 ••• 157.400162.000 60 •• 156.025160.625 61 • 156.075160.675 61A •• 156.075156.075 62 • 156.125160.725 62A • 156.125156.125 MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:36 PM Page 22 Introduction 23 Nothing Comes Close to a Cobra ® VHF Marine Channel Assignments VHF Marine Radio Protocols ChannelUse 18Port Operations, Ship Movement 18ACommercial 19Port Operations, Ship Movement 19ACommercial 20Canada (Coast Guard Only);International (Port Operations, Ship Movement) 20APort Operations 21Port Operations, Ship Movement 21AU.S. (Government Only); Canada (Coast Guard Only) 22Port Operations, Ship Movement 22AU.S. and Canadian Coast Guard Liaison and Maritime Safety Information Broadcasts that are announced on Channel 16 23Public Correspondence (Marine Operator) 23AGovernment Only 24Public Correspondence (Marine Operator) 25Public Correspondence (Marine Operator) 26Public Correspondence (Marine Operator) 27Public Correspondence (Marine Operator) 28Public Correspondence (Marine Operator) 60Public Correspondence (Marine Operator) 61Public Correspondence (Marine Operator), Port Operation, Ship Movement 61AU.S. (Government Only); Canada (Coast Guard Only); West Coast (Coast Guard Only); East Coast (Commercial Fishing) 62Public Correspondence (Marine Operator), Port Operations, Ship Movement 62AWest Coast (Coast Guard Only); East Coast (Commercial Fishing) MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:36 PM Page 23 24 English Introduction VHF Marine Channel Assignments VHF Marine Radio Protocols ChannelChannel MapFrequencyPower NumberUSAInt’l Canada Transmit ReceiveLimits 63 • 156.175160.775 63A • 156.175156.175 64 •• 156.225160.825 64A •• 156.225156.225 65 • 156.275160.875 65A •• 156.275156.275 66 • 156.325160.925 66A •• 156.325156.3251 watt CAN 67 ••• 156.375156.3751 watt USA 68 ••• 156.425156.425 69 ••• 156.475156.475 70 ••• RX only156.525 71 ••• 156.575156.575 72 ••• 156.625156.625 73 ••• 156.675156.675 74 ••• 156.725156.725 75 • 156.775156.7751 watt Only Int. 76 • 156.825156.8251 watt Only Int. 77 ••• 156.875156.8751 watt USA and CAN MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:36 PM Page 24 Introduction 25 Nothing Comes Close to a Cobra ® VHF Marine Channel Assignments VHF Marine Radio Protocols ChannelUse 63Public Correspondence (Marine Operator), Port Operations, Ship Movement 63APort Operations and Commercial, VTS in selected areas 64Public Correspondence (Marine Operator), Port Operations, Ship Movement 64AU.S. (Government Only);Canada (Commercial Fishing) 65Public Correspondence (Marine Operator), Port Operations, Ship Movement 65APort Operations 66Public Correspondence (Marine Operator), Port Operations, Ship Movement 66APort Operations 67U.S. (Commercial). Used for bridge-to-bridge communications in lower Mississippi River (Intership Only); Canada (Commercial Fishing), S&R 68Non-Commercial (Recreational) 69U.S. (Non-Commercial, Recreational); Canada (Commercial Fishing Only); International (Intership, Port Operations, Ship Movement) 70Digital Selective Calling (Voice communications not allowed) 71U.S. and Canada (Non-Commercial, Recreational); International (Port Operations, Ship Movement) 72Non-Commercial (Intership Only) 73U.S. (Port Operations); Canada (Commercial Fishing Only); International (Intership, Port Operations, Ship Movement) 74U.S. (Port Operations); Canada (Commercial Fishing Only); International (Intership, Port Operations, Ship Movement) 75Port Operations (Intership Only) 76Port Operations (Intership Only) 77Port Operations (Intership only). Restricted to communications with pilots for movement and docking of ships. MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:36 PM Page 25 26 English Introduction ChannelChannel MapFrequencyPower NumberUSAInt’l Canada Transmit ReceiveLimits 78 • 156.925161.525 78A •• 156.925156.925 79 • 156.975161.575 79A •• 156.975156.975 80 • 157.025161.625 80A •• 157.025157.025 81 • 157.075161.675 81A •• 157.075157.075 82 • 157.125161.725 82A •• 157.125157.125 83 •• 157.175161.775 83A •• 157.175157.175 84 ••• 157.225161.825 84A • 157.225157.225 85 ••• 157.275161.875 85A • 157.275157.275 86 ••• 157.325161.925 86A • 157.325157.325 87 •• 157.375161.975 87 • 157.375157.375 87A • 157.375157.375 88 •• 157.425162.025 88 • 157.425157.425 88A • 157.425157.425 NOTE Many of the plain-numbered channels, such as 01, 02 and 03, transmit and receive on different frequencies. This is termed “duplex operation.” The rest of the plain-numbered channels and all of the A channels, such as 01A, 03A and 04A, transmit and receive on a single frequency, which is termed “simplex operation.” Your radio automatically adjusts to these conditions. When in simplex operation, the A icon will appear on the LCD (see illustration on page A3). VHF Marine Channel Assignments VHF Marine Radio Protocols MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:36 PM Page 26 Introduction 27 Nothing Comes Close to a Cobra ® VHF Marine Channel Assignments ChannelUse 78Public Correspondence (Marine Operator) 78ANon-Commercial (Recreational) 79Port Operations, Ship Movement 79ACommercial (Also Non-Commercial only in Great Lakes) 80Port Operations, Ship Movement 80ACommercial (Also Non-Commercial only in Great Lakes) 81Port Operations, Ship Movement 81AU.S. (Government Only; Environmental Protection Operations) 82Public Correspondence (Marine Operator), Port Operation, Ship Movement 82AU.S. (Government Only); Canada (Coast Guard Only) 83Canada (Coast Guard Only) 83AU.S. (Government Only); Canada (Coast Guard Only…

Text truncated - open the document above for the full version.

Introduction 51 Nothing Comes Close to a Cobra ® Setup Mode Programming To Set DCS Code Entry: 1.Display will show DCSicon and OFFicon flashing. NOTE If DCSwas previously set to a Codenumber, the display will show the current GMRSchannel and flash the DCSicon and Codenumber. 2.Codes begin at 01and go to 83, followed by OFF and return back to 01again. Last used GMRS channel will be shown in the large digit display. NOTE If CTCSSis On, then DCSmust be Off. If DCSis On, then CTCSSmust be Off. 3.Press Channel Up/Downbutton to change code number, or press and hold Channel Up/Downbutton to rapid advance (scroll). 4.Press Call/Enter/Setupbutton to save entry and move to the next setup programming mode. Voice Activated Transmit (VOX) Mode The VOX Mode On or Offand VOX Sensitivity Level setup procedures are the next two settings in GMRS Mode Programming. Follow the same procedures on page 44, in Marine (VHF) Setup Programming, to set these functions. After these two settings have been made, press Call/Enter/Setupbutton to save each entry and move to the next setup programming mode. Operating Your Radio DCS Code Entry CTCSS Code Number VOX Mode On/Off VOX Level MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:37 PM Page 51 52 English Setup Mode Programming CTCSS and DCS Code Scan Mode This mode will allow you to scan for all incoming audio CTCSSand DCScoded signals. To Set CTCSS Code Scan: 1.Display will show current CTCSSworking channel. CTCSSand SCANicons and small digit CTCSS Code number will be flashing. DCSis not active during CTCSSoperation. 2.Press Channel Up/Downbutton to start CTCSS Codenumber scan. 3. If there is no input activity within five (5) seconds, CTCSS Codescan will automatically continue. 4.When a valid CTCSS Codeis detected, the radio will stop scanning and open a path to the incoming CTCSSaudio transmission. This connection will continue for as long as the signal is present. When the audio transmission ends, the CTCSS Code Scan will resume after five (5) seconds. 5.Press Call/Enter/Setupbutton to save entry and move to the next setup programming mode. To Set DCS Code Scan: 1.Display will show current DCSworking channel. DCSand SCANicons and small digit DCS Code number will be flashing. CTCSSis not active during DCSoperation. 2.Press Channel Up/Downbutton to start DCS Code number scan. 3.If there is no input activity within five (5) seconds, the CTCSS Codescan will automatically continue. 4.When a valid DCS Codeis detected, the radio will stop scanning and open a path to the incoming DCS audio transmission. This connection will continue for as long as the signal is present. When the audio transmission ends, the DCS Code Scanwill resume after five (5) seconds. 5.Press Call/Enter/Setupto save entry and move to the next setup programming mode. Operating Your Radio CTCSS Code Scan DCS Code Scan MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:37 PM Page 52 53 Nothing Comes Close to a Cobra ® Setup Mode Programming VibrAlert ® Mode, Call Tone Mode, Roger Beep Mode and Key Tone Mode The VibrAlert ® , Call Tone, Roger Beepand Key Tonesetup procedures are the next four (4) settings in GMRS Mode Programming. Follow the same procedures on pages 47 through 49, in Marine (VHF) Setup Programming, to set these functions. After these four (4) settings have been made, press Call/Enter/Setupbutton to save each entry and move to the next setup programming mode. You have now ended GMRS Setupprogramming mode and will enter GMRS Standbymode. Operating Your Radio MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:37 PM Page 53 54 English Setup Mode Programming Programming these features will allow your radio to listen to all NOAA Hazard Alert radio channels. In this process, you will be programming the channel settings for the “Specific Area Message Encoding (SAME)” and “Emergency Alert Messages” sent by NOAA. See channels and frequencies listed on page 31. Start from WX Alert Standbymode to begin WX Alert Setup programming. Press and hold the Call/Enter/Setupbutton for two (2) seconds to enter the programming mode. To Set WX Alert On or Off: 1. WX Alertmode is the first mode that begins WX Alert Setupprogramming. 2.Display will show WX Alerticon and ONor OFF flashing. 3.Press Channel Up/Downbutton to select ONor OFF. 4.Press Call/Enter/Setupbutton to save this entry and move to the next setup programming mode. To Set WX Auto Search (SCAN) On or Off: 1. Display will show WX Alerticon and SCAN, ONor OFFis flashing. 2.Press Channel Up/Downbutton to select SCAN, ON or OFF. 3.Press the Call/Enter/Setupbutton to save entry. NOTE When WX Auto Search (SCAN)is set to On, weather channel scanning will start automatically and scan all available weather channels until the strongest channel is found. This will happen under the following conditions: ■WX Alertis engaged. ■Radio is in VHF Standby. ■WXreceived signal level falls below a preset level. ■Radio is in Power Savermode. Weather (WX) Alert Mode Programming Operating Your Radio WX Alert On/Off WX Auto Search (SCAN) MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:37 PM Page 54 55 Nothing Comes Close to a Cobra ® Setup Mode Programming To Set Specific Area Message Encoding (SAME) Alert On or Off: SAMEis an advanced weather alert feature. Leave this set to OFFif you are not sure about your understanding of its operation. 1.Display will show SAMEicon and ONor OFFwill be flashing. NOTE If SAME Alertis turned On, the WX Alertwill be turned Off automatically. 2.Press Channel Up/Downbutton to select ONor OFF. 3.Press Call/Enter/Setupbutton to save selection and move to the next setup programming mode. Operating Your Radio SAME Alert On/Off MRHH425VP-Body-Eng.qxp:400_Body 10/26/06 1:37 PM Page 55 56 English Setup Mode Programming To Set SAME FIPS Code Location 1.Display will show COdE, not flashing. SAMEicon is flashing along with the two (2) digits to the right of COdE. 2.Press Channel Up/Downbutton to select channel number. NOTE Ten channel locations are available (00-09). 3.Press and re…

Text truncated - open the document above for the full version.

30 November 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOMRHH425 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

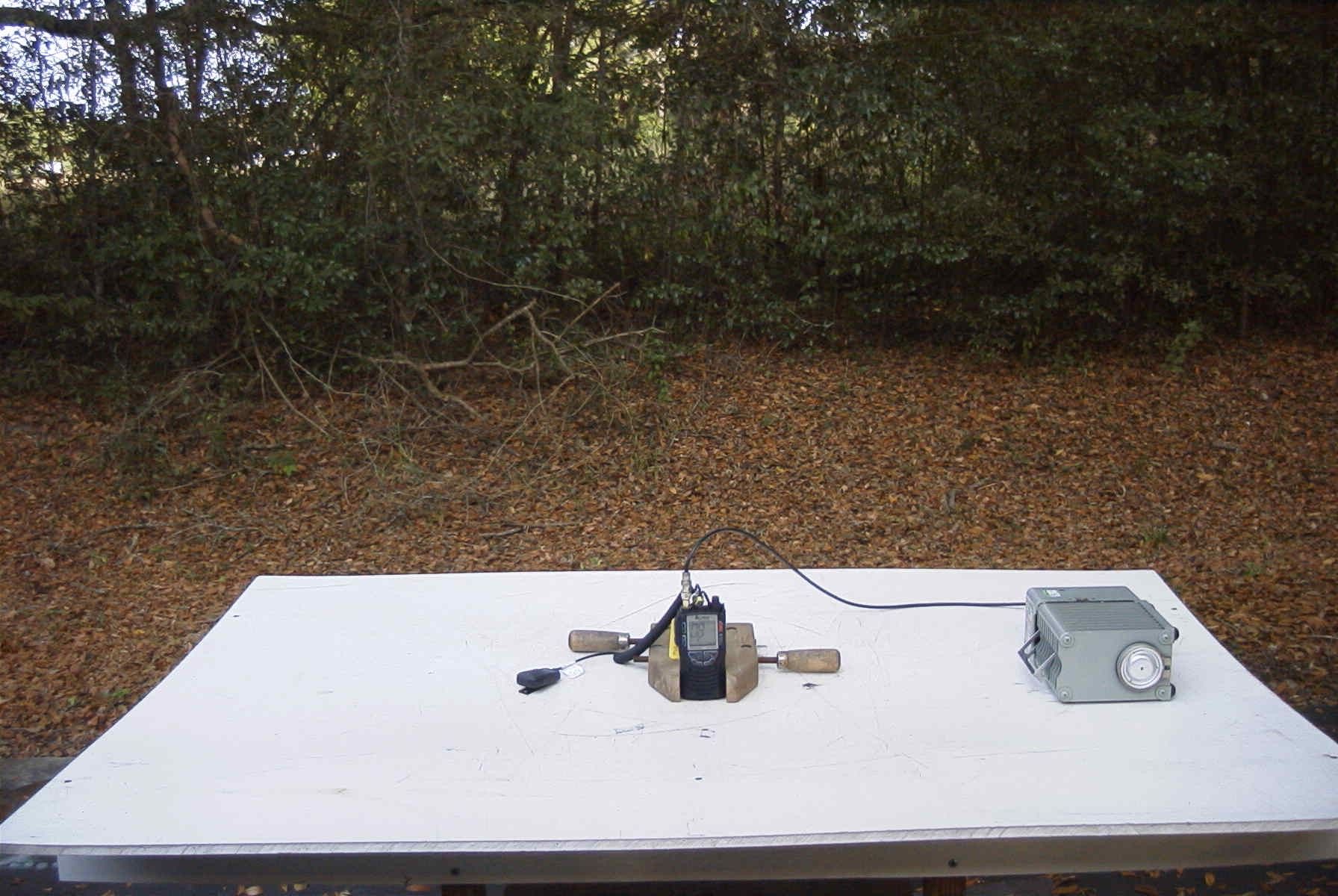

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] February 28, 2007 Federal Communications Commission Laboratory Division 7435 Oakland Mills road Columbia, MD 21046 Ref: FCC ID: BBOMRHH425 Cobra Electronics Corp. To Whom It May Concern: This letter is to confirm that according to the FCC rules and regulations, a Part 80 and Part 95A approval are permitted within one device. The device has been tested to both rule parts and meets all of the FCC requirements as can be seen in the test reports. Should you have any questions or require any further information, please let me know. Regards, < Frank DeNuzzo> Frank DeNuzzo Engineer TIMCO ENGINEERING, INC.

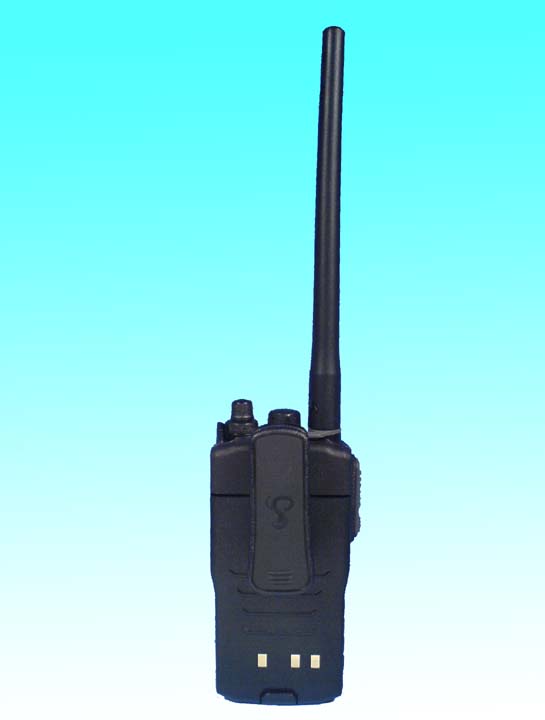

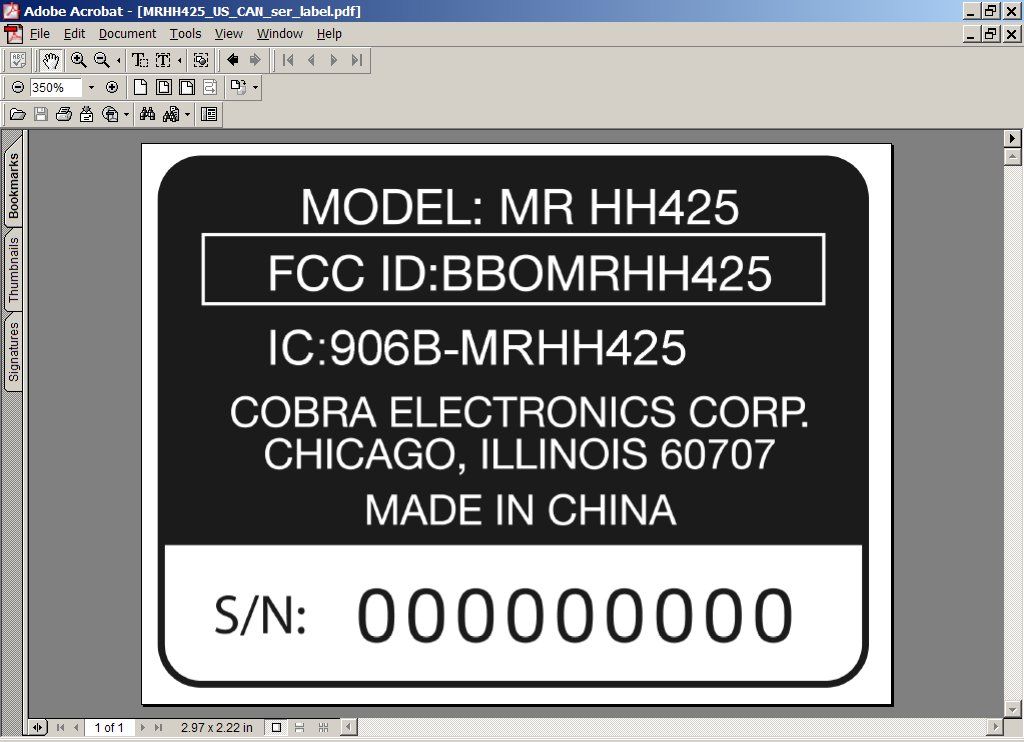

30 November 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOMRHH425 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOMRHH425. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 80 for maritime services and 47CFR Part 95 for the general mobile radio service. Removable Battery Pack Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOMRHH425" to the outside of the consumer "gift box" packaging. Sincerely, Robert Mudra Engineering Manager

ReferenceTypeFunction U01IC MC34063AD------ DDC- SOIC-8 ONSEMI ROHSSwitching Regulators U02SMT IC LM324DT SO14Charger Control U03IC TL431IDBVR----- REG- SOT23- TI ROHSVoltage reference U1SMT IC BA4116FVDemodulation U2IC SIT8825B01-R090 FSYN 16-TSSOP-0044 SAMSUNG ROHSPLL U3IC NJM2904V------- OPA- SSOP8- JRC ROHSTX Power Control U4SMT IC HT9032D-SOP-ANOAA Decode U5IC M38C29FFAHP60K- FLAH64P6Q-A RENESAS ROHSMCU U6SMT IC XC61FC4012MRMCU Reset IC U7IC NJM324V-------- OPA- SSOP14 JRC ROHSAudio 300Hz Low Pass Filter U8IC NJM324V-------- OPA- SSOP14 JRC ROHSAudio 300Hz Hi Pass Filter U9IC NJM324V-------- OPA- SSOP14 JRC ROHSMIC Amplifier U10IC NJM2904V------- OPA- SSOP8- JRC ROHSWeather 1050Hz filter U11SMT IC AT24C16AN-10SI-2.7 EEP ROMEeprom U12SMT IC XC6204B502MRVoltage Regulator U13SMT IC 74HC4053PWAudio Switch U14SMT IC NJM2070Audio Amplifier U401LCD DRIVER IC HT1621-DAFLCD Driver U402IC ISD1730X------- COD- DIE--- WINBOND SMD ROHSAudio Recorder Q02TRS BJN SS SOT-23 MMBT3904LT1 ROHSPower Switch Driver Q03TRS SIPMOS SOT-223 BSP613P SMALL-SIGNAL EDAL INFINEON Power Switch Q04TRS BJN SS SOT-23 MMBT3904LT1 ROHSGreen LED Switch Q05TRS BJN SS SOT-23 MMBT3904LT1 ROHSRed LED Switch Driver Q06TRS BJN SS SOT-23 MMBT3904LT1 ROHSRed LED Switch Q1TRS MFN RF 2-5N1A 2SK3476----- TE12L Q TOSHIBARF Power Out Amplifier Q2SMT FET 2SK3078RF Power Out Driver Q3SMT TRANSISTOR 2SC4901YKVHF Low Noise Amplifier Q4SMT TRANSISTOR 2SC4901YKVHF Predriver Q5SMT TRANSISTOR 2SC4901YKVHF Buffer Q6TRS BJN SS SSM--- 2SC5066----- TOSHIBA (120-240)IF Amplifier Q8TRS BJN SS SSM--- 2SC5066----- TOSHIBA (120-240)UHF Mixer Q9SMT TRANSISTOR 2SC4901YKUHF Predriver Q10SMT TRANSISTOR 2SC4901YKUHF Buffer Q11TRS BJN SS SSM--- 2SC5066----- TOSHIBA (120-240)UHF VCO Buffer Q12TRS BJN SS SSM--- 2SC5066----- TOSHIBA (120-240)VHF VCO Buffer Q13TRS BJN SS SSM--- 2SC5066----- TOSHIBA (120-240)UHF VCO Q15TRS MFN RF SC-82AB 3SK318 HITACHIVHF Mixer Q16SMT FET 2SK302GVHF RX VCO Q17SMT TRANSISTOR FMA8A-T148VHF VCO Vcc Switch TM833USL Function of Devices Page: 1 of 2 ReferenceTypeFunction TM833USL Function of Devices Q18SMT TRANSISTOR FMA8A-T148UHF or VHF Rx Vcc switch Q19TRS BJP SS SOT416 PDTA143ZE--- PHILIPS ROHSRX 5V Switch Q20SMT FET 2SK210YVHF TX VCO Q21TRS BJP SS SOT416 PDTA143ZE--- PHILIPS ROHSUHF VCO Vcc Switch Q22TRS BJP SS SOT416 PDTA143ZE--- PHILIPS ROHSWide/Narrow Band Switch Q23SMT TRANSISTOR 2SC4097RMotor Driver Q24TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSUHF/VHF Band TX Switch Q25TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSUHF/VHF Band TX Switch Q26TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSUHF VCO TX/RX switch Q27TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSDCS/CTCSS shape Q28TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSMIC Mute Q29SMT TRANSISTOR 2SA1577Q(2SA197 9U)Extern PTT Detect Q30SMT TRANSISTOR 2SA1577Q(2SA197 9U)Audio Switch Q31SMT TRANSISTOR 2SA1577Q(2SA197 9U)AUDIO Power Converter Q32TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSTX Inhibit Control Q33SMT TRANSISTOR 2SC4097R5V VCC regulator Q34SMT TRANSISTOR 2SC4097RAUDIO Power Converter Q35SMT TRANSISTOR 2SC4097RAUDIO Power Converter Q36TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSCall Wave Shape Q37TRS BJN SS SOT416 PDTC143ZE--- PHILIPS ROHSTX APC Switch Q38SMT TRANSISTOR 2SA13635V VCC regulator Q39SMT TRANSISTOR 2SA1577Q(2SA197 9U)UHF TX 5V Switch Page: 2 of 2

Company: Cobra Electronics Corporation FCC ID: BBOMRHH425 IC ID: 906B-MRHH425 Model(s): MR HH425 Device Description: Portable FM UHF GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 41 Date(s) of Evaluation Dec. 12 & 14, 2006 Test Report Serial No. 121106BBO-T800-S95U Report Revision No. Revision 1.1 Report Issue Date February 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR COBRA ELECTRONICS CORPORATION PORTABLE FM UHF GMRS PTT RADIO TRANSCEIVER MODEL: MR HH425 Test Report Serial No. 121106BBO-T800-S95U Test Report Revision No. Revision 1.1 (Response to FCC) Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. Certificate No. 2470.01 IDENTIFIER(S) FCC ID: BBOMRHH425 IC: 906B-MRHH425 FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Company: Cobra Electronics Corporation FCC ID: BBOMRHH425 IC ID: 906B-MRHH425 Model(s): MR HH425 Device Description: Portable FM UHF GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 41 Date(s) of Evaluation Dec. 12 & 14, 2006 Test Report Serial No. 121106BBO-T800-S95U Report Revision No. Revision 1.1 Report Issue Date February 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer’s recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER: BBOMRHH425 IC IDENTIFIER: 906B-MRHH425 Device Model(s): MR HH425 Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable FM UHF GMRS PTT Radio Transceiver Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS Channels 1-7) Max. RF Output Power Tested: 3.5 Watts (35.4 dBm) Conducted (462.6375 MHz) Antenna Type(s) Tested: Detachable Whip Battery Type(s) Tested: Lithium-ion Battery Pack 7.2 V, 1900 mAh (Model: TM833USL) Alkaline Battery Case 9 V, 2850 mAh (Duracell Procell AA x6) Body-Worn Accessories Tested: Plastic Swivel Belt-Clip with Metal Spring (Model: 240-003) Audio Accessories Tested: Speaker-Microphone (P/N: CM 330-001) Max. SAR Level(s) Evaluated: Face-held: 1.27 W/kg (1g) - 50% Duty Cycle Body-worn: 1.05 W/kg (1g) - 50% Duty Cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOMRHH425 IC ID: 906B-MRHH425 Model(s): MR HH425 Device Description: Portable FM UHF GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 41 Date(s) of Evaluation Dec. 12 & 14, 2006 Test Report Serial No. 121106BBO-T800-S95U Report Revision No. Revision 1.1 Report Issue Date February 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ______…
