BBOMRHH500BT ACCESSORY IN MARINE RADIO

MEMSAMELO M E D H I ROG VHF T R A B X CIU 16 / 9 TW SCAN WX H M L ESC MEM ENT SETUP CALL MARINE HH500 SUBMERSIBLE VHF MARINE RADIO MRHH500FLT Printed in China Part No. 480-845-P Version A Owner’s Manual NothingComes Close to a Cobra ® English A1 English Our Thanks to You and Customer Assistance Introduction Our Thanks to You • Thank you for purchasing a CobraMarine ® VHF radio. Properly used, this Cobra ® product will give you many years of reliable service. How Your CobraMarine VHF Radio Works This radio is a battery-powered portable transceiver for use afloat. It gives you two-way vessel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navigation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders, and make radiotelephone calls to anywhere in the world through a marine operator. Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weather channels and alert you to weather emergencies with a tone on a weather channel you can select for your area. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance ©2012 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com A2 English Radio Controls and Indicators Introduction Instant Channel 16/9 Button Channel Up Button ON/OFF/ Volume Control Speaker/ Microphone External Cover Antenna Backlit LCD Screen Tri-Watch Button Battery Backlight/ Key Lock Button Memory/Escape Button Push to Talk Button Channel Down Button Speaker Belt Clip Battery Door Screw Power Level/Weather Button SCAN Button Call/Enter Button VHF Microphone Rewind-Say-Again ® Button Bluetooth Microphone Bluetooth Button MRHH500_ENG_CVR_vA_F_v8_MR HH 330 Cover 1/18/13 3:14 PM Page 1 MEMSAMEATIS VOX LOMEDHI ROG VHF T R A B GMRS X CIU A3 English Introduction Backlit LCD (Liquid Crystal Display) Screen • UIC Active Channel Map Icons Button Lock Icon Low/Medium/High Power Icons Power Settings Selectable power settings produce 1, 3 or 6 watts of output power for near or distant calling. USA/International/Canada Channels Allows operation on any of the three (3) different channel maps established for these areas. All NOAA Weather Channels Instant access to all National Weather Channels, 24 hours a day. Submersible to JIS7 Standards Waterproof to 3.3 ft (1 m) of water for 30 minutes. Button/Key Lock Prevents accidental setting changes when button lock is set. Channel Scan/Memory Scan Use to scan through unlimited channels or memory locations to find conversations in progress. Matrix Display The display at the bottom of the LCD screen displays text letting the user know the current radio mode, function or operation. AA Battery Compatible Good for emergency backup. Includes AA battery tray (P/N CM 110-024). Instant Channel 16/9 Provides instant access to priority Channel 16 and calling Channel 9. Tri-Watch Use to monitor three (3) channels at once — Channel 16 and two (2) programmable channels. Floating This radio will float if dropped overboard. It has an orange stripe so it's easy to retrieve. Must use included battery to float. 120V/12V Charger Included Use to charge battery pack, at home, in a car or in a boat. Product Features • Backlit LCD Screen and Product FeaturesProduct Features Introduction MicroBlue TM Bluetooth ® Wireless Technology in a unique noise canceling design. Widely compatible for all mobile phones with Bluetooth ® wireless technology. Rewind-Say-Again ® Replays missed VHF calls. Locking Desktop Charger Holds the radio or battery in place while charging. Vertical or horizontal mounting. Call Tones (Selectable) 10 selectable call tones Emergency Weather Alert Receive NOAA alerts when threatening weather is nearby. Speaker/Mic Jack Allows connecting optional Cobra Lapel Speaker/Mic and other Cobra accessories. Unlimited Memory Channels Allows programming of unlimited VHF memory channels. Signal Strength Meter Shows the strength of incoming or outgoing signals. Easy Redial Operation Redial of last phone number dialed. Voice Dialing Supports standard mobile phone voice dialing when paired to a compatible mobile phone. Noise Canceling Microphone Reduces effect of environmental noise when speaking. Illuminated Buttons Allows high visibility of all function buttons. Roger Beep Tone (Selectable) Confirmation tone indicates the completion of the user’s transmission and signals to others it is clear to talk. On or Off selectable. BURP The Cobra exclusive BURP feature expels water from the speaker grill if the unit is dropped in the water or is subjected to extreme rain and weather. Product Features (continued) • A4 English Introduction Notes Call Tone Icon Weather Alert Icon Frequency Band Icon Roger Beep Icon Battery Power Icon Memory Icon Matrix Display Simplex Operation Icon Weather Icon Active Channel Transmit and Receive Icons Key Tone Icon Signal Level Icon Left blank intentionally for your notes Rewind-Say-Again ® Icon Bluetooth Icon Bluetooth VOX Icon MRHH500_ENG_CVR_vA_F_v8_MR HH 330 Cover 1/18/13 3:14 PM Page 4 Introduction 1 Nothing Comes Close to a Cobra …

Text truncated - open the document above for the full version.

January 29, 2013 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOMRHH500 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions Parts List Tune Up info This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Chris deWaal Sr. Project Engineer

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOMRHH500 External Photos

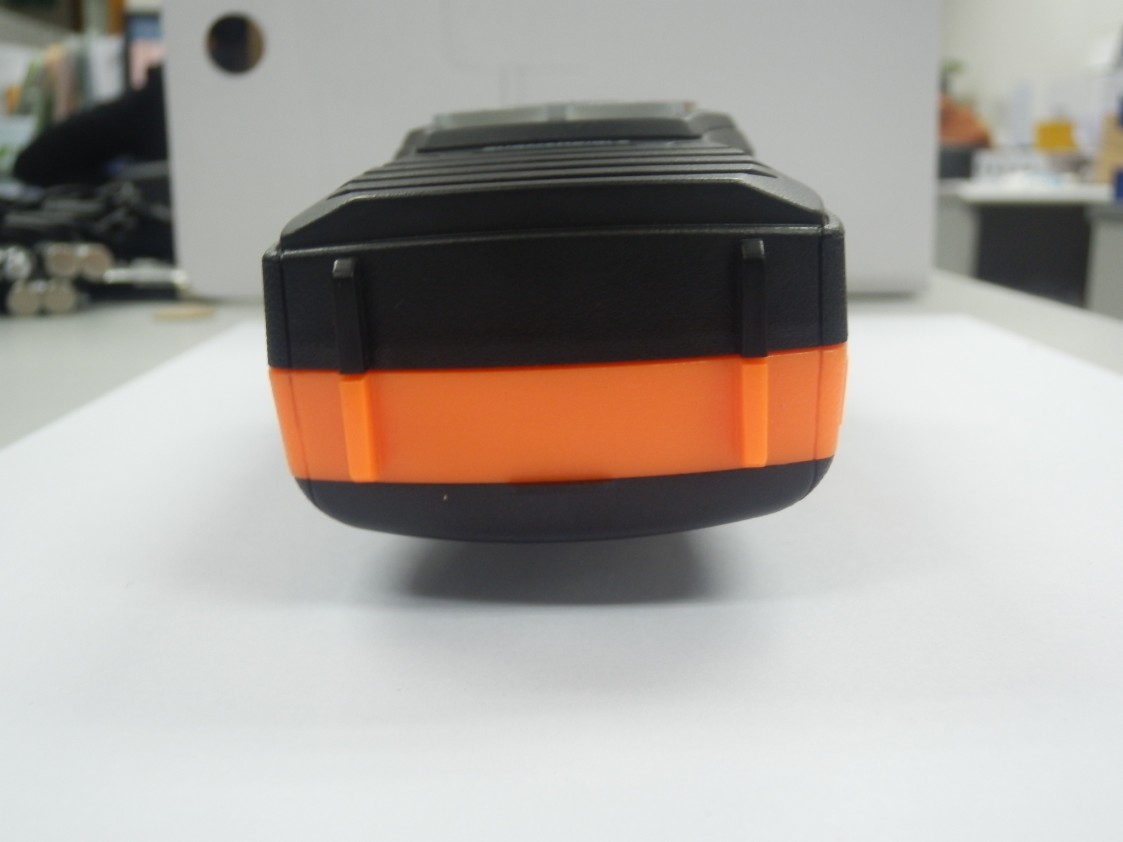

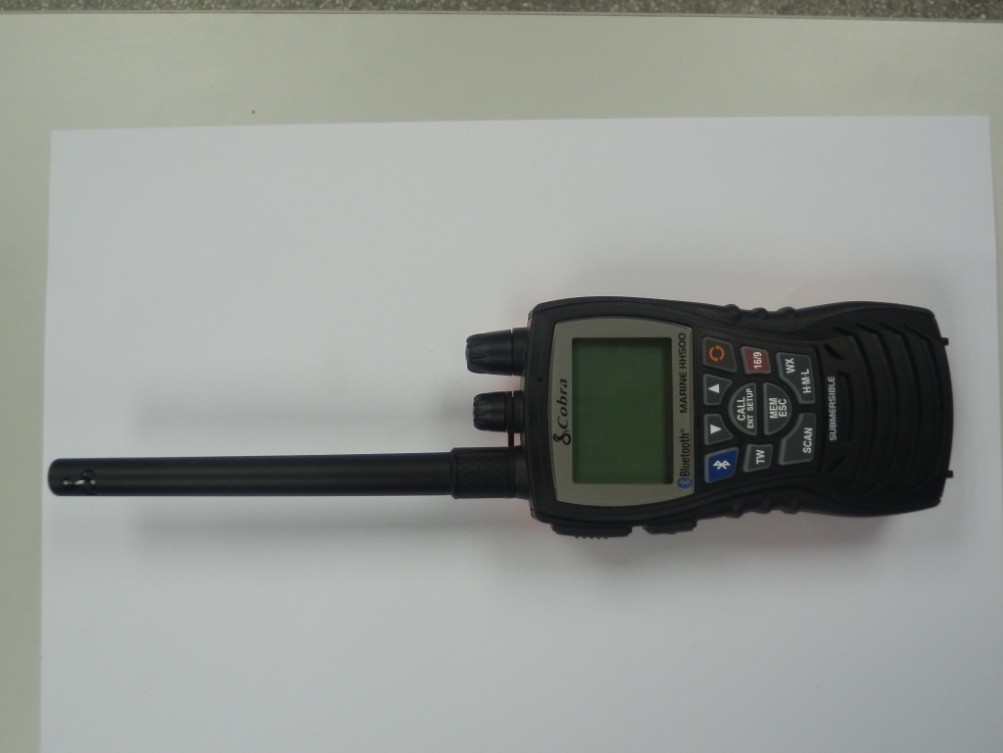

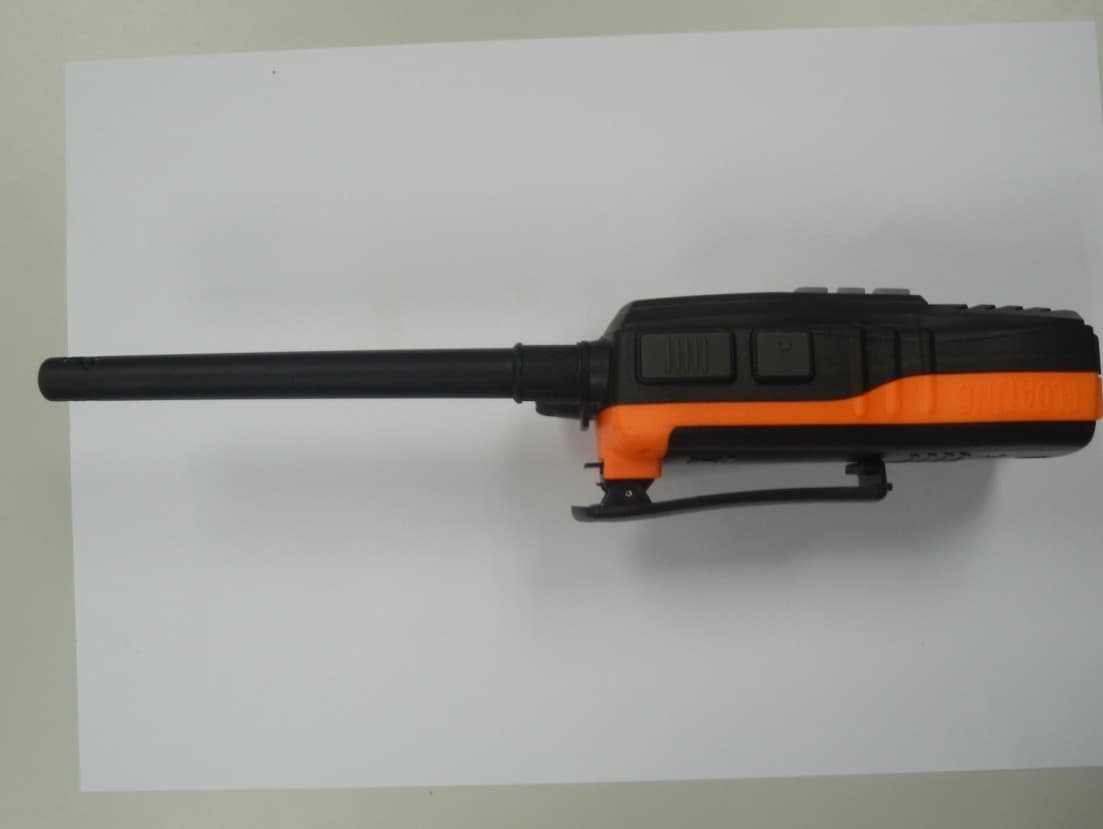

MR HH500 USA RADIO SERIAL NUMBER (RATING) LABEL 1:1 35mm x 26.5mm MR HH500 RADIO SERIAL NUMBER (RATING) LABEL 2:1 Top portion of label black field with with reverse type. MODEL: MR HH500 FCC ID: BBOMRHH500 CANADA IC: 906A-MRHH500 COBRA ELECTRONICS CORP. CHICAGO, ILLINOIS 60707 www.cobra.com Made in China US Patent No. 8,311,546 000000000 S/N: SAMPLE 11.28.12 MODEL: MR HH500 FCC ID: BBOMRHH500 CANADA IC: 906A-MRHH500 COBRA ELECTRONICS CORP. CHICAGO, ILLINOIS 60707 www.cobra.com Made in China US Patent No. 8,311,546 000000000 S/N:

APPLICANT: COBRA ELECTTRONICS CORPORATION FCC ID: BBOMRBTM2 Internal Photos

FCC PART 15.249 AND IC RSS-210 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOMRHH500 IC 906A- MRHH500 Model Number MRHH500 Product Description BLUE TOOTH ACCESSORY IN MARINE RADIO Date Sample Received 1/9/2013 Date Tested 1/24/2013 Tested By NAM NGUYEN Approved By Mario de Aranzeta Report Number 56AUT13TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Testing Certificate #0955-01 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: «ApplicantName» FCC ID: BBOMRHH500 IC: 906A- MRHH500 REPORT: C\COBRA\56AUT13\56AUT13TestReport.doc Page 2 of 16 Mdea5.11.2012 TABLE OF CONTENT GENERAL REMARKS ................................................................................................................. 3 GENERAL INFORMATION .......................................................................................................... 4 EMC EQUIPMENT LIST .............................................................................................................. 5 TEST PROCEDURES .................................................................................................................. 6 RADIATION INTERFERENCE ..................................................................................................... 7 OCCUPIED BANDWIDTH ........................................................................................................... 9 BAND EDGE COMPLIANCE ..................................................................................................... 12 DUTY CYCLE ........................................................................................................................... 15 POWER LINE CONDUCTED INTERFERENCE ........................................................................... 16 APPLICANT: «ApplicantName» FCC ID: BBOMRHH500 IC: 906A- MRHH500 REPORT: C\COBRA\56AUT13\56AUT13TestReport.doc Page 3 of 16 Mdea5.11.2012 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Nam Nguyen Testing Technician Mario de Aranzeta Engineer/ Lab Supervisor Date: January 31, 2013 APPLICANT: «ApplicantName» FCC ID: BBOMRHH500 IC: 906A- MRHH500 REPORT: C\COBRA\56AUT13\56AUT13TestReport.doc Page 4 of 16 Mdea5.11.2012 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description BLUE TOOTH ACCESSORY IN MARINE RADIO FCC ID BBOMRHH500 IC 906A-MRHH500 Model Number MRHH500 Operating Frequency TX: 2402 – 2480 MHz RX: Same DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre- Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications None Test Supporting Equipment Supporting Device Manufacturer FCC ID Model Marine radio Cobra BBOMRHH500 MRHH500 APPLICANT: «ApplicantName» FCC ID: BBOMRHH500 IC: 906A- MRHH500 REPORT: C\COBRA\56AUT13\56AUT13TestReport.doc Page 5 of 16 Mdea5.11.2012 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 10/28/11 10/28/13 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 10/28/11 10/28/13 Antenna: Biconnical Eaton 94455-1 1057 05/31/11 05/31/13 Antenna: Biconnical Eaton 94455-1 1096 05/04/11 05/04/13 Antenna: Biconnical Electro- Metrics BIA-25 1171 06/13/12 06/13/14 Antenna: Log- Periodic Eaton 96005 1243 05/31/11 05/31/13 Antenna: Log- Periodic Electro- Metrics LPA-25 1122 05/04/11 05/04/13 LISN Electro- Metrics ANS-25/2 2604 10/28/11 10/28/13 LISN Electro- Metrics EM-7820 2682 02/01/11 02/01/13 APPLICANT: «ApplicantName» FCC ID: BBOMRHH500 IC: 906A- MRHH500 REPORT: C\COBRA\56AUT13\56AUT13TestReport.doc Page 6 of 16 Mdea5.11.2012 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical plane…

Text truncated - open the document above for the full version.
