BBOPR190FRS/GMRS TRANSCEIVER

User’s Guide T WO-WAY RADIO MODEL PR190 VP C I ntroOperationCustomer Assistance W arranty Notice cons d ary Icons P r i n t e d i n t h e C h i n a P a r t N o . 4 8 0 - 4 2 8 - P V e r s i o n A M aking Life Easier and Safer S taying in touch with your family and f riends is convenient and easy when using your microTALK ® radio. Some of the many u ses you will discover include: C ommunicating with others while hiking, biking, a nd working; keeping track of family and friends at a c rowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. F or Customer Assistance in Canada or the U.S.A. I n this user’s manual, you should find all the information you need to operate your microTALK ® r adio. If you require further assistance after reading this manual, Cobra ® Electronics offers the following customer assistance services: Automated Help Desk (English and French) 2 4 hours a day, 7 days a week (514) 683-1771, ext. 2-264 (phone). C ustomer Assistance Operators ( English and French) 9:00 a.m. to 5:00 p.m. Eastern Time, Monday to Friday (except Holidays) – ( 5 14) 683-1771, ext. 2-264 (phone). Q uestions ( English and French) F axes can be received at (514) 683-5307 (fax). Technical AssistanceEnglish and French. www.cobra.ca ( on-line: Frequently Asked Questions). E nglish and Spanish. [email protected] (e-mail). For Products Used in Canada Industr y Canada Notice Operation is subject to the following two conditions: 1) this device may not cause inter ference, and 2) this device must accept any inter ference, including interference that may cause undesired operation of the device. «IC» before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction. For Products Used in the U.S.A. FCC Licensing Required This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on Channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules. Operation of this radio is subject to additional rules specified in 47 C.F.R. Part 95. Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only , avoiding channel inter ference with other GMRS users, and being prudent with the length of their transmission time. For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov. Saf ety Inf ormation f or micr oT ALK ® Radios Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications , or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately five (5) cm from your face and speak in a normal voice, with the antenna pointed up and away. Product Service Questions If you have any questions about operation or installing your new Cobra product, or if you are missing parts... Please call Cobra fir st! DO NO T RETURN THIS PRODUCT TO THE STORE! See customer assistance abo ve. F or Products Purchased in Canada For out of warranty service, ship prepaid this product to: AVS Technologies Inc., 2100 Trans Canada Hwy S., Montreal, Quebec, H9P 2N4, www.cobra.ca. We reserve the right to repair or replace the radio or charger with equivalent products. Please include the following information: Date of Purchase, Model Number, Dealer Purchased From, Dealer Address, Dealer Phone Number. For Products Purchased in the U.S.A. If your product should require factory service, please call Cobra first before sending your radio, charger or batter y pack(s). This will ensure the fastest turn-around time on your repair . Y ou may be asked to send your products to the Cobra factor y. It will be necessary to furnish the following to have the product serviced and returned. 1) For warranty repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. If you send the original receipt, it cannot be returned. 2) Send the entire product. 3) Enclose a description of what is happening with the product. Include a typed or clearly printed name and address of where the product is to be returned. 4) Pack product securely to prevent damage in transit. If possible, use the original packing material. 5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or Priority Mail to avoid loss in transit to: Cobra Factor y Ser vice, Cobra Electronics Corporation, 6500 W est Cortland Street, Chicago, Illinois 60707 U.S.A. 6) If the product is in warranty , upon receipt of your product it will either be repaired or exchanged depending on the model. Please allow approximately three to four weeks before contacting Cobra for status…

Text truncated - open the document above for the full version.

27 July 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR190 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

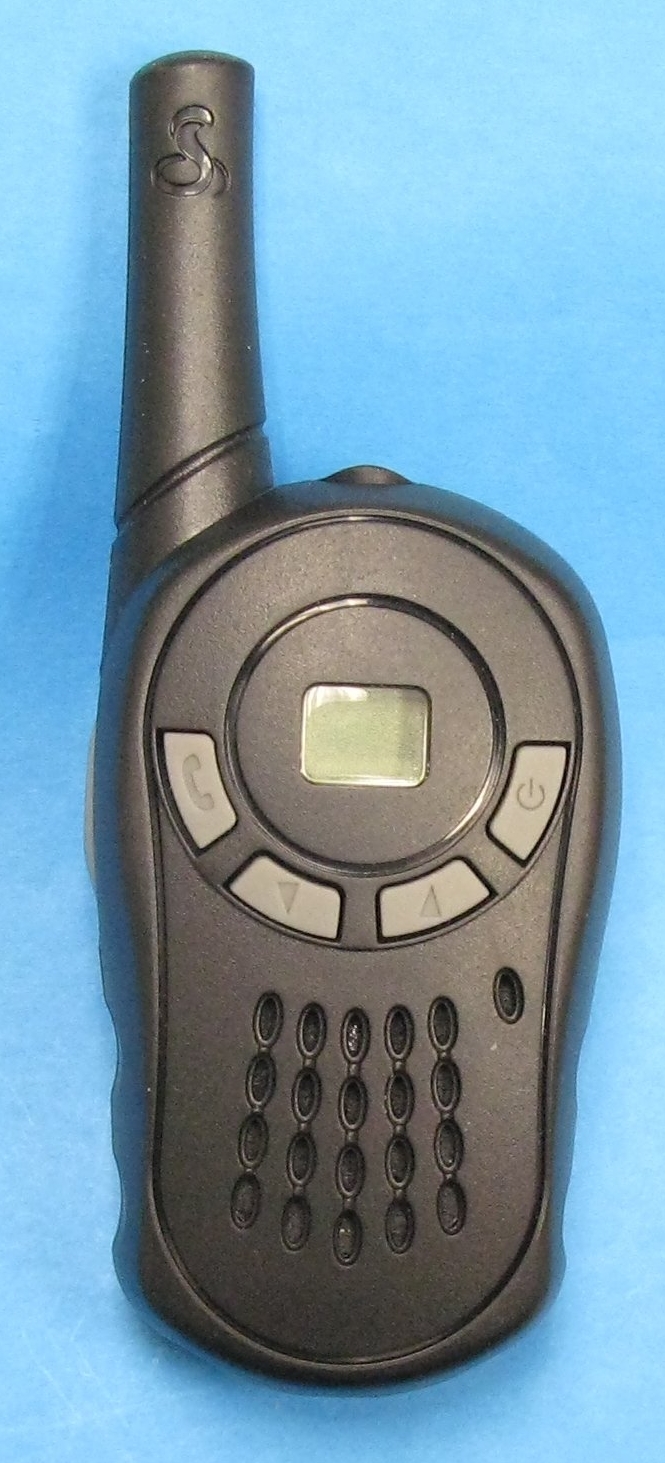

27 July 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR190 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOPR190. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the batteries as separate items, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the batteries are installed and whenever the batteries are removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOPR190" to the insert card within the clamshell packaging. Sincerely, Robert Mudra Engineering Manager

BBOPR190 Alignment Procedure 1. VCO and TX Set unit: CH1 3.6V DC supply 50 Ohm Dummy 1) PLL VCO Align: ~ Read DC voltage at VCO Test Point (C113) and align 1.0 ± -0.2V with L10 [1.1V] ~ Press PTT and check TX VCO voltage [1.1V] ~ Change Channel to CH14 and read VCO voltage [ 1.4V] ~ Press PTT and check TX VCO voltage [1.4V] 2) TX Freq. Align: ~ Press PTT at CH1 and read Frequency with Frequency counter ~ Align 462.5625MHz ± 50Hz with CT300 10pF trimmer [-100Hz] 3) TX Mod. Align: ~ Set CH1 100mV 1KHz Mic Input ~ Press PTT and align max modulation ± 2.0 ± 0.1 KHz with RV2 1k Ohm Semi [2.01KHz] 4) CTCSS/DCS Align: ~ Set CH1 CTCSS 01 ~ Press PTT and read CTCSS modulation level ~ Align ± 0.6 KHz with RV3 47K Ohm Semi ~ Change CTCSS 38 and read modulation level ~ Change DCS 01 and read modulation level ~ Change DCS 83 and read modulation level 5) Check TX Power Output: ~ Set CH1 Power Low ~ Press PTT and read TX Power output [408mW] ~ Change to Power Mid and read the TX Power output ~ Change to Power High and read the TX Power output 2. RX Set unit : CH1 3.6V DC supply 8 Ohm Load 1) RX Audio Distortion: ~ Set CH1, SSG 1mV, Audio level 5 (about 650mV) ~ Read Distortion [2.6%] 2) RX Sensitivity: ~ Reduce SSG level [-123dBm] 3) Squelch Align: ~ Set to 10dB Sinad with SSG level align [-128dBm] ~ Align squelch with RV1 220K Semi

安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : UBU-B00F-034R 主件名称 : (RoHS) ASSMBLY FOR PR190 基本单位 : PCS 机型 机型机型机型 : PR190 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 00001 变更日期 : 2007-4-2 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 1 ABM-R0R0-161A (RoHS) PCBA_BM FOR PR190 1 0 2 EAN-144F-621R (RoHS) SPRING ANT. 磷铜 FOR PR190 1 天线弹簧 0.01 3 ESP-2160-202R (RoHS) SPEAKER ZY28T5N-50B05W16(D28XH516 OHM 0.5W) 1 喇叭 0 4 EWR-0450-033RB1 (RoHS)-T WIRE 45mm/BLACK (3-3)AWG#3 0 HF 1 0.01 5 EWR-0452-033RB1 (RoHS)-T WIRE 45mm/RED(3-3)AWG#30 H F 1 0.01 6 MFB-0300-111R (RoHS) SPEAKER FELT D24(BLACK) 1 喇叭网 0.01 7 MKP-0200-401R (RoHS) BASE DIAL KEYPAD( 硅胶 ) FOR PR190 1 拔号胶 0.01 8 MMT-0400-918R (RoHS) BATT. PLATE(+) FOR PR190 1 0.01 9 MMT-0400-919R (RoHS) BATT. PLATE(-) FOR PR190 1 0.01 10 MMT-0400-920R (RoHS) BATT. PLATE(+/-) FOR PR190 1 0.01 11 MMT-0400-921R (RoHS) BATT. PLATE(-/+) FOR PR190 1 0.01 12 MPF-0101-891R (RoHS) FRONT COVER(ABS) FOR PR190 1 面壳 0.01 13 MPF-0201-871R (RoHS) BACK COVER(ABS) FOR PR190 1 底壳 0.01 14 MPF-0301-701R (RoHS) BATTERY COVER(ABS) FOR PR190 1 电池门 0.01 15 MPF-0601-831R (RoHS) LENS(PMMA) FOR LI-7200 1 镜片 0.01 16 MPF-1301-321R (RoHS) BELT CLIP(ABS) FOR PR190 1 皮带扣 0.01 17 MRB-0000-619R (RoHS) ''PTT'' RUBBER COVER FOR PR19 0 1 PTT 按键 0.01 18 MRB-0000-620R (RoHS) EARPHONE RUBBER COVER FOR PR1 90 1 耳塞胶 0.01 19 MRB-0600-917R (RoHS) LCD CUSHION(EVA) FOR PR190 1 LC D 防尘海棉 0.01 20 MRB-0700-363R (RoHS) SPONGE 20X20X0.3mm WHITE 1 天线海棉 0.01 21 MSC-0603-046R (ROHS) SCREW 2.3X6 PB(HEAD3.9) BLACK 3 底面壳螺丝 0.01 列印时间 : 2007-7-23 15:38:56 第 1 / 1 页 制表 : 思丽霞 审核 :____________________ 审批 :____________________ 批准 :_____________________ 安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : ABM-R0R0-161A 主件名称 : (RoHS) PCBA_BM FOR PR190 基本单位 : PCS 机型 机型机型机型 : PR190 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 变更日期 : 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 1 ABM-R0R0-161S (RoHS) SMT_BM FOR PR190 1 0 2 BMS-B081-131R (RoHS) PCB_MS(KEY) FOR PR190 1 0 3 ECE-1022-100R (RoHS) CAP_E_GEN 10uF/10V (D3XL6) 1 C54 0.005 4 ECE-2112-101R (RoHS) CAP_E_MINI 100uF/6.3V(D4XL7) Y Q 4 C95,C122,C138,C131 0.005 5 ECE-2122-330R (RoHS) CAP_E_MINI 33uF/10V(D4XL7) 1 C44 0.005 6 EFT-1420-001R (RoHS) CRYSTAL FILTERS ET21.7MHz 1 FLT2 0 7 EFT-2120-004RA1 (RoHS) CERAMIC FILTER LTM450HTW(FT) 1 FLT3 0 8 EFT-2120-006RA1 (RoHS) CERAMIC DISCRIMINATOR CDBM450C32(THICK:2.5) 1 DIS1 0 9 EHF-1122-010R (RoHS) COIL_AXIAL 1uH/K/(EC-24) 1 L20 0.01 10 EJK-5400-004R (RoHS) EARPHONE JACK ST-020SMT-050-100 INSERT FORCE :1~2kgf,PUSH OUT:0.6~2kgf 1 J1 0 11 EMC-0101-031R (RoHS) MIC KT-9753-62-2-P (THICK:5.3 mm) 1 0.01 12 EXR-1420-007RC1 (RoHS) XTAL_21.250MHz(18PF)HC-49U/S+/-7.5PPM(-20~+5 5 °C ) 1 XTAL1 0 13 EXR-1510-002RA1 (RoHS) XTAL_32.768KHz(12.5PF) D3X8 TN 1 XTAL2 0 14 MFB-0600-581R (RoHS) ZEBRA BAR 10X6.65X1mm FOR PR1 90 1 斑马条 0.01 15 MMT-0500-901R (RoHS) SHIELD COVER(OUTER) FOR PR190 1 屏蔽盖 0.01 16 MMT-0600-201R (RoHS) METAL(IRON) SHEET FOR PR190 1 铁片 0.01 17 MMT-1400-421R (RoHS) LCD BRACKET(METALLIC) FOR PR1 90 1 铁框 0.01 18 MMT-1700-023R (RoHS) TACT PLATE (D6mm) (6-TDOP-200 ) 1 0.01 19 MPF-1400-411R (RoHS) LCD HOLDER(PMMA) FOR PR190 1 背光支架 0.01 20 PLB-1302-080R (RoHS) PVC OVERLAY FOR PR190 1 0.01 21 SLD-4400-122R (RoHS) LCD TOD5028A 14.6X14.1X2.0mm FOR PR190 1 LCD 0.01 列印时间 : 2007-7-23 15:38:56 第 1 / 1 页 制表 : 思丽霞 审核 :____________________ 审批 :____________________ 批准 :_____________________ 安悦电子 安悦电子安悦电子安悦电子 ( 深圳 深圳深圳深圳 ) 有限公司 有限公司有限公司有限公司 产 产产产 品 品品品 结 结结结 构 构构构 (Bill Of Material) 主件编号 主件编号主件编号主件编号 : ABM-R0R0-161S 主件名称 : (RoHS) SMT_BM FOR PR190 基本单位 : PCS 机型 机型机型机型 : PR190 SMT PCB ASS PAK 主版本号 : A0 当前版本号 : 变更日期 : 变更单号 : 序号 料品编号 料品名称 用 量 位 置 损耗率 1 BBM-B081-141R (RoHS) PCB_BM 2-LAYER-1.0T PR190 1 PCB 0 2 ECS-1112-020R (RoHS) CAP_C_CHIP 2PF/C(CH)(0402) A:COG150L(SAMSUNG ) 1 C9, 0.01 3 ECS-1112-030R (RoHS) CAP_C_CHIP 3PF/C(CH)(0402) A:COG150L(SAMSUNG ) 2 C62,C100 0.01 4 ECS-1112-040R (RoHS) CAP_C_CHIP 4PF/C(CH)(0402) A:COG150L(SAMSUNG ) 5 C31,C59,C4,C55,C133 0.01 5 ECS-1112-090R (RoHS) CAP_C_CHIP 9PF/C(CH)(0402) A:COG150L(SAMSUNG ) 1 C93 0.01 6 ECS-1112-1R5R (RoHS) CAP_C_CHIP 1.5PF/C(CH)(0402) A:COG150L (SAMSUNG) 1 C57 0.01 7 ECS-1112-2R5R (RoHS) CAP_C_CHIP 2.5PF/C(CH)(0402) A:COG150L(SAMSU NG) 1 C130 0.01 8 ECS-1112-2R7R (RoHS) CAP_C_CHIP 2.7PF/C(CH)(0402) A:COG150L(SAMSU NG) 2 C58,C86, 0.01 9 ECS-1112-3R3R (RoHS) CAP_C_CHIP 3.3PF/C(CH)(0402) A:COG150L(SAMSU NG) 1 C67 0.01 10 ECS-1113-050R (RoHS) CAP_C_CHIP 5PF/D(CH)(0402) A:COG150L (SAMSUN G) 2 C127,C28 0.01 11 ECS-1113-060R (RoHS) CAP_C_CHIP 6PF/D(CH)(0402) A:COG150L(SAMSUNG ) 2 C34,C106 0.01 12 ECS-1113-070R (RoHS) CAP_C_CHIP 7PF/D(CH)(0402) A:COG150L(SAMSUNG ) 5 C2,C49,C72,C60,C132 0.01 13 ECS-1113-080R (RoHS) CAP_C_CHIP 8PF/D(CH)(0402) A:COG150L(SAMSUNG ) 2 C33,C56, 0.01 14 ECS-1116-100R (RoHS) CAP_C_CHIP 10PF/J(CH)(0402) A:COG150L (SAMSU NG) 4 C6,C110,C113,C75 0.01 15 ECS-1116-101R (RoHS) CAP_C_CHIP 100PF/J(CH)(0402) A:COG150L(SAMSU NG) 13 C41,C76,C103,C107,C129,C35,C39,C77,C117,C118,C119 ,C120,C51 0.01 16 ECS-1116-120R (RoHS) CAP_C_CHIP 12PF/J(CH)(0402) A:COG150L(SAMSUN G) 4 C61,C3,C123,C43, 0.01 17 ECS-1116-150R (RoHS) CAP_C_CHIP 15PF/J(CH)(0402) A:COG150L(SAMSUN G) 1 C102 0.01 18 ECS-1116-160R (RoHS) CAP_C_CHIP 16PF/J(CH)(0402) A:COG150L(SANGSUNG) 1 C87, 0.01 19 ECS-1116-220R (RoHS) CAP_C_CHIP 22PF/J(CH)(0402) A:COG150L(SAMSUN G) 2 C10,C83 0.01 20 ECS-1116-330R (RoHS) CAP_C_CHIP 33PF/J(CH)(0402) A:COG150L(SAMSUN G) 4 C30,C80,C90,C91 0.01 21 ECS-1116-390R (RoHS) CAP_C_CHIP 39PF/J(CH)(0402) A:COG150L(SAMSUN G) 2 C69,C109 0.01 22 ECS-1116-820R (RoHS) CAP_C_CHIP 82PF/J(CH)(0402) A:COG150L(SAMSUN G) 1 C68 0.01 23 ECS-1211-0R5R (RoHS) CAP_C CHIP 0.5PF/B/(CH)/(0603) A:COG150L(SAMSUNG) 1 C128 0.01 24 ECS-1211-R75R (RoHS) CAP_C CHIP 0.75PF/B/(CH)/(0603) A:COG150L 1 C136 0.01 25 ECS-1212-010R (RoHS) CAP_C CHIP 1PF/C/(CH)/(0603) A:COG150L(SUMSU NG) 1 C125 0.01 26 ECS-1212-020R (RoHS) CAP_C CHIP 2PF/C/(CH)/(0603) A:COG150L(SAMS…

Text truncated - open the document above for the full version.

Company: Cobra Electronics Corporation FCC ID: BBOPR190 IC ID: 906B-PR190 Model(s): PR188 / PR190 / PR195 / PR199 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 35 Date(s) of Evaluation August 23, 2007 Test Report Serial No. 082307BBO-T848-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 28, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT COBRA ELECTRONICS CORPORATION PRODUCT PORTABLE FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S) PR188 PR190 PR195 PR199 IDENTIFIER(S) FCC ID: BBOPR190 IC ID: 906B-PR190 APPLICATION TYPE New Certification STANDARD(S) APPLIED FCC 47 CFR §2.1093 Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 RF EXPOSURE CATEGORY General Population / Uncontrolled Exposure TEST REPORT SERIAL NO. 082307BBO-T848-S95U TEST REPORT REVISION NO. Revision 1.0 (Initial Release) TEST REPORT ISSUE DATE August 28, 2007 Testing and Test Report ByTest Report Reviewed By TEST REPORT SIGNATORIES Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing & Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOPR190 IC ID: 906B-PR190 Model(s): PR188 / PR190 / PR195 / PR199 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 35 Date(s) of Evaluation August 23, 2007 Test Report Serial No. 082307BBO-T848-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 28, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab Information: Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Company Information: Cobra Electronics Corporation 6500 West Cortland Street, Chicago, IL 60707 United States Standard(s) Applied: FCC FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC FCC OET Bulletin 65, Supplement C (Edition 01-01) Procedure(s) Applied: IC Industry Canada RSS-102 Issue 2 Device Identifier(s): FCC ID: BBOPR190 IC ID: 906B-PR190 Device Model(s):PR188 PR190 PR195 PR199 Device Serial No.: 0083264Model: PR190 Identical Prototype Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) Transmit Frequency Range(s): 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 300 mW 24.8 dBm ERP462.7250 MHz GMRS Ch. 22 Antenna Type(s) Tested: External Fixed Stubby (Non-detachable) NiCd AAA x3 1.2V, 300mAh Battery Type(s) Tested: Alkaline Duracell Procell AAA x3 1.5V, 1150mAh Body-worn Accessories Tested: Plastic Belt-Clip (6 mm thickness) Audio Accessories Connected: Ear-bud with Lapel-Microphone Face-held 0.159 W/kg 1g50% duty cycle ANSI/IEEE Limit 1.6 W/kg 1g Max. SAR Level(s) Evaluated: Body-worn 0.191 W/kg 1g50% duty cycle ANSI/IEEE Limit 1.6 W/kg 1g Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By: Sean JohnstonCelltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOPR190 IC ID: 906B-PR190 Model(s): PR188 / PR190 / PR195 / PR199 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 35 Date(s) of Evaluation August 23, 2007 Test Report Serial No. 082307BBO-T848-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 28, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 MEASUREMENT SUMMARY _________________________________________________________ 5 4.0 DETAILS OF SAR EVALUATION______________________________________________________ 6 5.0 EVALUATION PROCEDURES ________________________________________________________ 6 6.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 7 7.0 SIMULATED EQUIVALENT TISSUES ____…

Text truncated - open the document above for the full version.

FCC PART 95 AND IC RSS-210 FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBOPR190 IC CERT # 906B-PR190 MODEL NUMBERS PR190, PR188, PR195, PR199 PRODUCT DESCRIPTION FRS/GMRS TRANSCEIVER DATE SAMPLE RECEIVED 8/14/2007 DATE TESTED 8/17/2007 TESTED BY Nam Nguyen APPROVED BY Nam Nguyen TIMCO REPORT NO. C\COBRA\2817AUT7\2817AUT7TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR190 IC Cert #: 906B-PR190 Report: C\COBRA\2817AUT7\2817AUT7TestReport.doc Page 2 of 18 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST PROCEDURES ................................................................................................. 5 RF POWER OUTPUT .................................................................................................. 6 MODULATION CHARACTERISTICS............................................................................ 7 EMISSION DESIGNATOR AND FREQUENCIES ........................................................ 10 OCCUPIED BANDWIDTH ......................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS - TX ................................................. 14 FIELD STRENGTH OF SPURIOUS EMISSIONS - RX ................................................. 16 FREQUENCY STABILITY.......................................................................................... 17 TEST EQUIPMENT LIST........................................................................................... 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR190 IC Cert #: 906B-PR190 Report: C\COBRA\2817AUT7\2817AUT7TestReport.doc Page 3 of 18 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Nam Nguyen Signature: < Nam Nguyen> Function: Engineer Tech. Date: 8/20/2007 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR190 IC Cert #: 906B-PR190 Report: C\COBRA\2817AUT7\2817AUT7TestReport.doc Page 4 of 18 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description FRS/GMRS TRANSCEIVER FCC ID BBOPR190 IC Cert # 906B-PR190 Model Number PR190, PR188, PR195, PR199 Operating Frequency 462.5500-462.7250, 467.5625-467.7125 No. of Channels 22 Type of Emission 10K5F3E Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna Fixed Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Modifications None Test Exercise The DUT was placed in continuous transmit mode of operation Applicable Standards TIA 603 , FCC CFR 47 Part 2 & Part 95, Industry Canada RSS-210 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR190 IC Cert #: 906B-PR190 Report: C\COBRA\2817AUT7\2817AUT7TestReport.doc Page 5 of 18 TEST PROCEDURES Bandwidth: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: RF power was conducted per TIA/EIA STANDARD 603 using the substitution method Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the DUT was 76°F with a humidity of 55%. Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR190 IC Cert #: 906B-PR190 Report: C\COBRA\2817AUT7\2817AUT7TestReport.doc Page 6 of 18 RF POWER OUTPUT Rule Part No.: 2.1033(c)(6)(7), 2.1046(a), Part 95, RSS-210 Requirements: Power output shall not exceed 0.50 Watts effective radiated power for the FRS channels. There can be no provisions for increasing the power or varying the power. No GMRS channel, under any condition of modulation, shall exceed: 1. 50W Carrier power (average TP during one modulated RF cycle) when transmitting emissions type A1D, F1D, G1D, A3E, F3E, or G3E. 2. 50W peak envelope TP when transmitting emission type H1D, J1D, R1D, H3E, J3E, or R3E. Method of Measurement: RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage, and the transmitter properly ad…

Text truncated - open the document above for the full version.
