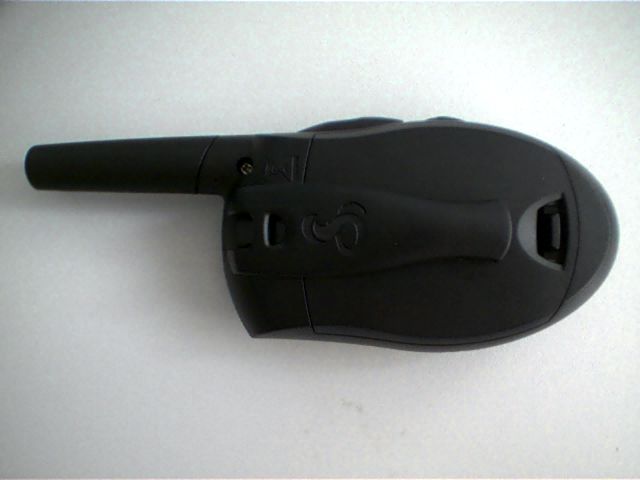

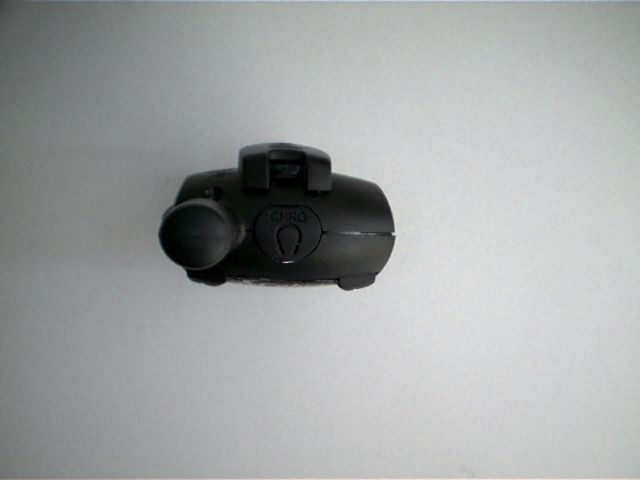

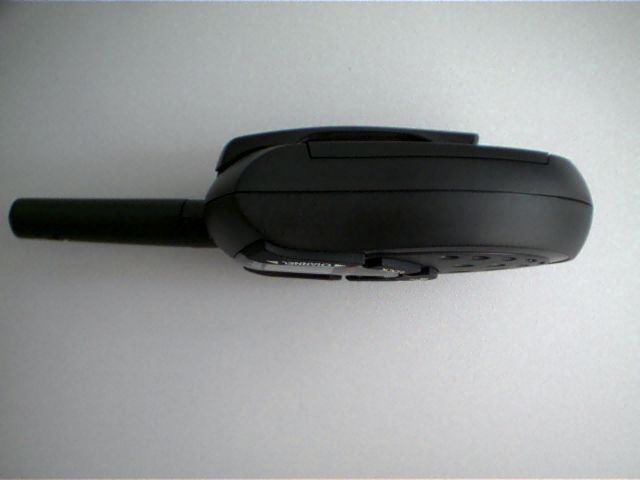

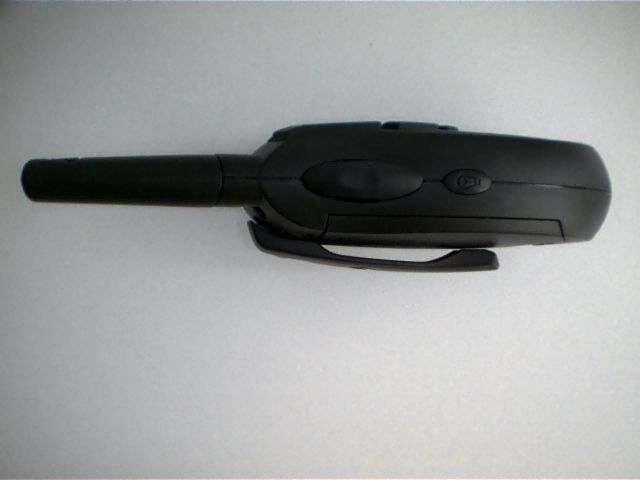

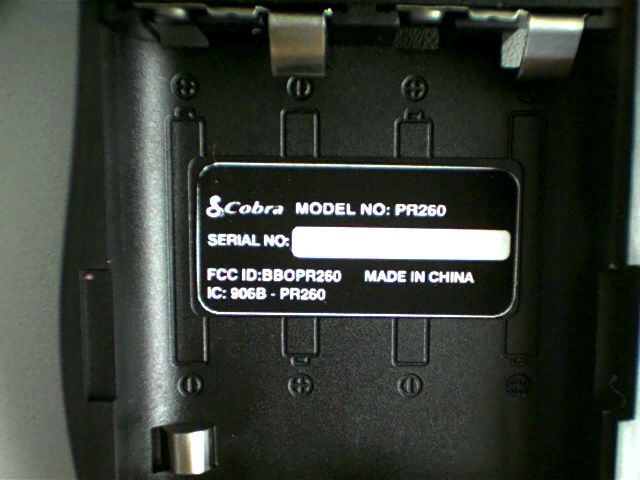

BBOPR260FRS/ GMRS TRANSCEIVER

Introduction © 2006 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Making Life Easier and Safer Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include:Communicating with others while hiking, biking, and working;keeping track of family and friends at a crowded public event;checking with travel companions in another car; talking withneighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go.Carrying your microTALK ® radio with you is easy when using the belt clip or optional wrist strap. The belt clip easily attaches to your belt, purse, or backpack. Simply squeeze the clip and place it where you prefer. For Assistance in the U.S.A. In this user’s manual, you should find all the information you needto operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra Electronics offers the followingcustomer assistance services:Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6: 00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). QuestionsEnglish and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @ cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Customer Assistance A1 Owner’s Manual Nothing Comes Close to a Cobra ® Nothing Comes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com Belt Clip Wrist Strap TWO-WAY RADIO MODEL PR 700 WX Printed in China Part No. 480-313-P English Version A PR700-2WX VP-D-FINAL 5/1/06 7:01 AM Page 1 Introduction © 2006 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Making Life Easier and Safer Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip or optional wrist strap. The belt clip easily attaches to your belt, purse, or backpack. Simply squeeze the clip and place it where you prefer. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: AutomatedHelpDesk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). CustomerAssistanceOperators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). TechnicalAssistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. ContactYourLocalDealer Customer Assistance A1 Owner’s Manual NothingComes Close to a Cobra ® NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com Belt Clip Wrist Strap TWO-WAY RADIO MODEL PR 700 WX Printed in China Part No. 480-313-P English Version A PR700-2WX VP-D-FINAL 5/1/06 7:01 AM Page 1 17 Product Features A3 Introduction Product Features A2 Introduction Limited One-Year Warranty on Radio(s) & Charger • ForProductsPurchasedintheU.S.A. Cobra Electronics Corporation warrants that its Cobra microTALK ® radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective microTALK ® radios, chargers, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Exclusions:Thislimitedwarrantydoesnotapply:1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. ForProductsPurchasedOutsidetheU.S.A. Please contact your local dealer for warranty information. 90-DayWarrantyonGA-3ANCRechargeableBatteries Fo…

Text truncated - open the document above for the full version.

24 July, 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR260 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

COBRA ELECTRONICS CORP. FCC ID: BBOPR260 INTERNAL PHOTOS

Tuning Procedure WARNING Any repairs or adjustments should be made under the supervision of a qualified radio technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 6.0VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the trimmer capacitor (VC101) such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 1.0(0.5) Watt output power with a maximum error of +/- 0.5(0.4-0.8) Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone jack JK101.The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR101 for +/- 2.2 KHz maximum deviation. (With CTCSS tone) F. To be convinced +/- 2.0KHz without CTCSS tone.(1.5KHz dev. 20dB up) G. Release the PTT switch. RECEIVER 1. Power Supply Voltage The proper voltage for testing is 6.0 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication. NOTE: Ensure that the proper channel has been selected before preceding with the alignment procedure.

Company: Cobra Electronics Corporation FCC ID: BBOPR260 IC ID: 906B-PR260 Model(s): PR257 / PR260 / PR265 / PR700 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 39 Date(s) of Evaluation August 23-24, 2006 Test Report Serial No. 082306BBO-T767-S95U Report Revision No. Revision 1.0 Report Issue Date September 01, 2006 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR COBRA ELECTRONICS CORPORATION PORTABLE UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): PR257 / PR260 / PR265 / PR700 Test Report Serial Number 082306BBO-T767-S95U Test Report Revision Number Revision 1.0 (Initial Release) Test Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes General Manager Celltech Labs Inc. IDENTIFIER(S) FCC ID: BBOPR260 IC: 906B-PR260 FCC OET Bulletin 65, Supplement C (01-01) Test Standard(s) and Procedure(s) Industry Canada RSS-102 Issue 2 Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOPR260 IC ID: 906B-PR260 Model(s): PR257 / PR260 / PR265 / PR700 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 39 Date(s) of Evaluation August 23-24, 2006 Test Report Serial No. 082306BBO-T767-S95U Report Revision No. Revision 1.0 Report Issue Date September 01, 2006 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Location CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER: BBOPR260 IC IDENTIFIER: 906B-PR260 Model(s): PR257 / PR260 / PR265 / PR700 Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 Device Description: Portable UHF FRS/GMRS PTT Radio Transceiver Modulation Type: FM (UHF) Transmit Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.372 Watts (25.7 dBm) ERP (462.7250 MHz) GMRS Ch. 22 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: NiCd AAA x4 (1.2 V, 300 mAh) Alkaline Duracell Procell AAA x4 (1.5 V, 1150 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip (7 mm thickness) Audio Accessories Tested: Earbud with Lapel-Microphone (P/N: GA-EBM2) Max. SAR Level(s) Evaluated: Face-held: 0.220 W/kg (1g) - 50% duty cycle Body-worn: 0.313 W/kg (1g) - 50% duty cycle Test Report Approved By: Sean Johnston SAR Lab Manager Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOPR260 IC ID: 906B-PR260 Model(s): PR257 / PR260 / PR265 / PR700 Portable FM UHF FRS/GMRS PTT Radio Transceiver 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 39 Date(s) of Evaluation August 23-24, 2006 Test Report Serial No. 082306BBO-T767-S95U Report Revision No. Revision 1.0 Report Issue Date September 01, 2006 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY _________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION______________________________________________________ 7 6.0 EVALUATION PROCEDURES ________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 9 9.0 SAR SAFETY LIMITS _______________________________________________________…

Text truncated - open the document above for the full version.

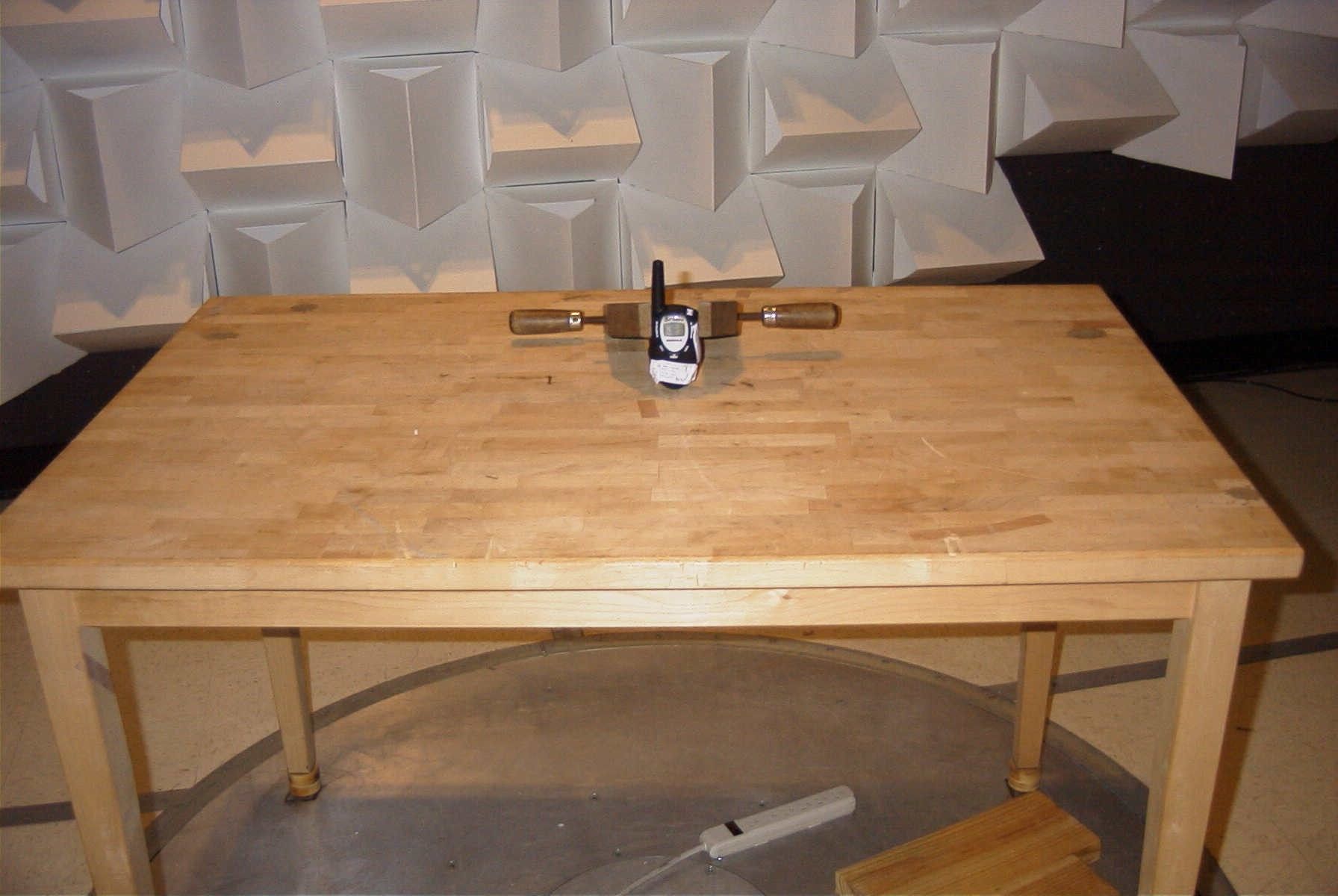

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc COVER SHEET Test Report Product Name: FRS/ GMRS TRANSCEIVER FCC ID: BBOPR260 Applicant: COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 Date Receipt: 7/26/2006 Date Tested: 8/18/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST TEST REPORT: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4........MODULATION LIMITING GRAPH PAGE 5........AUDIO LOW PASS FILTER GRAPH PAGE 6........OCCUPIED BANDWIDTH PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........UNWANTED RADIATION – GMRS PAGE 10.......UNWANTED RADIATION - FRS PAGE 11.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 12.......FREQUENCY STABILITY PAGE 13.......LIST OF TEST EQUIPMENT EXHIBITS INCLUDED: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc Page 2 of 14 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR260 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included in the exhibits. 2.1033(c) (4) Type of Emission: 10K2F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2.1 kHz Bn = 2(3000)+2(2100) = 10.2K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 5. 462.6000 6. 462.6125 7. 462.6250 8. 462.6375 9. 462.6500 10. 462.6625 11. 462.6750 12. 462.6875 FRS Authorized Bandwidth 12.5 kHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc Page 3 of 14 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(.240A) = 1.44 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(.280A) = 1.68 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included in the exhibits. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields are included in the exhibits. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS - .37 Watts FRS - .22 Watts TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc Page 4 of 14 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT 08/18/06 10:28:03 2207AUT6 AUDIO FREQ RESPONSE PLOT MaxFreq.at1 Color Line Style ThickDataAxis Cursor1 Cyan Solid 1Anlr.Level A!NormalizeLeft .. -20 +5 -15 -10 -5 +0 d B 300 10k 400 500 700 1k 2k 3k 4k 5k 6k 7k 1.96443k 1.99096k Hz dx=26.5274 Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR260 REPORT #: C\COBRA\2207AUT6\2207AUT6TestReport.doc Page 5 of 14 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. See the plot below. MODULATION LI…

Text truncated - open the document above for the full version.
