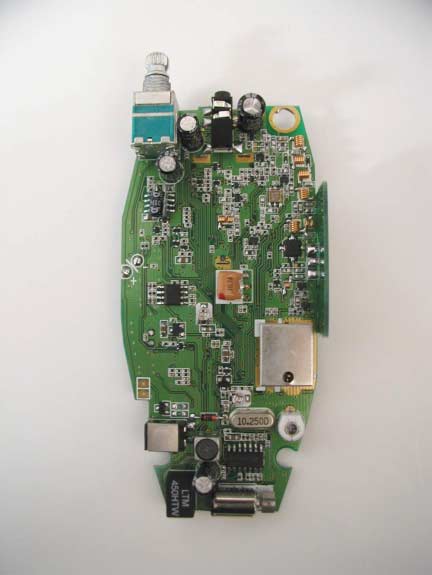

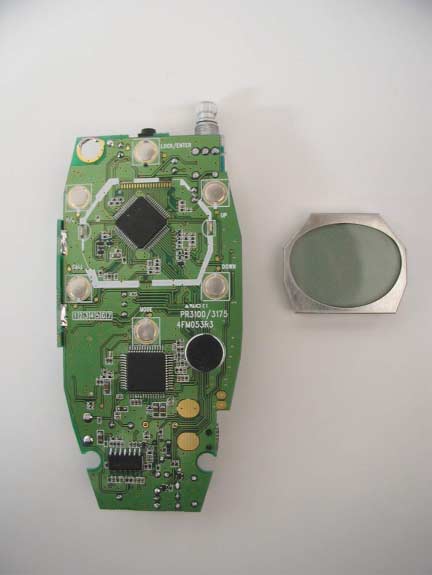

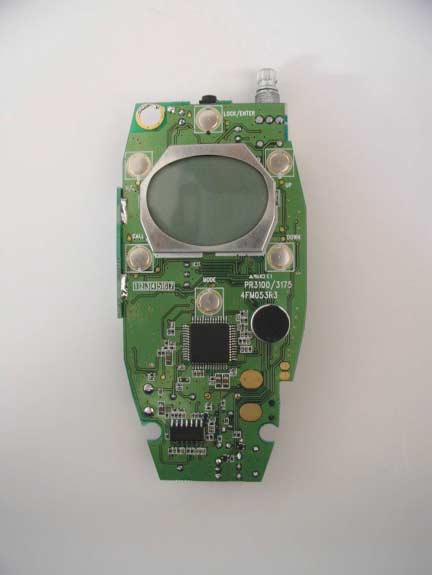

BBOPR3100FRS/GMRS TRANSCEIVER

NothingComes Close To A Cobra ® English The Cobra ® line of quality products includes: CB Radios • microTALK ® Radios • Radar/Laser Detectors Safety Alert ® Traffic Warning Systems • Accessories GPS (Global Positioning System) • HighGear ® Accessories VHF Marine Radios • Power Inverters For more information or to order any of our products, please visit our website: www.cobra.com A1 English Making Life Easier and Safer Owner’s Manual NothingComes Close To A Cobra ® English 2-WAYRADIO MODEL PR3175 W X Printed in Philippines Part No. 480-114-P Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip or wrist strap. The belt clip easily attaches to your belt, purse, or backpack. Simply squeeze the clip and place it where you prefer. For Assistance In the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra ® Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Belt Clip Wrist Strap Customer Assistance ©2003 Cobra ® Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com OperationWarrantyIntroductionCustomer Assistance Battery Compartment Battery Door Latch Belt Clip Wrist Strap Connector A3 English Product Features A2 English Product Features Introduction Backlit LCD Display Channel Up/Down Button Speaker/ Microphone Call Button Mode Button Antenna Lock Button Hi•Low Power Button External Speaker/ Microphone Jack Light/ Max Range Button Talk Button On/Off Volume Knob Charger Jack Introduction Backlit LCD Display Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 22 for licensing and other related information. Features • 2-Way Radio With up to a seven (7) mile (11 km) range • 22 Channels Seven (7) shared with FRS/GMRS, seven (7) FRS only, eight (8) GMRS only • 38 Privacy Codes • Ten (10) Channel NOAA All Hazards Radio • Hands-Free Operation (VOX) • VibrAlert ® Silent Paging • Ten (10) Location Memory • Signal Strength Meter • Scan Channel, privacy code, memory • Selectable Hi•Low Power In GMRS) • Backlit LCD Display • Button Lock • Call Alert Ten (10) selectable tones • Speaker/ Microphone Jack • Roger Beep Selectable On/Off • Battery/Power Saver • Keystroke Tones Selectable On/Off • Auto Squelch • Maximum Range Extender •Belt Clip • Wrist Strap Name Address (No P.O. Boxes) CityState/ProvinceZipCountry Telephone Credit Card Number Type: ❒Visa ❒MasterCard ❒DiscoverExp. Date Customer Signature Item #U.S. Cost EachQtyAmount U.S. Subtotal (Tax if Applicable) Shipping/Handling Total Amount Shipping/Handling* $10.00 or less . . . . . $3.00 $10.01-$25.00 . . . . . $5.50 $25.01-$50.00 . . . . . $7.50 $50.01-$90.00 . . . . $10.50 $90.01-$130.00 . . . $13.50 $130.01-$200.00 . . $16.50 $200.01 plus . . . . . 10% of purchase Tax Table Wisconsin add 5% Indiana, Michigan, Ohio add 6% California add 7.25% Illinois add 8.75% *For AK, HI and PR add additional $26.95 for FedEx Next Day or $10.95 for FedEx 2nd Day. Excludes weekends and holidays shipments. Please allow two (2) to three (3) weeks for delivery in the U.S.A. Prices subject to change without notice. Optional Accessories • You can find quality Cobra ® products and accessories at your local Cobra ® dealer, or in the U.S.A., you can order directly from Cobra ® . Ordering From U.S.A. Call 773-889-3087 for pricing or visit www.cobra.com. For credit card orders,complete and return this order form to fax number 773-622-2269. Or call 773-889-3087 (Press 1 from the main menu) 8:00 a.m. to 6:00 p.m. CT, Monday through Friday. Make check or money order payable to: Cobra ® Electronics, Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A. To order online,please visit our website: www.cobra.com 25 Nothing comes close to a Cobra ® Receive/ Transmit Icon Hi•Low Power Icon Lock Icon Keystroke Tones Icon Call Tones and VibrAlert ® Icon Roger Beep Icon Signal Strength Meter Icon Battery Level Indicator Channel Numbers Power Saver Icon CTCSS Privacy Code Numbers Scan Icon Vox Icon Memory Icon Memory Location Number All Hazards Radio Icon OperationCustomer AssistanceWarranty 1 Nothing comes close to a Cobra ® Introduction Caring for Your microTALK ® Radio • Your microTALK ® radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Batteries • To Install Or Replace Batteries: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2. Pull down on the battery door latch to remove the battery compartment cover. 3. Insert four (4) AAA batteries. (Always use high quality alkaline batteries.) Position batteries according to polarity markings. 4. Replace battery compartment cover and belt clip. Contact your local…

Text truncated - open the document above for the full version.

7.THEORY OF OPERATION Circuit Compositions and Operation Theory The basic explanation for the circuit composition the one board controlling the analog circuit parts and the digital circuit parts. Receiver Transmission parts are composed in the double conversion system, which has the 1st IF Frequency of 10.7 MHz and 2nd IF Frequency of 450 kHz. With the saw filter, which has an excellent band characteristic and sharp characteristic, the 2 poles CF used in the 1st IF, and the sensitivity repression is reduced for the more stable reception. RF Front end The signal received by the antenna will be transmitted to the band pass filter through the antenna switching circuit consisted of LT1, LR1, CT1, CT2 and CT3. The front RF amplifier transistor QR1 consists of the saw filter and input/output band pass filter. Saw filter has the bandwidth of approximately 5 MHz, primarily diminishes the other signal rather then the 1st IF image and other signal within the reception band and amplifies only the necessary signal within the RF. 1st Mixer The receiver signal, which has been amplified in the RF fronted, is provided to the base of the 1st mixer QR2. The 1st L/O signal provides from the VCO is supplied to the emitter of QR2 and converted to the 1st IF 10.7 MHz. 1st IF Filter and 1st IF Amplifier The signal converted by QR2 to 10.7 MHz, the 1st frequency, change its impedance through CR8, LR6 and then is infused to the fundamental CF which has the center frequency of 10.7 MHz and the width of +/- 30 kHz. Here, the signal reduces the image and other unwanted signal for the 2nd IF. Then the signal is infused to the IC3. The IC3 which functions as the 2nd mixer, the 2nd IF amplifier, and the FM detector, RSSI, PREMIC, compander, PLL circuit. 2nd Mixer, and IF, FM Detector The receiver IF signal of 10.7 MHz, which has been infused to IC3 is mixed with the 2nd L/O signal of 10.250MHz, and converted to 450 kHz, the 2nd IF frequency. The receiver signal converted to the 2nd IF frequency passed through the F3, the ceramic filter of 450 kHz again. After the limiting inside the IC3 and the FM demodulating by the quadrature detector inside the IC3, the signal offers the output through the 21 th pin of IC3. The 2nd L/O signal of 10.250MHz, which infused to the IC3 filters and uses directly the crystal of 10.250 MHz. The squelch circuit is composed to detect the noised from the received signal demodulate in the 31 th pin of the IC3. For this purpose, the noise filter is using the OP amplifier inside the IC3. Transmitter The transmission parts of the PR-3175 are designed to amplify the RF signal oscillated and modulated by the synthesizer to approximately 2(0.5) W by the power transistor of QT3. TX Power (QT3) The transmitted signal of approximately 2(0.5)W, combined at the driver TR is supplied to the base of the QT3 amplifier. The transmitted signal amplified to 2W here passes the TX LPF of the 2nd characteristic of the LT2 and the LT3, and RX/TX switching takes place by the DT1. After this, the signal is provided to the antenna the TX LPF of the 1st characteristics, consisted of the LT1. Frequency Synthesizer Voltage Control Oscillator (VCO) The VCO of oscillates 462.5625 MHz to 467.7125 MHz under the transmission condition and 451.8625 MHz to 457.0125 MHz under the reception condition. The VCO consists of the clip oscillator of the QV1, and contains the oscillator frequency of approximately 10.7MHz during the transmission/reception conversion. That is since the VCO should oscillate relatively low frequency during reception compared to transmission, the DV2 is directly biased by the QV2. Therefore as a result, the CV8 is added in parallel to the resonance circuit of the VCO to oscillate a low frequency. During transmission, a relatively high frequency should be oscillating compared to reception. Therefore, the DV2 is adversely biased by the QV2, and as a result, the CV8, which is added unparallel to the circuit of the VCO is removed to oscillate the desired transmission frequency. PLL Part of the IC3 controls the VCO in order to oscillate the accurate frequency. The output frequency of the VCO is supplied to the 44 th pin of IC3. At the IC3, TCXO(10.250MHz) by the TCXO-1 is compared to the output frequency of the VCO. The VCO is controlled the loop filter consisted of the RM32, RM33, RM34, and the CM14, in order to oscillate the stable frequency wanted for the radio. The VCO controlled voltage which has passed the loop filter is supplies to the DV1 varactor diode, and the VCO an oscillate the PLL programmed frequency by the capacity variation in the DV1. In addition, the LV2 on the VCO circuit function as frequency for the VCO to be properly controlled. RX/TX Buffer Amplifier (QB1) The RF signal oscillate at the VCO is provide to the QR2 RX 1st mixer through the QB1 during the reception, and is provide to the QT2 power driver amplifier through the QT1 during the transmission. PLL Frequency Synthesizer (IN 6311) The PLL synthesizer of the signal loop PLL circuit with the reference of 6.25 kHz. The IC3 includes all the function such as the reference oscillator, the driver, the phase detector, the lock detector, and the programmable divider. At the reference oscillator, the 10.250 MHz TCXO of the TCXO is connected to the pin 52,53 of the IC3 to oscillate the frequency of 10.250MHz. The TCXO (10.250MHz) is the temperature compensation circuit to maintain the frequency within the allowable error range even under a low temperature of -20. The phase detector sends out the output power to the loop filter through 44 pin of the IC3. IF the oscillation frequency of the VCO is low compared to the referenced frequency, the phase detector sends out the output power in positive pulse. If the oscillation frequency of the VCO is high, phase detector send out can maintain the frequency set. The programmable divider maintains the desired frequency with control from the CPU. The dividing ratio, "N" to oscillate the desired frequency…

Text truncated - open the document above for the full version.

8. Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radiotelephone technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 6.0VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the Antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the CX1 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 2.0(0.5) Watt output power with a maximum error of +/- 0.5(0.4-0.8) Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone jack JIG. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR4 for +/- 2.2 KHz maximum deviation. (With CTCSS tone) F. To be convinced +/- 2.0KHz without CTCSS tone.(1.5KHz dev. 20dB up) g. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before preceding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 6.0 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Adjust L1 for maximum audio power and minimum distortion E. Set the audio output level for 0.6 Vrms. by adjusting volume. F. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication. G,Adjust the squelch VR3 for 12 dB SINAD +/- 2 dB

© 2003 Celltech Labs Inc. 1 of 20 Test Report S/N: 102803-443BBO Test Date(s): November 05, 2003 Test Type: FCC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 Rule Part(s): FCC 47 CFR §2.1093 Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) Device Type: Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID: BBOPR3100 Model(s): PR3175 Modulation: FM (UHF) Tx Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested: 1.10 Watts ERP (GMRS 462.6250 MHz) No. of Channels: 22 Antenna Type(s): Fixed Stubby Battery Type(s): 1.5 V AAA Alkaline (x4) 1.2 V AAA NiCd (x4) 1.2 V AAA NiMH (x4) Body-Worn Accessories Tested: Belt-Clip, Ear-Microphone Max. SAR Measured: 0.828 W/kg - Face-held (50% duty cycle) 1.04 W/kg - Body-worn (50% duty cycle) © 2003 Celltech Labs Inc. 2 of 20 Test Report S/N: 102803-443BBO Test Date(s): November 05, 2003 Test Type: FCC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED TISSUE MIXTURES............................................... 8 9.0SAR LIMITS........................................................................... 8 10.0SYSTEM SPECIFICATIONS...................................................... 9 11.0PROBE SPECIFICATION......................................................... 10 12.0PLANAR PHANTOM................................................................ 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 © 2003 Celltech Labs Inc. Cobra Electronics Corporation FCC ID: BBOPR3100 (Model: PR3175) 3 of 20 Portable UHF GMRS/FRS PTT Radio Transceiver (462.5500-467.7125MHz) Test Report S/N: 102803-443BBO Test Date(s): November 05, 2003 Test Type: FCC SAR Evaluation This measurement report demonstrates compliance of the Cobra Electronics Corporation Model: PR3175 Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID: BBOPR3100 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [2]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. Rule Part(s) FCC 47 CFR §2.1093 Test Procedure FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID BBOPR3100 Model(s) PR3175 Serial No. H309000103 (Production Sample) Modulation FM Tx Frequency Range(s) 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested 1.10 Watts ERP (GMRS 462.6250 MHz) Battery Type(s) 1.5 V AAA Alkaline (x4) 1.2 V AAA NiCd (x4) 1.2 V AAA NiMH (x4) Antenna Type(s) Fixed Stubby Body-Worn Accessories Tested Belt-Clip, Ear-Microphone 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) 1.0 INTRODUCTION © 2003 Celltech Labs Inc. Cobra Electronics Corporat…

Text truncated - open the document above for the full version.

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 TEST REPORT: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE.GRAPH PAGE 4........MODULATION LIMITING GRAPH PAGE 5........AUDIO LOW PASS FILTER GRAPH PAGE 6........OCCUPIED BANDWIDTH PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........UNWANTED RADIATION – GMRS PAGE 10.......UNWANTED RADIATION - FRS PAGE 11.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 12.......FREQUENCY STABILITY PAGE 13.......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........BLOCK DIAGRAM EXHIBIT 2.........SCHEMATIC EXHIBIT 3.........USERS MANUAL EXHIBIT 4.........LABEL SAMPLE EXHIBIT 5.........LABEL LOCATION EXHIBIT 6.........EXTERNAL PHOTOGRAPHS EXHIBIT 7.........INTERNAL PHOTOGRAPHS EXHIBIT 8.........THEORY OF OPERATION EXHIBIT 9.........ALIGNMENT PROCEDURE EXHIBIT 10........PARTS LIST EXHIBIT 11........TEST SET UP PHOTOGRAPH APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 1 of 13 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR3100 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 3. 2.1033(c)(4) Type of Emission: 9K7F3E 95.631 Bn = 2M + 2DK M = 2500 D = 2.35K Bn = 2(2500)+2(2350) = 9.7K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS (HIGH) - .977 Watts GMRS (LOW) - .347 Watts FRS - .457 Watts APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 2 of 13 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(.370A) = 2.22 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(.440) = 2.64 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 2 of this report. The block diagrams are included as EXHIBIT 1 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 4-5. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout, Including meters, labels for controls, including any view under shields. See exhibits 6-7. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 3 of 13 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE -1 +5 -0 +1 +2 +3 +4 d B 100 3k200 3004005006007001k2k Hz APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 4 of 13 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 2500 Hz. See plot below MODULATION LIMITING GRAPH - 2.5KHz (Green), 1.0KHz (Blue), and 300 Hz (Yellow) 0 2.4 k H z -40 +5-35 -30 -25-20-15-10-5 +0 dBu APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 5 of 13 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater than the attenuation at 1KHz. See below. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR3100 REPORT #: C\COBRA\1491AUT3\1491AUT3TestReport.doc Page 6 of 13 2.1049 Occupied bandwidth: 95.635(b)(1)(3)(7) At least 25dB on any frequency removed from the center of the authorized bandwidth by more than 50%up to and including 100% of the authorized bandwidth. At least 35 dB on any frequency removed from the c…

Text truncated - open the document above for the full version.
