BBOPR35022 CH FRS/ GMRS Transceiver - TX Portion

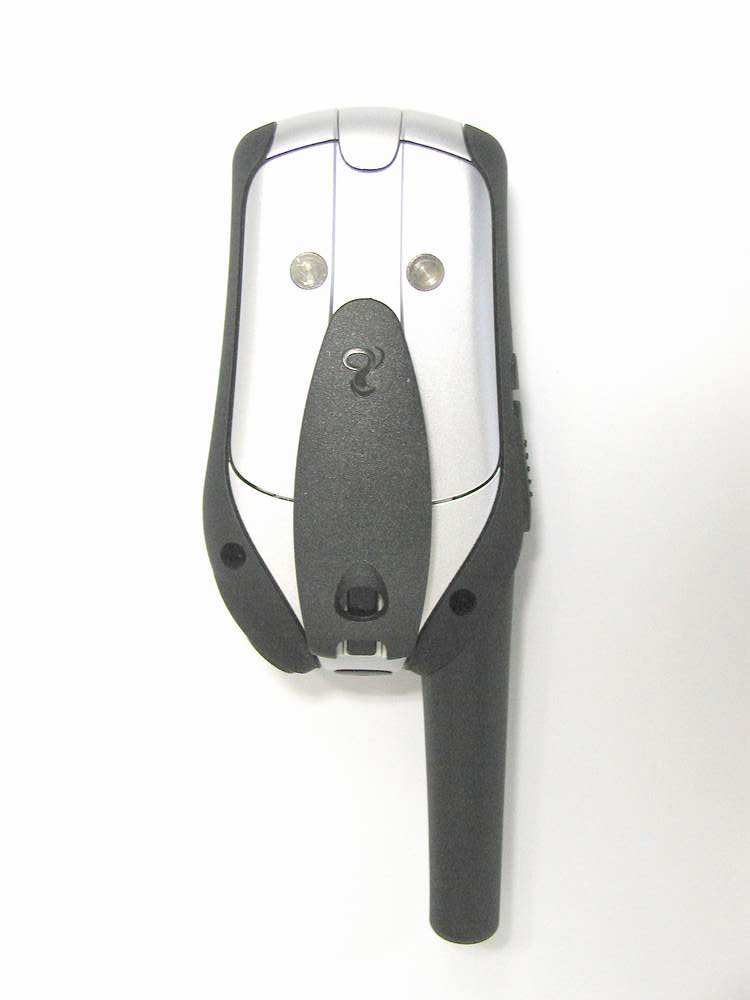

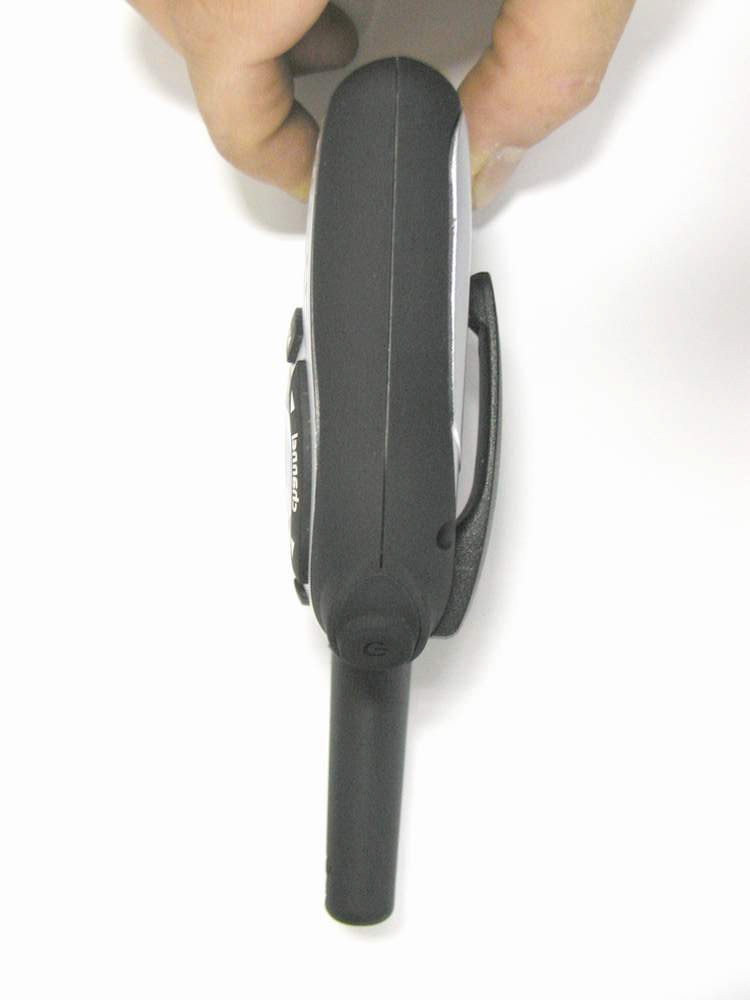

2 English Making Life Easier & Safer PR240 PR350WX 2-WAYRADIO MODELS NothingComes Close To A Cobra ™ English Owner’s Manual Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy whenusing the belt clip or wrist strap. The belt clip easily attaches to your belt, purse, or backpack. Simply squeeze the clip and place it where you prefer. For Assistance In the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra ® Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Belt Clip Wrist Strap Customer Assistance ©2002 Cobra ® Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Printed in Philippines Part No. 480-048-P RADIO BIDIRECCIONAL MODEL Nadase compara a Cobra ™ Español Manual del propietario PR240 PR350WX Printed in Philippines Part No. 480-048-P 2 Español Una vida más sencilla y segura Introducción Es muy fácil y práctico mantenerse en contacto con su familia y sus amigos cuando utiliza un radio microTALK ® .Usted descubrirá gran número de aplicaciones para el radio, como las siguientes: comunicación con otras personas en excursiones, paseos el bicicleta o en el trabajo; contacto con la familia y los amigos en concurridos eventos públicos, comunicación con compañeros de viaje en otro automóvil; conversaciones con los vecinos; ponerse de acuerdo en un punto de reunión durante una visita al centro comercial. Transporte el radio microTALK ® con seguridad. Es muy fácil transportar el radio microTALK ® con la pinza para cinturón o la correa para la muñeca. La pinza se sujeta fácilmente al cinturón, un bolso o una mochila. Sólo tiene que oprimir la pinza y colocarla donde quiera. Ayuda en los EE.UU. En este manual para el usuario encontrará toda la información necesaria para usar el radio microTALK ® . Si después de leer este manual requiere ayuda adicional, Cobra ® Electronics ofrece los siguientes servicios de apoyo a clientes: Centro automatizado de ayuda Únicamente inglés. Disponible las 24 horas del día, todos los días del año, llamando por teléfono al 773-889-3087. Operadores de ayuda al cliente Inglés y español. Disponibles de 8:00 a.m. a 6:00 p.m., hora del centro de EE.UU., de lunes a viernes (excepto días festivos), llamando por teléfono al 773-889-3087. Preguntas Inglés y español. Puede enviar sus preguntas por fax al 773-622-2269. Ayuda técnica Únicamente inglés. www.cobra.com (en Internet: preguntas más frecuentes). Inglés y español. Corre electrónico: [email protected] Ayuda fuera de los EE.UU. Comuníquese con un distribuidor de productos Cobra ® de su localidad. ©2002 Cobra ® Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Pinza para el cinturón Correa para la muñeca Ayuda a clientes 4 English Product Features OperationCustomer AssistanceWarranty 5 Nothing comes close to a Cobra ™ IntroductionIntroduction Caring for Your microTALK ® Radio • Your microTALK ® radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Batteries • To Install or Replace Batteries: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2. Pull down on the Battery Door Latchto remove the battery compartment cover. 3. Insert four AAA batteries. (Always use high quality alkaline batteries.) Position batteries according to polarity markings. 4. Replace Battery Compartment cover and belt clip. See information on page 20 for optional battery pack and desktop charger accessories ordering instructions. Backlit LCD Display Battery Compartment Battery Door Latch Belt Clip Wrist Strap Connector 3 English Product Features Introduction Lock Button Backlit LCD Display Channel Up/Down Buttons Speaker/ Microphone Call Button Mode Button Antenna Volume Up/ Down Button(s) External Speaker/ Microphone Jack Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 16 for licensing and other related information. Light/Max Range Button Talk Button On/Off Power Button Receive/ Transmit To w e r Icon Low Power Icon Lock Icon NOAA All Hazards Alert Icon (PR 350 WX only) Roger Beep Icon Battery Low Main Channel Numbers Power Saver Icon CTCSS Privacy Code Numbers Scan Icon NOAA All Hazards Radio Icon (PR 350 WX only) Features • Two-Way Radio With a range up to five (5) miles (8 km). • 22 Channels Seven shared with FRS/GMRS, seven FRS only eight GMRS only. • 38 Privacy Codes • 10 Channel NOAA All Hazards Radio (PR 350 WX only) • NOAA All Hazards Alert (PR 350 WX only) • Backlit LCD Display • Scan (channel, privacy code) • Water Resistant • Speaker/ Microphone Jack • Call Alert (10 selectable tones) • Lock • “Roger Beep” (selectable On/Off) • Battery/ Power Saver • Aut…

Text truncated - open the document above for the full version.

7.THEORY OF OPERATION Circuit Compositions and Operation Theory The basic explanation for the circuit composition the two board controlling the analog circuit parts and the digital circuit parts. Receiver Transmission parts are composed in the double conversion system, which has the 1st IF Frequency of 21.7 MHz and 2nd IF Frequency of 450 kHz. With the saw filter, which has an excellent band characteristic and sharp characteristic, the 2 poles MCF used in the 1st IF, and the sensitivity repression is reduced for the more stable reception. RF Frontend The signal received by the antenna will be transmitted to the band pass filter through the antenna switching circuit consisted of LT6,LT7, CT24, CT25 and CT23. The front RF amplifier transistor QR1 consists of the saw filter and input/output band pass filter. Saw filter has the bandwidth of approximately 4 MHz, primarily diminishes the other signal rather then the 1st IF image and other signal within the reception band and amplifies only the necessary signal within the RF. 1st Mixer The receiver signal which has been amplified in the RF fronted is provided to the base of the 1st mixer QR2. The 1st L/O signal provide from the VCO is supplied to the emitter of QR2 and converted to the 1st IF 21.7 MHz. 1st IF Filter and 1st IF Amplifier The signal coverted by QR2 to 21.7 MHz, the 1st frequency, change its impedance through CR14, LR5 and then is infused to the fundamental MCF which has the center frequency of 21.7 MHz and the width of +/-3.75 kHz. Here, the signal reduces the image and other unwanted signal for the 2nd IF. Then the signal is infused to the IC11. The IC11 which functions as the 2nd mixer, the 2nd IF amplifier, and the FM detector,RSSI,PREMIC,compander,PLL circuit. 2nd Mixer, and IF, FM Detector The receiver IF signal of 21.7 MHz, which has been infused to IC11 is mixed with the 2nd L/O signal of 21.250MHz, and converted to 450 kHz, the 2nd IF frequency. The receiver signal converted to the 2nd IF frequency passed through the CF2, the ceramic filter of 450 kHz again. After the limiting inside the IC11 and the FM demodulating by the quadrature detector inside the IC11, the signal offers the output through the 21th pin of IC11. The 2nd L/O signal of 21.250MHz, which infused to the IC11 filters and uses directly the crystal of 21.250 MHz. The squelch circuit is composed to detect the noised from the received signal demodulate in the 31th pin of the IC11. For this purpose, the noise filter is using the OP amplifier inside the IC11. Transmitter The transmission parts of the PR-350 are designed to amplify the RF signal oscillated and modulated by the synthesizer to approximately 1(0.5) W by the power transistor of QT3. TX Power (QT3) The transmitted signal of approximately 1(0.5)W, combined at the driver TR is supplied to the base of the QT3 amplifier. The transmitted signal amplified to 1W here passes the TX LPF of the 2nd characteristic of the LT4 and the LT5, and RX/TX switching takes place by the DT2. After this, the signal is provided to the antenna the TX LPF of the 1st characteristics, consisted of the LT6. Frequency Synthesizer Voltage Control Oscillator (VCO) The VCO of oscillates 462.5625 MHz to 462.7250 MHz under the transmission condition and 440.8620 MHz to 441.025 MHz under the reception condition. The VCO consists of the clip oscillator of the QV2, and contains the oscillator frequency of approximately 21.7MHz during the transmission/reception conversion. That is since the VCO should oscillate relatively low frequency during reception compared to transmission, the DV2 is directly biased by the QV2. Therefore as a result, the CV6 is added in parallel to the resonance circuit of the VCO to oscillate a low frequency. During transmission, a relatively high frequency should be oscillating compared to reception. Therefore, the DV2 is adversely biased by the QV1, and as a result, the CV6, which is added unparallel to the circuit of the VCO is removed to oscillate the desired transmission frequency. The IC11 PLL IC controls the VCO in order to oscillate the accurate frequency. The output frequency of the VCO is supplied to the 44 th pin of IC11. At the IC11, TCXO(21.250MHz) by the TCXO-1 is compared to the output frequency of the VCO. The VCO is controlled the loop filter consisted of the RL4, RL5,RL6, and the CL5, CL4, in order to oscillate the stable frequency wanted for the radio. The VCO controlled voltage which has passed the loop filter is supplies to the DV1 varactor diode, and the VCO an oscillate the PLL programmed frequency by the capacity variation in the DV1. In addition, the LV1 on the VCO circuit function as frequency for the VCO to be properly controlled. RX/TX Buffer Amplifier (QF1) The RF signal oscillate at the VCO is provide to the QF1 RX 1st mixer through the QF1 during the reception, and is provide to the QT2 power driver amplifier through the QT3 during the transmission. PLL Frequency Synthesizer (IN 6311) The PLL synthesizer of the signal loop PLL circuit with the reference of 6.25 kHz. The IC11 includes all the function such as the reference oscillator, the driver, the phase detector, the lock detector, and the programmable divider. At the reference oscillator, the 21.250 MHz TCXO of the TCXO is connected to the pin 52,53 of the IC11 to oscillate the frequency of 21.250MHz. The TCXO (21.250MHz) is the temperature compensation circuit to maintain the frequency within the allowable error range even under a low temperature of -20 . The phase detector sends out the output power to the loop filter through 44 pin of the IC11. IF the oscillation frequency of the VCO is low compared to the referenced frequency, the phase detector sends out the output power in positive pulse. If the oscillation frequency of the VCO is high, phase detector send out can maintain the frequency set. The programmable divider maintains the desired frequency with control from the CPU. The dividing ratio, "N" to oscillate the desired frequ…

Text truncated - open the document above for the full version.

7.THEORY OF OPERATION Circuit Compositions and Operation Theory The basic explanation for the circuit composition the two board controlling the analog circuit parts and the digital circuit parts. Receiver Transmission parts are composed in the double conversion system, which has the 1st IF Frequency of 21.7 MHz and 2nd IF Frequency of 450 kHz. With the saw filter, which has an excellent band characteristic and sharp characteristic, the 2 poles MCF used in the 1st IF, and the sensitivity repression is reduced for the more stable reception. RF Frontend The signal received by the antenna will be transmitted to the band pass filter through the antenna switching circuit consisted of LT6,LT7, CT24, CT25 and CT23. The front RF amplifier transistor QR1 consists of the saw filter and input/output band pass filter. Saw filter has the bandwidth of approximately 4 MHz, primarily diminishes the other signal rather then the 1st IF image and other signal within the reception band and amplifies only the necessary signal within the RF. 1st Mixer The receiver signal which has been amplified in the RF fronted is provided to the base of the 1st mixer QR2. The 1st L/O signal provide from the VCO is supplied to the emitter of QR2 and converted to the 1st IF 21.7 MHz. 1st IF Filter and 1st IF Amplifier The signal coverted by QR2 to 21.7 MHz, the 1st frequency, change its impedance through CR14, LR5 and then is infused to the fundamental MCF which has the center frequency of 21.7 MHz and the width of +/-3.75 kHz. Here, the signal reduces the image and other unwanted signal for the 2nd IF. Then the signal is infused to the IC11. The IC11 which functions as the 2nd mixer, the 2nd IF amplifier, and the FM detector,RSSI,PREMIC,compander,PLL circuit. 2nd Mixer, and IF, FM Detector The receiver IF signal of 21.7 MHz, which has been infused to IC11 is mixed with the 2nd L/O signal of 21.250MHz, and converted to 450 kHz, the 2nd IF frequency. The receiver signal converted to the 2nd IF frequency passed through the CF2, the ceramic filter of 450 kHz again. After the limiting inside the IC11 and the FM demodulating by the quadrature detector inside the IC11, the signal offers the output through the 21th pin of IC11. The 2nd L/O signal of 21.250MHz, which infused to the IC11 filters and uses directly the crystal of 21.250 MHz. The squelch circuit is composed to detect the noised from the received signal demodulate in the 31th pin of the IC11. For this purpose, the noise filter is using the OP amplifier inside the IC11. Transmitter The transmission parts of the PR-350 are designed to amplify the RF signal oscillated and modulated by the synthesizer to approximately 1(0.5) W by the power transistor of QT3. TX Power (QT3) The transmitted signal of approximately 1(0.5)W, combined at the driver TR is supplied to the base of the QT3 amplifier. The transmitted signal amplified to 1W here passes the TX LPF of the 2nd characteristic of the LT4 and the LT5, and RX/TX switching takes place by the DT2. After this, the signal is provided to the antenna the TX LPF of the 1st characteristics, consisted of the LT6. Frequency Synthesizer Voltage Control Oscillator (VCO) The VCO of oscillates 462.5625 MHz to 462.7250 MHz under the transmission condition and 440.8620 MHz to 441.025 MHz under the reception condition. The VCO consists of the clip oscillator of the QV2, and contains the oscillator frequency of approximately 21.7MHz during the transmission/reception conversion. That is since the VCO should oscillate relatively low frequency during reception compared to transmission, the DV2 is directly biased by the QV2. Therefore as a result, the CV6 is added in parallel to the resonance circuit of the VCO to oscillate a low frequency. During transmission, a relatively high frequency should be oscillating compared to reception. Therefore, the DV2 is adversely biased by the QV1, and as a result, the CV6, which is added unparallel to the circuit of the VCO is removed to oscillate the desired transmission frequency. The IC11 PLL IC controls the VCO in order to oscillate the accurate frequency. The output frequency of the VCO is supplied to the 44 th pin of IC11. At the IC11, TCXO(21.250MHz) by the TCXO-1 is compared to the output frequency of the VCO. The VCO is controlled the loop filter consisted of the RL4, RL5,RL6, and the CL5, CL4, in order to oscillate the stable frequency wanted for the radio. The VCO controlled voltage which has passed the loop filter is supplies to the DV1 varactor diode, and the VCO an oscillate the PLL programmed frequency by the capacity variation in the DV1. In addition, the LV1 on the VCO circuit function as frequency for the VCO to be properly controlled. RX/TX Buffer Amplifier (QF1) The RF signal oscillate at the VCO is provide to the QF1 RX 1st mixer through the QF1 during the reception, and is provide to the QT2 power driver amplifier through the QT3 during the transmission. PLL Frequency Synthesizer (IN 6311) The PLL synthesizer of the signal loop PLL circuit with the reference of 6.25 kHz. The IC11 includes all the function such as the reference oscillator, the driver, the phase detector, the lock detector, and the programmable divider. At the reference oscillator, the 21.250 MHz TCXO of the TCXO is connected to the pin 52,53 of the IC11 to oscillate the frequency of 21.250MHz. The TCXO (21.250MHz) is the temperature compensation circuit to maintain the frequency within the allowable error range even under a low temperature of -20 . The phase detector sends out the output power to the loop filter through 44 pin of the IC11. IF the oscillation frequency of the VCO is low compared to the referenced frequency, the phase detector sends out the output power in positive pulse. If the oscillation frequency of the VCO is high, phase detector send out can maintain the frequency set. The programmable divider maintains the desired frequency with control from the CPU. The dividing ratio, "N" to oscillate the desired frequ…

Text truncated - open the document above for the full version.

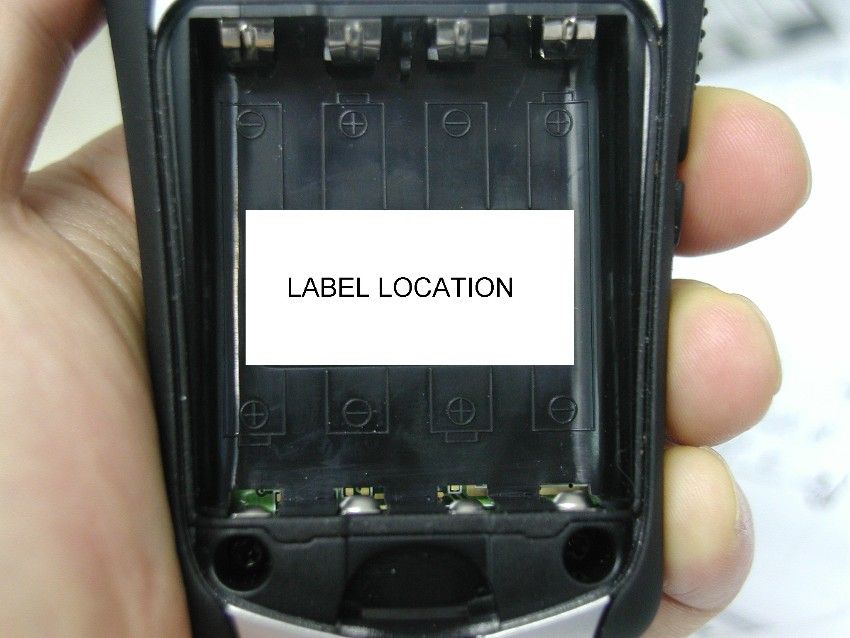

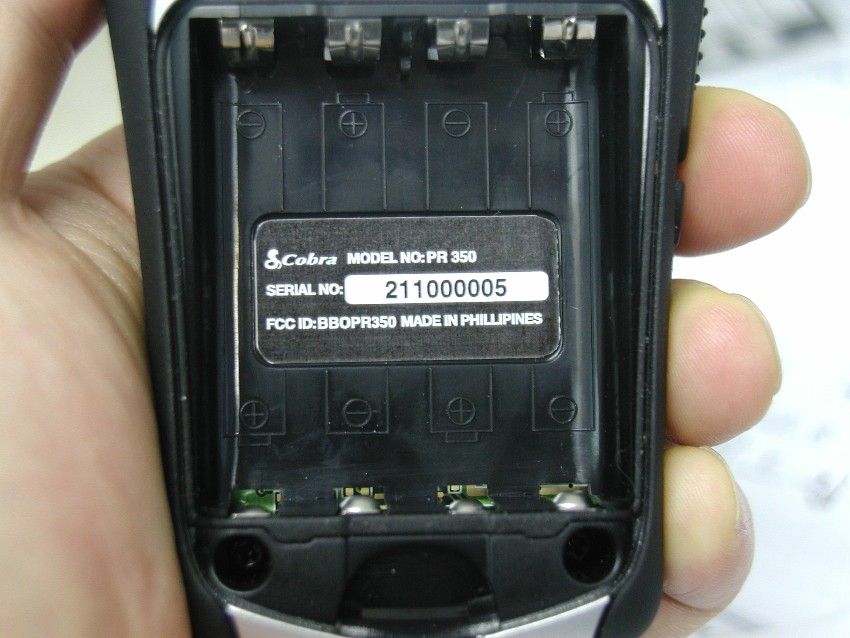

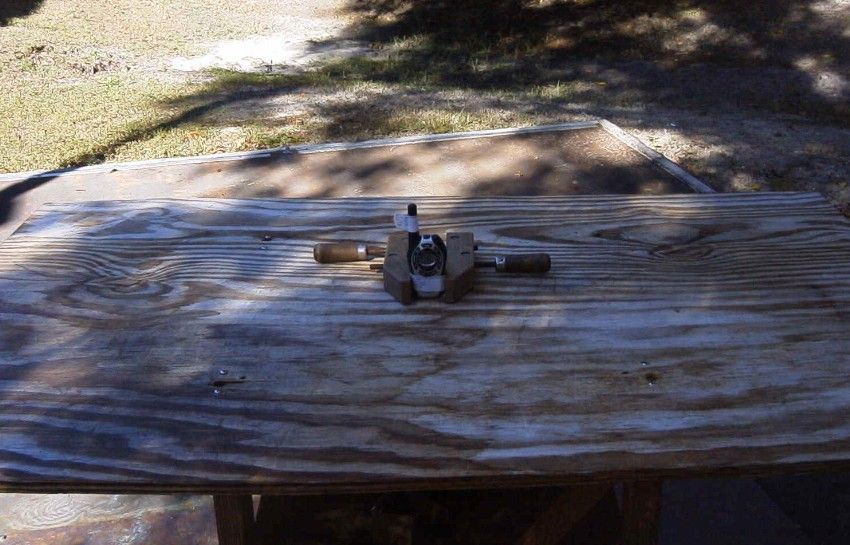

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......AUDIO FREQUENCY RESPONSE & PLOT AND AUDIO INPUT VS MODULATION PAGE 4......MODULATION LIMITING GRAPHS – 300Hz, 1000 Hz PAGE 5......MODULATION LIMITING GRAPH – 2500Hz PAGE 6......AUDIO LOW PASS FILTER GRAPH PAGE 7......OCCUPIED BANDWIDTH PAGE 8......OCCUPIED BANDWIDTH PLOT PAGE 9......OCCUPIED BANDWIDTH PLOT - CW PAGE 10.....SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 11.....UNWANTED RADIATION – GMRS PAGE 12.....UNWANTED RADIATION - FRS PAGE 13.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 14.....FREQUENCY STABILITY PAGE 15-17..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TUNING PROCEDURE EXHIBIT 10........PARTS LIST EXHIBIT 11........TEST SET UP PHOTO APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 1 of 17 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR350 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 9K0F3E 95.631 Bn = 2M + 2DK M = 2000 D = 2.5K Bn = 2(2000)+2(2500) = 9.0K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5 kHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS - .5 Watts FRS - .2 Watts APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 2 of 17 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. Power will automatically switch for 95.649 GMRS or FRS operation. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(.322A) = 1.932 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(.340A) = 2.04Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 3 of 17 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. Cobra Electronics Corp. PR-350 -57 -52 -47 -42 -37 -32 -27 -22 100100010000 Frequency dBmV audio response 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Pages 4 and 5 of report. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 4 of 17 MODULATION LIMITING PLOT – 300 Hz Cobra Electronics Corp. PR-350 0 500 1000 1500 2000 2500 3000 -49-39-29-19 dBmV Deviation 300 Hz MODULATION LIMITING PLOT – 1000 Hz Modulation Limiting Cobra Electronics Corp. PR-350 0 500 1000 1500 2000 2500 -65-55-45-35-25 dBmV Deviation 1000 Hz APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 5 of 17 MODULATION LIMITING PLOT – 2500 Hz Modulation Limiting Cobra Electronics Corp. PR-350 0 500 1000 1500 2000 -65-55-45-35-25 dBmV Deviation 2500 Hz APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR350 REPORT #: T:\C\COBRA\1165ZUT2\1165zut2TestReport.doc Page 6 of 17 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with …

Text truncated - open the document above for the full version.

Test Report S/N: 111402-315BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 Rule Part(s):FCC 47 CFR §2.1093 Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) Device Type:Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID:BBOPR350 Model(s):PR-350 Modulation:FM (UHF) Tx Frequency Range(s):462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested: 1.0 Watt Conducted (GMRS) No. of Channels:22 Antenna Type(s):Fixed Battery Type(s):1.5V AAA Alkaline (x4) Body-Worn Accessories:Belt-Clip, Lapel Ear-Microphone Max. SAR Measured:0.641 W/kg - Face-held (100% duty cycle) 0.976 W/kg - Body-worn (100% duty cycle) Test Report S/N: 111402-315BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6-7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0SIMULATED TISSUES............................................................. 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0LARGE PLANAR PHANTOM..................................................... 11 14.0DEVICE HOLDER.................................................................... 11 15.0TEST EQUIPMENT LIST........................................................... 12 16.0MEASUREMENT UNCERTAINTIES............................................ 13 17.0REFERENCES.......................................................................14 APPENDIX A - SAR MEASUREMENT DATA.............................................15 APPENDIX B - SYSTEM CHECK DATA....................................................16 APPENDIX C - SYSTEM VALIDATION.....................................................17 APPENDIX D - PROBE CALIBRATION....................................................18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............20 APPENDIX G - SAR TEST SETUP & DUT PHOTOGRAPHS........................21 Test Report S/N: 111402-315BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOPR350 (Model: PR-350)3 of 21 Portable UHF GMRS/FRS PTT Radio Transceiver (462.5500-467.7125MHz) 1.0 INTRODUCTION This measurement report demonstrates compliance of the Cobra Electronics Corporation Model: PR-350 Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID: BBOPR350 with the rules and requirements of FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Device Under Test (DUT) Rule Part(s)FCC 47 CFR §2.1093 Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) Device TypePortable UHF GMRS/FRS PTT Radio Transceiver FCC IDBBOPR350 Model(s)PR-350 Serial No.Pre-production ModulationFM (UHF) Tx Frequency Range 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested1.0 Watt Conducted (GMRS) Battery Type(s)1.5V AAA Alkaline (x4) Antenna Type(s)Fixed Body-Worn Accessories Tested Belt-Clip Lapel Ear-Microphone Test Report S/N: 111402-315BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOPR350 (Model: PR-350)4 of 21 Portable UHF GMRS/FRS PTT Radio Transceiver (462.5500-467.7125MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility util…

Text truncated - open the document above for the full version.
